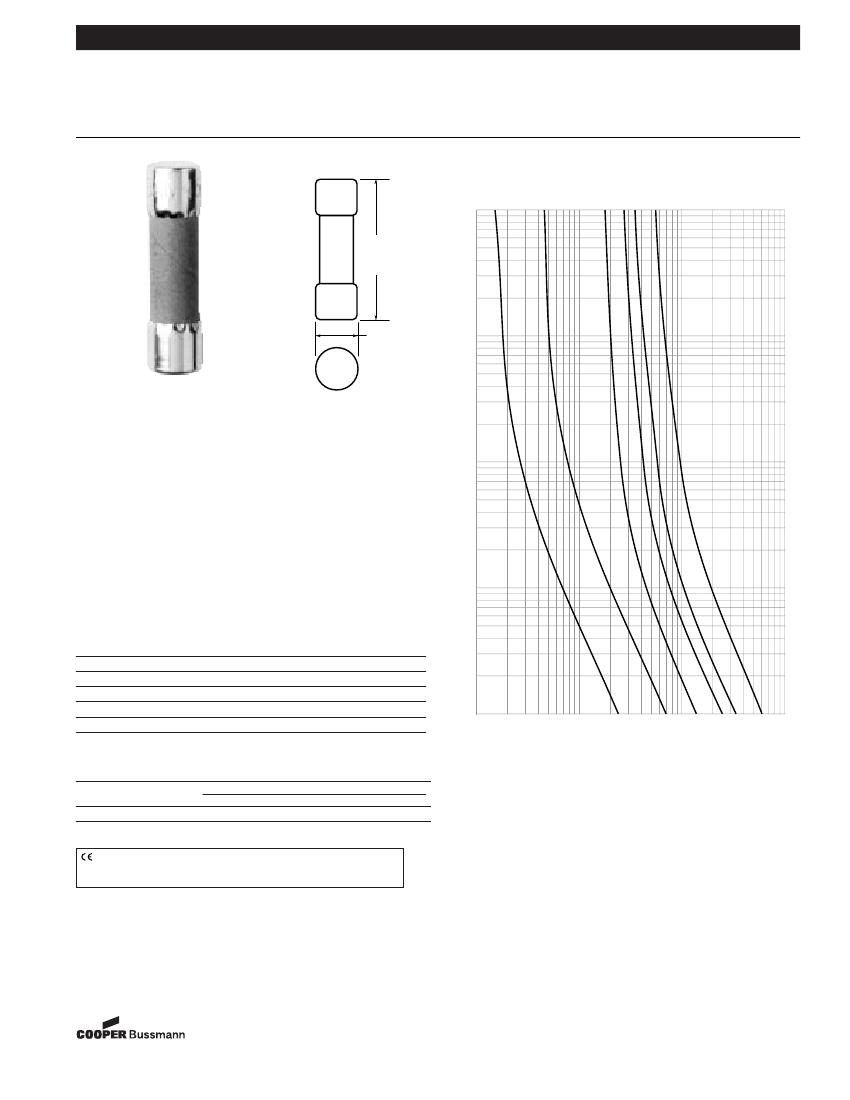

Bussmann
®
Ferrule Type, Fast-Acting Fuses
For 13/32∑ x 1-1/2∑ (10.3mm x 38.1mm)
Dimensional Data
BAN
Time-Current Characteristic Curves–Average Melt
(Full Size Curves Available)
10
15
20
100
1.5"
(±0.031)
(38.1mm)
0.41"
(±0.004)
(10.3mm)
10
CATALOG SYMBOL: BAN
13/32” x 1-1/2” (10.3mm x 38.1mm) 5AG
FERRULE TYPE, FAST-ACTING
1-30A
250 VAC
INTERRUPTING RATING:
35A (0-1A), 100A (1-1/2-3A), 200A (4-8A),
750A (10-15A), 10 KA (20-30A)
BODY MATERIAL:
FIBRE TUBE
FERRULE MATERIAL:
BRONZE
FERRULE PLATING:
NICKEL
• Fibre; formerly 5AB.
• Mounts in Buss BM series fuseblocks.
Electrical Ratings (Catalog Symbol and Amperes)
250 Volts AC
BAN-1
BAN-2
BAN-3
BAN-4
BAN-5
BAN-6
BAN-7
BAN-8
BAN-10
BAN-12
BAN-15
BAN-20
BAN-25
BAN-30
—
—
TIME IN SECONDS
1
.1
RMS SYMMETRICAL CURRENT IN AMPERES
Carton Quantity and Weight
Ampere
Ratings
1-30
Carton
Qty
100
Weight*
Lbs.
1.4
Kg.
635
*Weight per carton.
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000 VAC, 75-1500 VDC). Refer to BIF document #8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
The only controlled copy of this BIF document is the electronic read-only version located on the Bussmann Network Drive. All other copies of this BIF document are by definition uncontrolled. This bulletin is intended to
clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any
products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been select-
ed, it should be tested by the user in all possible applications.
2-21-00
N99130
Rev. A
Form No. BAN
Page 1 of 1
BIF Doc #2046
1,000
1
10
100
.01
30
1
3
AMPERE
RATING
