7502-1582-110: DescriptionRF Connector, Male, Panel Mount, Cable Mount, Solder Terminal; CategoryThe connector The connector; File Size96KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric Compare View All

7502-1582-110 Overview

RF Connector, Male, Panel Mount, Cable Mount, Solder Terminal

7502-1582-110 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	CAPTIVE CONTACT
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.76 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	40 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

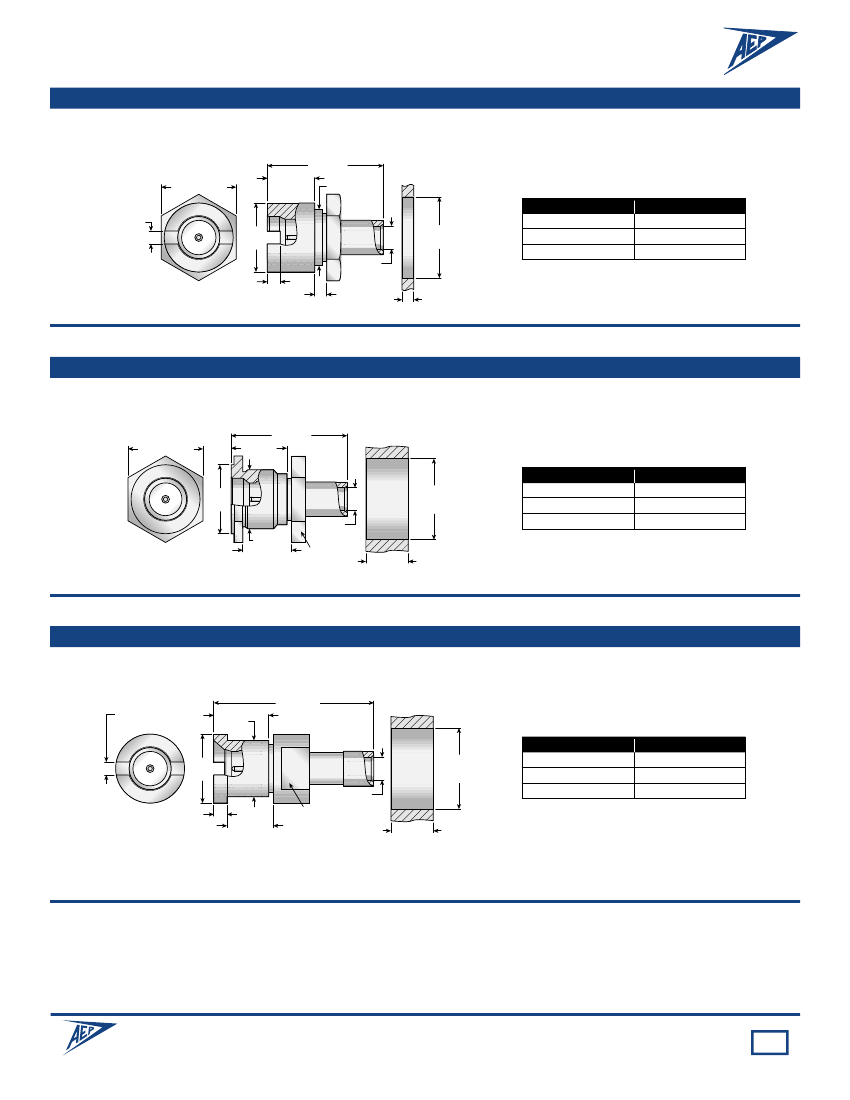

SMP Cable Connectors

Straight Male Cable Connector

(Direct Solder for Semi-Rigid Cable)

Captive Contact, for .086" semi-rigid / .040" thick panel

.388 (9.9)

.158 (4.0)

ø.184 (4.7)

Panel

Drilling

.250 (6.4) hex

Slot .043

(1.1) wide

ø.230

(5.8)

ø.187

±.001

(4.75

±.03)

ø.089

(2.3)

.040

±.001

(1.02

±.03)

Detent Type

Full Detent

Limited Detent

Smooth Bore

AEP P/N

7503-1582-010

7506-1582-010

7502-1582-010

.040 (1.0)

.040 (1.0) panel

Body material: Beryllium copper

Straight Male Cable Connector

(Direct Solder for Semi-Rigid Cable)

Captive Contact, for .086" semi-rigid / .150" thick panel

.390 (9.9)

.190 (4.8)

Panel

Drilling

.250 (6.4) hex

ø.195

(5.0)

~

ø.199 (5.1)

ø.200

+.001

-.000

+.03

5.08

-.00

(

)

.150 (3.8) panel

ø.089

(2.3)

.250

(6.4) hex

Detent Type

Full Detent

Limited Detent

Smooth Bore

AEP P/N

7503-1582-110

7506-1582-110

7502-1582-110

Body material: Beryllium copper

.150

±.001

(3.81

±.03)

Straight Male Cable Connector

(Catcher’s Mitt* Direct Solder for Semi-Rigid Cable)

Non-Captive Contact, for .086" semi-rigid / .150" thick panel

.562 (14.3)

.187 (4.7)

Panel

Drilling

Slot .043

(1.1) wide

ø.230

(5.8)

ø.199

(5.1)

~

ø.200

+.001

-.000

+.03

5.08

-.00

(

)

.048 (1.2)

.150 (3.8) panel

.188 (4.8)

wrench flat

ø.089

(2.3)

.150

±.001

(3.81

±.03)

Detent Type

Full Detent

Limited Detent

Smooth Bore

AEP P/N

7503-1083-010

7506-1083-010

7502-1083-010

Body material: Stainless Steel

*The “Catcher's Mitt” conﬁguration features a wider-than-standard ﬂare at the mating end, increasing its ability

to “capture” a misaligned mating connector and guide it to center for proper mating.

These panel connectors have two-piece bodies; after the rear assembly is inserted through the panel, the front

shroud is assembled and tightened with a screwdriver or wrench.

Cable assembly instructions are shipped with each connector.

APPLIED ENGINEERING PRODUCTS

(203) 776-2813 • FAX (203) 776-8294 •

www.aep.us

8

7502-1582-110 Related Products

	7502-1582-110	7503-1083-010	7506-1582-110
Description	RF Connector, Male, Panel Mount, Cable Mount, Solder Terminal	RF Connector, Male, Panel Mount, Cable Mount, Solder Terminal	RF Connector, Male, Panel Mount, Cable Mount, Solder Terminal
Reach Compliance Code	unknow	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Characteristic impedance	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE
Coupling type	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
Insertion loss	0.76 dB	0.76 dB	0.76 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4
MIL compliance	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE
Maximum operating frequency	40 GHz	40 GHz	40 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES
Termination type	SOLDER	SOLDER	SOLDER
voltage standing wave ratio	1.35	1.35	1.35
Other features	CAPTIVE CONTACT	-	CAPTIVE CONTACT
Maker	-	Radiall	Radiall
