LM3302N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LM3302N

LM3302N: DescriptionComparator, 4 Func, 40000uV Offset-Max, 1400ns Response Time, BIPolar, PDIP14, DIP-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size92KB，3 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/; Related ProductsFound19parts with similar functions to LM3302N

Download Datasheet Parametric Compare View All

LM3302N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LM3302N	-	-	View	Buy Now

LM3302N Overview

Comparator, 4 Func, 40000uV Offset-Max, 1400ns Response Time, BIPolar, PDIP14, DIP-14

LM3302N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SAMSUNG
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	1 µA
Maximum bias current (IIB) at 25C	0.5 µA
Maximum input offset voltage	40000 µV
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
length	19.4 mm
Negative supply voltage upper limit
Nominal Negative Supply Voltage (Vsup)
Number of functions	4
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output type	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15 V
Certification status	Not Qualified
Nominal response time	1400 ns
Maximum seat height	4.31 mm
Maximum slew rate	2 mA
Supply voltage upper limit	36 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

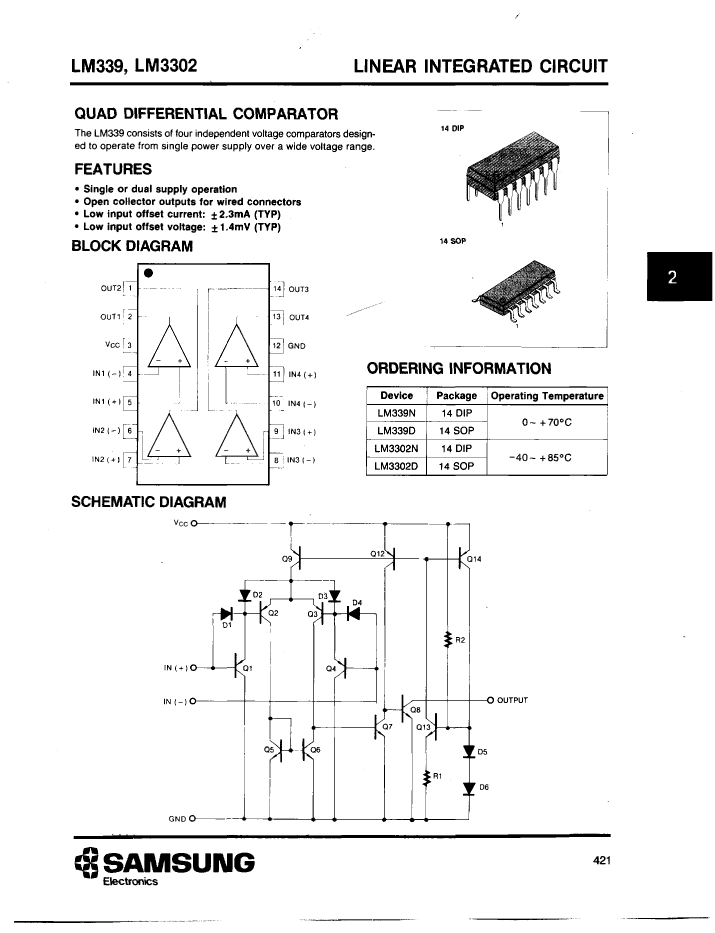

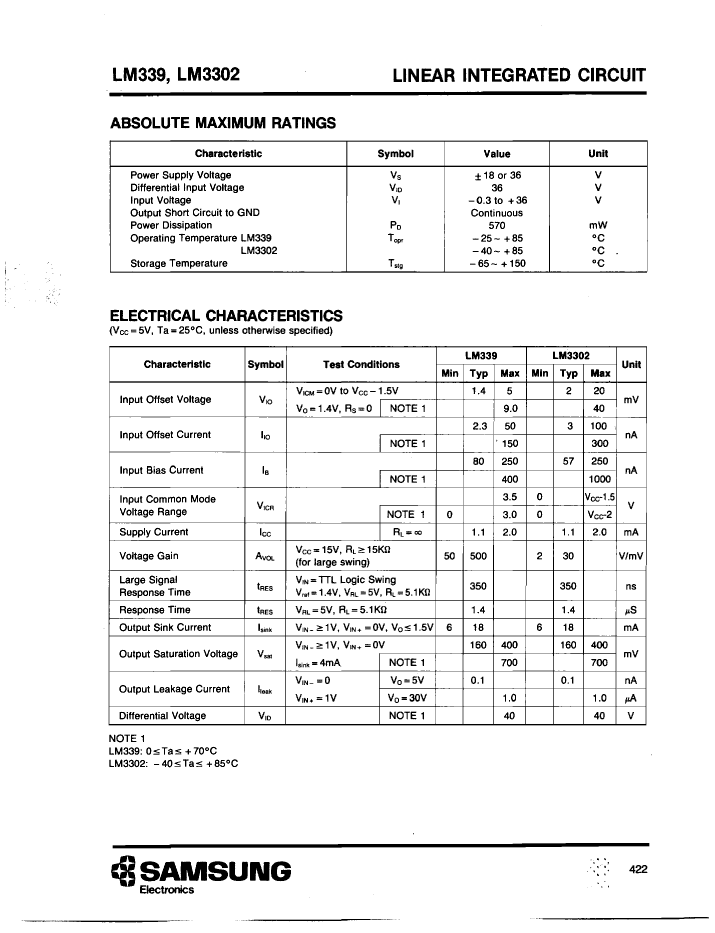

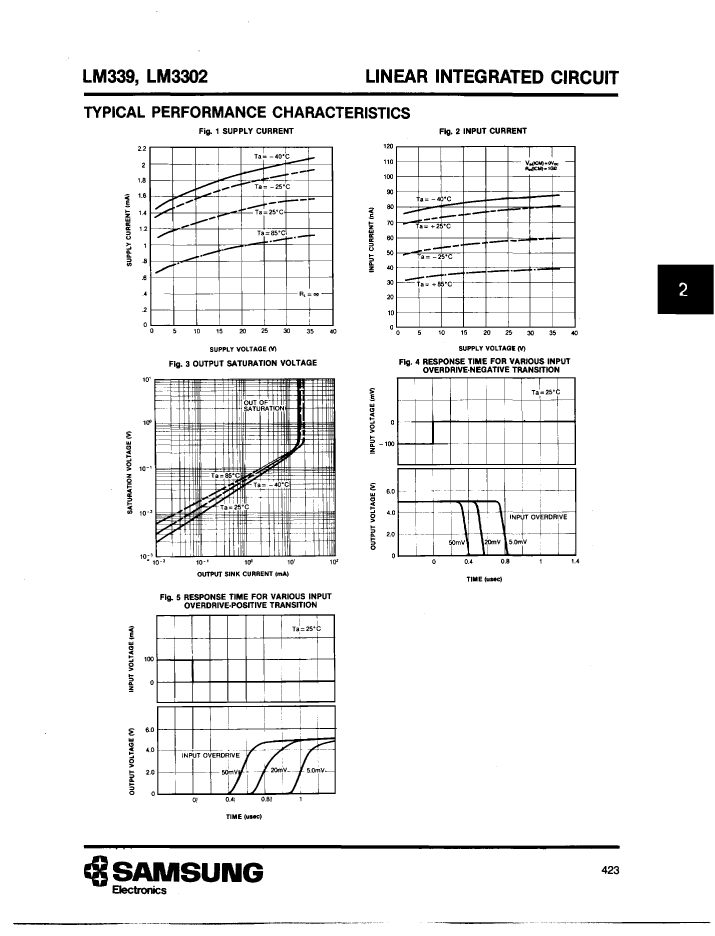

Preview

Download Datasheet

View All

LM3302N Related Products

	LM3302N	LM339D	LM3302D
Description	Comparator, 4 Func, 40000uV Offset-Max, 1400ns Response Time, BIPolar, PDIP14, DIP-14	Comparator, 4 Func, 9000uV Offset-Max, 1400ns Response Time, BIPolar, PDSO14, SOP-14	Comparator, 4 Func, 40000uV Offset-Max, 1400ns Response Time, BIPolar, PDSO14, SOP-14
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	SAMSUNG	SAMSUNG	SAMSUNG
Parts packaging code	DIP	SOIC	SOIC
package instruction	DIP, DIP14,.3	SOP, SOP14,.25	SOP, SOP14,.25
Contacts	14	14	14
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Amplifier type	COMPARATOR	-	COMPARATOR
Maximum average bias current (IIB)	1 µA	-	1 µA
Maximum bias current (IIB) at 25C	0.5 µA	-	0.25 µA
Maximum input offset voltage	40000 µV	-	40000 µV
JESD-30 code	R-PDIP-T14	-	R-PDSO-G14
JESD-609 code	e0	-	e0
length	19.4 mm	-	9.98 mm
Number of functions	4	-	4
Number of terminals	14	-	14
Maximum operating temperature	85 °C	-	85 °C
Minimum operating temperature	-40 °C	-	-40 °C
Output type	OPEN-COLLECTOR	-	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	DIP	-	SOP
Encapsulate equivalent code	DIP14,.3	-	SOP14,.25
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	IN-LINE	-	SMALL OUTLINE
power supply	5/15 V	-	5/15 V
Certification status	Not Qualified	-	Not Qualified
Nominal response time	1400 ns	-	1400 ns
Maximum seat height	4.31 mm	-	1.73 mm
Maximum slew rate	2 mA	-	2 mA
Supply voltage upper limit	36 V	-	36 V
Nominal supply voltage (Vsup)	5 V	-	5 V
surface mount	NO	-	YES
technology	BIPOLAR	-	BIPOLAR
Temperature level	INDUSTRIAL	-	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	-	GULL WING
Terminal pitch	2.54 mm	-	1.27 mm
Terminal location	DUAL	-	DUAL
width	7.62 mm	-	4.495 mm
