5500.207: DescriptionAC FILTER 1-PHASE 16A 250V; CategoryAnalog mixed-signal IC filter; File Size455KB，3 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric View All

5500.207 Overview

AC FILTER 1-PHASE 16A 250V

5500.207 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE
Reach Compliance Code	compli
Other features	INDUCTANCE 3.5 MILLIHENRY; INDUSTRIAL VERSION
Certification	UL; CUL; VDE; ENEC-10
filter type	SINGLE PHASE EMI FILTER
high	61 mm
high potential	2700 V
Maximum leakage current	3.5 mA
length	181 mm
Installation type	PANEL MOUNT
working frequency	50Hz Hz
Maximum operating temperature	100 °C
Minimum operating temperature	-25 °C
physical size	L181.0XB86.0XH61.0 (mm)/L7.126XB3.386XH2.402 (inch)
Rated current	16 A
Rated voltage	250 V
width	86 mm
Base Number Matches	1

Preview

Download Datasheet

View All

-Phase Line Filters

www.schurter.com/pg06_

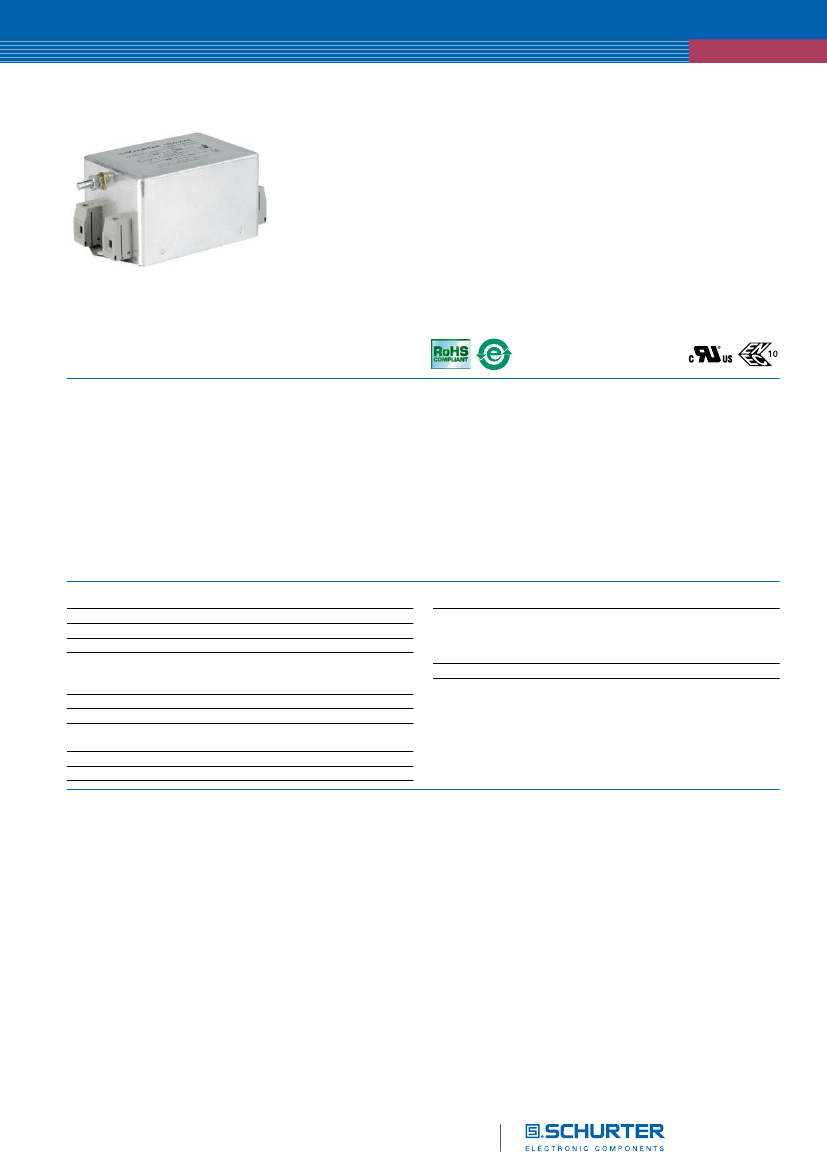

AC Filter 2-Stage, Broad Band Attenuation

FMBB

Description

- Chassis:

Screw-on mounting, from top

- Line-filter in standard version, 2 positions, very high attenuation

- High symmetrical and asymmetrical attenuation in the frequency range

from 10kHz up to 30MHz

Approvals

- VDE Certificate Number: 40004673

- UL File Number: E72928

- Designed for high current applications

- Protection against interference voltage from the mains

Possible interferences generated in the equipment are strongly attenu-

ated

- Especially designed for industrial applications such as: Frequency Con-

verters, Stepper Motor Drives, UPS-Systems, Inverters

- Qualified for use in equipment according IEC/EN 60950

Characteristics

Other versions on request

- Version with wire connection

pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,

Mating Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-

Stock-Check, Accessories

Weblinks

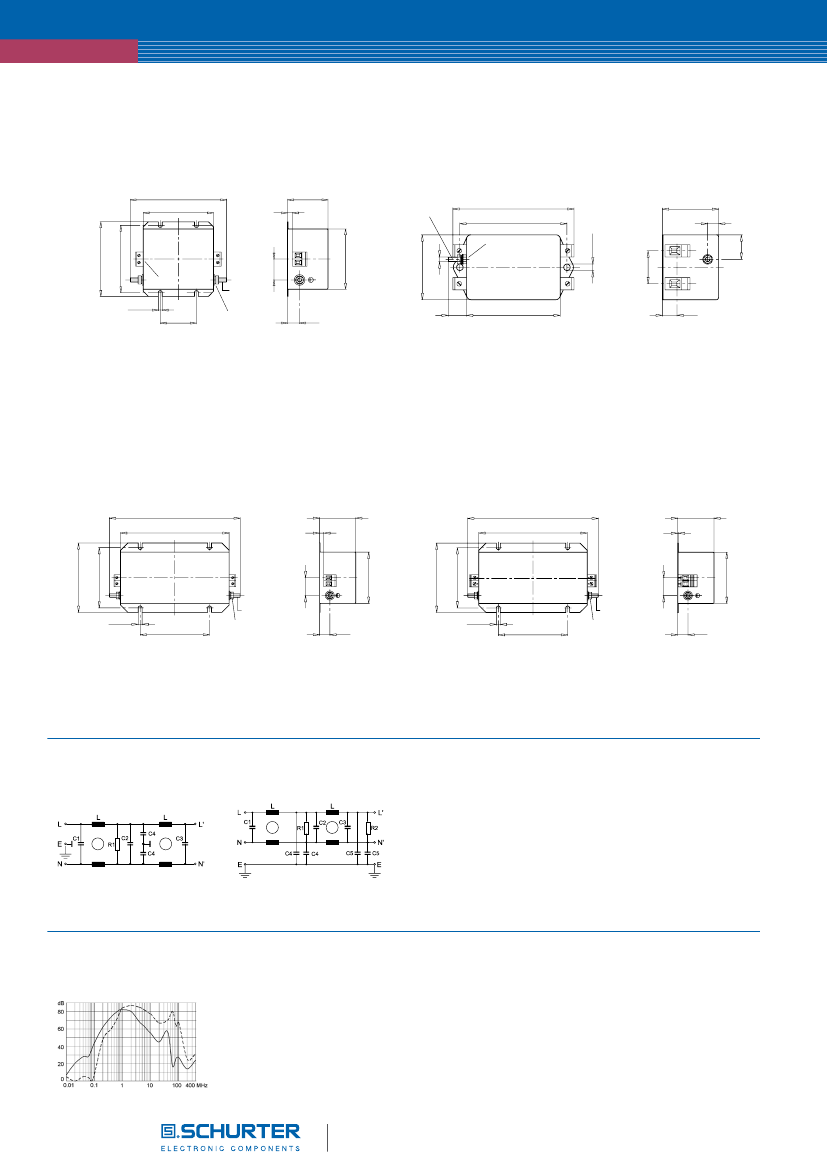

Technical Data

Ratings IEC

Ratings UL/CSA

Leakage Current

Dielectric Strength

8 - 25 A @ Ta 40 °C / 250 VAC; 50 Hz

8 - 25 A @ Ta 40 °C / 125 VAC; 60 Hz

industrial < 3.5 mA ( V / 60 Hz)

> 1.7 kVDC between L-N

> 2.7 kVDC between L/N-PE

Test voltage (2 sec)

-25 °C to 100 °C

25/100/21 acc. to IEC 60068-1

Suitable for appliances with protection

class 1 acc. to IEC 61140

Screw

Metal

Line Filter

Standard and Industrial Version, IEC

60939, IEC 60601-1, UL 1283, UL 544,

EN 133 200, CSA C22.2 no. 8

Technical Details

> 200'000 h acc. to MIL-HB-217 F

MTBF

Allowable Operation Temp.

Climatic Category

Protection Class

Terminal

Material: Housing

Connectors

Recommended Resources

Automobile oil level detection and alarm circuit

Gain 100 amplifier

Circuit using LM3911 for temperature-current conversion

Temperature regulating circuit using platinum measuring sensor

Photoelectric isolation fast switching circuit
