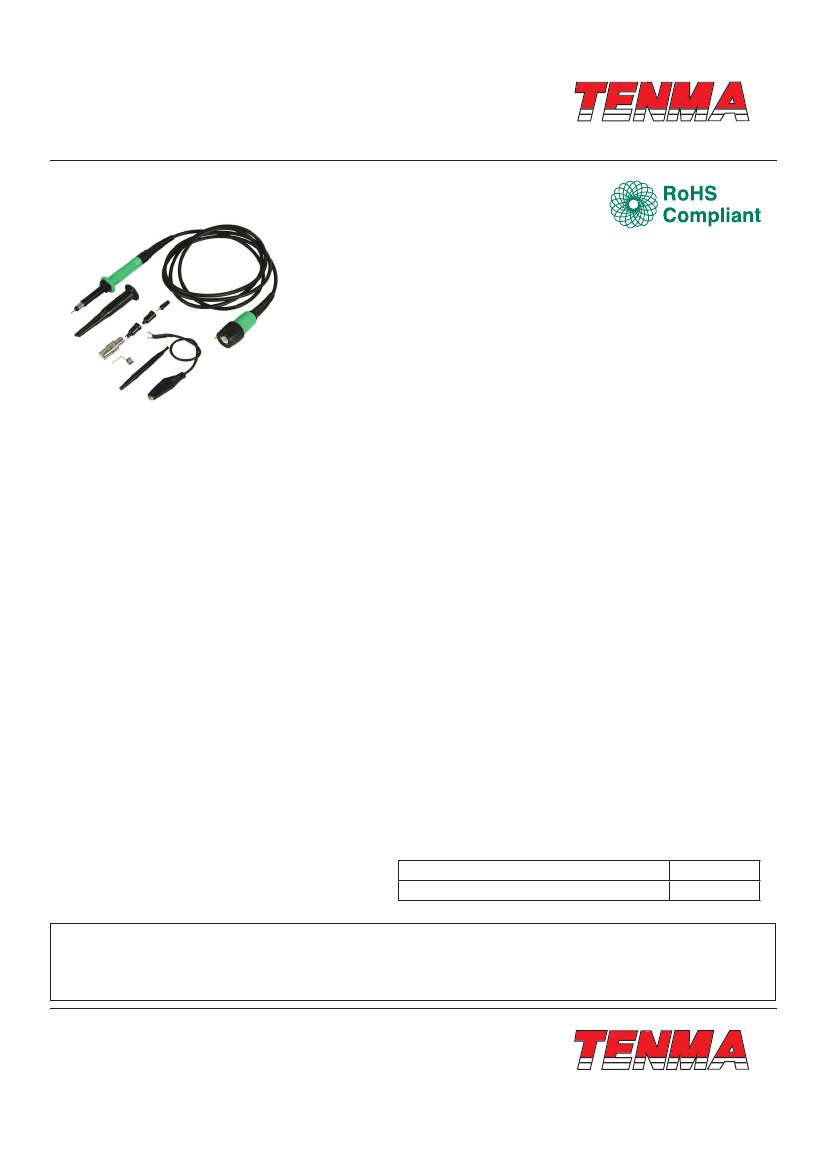

Passive Oscilloscope Probe
250MHz
TM
Product Details:
General purpose series 250 MHz, 10x fixed attenuation oscilloscope probe.
Probe features a readout actuator pin (sense pin) on the BNC connector.
Features:
•
•
•
•
•
•
•
250 MHz (-3 dB) bandwidth
High impedance input (10 MΩ/14 pF)
10−35 pF compensation range
Snap-Locking Sprung Hook
Easily replaceable tip
Large accessory set
Meets IEC 61010-031
Accessories included: 15 cm Ground Lead, Replacement Tip, Black Snap-on Sprung Hook, Tip Insulator, IC Tip,
BNC Adapter, Probe Tip Ground, Trimmer Tool & Identifier Rings.
The High Performance family is a high quality, general purpose set of 5mm Passive Voltage Oscilloscope probes. They
are excellent replacement probes for all makes and models of oscilloscopes.
Specifications
Type
Attenuation
Input Impedance
Input Capacitance
Output Impedance
Risetime
IEC Rating
Cable Length
Readout Actuator
Operating Temperature
Humidity
: 5mm Passive Voltage
: 10x
: 10MΩ
: 14pF
: 1MΩ
: 1.4 ns
: 300 V CAT II
: 1.2m
: Yes
: 0°C to +50° C
: 85% RH or less (at 35° C)
Part Number Table
Description
250MHz Passive Oscilloscope Probe
Part Number
76-107
