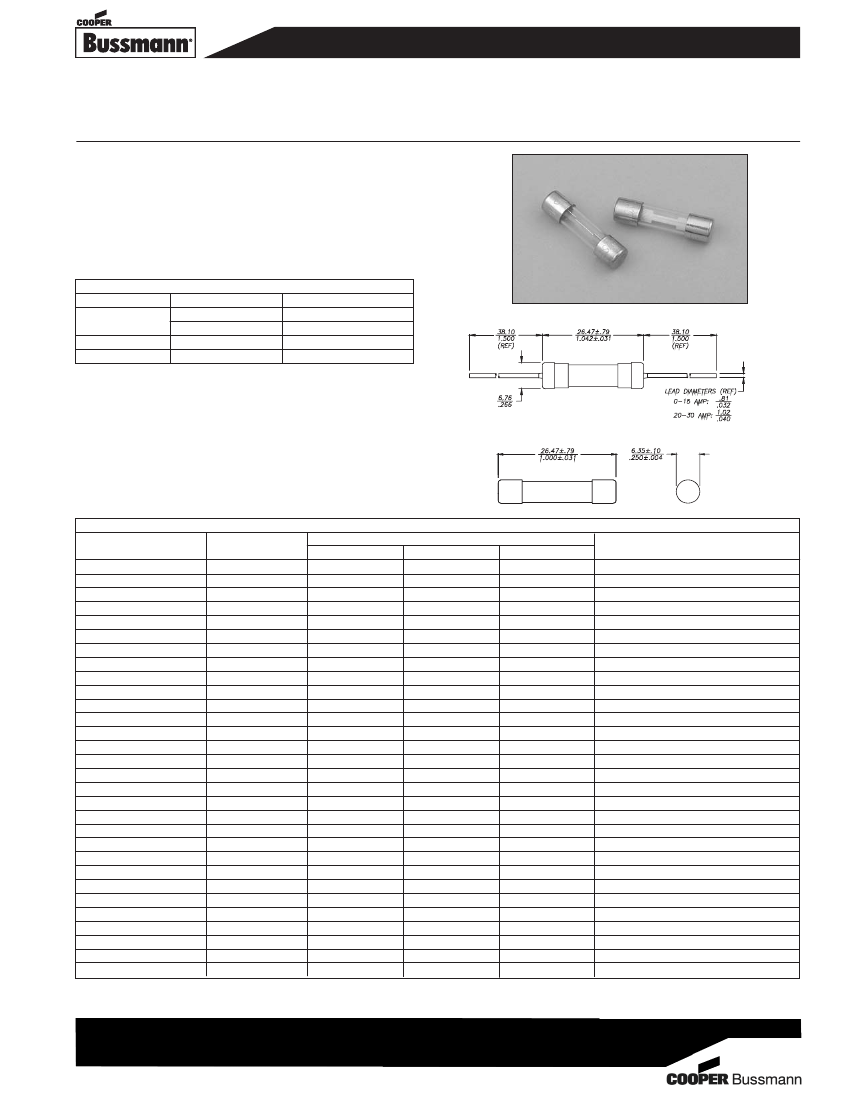

1
⁄
4
" x 1" Fuses
AGX Series, Fast-Acting, Glass Tube
Description
• Fast-acting glass tube fuse
•
1
⁄
4
" x 1" (6.3 x 25.4mm) physical size
• Glass tube, nickel-plated brass endcap construction
• For instruments, electronic and small appliance circuits
• UL Listed product meets standard 248-14
• Available with axial leads
Electrical Characteristics
Rated Current % of Amp Rating
Opening Time
110%
4 hours minimum
1
⁄
16
- 30A
135%
60 minutes maximum
1
⁄
16
- 2A
200%
5 seconds maximum
2.5 - 30A
200%
2 minutes maximum
Dimensions - mm (in)
Agency Information
• UL Listed Card: AGX 0-5A (Guide JDYX, File E19180)
• UL Recognized Card: AGX 6-20A (Guide JDYX2,
File E19180)
• CSA Component Acceptance Card
(Class No. 1422-01, File 53787)
Ordering
• Specify packaging, product, and option code
with axial leads
Specifications
Part Number
-(amps)
AGX-1/200
AGX-1/100
AGX-1/32
AGX-1/16
AGX-1/10
AGX-1/8
AGX-3/16
AGX-2/10
AGX-1/4
AGX-3/10
AGX-3/8
AGX-4/10
AGX-1/2
AGX-3/4
AGX-1
AGX-1-1/4
AGX-1-1/2
AGX-2
AGX-2-1/2
AGX-3
AGX-4
AGX-5
AGX-6
AGX-7
AGX-8
AGX-10
AGX-15
AGX-20
AGX-25
AGX-30
Voltage
Rating Vac
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
125
125
125
125
125
125
32
32
32
32
32
32
Interrupting Rating (amps)
250Vac
125Vac
32Vac
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
100
10,000
-
100
10,000
-
100
10,000
-
100
10,000
-
100
10,000
-
-
10,000
-
-
10,000
-
-
10,000
-
-
10,000
-
-
1000
-
-
1000
-
-
-
1000
-
-
1000
-
-
1000
-
-
1000
-
-
1000
-
-
1000
Typical DC Cold
Resistance (Ω)*
285.00000
155.00000
35.00000
22.50000
10.25000
5.41000
3.11500
2.66000
2.79000
1.42500
0.93050
0.89900
0.47850
0.26000
0.16250
0.12750
0.09400
0.06825
0.04930
0.03825
0.02700
0.02050
0.01475
0.01275
0.01100
0.00867
0.00510
0.00358
0.00275
0.00215
* DC Cold Resistance (Measured at <10% of rated current)
0308
BU-SB08027
Page 1 of 2
Data Sheet 2041

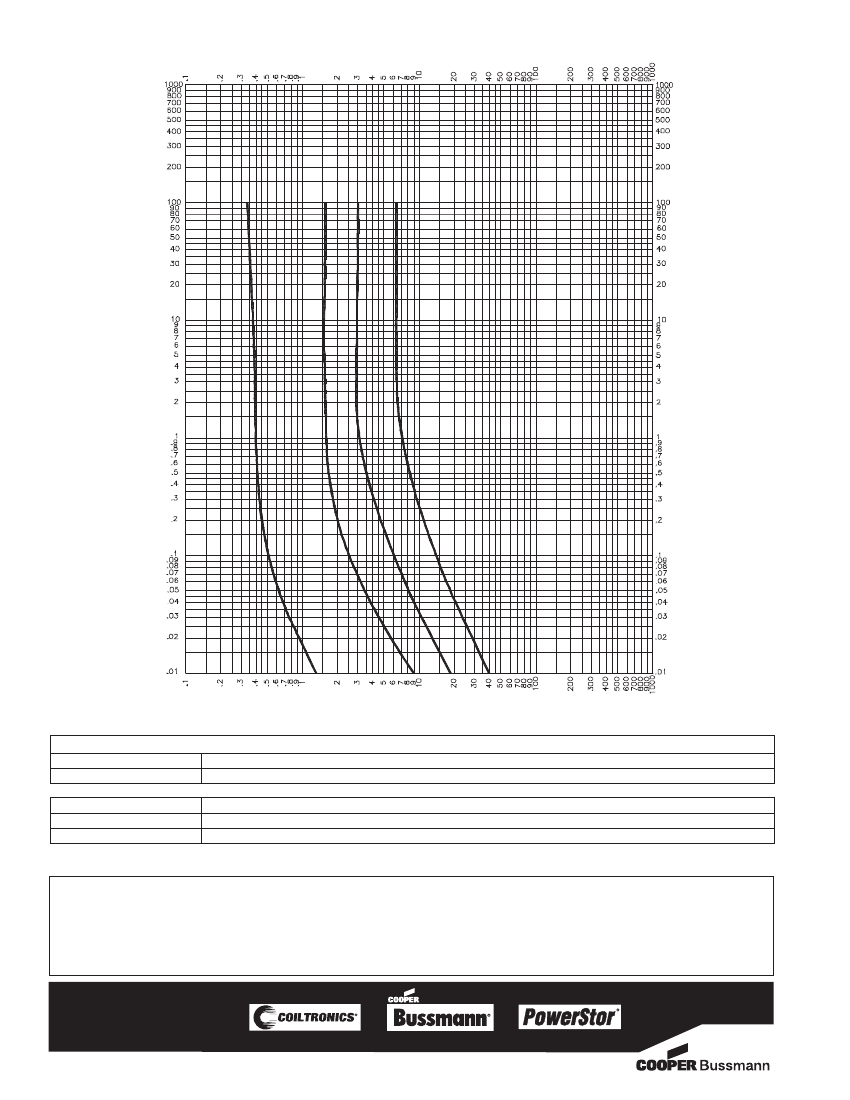

Time-Current Curve
CURRENT IN AMP ERES
1/4
2
1
5
TIME IN SECONDS
TIME IN SECONDS
CURRENT IN AMP ERES
Packaging
Packaging Code Prefix
BK
Description
100 fuses packed into a cardboard carton
Option Code
Option Code Suffix
V
Description
Axial leads - copper tinned wire with nickel plated brass overcaps
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information contained
in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life support
systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in
significant injury to the user.
© 2008 Cooper Bussmann
St. Louis, MO 63178
www.cooperbussmann.com
0308
BU-SB08027
Page 2 of 2
Data Sheet 2041
