2472-13-52-22 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2472-13-52-22

2472-13-52-22: DescriptionBoard Connector, 52 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size86KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2472-13-52-22 Overview

Board Connector, 52 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking

2472-13-52-22 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
body width	0.2 inch
subject depth	0.144 inch
body length	2.6 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	50 Cycles
maximum insertion force	3.9198 N
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	2472
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.4102 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	52
Evacuation force-minimum value	.3058 N
Base Number Matches	1

Preview

Download Datasheet

View All

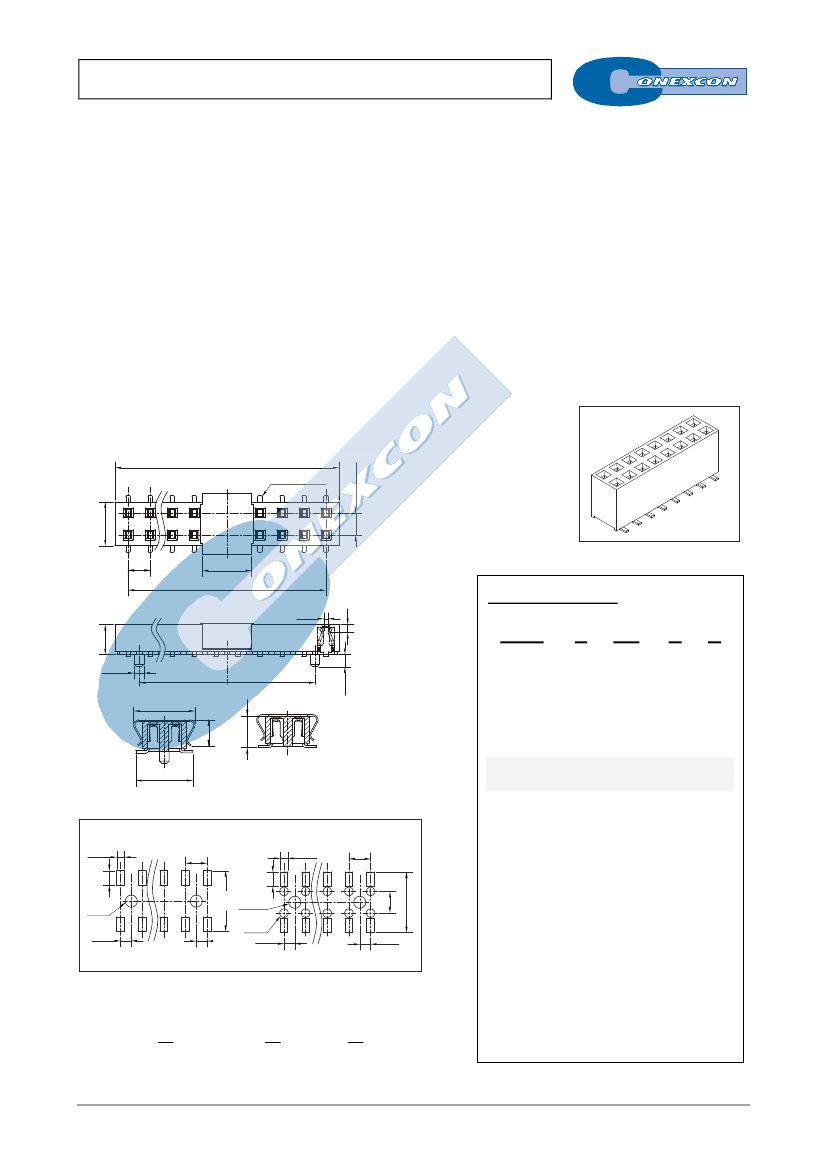

DUAL ROW SMT VERTICAL SOCKET

2472 SERIES.

2.54 mm (0.100”) pitch. Top and bottom entry.

General Features

Electrical Features



Available in 4 through 80 circuits



Mates with pin header 2.54 mm pitch 2558, 2559, 2458,

•



2582, 2583, 2666, 2667, 2468 and 2579 series

Accept 0.64 square pin

Low profile 3.65 mm. hight

Dual beam contact with different plating



Voltage rating: < 250V



Current rating: < 3 A



Contact resistance: < 20 mΩ



Dielectric withstanding voltage: 600 V AC/minute



Insulation resistance: >1000 MΩ



Capacitance: < 2 pF at 1 KHz

Mechanical Features

Materials



Insulator:

High temperature thermoplastic

UL 94 V-0

Contact: Phosphor bronze

Operating temperature: -40ºC to +105ºC

RoHS compliant



Insertion force receptacle/plug: < 0,40 Kgf/pin



Unmating force receptacle/plug: > 0,03 Kgf/pin



Contact retention force to housing: > 0,50 Kgf/pin



Durability: 50 cycles

Dimension Information

0.25 x 0.50

5.08±0.10

2.54

5.70

A±0.25

0.50

2.54±0.05

B±0.25

Ordering Information:

0.95

3.50

2472-

T-

XX-

ø1.10

1.40

C±0.15

7.10

1. Connector Series

2. (T) Contact Plating

3.65

±0.20

3.00

6.60

±0.25



T =

Tin plated



T =

Gold flash over nickel

Recommended Finish

RECOMMENDED PCB LAYOUT

0.89

1.70

2.54

1.70

0.89

2.54



2.54

7.10

T =

15µ” gold over nickel

T =

30µ” gold over nickel

T =

13.

Sel. gold flash over nickel overall

T =

15.

15µ" sel. gold over nickel overall

T =

16.

30µ" sel. gold over nickel overall

7.10

3. (XX) Number of circuits

ø1.30

1.27

ø1.30

ø1.00



Available in 4 through 80 circuits

4. (P) Fixing Options

1.27

(Bottom entry)

1.27



P =

Without fixing post



P =

With fixing post

5. (E) Packing Options

DIMENSIONS

2.54







−







2.54













2.54







−









E =

Tube + Pad



E =

Reel + Pad

(XX) = Number of circuits

E-XX
