CD74HC4020M96 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> CD74HC4020M96

CD74HC4020M96: DescriptionBinary Counter, HC/UH Series, Asynchronous, Negative Edge Triggered, 14-Bit, Up Direction, CMOS, PDSO16,; Categorylogic logic; File Size137KB，7 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

CD74HC4020M96 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD74HC4020M96	-	-	View	Buy Now

CD74HC4020M96 Overview

Binary Counter, HC/UH Series, Asynchronous, Negative Edge Triggered, 14-Bit, Up Direction, CMOS, PDSO16,

CD74HC4020M96 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	SOP, SOP16,.25
Reach Compliance Code	unknown
Other features	OUTPUTS FROM 12 STAGES AVAILABLE
Counting direction	UP
series	HC/UH
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Load/preset input	NO
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	20000000 Hz
MaximumI(ol)	0.004 A
Operating mode	ASYNCHRONOUS
Number of digits	14
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
power supply	2/6 V
Certification status	Not Qualified
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	NEGATIVE EDGE

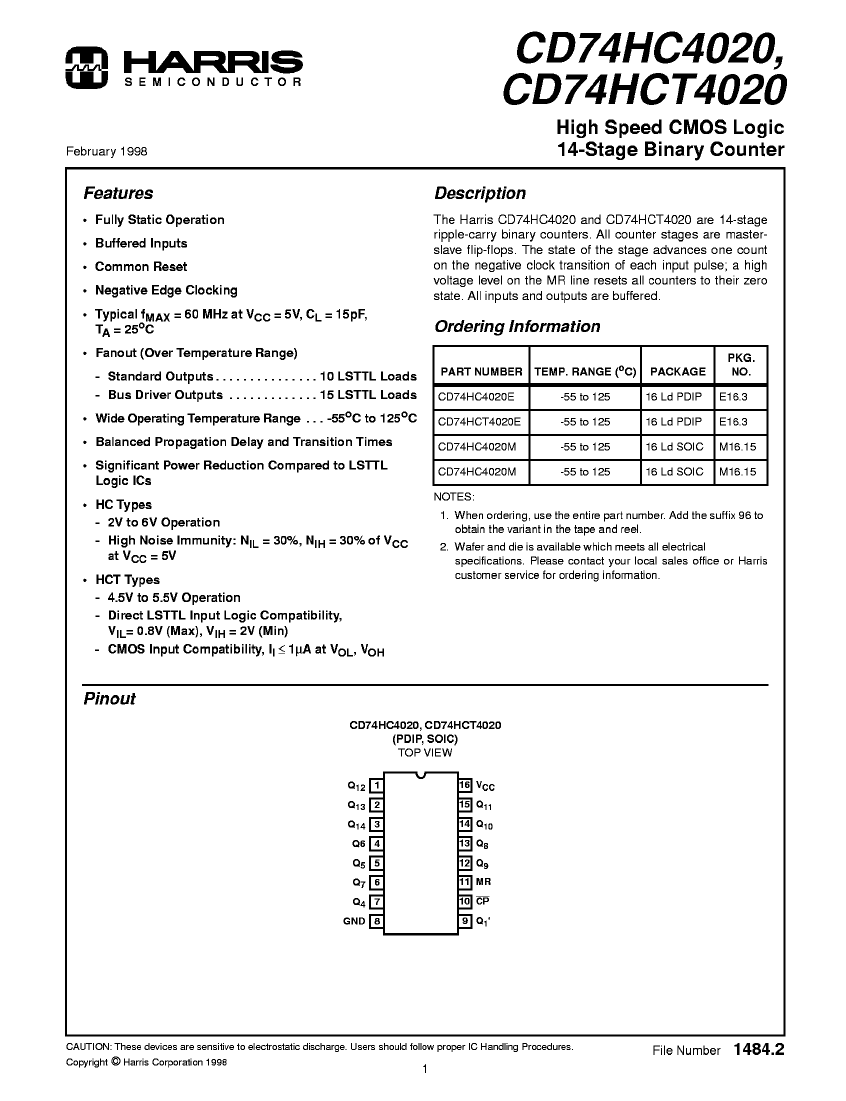

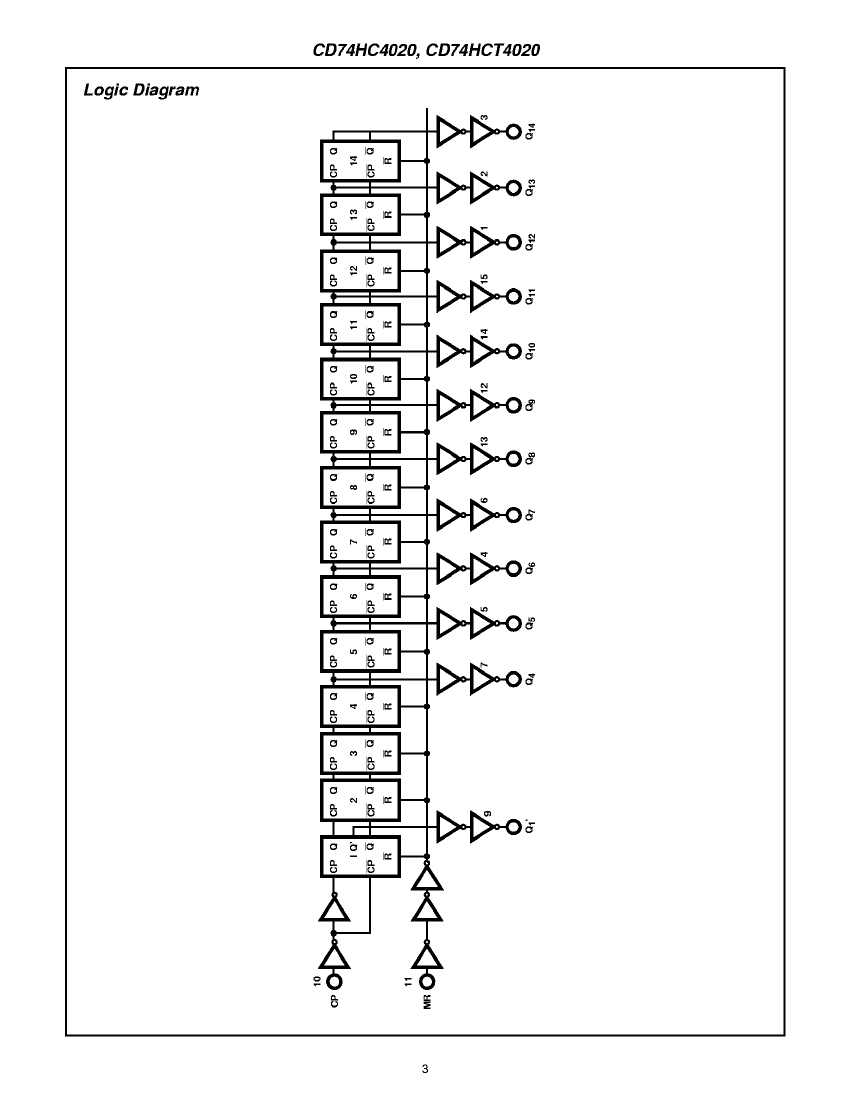

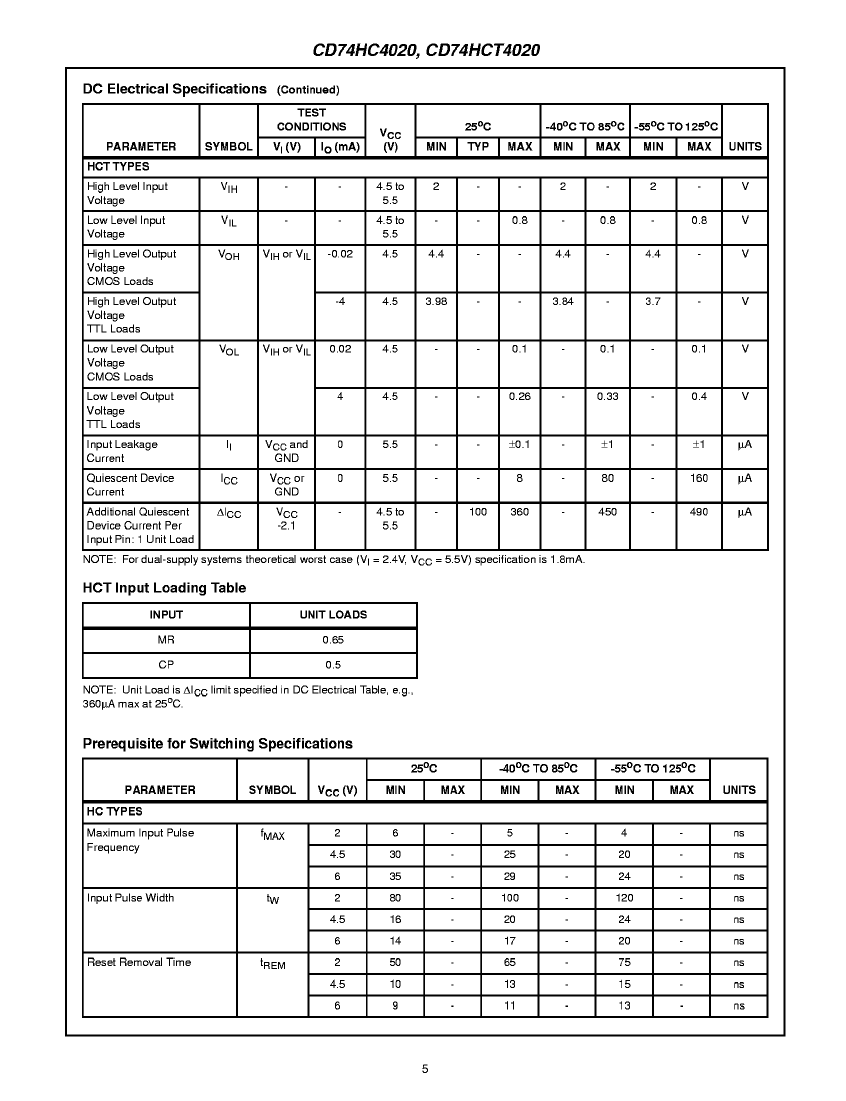

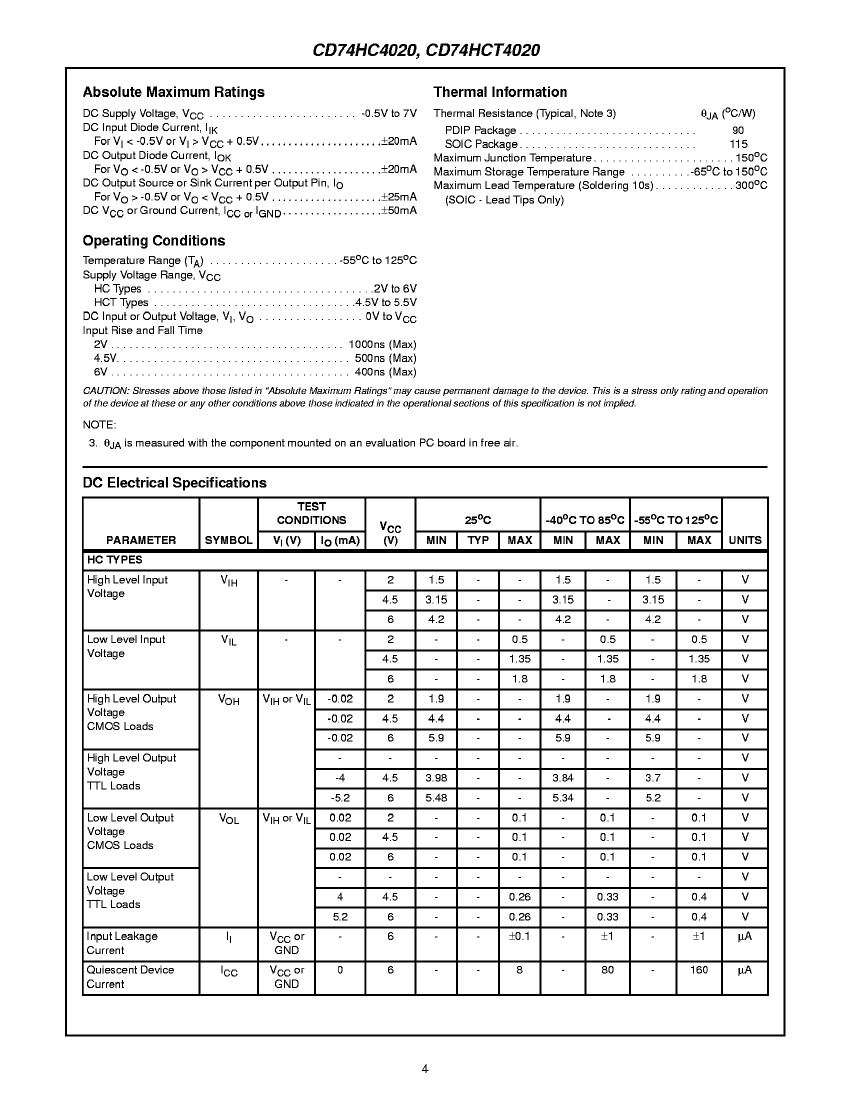

Preview

Download Datasheet

View All

CD74HC4020M96 Related Products

	CD74HC4020M96	CD74HCT4020M96	CD74HC4020E	CD74HC4020M	CD74HCT4020M
Description	Binary Counter, HC/UH Series, Asynchronous, Negative Edge Triggered, 14-Bit, Up Direction, CMOS, PDSO16,	Binary Counter, HCT Series, Asynchronous, Negative Edge Triggered, 14-Bit, Up Direction, CMOS, PDSO16	Binary Counter, HC/UH Series, Asynchronous, Negative Edge Triggered, 14-Bit, Up Direction, CMOS, PDIP16,	Binary Counter, HC/UH Series, Asynchronous, Negative Edge Triggered, 14-Bit, Up Direction, CMOS, PDSO16,	Binary Counter, HCT Series, Asynchronous, Negative Edge Triggered, 14-Bit, Up Direction, CMOS, PDSO16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Harris	Harris	Harris	Harris	Harris
package instruction	SOP, SOP16,.25	SOP, SOP16,.25	DIP, DIP16,.3	SOP, SOP16,.25	SOP, SOP16,.25
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
Other features	OUTPUTS FROM 12 STAGES AVAILABLE	OUTPUTS FROM 12 STAGES AVAILABLE	OUTPUTS FROM 12 STAGES AVAILABLE	OUTPUTS FROM 12 STAGES AVAILABLE	OUTPUTS FROM 12 STAGES AVAILABLE
Counting direction	UP	UP	UP	UP	UP
series	HC/UH	HCT	HC/UH	HC/UH	HCT
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF
Load/preset input	NO	NO	NO	NO	NO
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Number of digits	14	14	14	14	14
Number of functions	1	1	1	1	1
Number of terminals	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	DIP	SOP	SOP
Encapsulate equivalent code	SOP16,.25	SOP16,.25	DIP16,.3	SOP16,.25	SOP16,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
power supply	2/6 V	5 V	2/6 V	2/6 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	6 V	5.5 V	6 V	6 V	5.5 V
Minimum supply voltage (Vsup)	2 V	4.5 V	2 V	2 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
Maximum Frequency@Nom-Sup	20000000 Hz	16000000 Hz	20000000 Hz	20000000 Hz	-
propagation delay (tpd)	-	-	175 ns	175 ns	50 ns
minfmax	-	-	50 MHz	50 MHz	50 MHz
