S1614AP-155.5200 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> S1614AP-155.5200

S1614AP-155.5200: DescriptionCMOS/LSTTL Output Clock Oscillator, 100MHz Min, 160MHz Max, 155.52MHz Nom, ROHS COMPLIANT, CERAMIC, SURFACE MOUNT PACKAGE-4; CategoryPassive components oscillator; File Size705KB，6 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/; Environmental Compliance

Download Datasheet Parametric View All

S1614AP-155.5200 Overview

CMOS/LSTTL Output Clock Oscillator, 100MHz Min, 160MHz Max, 155.52MHz Nom, ROHS COMPLIANT, CERAMIC, SURFACE MOUNT PACKAGE-4

S1614AP-155.5200 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
package instruction	LCC4(UNSPEC)
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BULK; SYMMETRY 55/45 AVAILABLE
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
JESD-609 code	e4
Manufacturer's serial number	S1614XP
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	160 MHz
Minimum operating frequency	100 MHz
Nominal operating frequency	155.52 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS/LSTTL
Output load	10 LS TTL, 15 pF
Package body material	CERAMIC
Encapsulate equivalent code	LCC4(UNSPEC)
physical size	7.0mm x 5.0mm x 1.8mm
power supply	2.5 V
Certification status	Not Qualified
longest rise time	2 ns
Maximum slew rate	25 mA
Maximum supply voltage	2.62 V
Minimum supply voltage	2.38 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

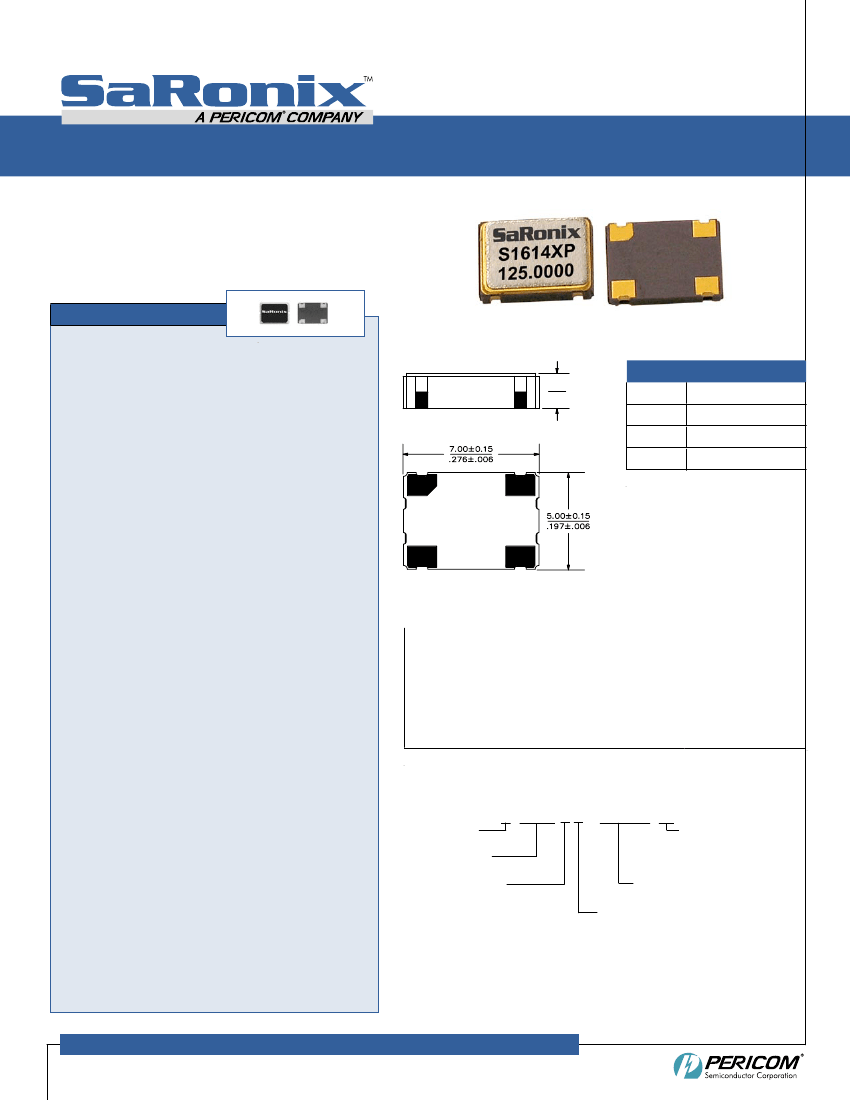

S1614XP Series

2.5V CMOS Low Jitter, High Frequency

Crystal Clock Oscillator (XO)

Actual Size = 7 x 5mm

Product Features

• Thicker crystal than conventional overtone for

improved reliability

• Less than 1 ps RMS jitter with advanced non-PLL,

patented clock circuit (U.S. Patent# 7002423)

• 2.5V CMOS/TTL compatible logic levels

• Pin-compatible with standard 7x5mm packages

• Designed for standard reflow and washing

techniques

• RoHS compliant**

(** per #7, Annex of Directive 2002/05/EC)

Packaging Outline

1.8

Max

.071

Pin Functions

Function

OE Function

Ground

Clock Output

Product Description

The S1614XP Series is an enhanced high-frequency

version of the popular S1614 series, a 2.5V crystal

clock oscillator that achieves superb jitter and stability

over a broad range of operating conditions and

frequencies. The output clock signal, generated

internally with a patented oscillator design, is

compatible with LVCMOS logic levels. The device,

available on tape and reel, is contained in a 7x5mm

surface-mount ceramic package.

Common Frequencies

Contact SaRonix for additional frequencies

100.0000 MHz

106.2500 MHz

125.0000 MHz

127.0000 MHz

133.0000 MHz

150.0000 MHz

155.5200 MHz

156.2500 MHz

159.3750 MHz

Ordering Information

SaRonix

Product Series

Frequency Stability

*AA = ±20 ppM (-10 to +70 °C)

*A = ±25 ppM (-10 to +70 °C)

B = ±50 ppM (-10 to +70 °C)

E = ±50 ppM (-40 to +85°C)

Applications

The S1614XP Series is an ideal reference clock for high-

speed applications requiring low jitter, including:

• 1/10 Gigabit Ethernet

• FibreChannel

• Serial Attached SCSI (SAS)

• Server & Storage platforms

• SONET/SDH linecards

• Passive Optical Network (PON) devices

1614 B

P - 156.2500 (T)

Packaging

(T) = Tape & Reel

full reel increments

Blank = Bulk packaged

Output Frequency

(MHz)

Series Version Code

* Availability varies by frequency. Please consult SaRonix.

Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix

All specifications are subject to change without notice.

DS 264 Rev B | 06/07/06
