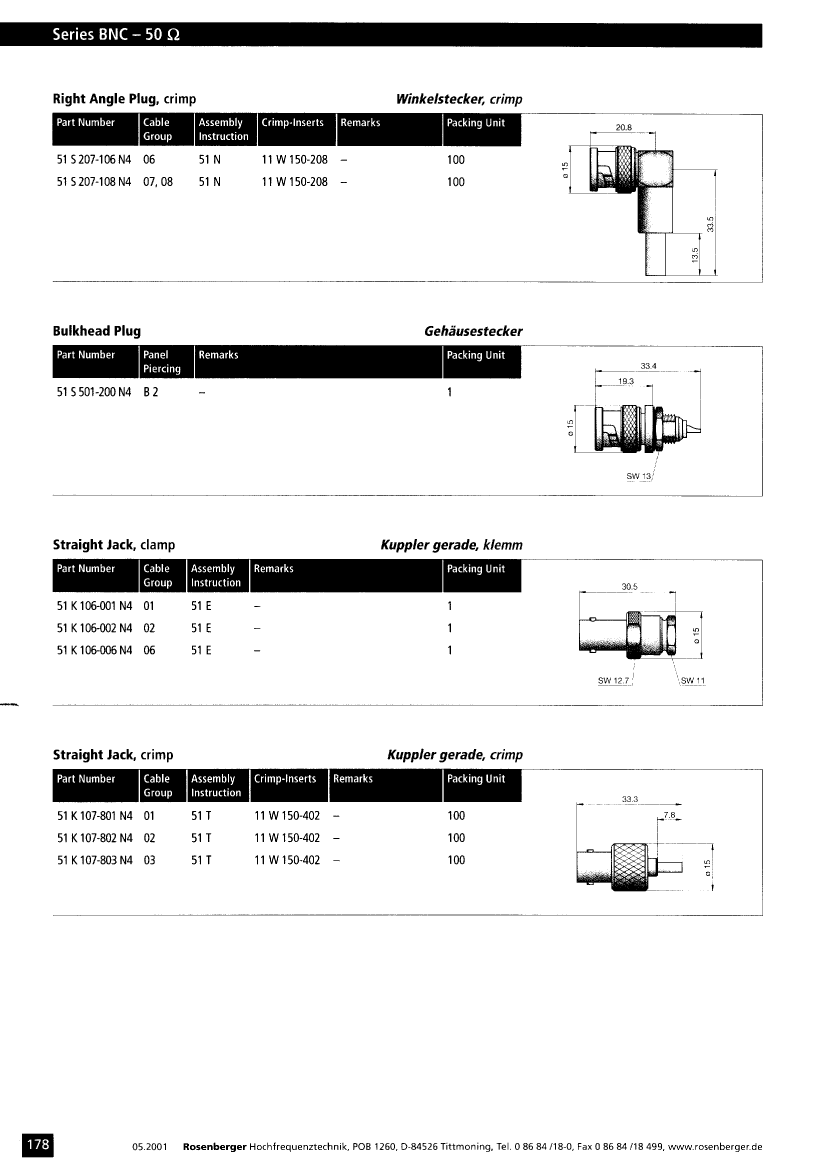

51S207-106N4: DescriptionRF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size35KB，1 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

51S207-106N4 Overview

RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug,

51S207-106N4 Parametric

Parameter Name	Attribute value
Maker	Rosenberger
Reach Compliance Code	compliant
Other features	STANDARDS: MIL-C-39012; IEC 169-8, APPLICABLE CABLES: RG 58; RG 141, INSERTION LOSS MAX AT 1 GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	YES
Insertion loss	0.1 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	BNC
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	10 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.25

Preview

Download Datasheet

View All

51S207-106N4 Related Products

	51S207-106N4	51K106-001N4	51S207-108N4	51S501-200N4
Description	RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug,	RF BNC Connector, Female, Cable Mount, Clamp Terminal, Jack,	RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug,	RF BNC Connector, Male, Panel Mount, Solder Terminal, Plug,
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	STANDARDS: MIL-C-39012; IEC 169-8, APPLICABLE CABLES: RG 58; RG 141, INSERTION LOSS MAX AT 1 GHZ	STANDARDS: MIL-C-39012; IEC 169-8, APPLICABLE CABLE: RG 178, INSERTION LOSS MAX AT 1 GHZ	STANDARDS: MIL-C-39012; IEC 169-8, APPLICABLE CABLES: RG 142; RG 223, INSERTION LOSS MAX AT 1 GHZ	STANDARDS: MIL-C-39012; IEC 169-8, INSERTION LOSS MAX AT 1 GHZ
Body/casing type	PLUG	JACK	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	FEMALE	MALE	MALE
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES
Insertion loss	0.1 dB	0.1 dB	0.1 dB	0.1 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4
MIL compliance	YES	YES	YES	YES
Manufacturer's serial number	BNC	BNC	BNC	BNC
Installation method	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	STRAIGHT
Maximum operating frequency	10 GHz	10 GHz	10 GHz	10 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	YES
Termination type	CRIMP	CLAMP	CRIMP	SOLDER
voltage standing wave ratio	1.25	1.2	1.25	1.2
Maker	Rosenberger	-	Rosenberger	Rosenberger
Installation type	CABLE	CABLE	CABLE	-
