BK/GMA-15A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> BK/GMA-15A

BK/GMA-15A: DescriptionElectric Fuse, Fast Blow, 15A, 125VAC, 150A (IR), Inline/holder,; CategoryCircuit protection Circuit protection; File Size75KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

BK/GMA-15A Overview

Electric Fuse, Fast Blow, 15A, 125VAC, 150A (IR), Inline/holder,

BK/GMA-15A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Eaton
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	FAST
body height	20 mm
Body length or diameter	5.2 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	950 J
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	5.2mm x 20mm
Rated breaking capacity	150 A
Rated current	15 A
Rated voltage (AC)	125 V
Guideline	MITI
surface mount	NO
Terminal shape	END CAP

Preview

Download Datasheet

View All

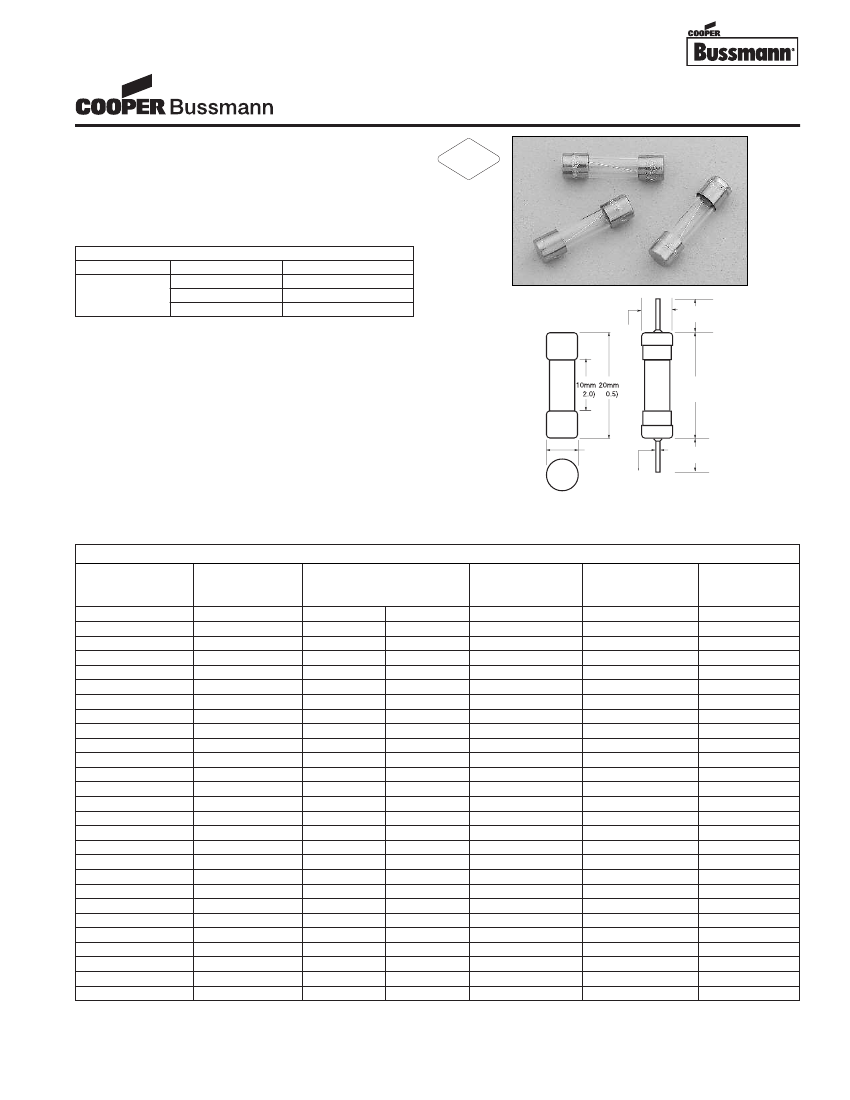

5mm x 20mm Fuses

GMA Series, Fast Acting, Glass Tube

Description

• Fast acting, low breaking capacity

• Optional axial leads available

• 5mm x 20mm physical size

• Glass tube, nickel-plated brass endcap construction

• Designed to UL/CSA 248-14

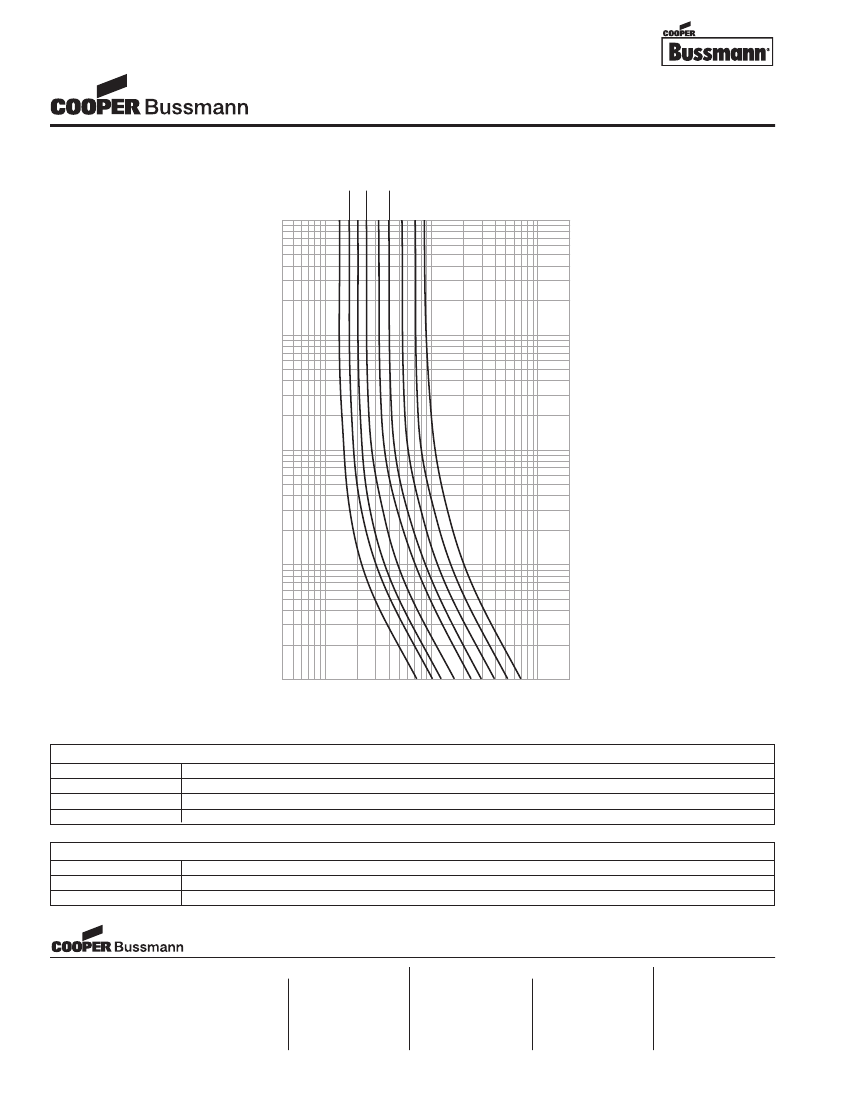

ELECTRICAL CHARACTERISTICS

Rated Current % of Amp Rating

Opening Time

100%

None

63mA - 10A

135%

60 minutes maximum

200%

2 minutes maximum

RoHS

2002/95/EC

Dimensions

⁄

(inches)

5.54mm

(±.20)

38.10mm

10mm

(±.38)

38)

Agency Information

• UL Listed, Guide JDYX, File E19180, 63mA-6A

• UL Recognized Card: (7A-15A) Guide JDYX2,

File E19180

• CSA Certified, Class 1422-01, File E65063, 63mA-6A

• MITI Approval, 1A-15A

• CCC Approval, 63mA-6A

Ordering

• Specify packaging, product, and option code

• For -R option, drop mA or A from product code

(i.e. GMA-2-R)

(±

21.10mm

0mm

(±.81)

5.2mm

(+0.1/-0.2)

0.65mm

(REF)

38.10mm

0mm

(±.38)

38)

• Ratings above 6.3A have a 0.8mm diameter lead

• With TR2 packaging code, lead wire length is 19.05mm

SPECIFICATIONS

Product Code

GMA-63mA

GMA-100mA

GMA-125mA

GMA-200mA

GMA-250mA

GMA-300mA

GMA-315mA

GMA-500mA

GMA-600mA

GMA-750mA

GMA-800mA

GMA-1A

GMA-1.25A

GMA-1.5A

GMA-1.6A

GMA-2A

GMA-2.5A

GMA-3A

GMA-3.15A

GMA-3.5A

GMA-4A

GMA-5A

GMA-6A

GMA-7A

GMA-8A

GMA-10A

GMA-15A

†

‡

Voltage

Rating

250V

125V

AC Interrupting

Rating*

250V

125V

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

200A

150A

Typical DC Cold

Resistance

(ohms)**

0.454

0.256

0.186

0.170

0.163

0.122

0.090

0.080

0.066

0.046

0.039

0.036

0.030

0.026

0.021

0.017

0.012

0.009

0.006

0.004

Typical

Pre-Arc I

AC†

0.00024

0.0001

0.0024

0.001

0.018

0.019

0.15

0.32

0.47

0.70

0.48

0.84

1.6

2.0

3.1

4.9

8.8

9.7

150

280

950

Maximum

Voltage

Drop (mV)‡

4700

4300

2600

3400

2200

470

450

230

200

180

300

290

270

260

250

240

215

210

205

200

180

110

100

Interrupting ratings: Interrupting ratings for 63mA - 6A were measured at 70% - 80% power factor on AC. The interrupting ratings for 7A - 15A were measured at 100% power factor on AC.

DC Cold Resistance (Measured at <10% of rated current)

Typical Pre-Arching I

t (I

t was measured at listed interrupting rating and rated voltage)

Maximum Voltage drop (Voltage drop was measured at 20°C ambient temperature at rated current)

BK/GMA-15A Related Products

	BK/GMA-15A	BK/GMA-800MA	BK/GMA-1.5A	BK/GMA-300MA	BK/GMA-315MA	BK/GMA-4A	BK/GMA-63MA	BK/GMA-2.5A
Description	Electric Fuse, Fast Blow, 15A, 125VAC, 150A (IR), Inline/holder,	Electric Fuse, Fast Blow, 0.8A, 250VAC, 32VDC, 35A (IR), Inline/holder,	Electric Fuse, Fast Blow, 1.5A, 250VAC, 32VDC, 100A (IR), Inline/holder,	Electric Fuse, Fast Blow, 0.3A, 250VAC, 32VDC, 35A (IR), Inline/holder,	Electric Fuse, Fast Blow, 0.315A, 250VAC, 32VDC, 35A (IR), Inline/holder,	Electric Fuse, Fast Blow, 4A, 125VAC, 32VDC, 10000A (IR), Inline/holder,	Electric Fuse, Fast Blow, 0.063A, 250VAC, 32VDC, 35A (IR), Inline/holder,	Electric Fuse, Fast Blow, 2.5A, 250VAC, 32VDC, 100A (IR), Inline/holder,
Is it Rohs certified?	incompatible	incompatible	incompatible	conform to	incompatible	incompatible	incompatible	conform to
Maker	Eaton	Eaton	Eaton	Eaton	Eaton	Eaton	Eaton	Eaton
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Fusing characteristics	FAST	FAST	FAST	FAST	FAST	FAST	FAST	FAST
body height	20 mm	20.02 mm	20.02 mm	20.02 mm	20.02 mm	20.02 mm	20.02 mm	20.02 mm
Body length or diameter	5.2 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Installation features	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER
method of packing	BOX	BULK	BULK	BULK	BULK	BULK	BULK	BULK
physical size	5.2mm x 20mm	5mm x 20.02mm	5mm x 20.02mm	5mm x 20.02mm	5mm x 20.02mm	5mm x 20.02mm	5mm x 20.02mm	5mm x 20.02mm
Rated breaking capacity	150 A	35 A	100 A	35 A	35 A	10000 A	35 A	100 A
Rated current	15 A	0.8 A	1.5 A	0.3 A	0.315 A	4 A	0.063 A	2.5 A
Rated voltage (AC)	125 V	250 V	250 V	250 V	250 V	125 V	250 V	250 V
Guideline	MITI	CE	CE	CE	CE	CE	CE	CE
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal shape	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99
Is it lead-free?	-	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Other features	-	RESPONSE TIME: 2 MIN MAX AT 200% RATED CURRENT	RESPONSE TIME: 2 MIN MAX AT 200% RATED CURRENT	RESPONSE TIME: 2 MIN MAX AT 200% RATED CURRENT	RESPONSE TIME: 2 MIN MAX AT 200% RATED CURRENT	RESPONSE TIME: 2 MIN MAX AT 200% RATED CURRENT	RESPONSE TIME: 2 MIN MAX AT 200% RATED CURRENT	RESPONSE TIME: 2 MIN MAX AT 200% RATED CURRENT
Rated voltage (DC)	-	32 V	32 V	32 V	32 V	32 V	32 V	32 V
