FEATURES AND SPECIFICATIONS
Features and Benefits
s
Sizes 2 to 12 circuits
s
Positive latching system
s
Polarized
s
Built-in strain relief
s
Feed-through daisy chain capability
Reference Information
Product Specification: PS-71690 -001
Packaging: Bag
UL File No.: E29179
CSA File No.: LR19980
Tooling Information: See end of section

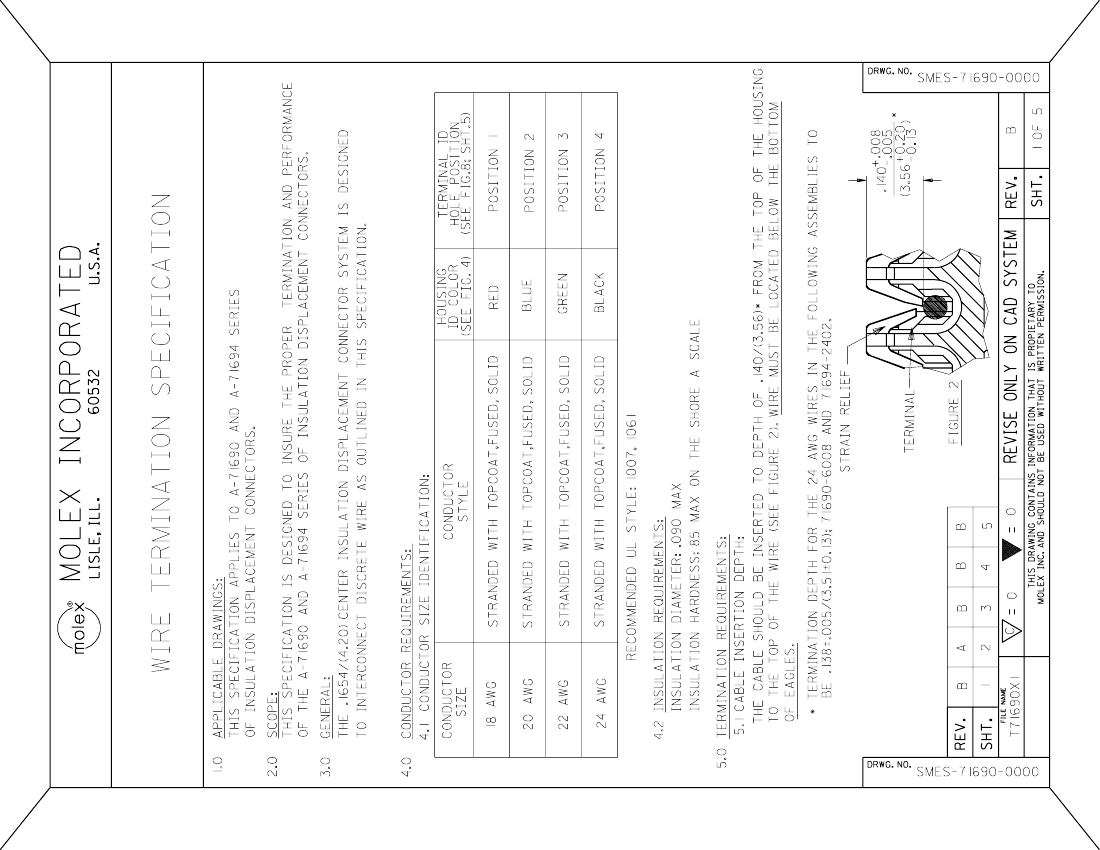

Mates With:
71694
receptacle
Designed In: Inches
Electrical
Voltage: 600V
Current: Receptacle and header
Wire Gauge
18
20
22
24
2 Circuit
6.25
5.50
4.75
4.50
3 to 12 Circuit
5.00
4.75
4.25
4.00
4.20mm (.165") Pitch
Mini-Fit, IDT
™
Wire-to-Wire
Plug
Power Connectors
Contact Resistance: 20m
Ω
max.
Dielectric Withstanding Voltage: 2200V AC
Insulation Resistance: 1000 M
Ω
min.
Mechanical
Contact Retention to Housing: 74N (16.64 lb) min.
Wire Pull-Out Force: 23N (5.17 lb) min.
Mating Force: 6.86N (1.54 lb) max.
Unmating Force: 3.92N (.89 lb) min.
Durability: 30 cycles
Physical
Housing: Unfilled polyester, UL 94V-0
Contact: Phosphor Bronze
Plating: See table
Operating Temperature: -40 to +105˚C
71690
Single Row
SMC
F

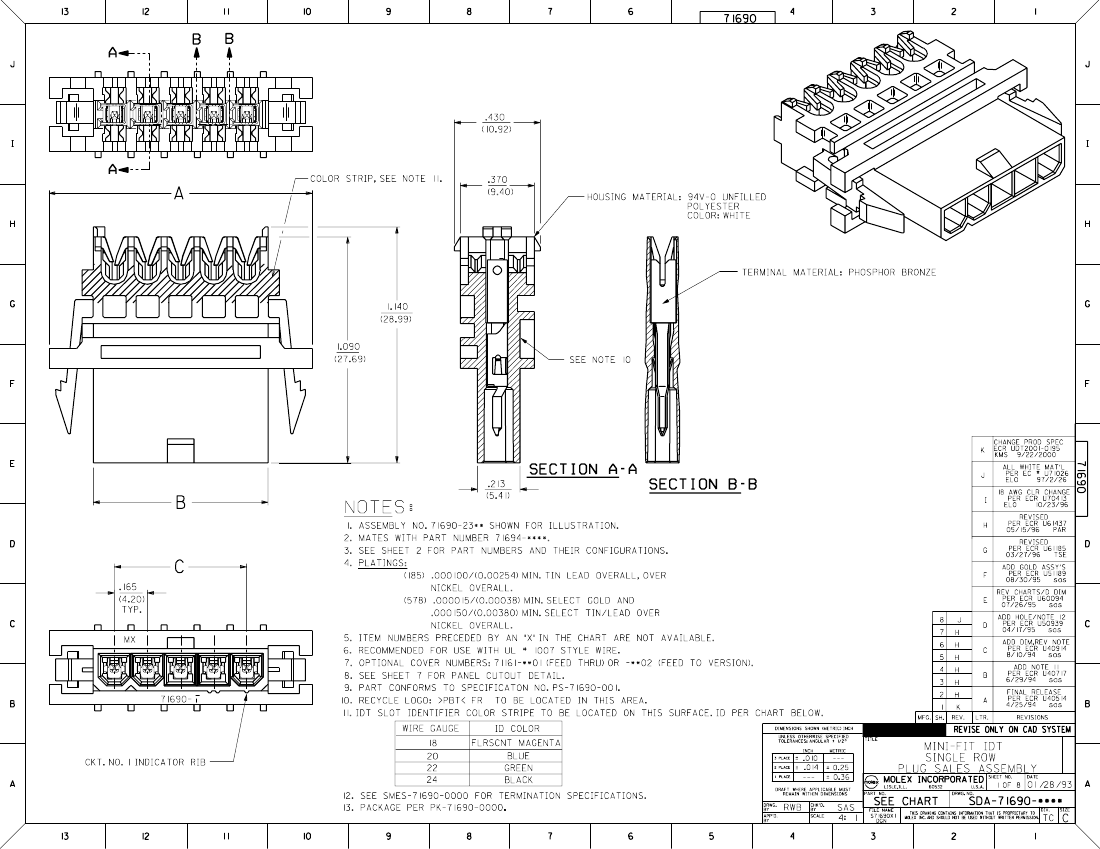

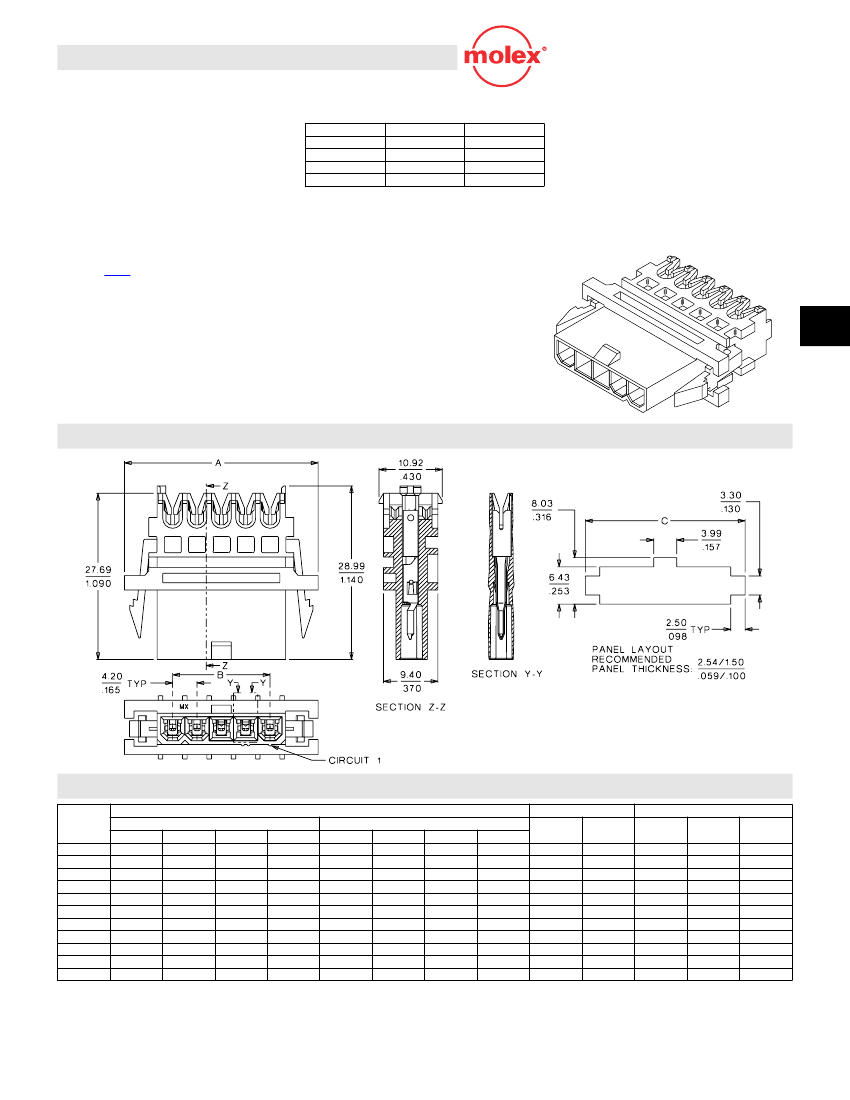

CATALOG DRAWING (FOR REFERENCE ONLY)

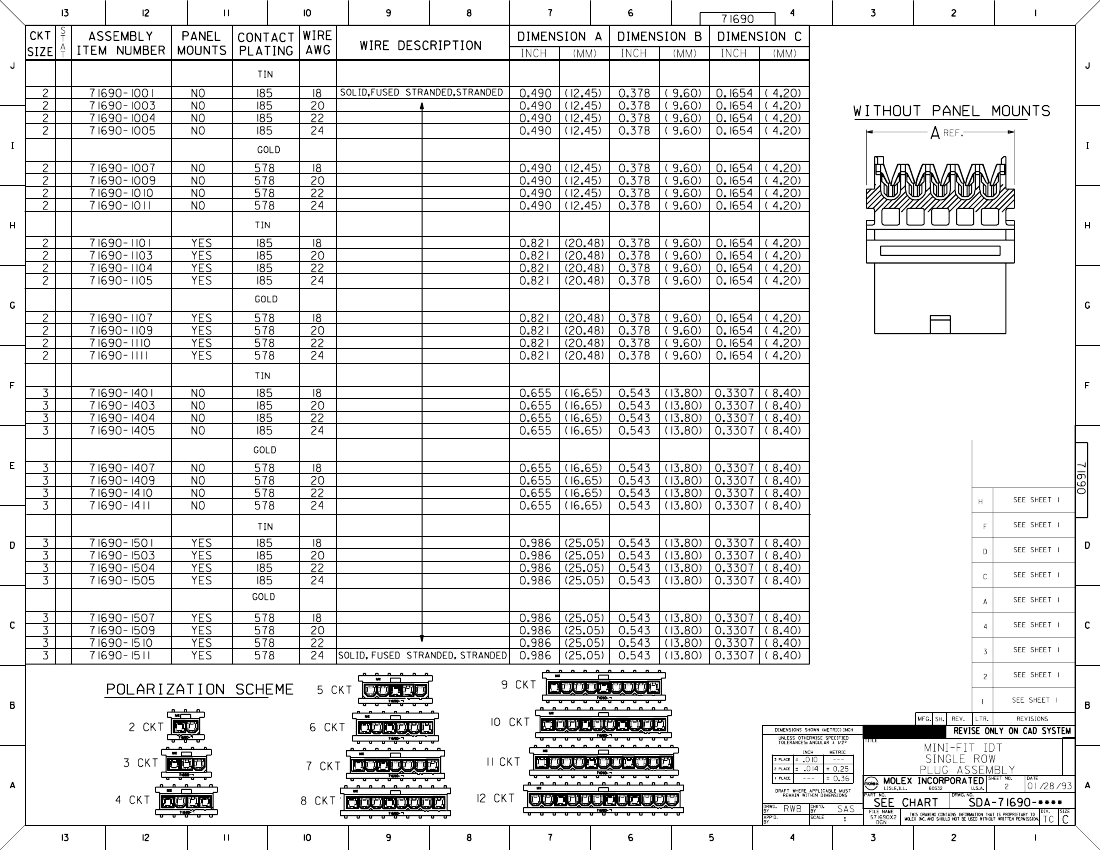

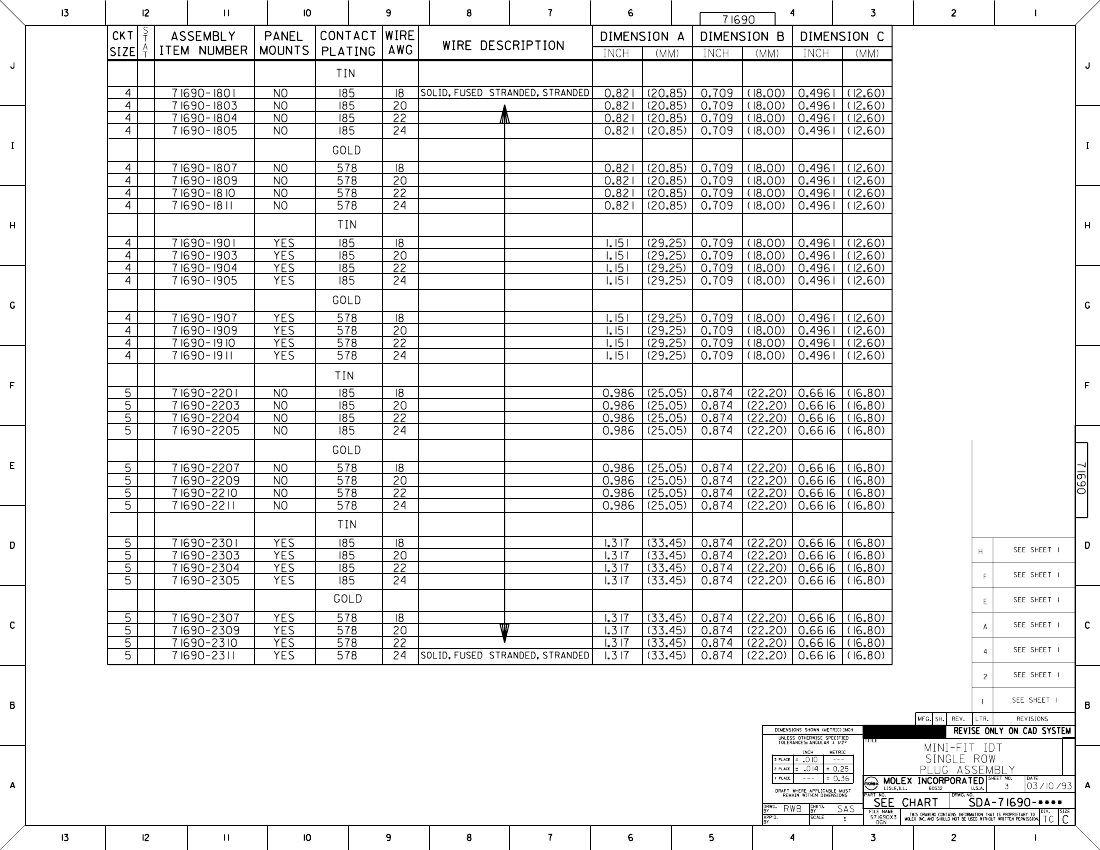

ORDERING INFORMATION AND DIMENSIONS
Order No.
Circuits
2
3
4
5
6
7
8
9
10
11
12
18 AWG
• 71690-1101
• 71690-1501
• 71690-1901
• 71690-2301
• 71690-2701
• 71690-3101
• 71690-3501
• 71690-3901
• 71690-4301
• 71690-4701
• 71690-5101
Tin/Lead
20 AWG
22 AWG
• 71690-1103 71690-1104
• 71690-1503 71690-1504
• 71690-1903 71690-1904
• 71690-2303 71690-2304
• 71690-2703 71690-2704
• 71690-3103 71690-3104
• 71690-3503 71690-3504
• 71690-3903 71690-3904
• 71690-4303 71690-4304
• 71690-4703 71690-4704
• 71690-5103 71690-5104
Gold
24 AWG
71690-1105
71690-1505
71690-1905
71690-2305
71690-2705
71690-3105
71690-3505
71690-3905
71690-4305
71690-4705
71690-5105
18 AWG
71690-1107
71690-1507
71690-1907
71690-2307
71690-2707
71690-3107
71690-3507
71690-3907
71690-4307
71690-4707
71690-5107
20 AWG
71690-1109
71690-1509
71690-1909
71690-2309
71690-2709
71690-3109
71690-3509
71690-3909
71690-4309
71690-4709
71690-5109
22 AWG
71690-1110
71690-1510
71690-1910
71690-2310
71690-2710
71690-3110
71690-3510
71690-3910
71690-4310
71690-4710
71690-5110
24 AWG
71690-1111
71690-1511
71690-1911
71690-2311
71690-2711
71690-3111
71690-3511
71690-3911
71690-4311
71690-4711
71690-5111
Cover
Feed-Through
71161-0201
71161-0301
71161-0401
71161-0501
71161-0601
71161-0701
71161-0801
71161-0901
71161-1001
71161-1101
71161-1201
Feed-To
71161-0202
71161-0302
71161-0402
71161-0502
71161-0602
71161-0702
71161-0802
71161-0902
71161-1002
71161-1102
71161-1202
20.48
25.05
29.25
33.45
37.65
41.85
46.05
50.25
54.45
58.65
62.85
A
(.821)
(.986)
(1.151)
(1.317)
(1.482)
(1.648)
(1.813)
(1.978)
(2.144)
(2.309)
(2.474)
4.20
8.40
12.60
16.80
21.00
25.20
29.40
33.60
37.80
42.00
46.20
Dimension
B
(.165)
(.331)
(.496)
(.661)
(.827)
(.992)
(1.158)
(1.323)
(1.488)
(1.654)
(1.819)
15.00
19.20
23.40
27.60
31.80
36.00
40.20
44.40
48.60
52.80
57.00
C
(.591)
(.756)
(.921)
(1.087)
(1.252)
(1.417)
(1.582)
(1.747)
(1.912)
(2.077)
(2.242)
• US Standard Product, available through Molex franchised distributors
MX01
F-57
