IRKH250-04N datasheet, PDF - EEWORLD Datasheet

IRKH250-04N: DescriptionSilicon Controlled Rectifier, 555A I(T)RMS, 250000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, POWER, MAGN-A-PAK-5; CategoryAnalog mixed-signal IC Trigger device; File Size319KB，13 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric View All

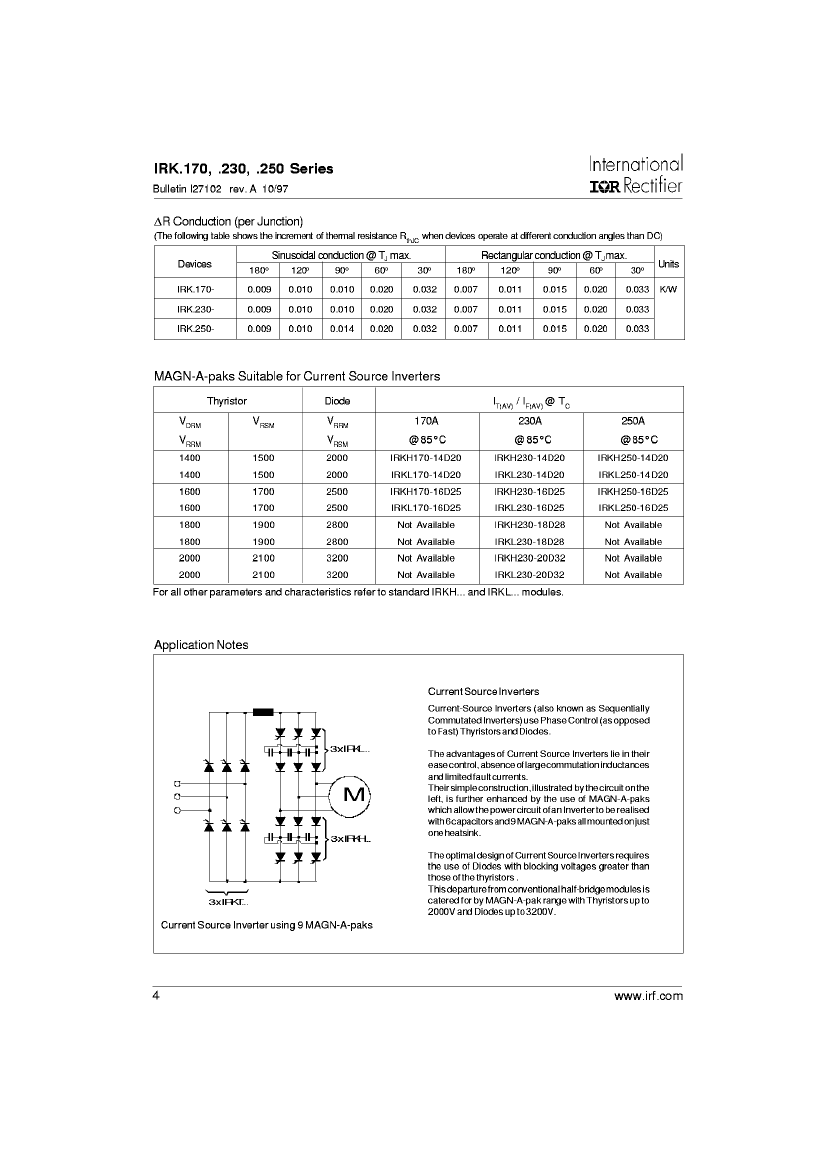

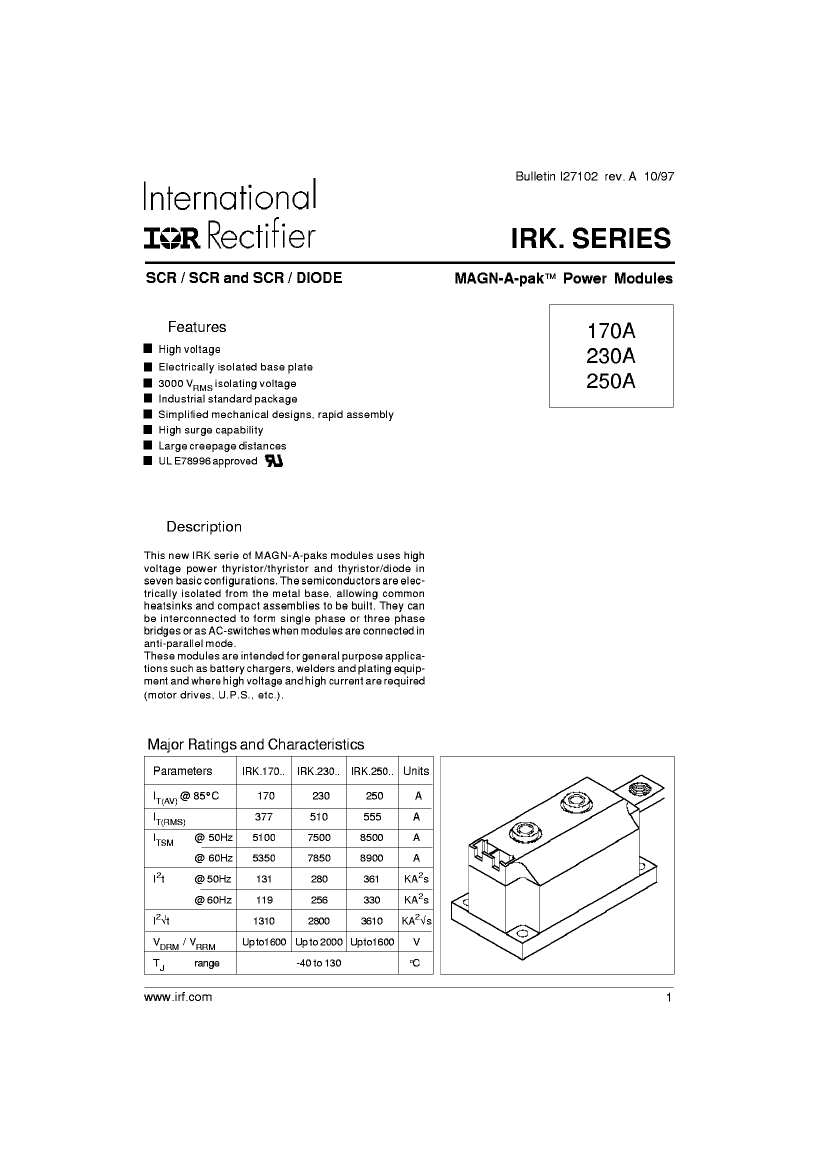

IRKH250-04N Overview

Silicon Controlled Rectifier, 555A I(T)RMS, 250000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, POWER, MAGN-A-PAK-5

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）

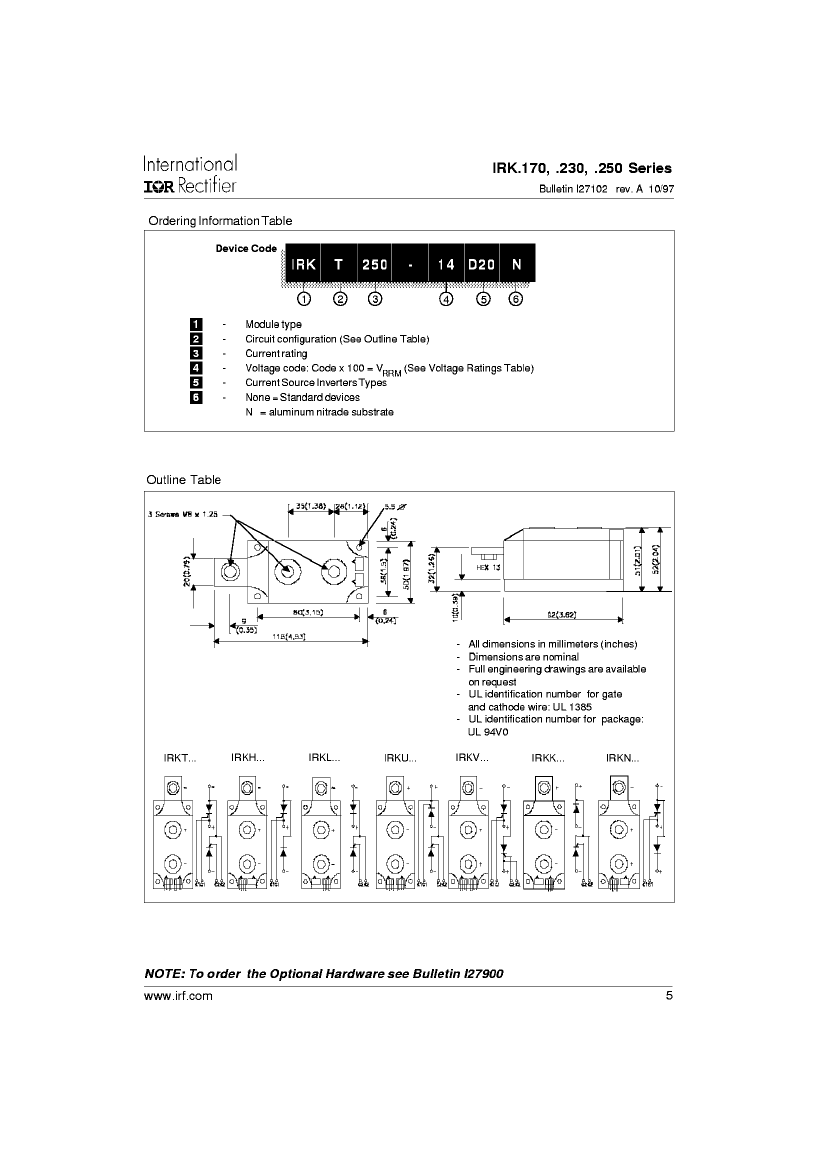

package instruction	FLANGE MOUNT, R-PUFM-D3
Contacts	5
Reach Compliance Code	unknown
Other features	UL APPROVED
Shell connection	ISOLATED

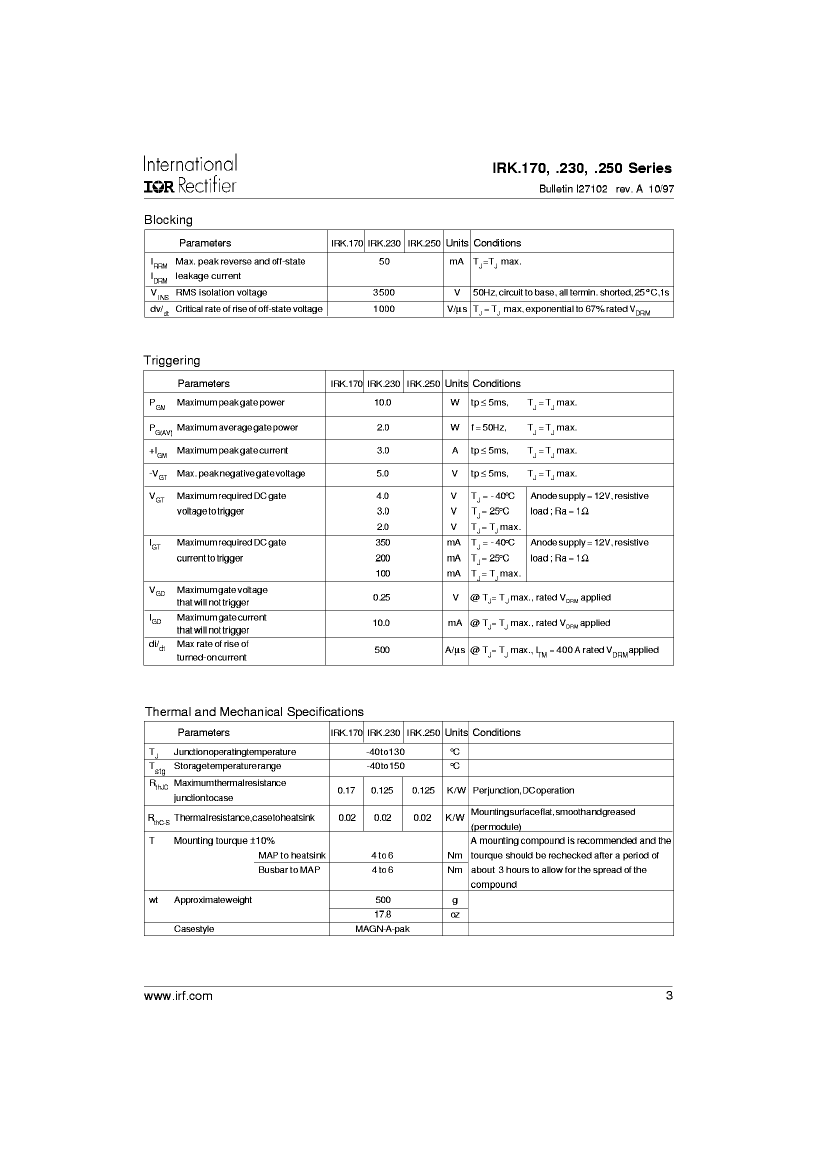

Nominal circuit commutation break time	150 µs
Configuration	SINGLE WITH BUILT-IN FREE-WHEELING DIODE
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	3 V
Quick connection description	G-GR
Description of screw terminals	A-K-AK
Maximum holding current	500 mA
JESD-30 code	R-PUFM-D3
Maximum leakage current	50 mA
Humidity sensitivity level	1

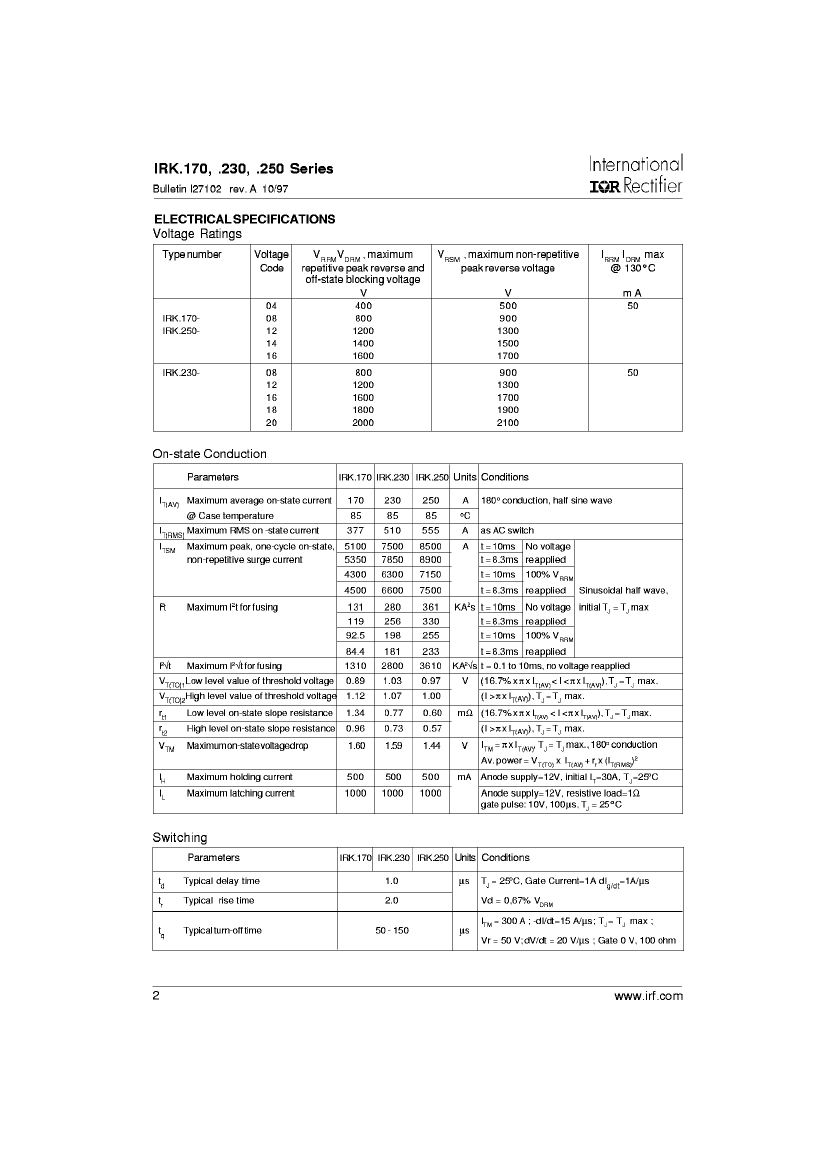

On-state non-repetitive peak current	8500 A
Number of components	1
Number of terminals	3
Maximum on-state current	250000 A
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Maximum rms on-state current	555 A
Maximum repetitive peak off-state leakage current	50000 µA
Off-state repetitive peak voltage	400 V
Repeated peak reverse voltage	400 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
