215913-1 datasheet, PDF - EEWORLD Datasheet

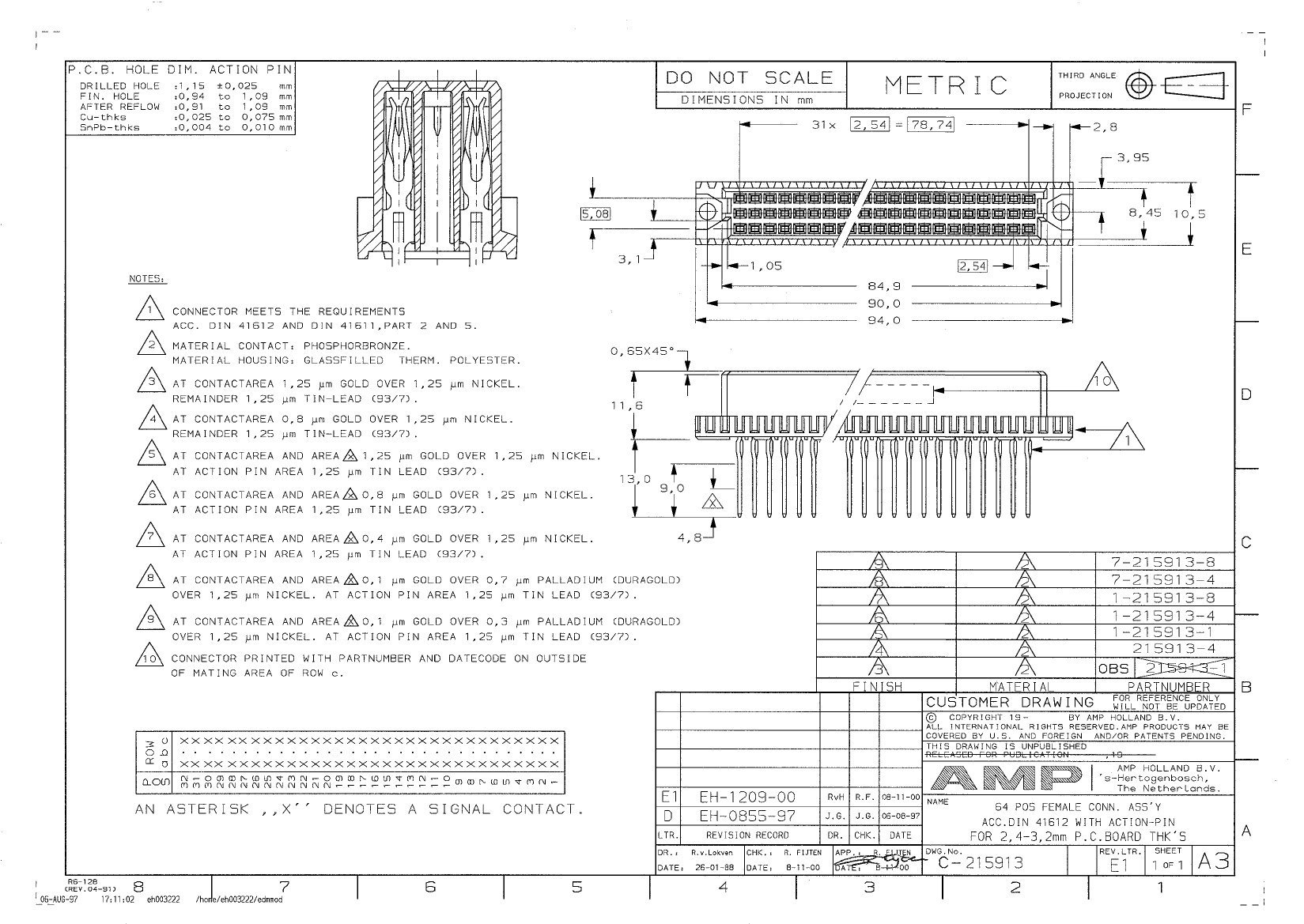

215913-1: DescriptionCONNECTOR, 64 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

215913-1 Overview

CONNECTOR, 64 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	STANDARD: DIN 41612; DIN 41611, ACTION PIN
Connector type	BOARD EURO CONNECTOR
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	215913
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	64
Base Number Matches	1

	215913-1	UM10469	215913-4	7-215913-8	363-1-064-0-T-RT1
Description	CONNECTOR, 64 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT	48 V/150 W demo board using the SSL4101	CONNECTOR,DIN-41612,PCB MNT,PLUG,64 CONTACTS,SKT,0.1 PITCH,COMPLIANT FIT TERMINAL,HOLE .112-.124	CONNECTOR, 64 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT	Board Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking
Reach Compliance Code	unknow	-	compli	unknow	compliant
Connector type	BOARD EURO CONNECTOR	-	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	-	FEMALE	FEMALE	MALE
DIN compliance	YES	-	YES	YES	-
Manufacturer's serial number	215913	-	-	215913	363
Installation method	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	-	BOARD	BOARD	BOARD
Number of rows loaded	2	-	3	2	2
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	1.27 mm
Termination type	PRESS FIT	-	PRESS FIT	PRESS FIT	SURFACE MOUNT
Total number of contacts	64	-	64	64	64
Base Number Matches	1	-	1	1	-
