Drain–Source Diode Characteristics and Maximum Ratings
Maximum Continuous Drain–Source Diode Forward Current
Drain–Source Diode Forward Voltage
Diode Reverse Recovery Time
(note3)
Diode Reverse Recovery Charge
V
GS
= 0 V, I
S
= 1.3 A
(Note 2)
I
F
= 5.5 A, d
iF
/d
t
= 100 A/µs
0.8
16
6
1.3
1.2
32
A
V
nS
nC
1. R
θJA
is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of the drain pins.
R
θJC
is guaranteed by design while R
θCA
is determined by the user's board design.
a) 78°C/W when mounted
on a 0.5 in
2
pad of 2 oz
copper
b) 125°C/W when
mounted on a 0.02 in
2
pad of 2 oz copper
c) 135°C/W when
mounted on a
minimum pad.
Scale 1 : 1 on letter size paper
2. Pulse Test: Pulse Width < 300
µs,
Duty Cycle < 2.0%
3. Trr parameter will not be subjected to 100% production testing.
2
FDS6930B Rev. A1
www.fairchildsemi.com
FDS6930B Dual N-Channel Logic Level PowerTrench
®
MOSFET
Typical Characteristics
20
2
V
GS
= 10V
16
4.0V
R
DS(ON)
, NORMALIZED
DRAIN-SOURCE ON-RESISTANCE
1.8
I
D
, DRAIN CURRENT (A)
6.0V
12
4.5V
V
GS
= 3.5V
1.6
3.5V
1.4
4.0V
4.5V
5.0V
6.0V
10.0V
8
3.0V
4
1.2
1
0
0
0.5
1
1.5
V
DS
, DRAIN TO SOURCE VOLTAGE (V)
2
0.8
0
4
8
12
I
D
, DRAIN CURRENT (A)
16
20

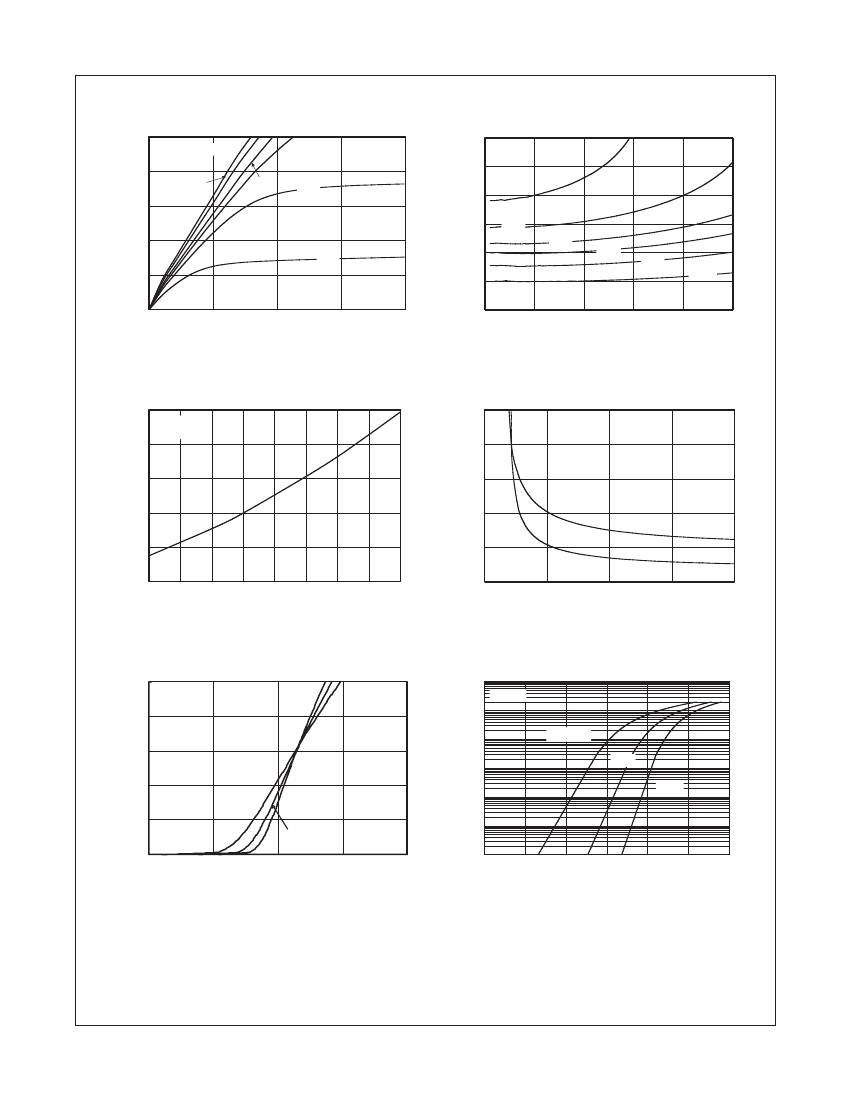

Figure 1. On-Region Characteristics.
Figure 2. On-Resistance Variation with
Drain Current and Gate Voltage.
0.12
1.6
R
DS(ON)
, NORMALIZED
DRAIN-SOURCE ON-RESISTANCE
1.4
R
DS(ON)
, ON-RESISTANCE (OHM)
I
D
= 5.5A
V
GS
= 10.0V
I
D
= 2.75A
0.1
1.2
0.08
T
A
= 125°C
0.06
1
0.8
0.04
T
A
= 25°C
0.02
0.6
-50
-25
0
25
50
75
100
T
J
, JUNCTION TEMPERATURE (
o
C)
125
150
2
4
6
8
V
GS
, GATE TO SOURCE VOLTAGE (V)
10
Figure 3. On-Resistance Variation with
Temperature.
20
Figure 4. On-Resistance Variation with
Gate-to-Source Voltage.
100
I
S
, REVERSE DRAIN CURRENT (A)
V
DS
= 5V
16
V
GS
= 0V
10
T
A
= 125°C
25°C
-55°C
0.01
I
D
, DRAIN CURRENT (A)
1
12
0.1
8
T
A
= 125° C
4
25°C
0
1
3
4
V
GS
, GATE TO SOURCE VOLTAGE (V)
2
5
-55°C
0.001
0.0001
0
0.2
0.4
0.6
0.8
1
V
SD
, BODY DIODE FORWARD VOLTAGE (V)
1.2
Figure 5. Transfer Characteristics.
Figure 6. Body Diode Forward Voltage Variation
with Source Current and Temperature.
3
FDS6930B Rev. A1
www.fairchildsemi.com
FDS6930B Dual N-Channel Logic Level PowerTrench
®
MOSFET
Typical Characteristics
10
I
D
= 5.5A
500
f = 1 MHz
V
GS
= 0 V
400
15V
V
DS
= 5V
V
GS
, GATE-SOURCE VOLTAGE (V)
8
CAPACITANCE (pF)
6
10V
4
300
C
iss
200
C
oss
100
C
rss
2
0
0
1
2
3
4
Q
g
, GATE CHARGE (nC)
5
6
0
0
5
10
15
V
DS
, DRAIN TO SOURCE VOLTAGE (V)
20
Figure 7. Gate Charge Characteristics.
100
100µs
P(pk), PEAK TRANSIENT POWER (W)
50
Figure 8. Capacitance Characteristics.
I
D
, DRAIN CURRENT (A)
10
R
DS(ON)
LIMIT
40
1ms
10ms
100ms
1s
SINGLE PULSE
R
θ
JA
= 135°C/W
T
A
= 25°C
30
1
DC
V
GS
= 10.0V
SINGLE PULSE
R
θ
JA
= 135°C/W
T
A
= 25°C
10s
20
0.1
10
0.01
0.01
0.1
1
10
V
DS
, DRAIN-SOURCE VOLTAGE (V)
100
0
0.001
0.01
0.1
1
t
1
, TIME (sec)
10
100

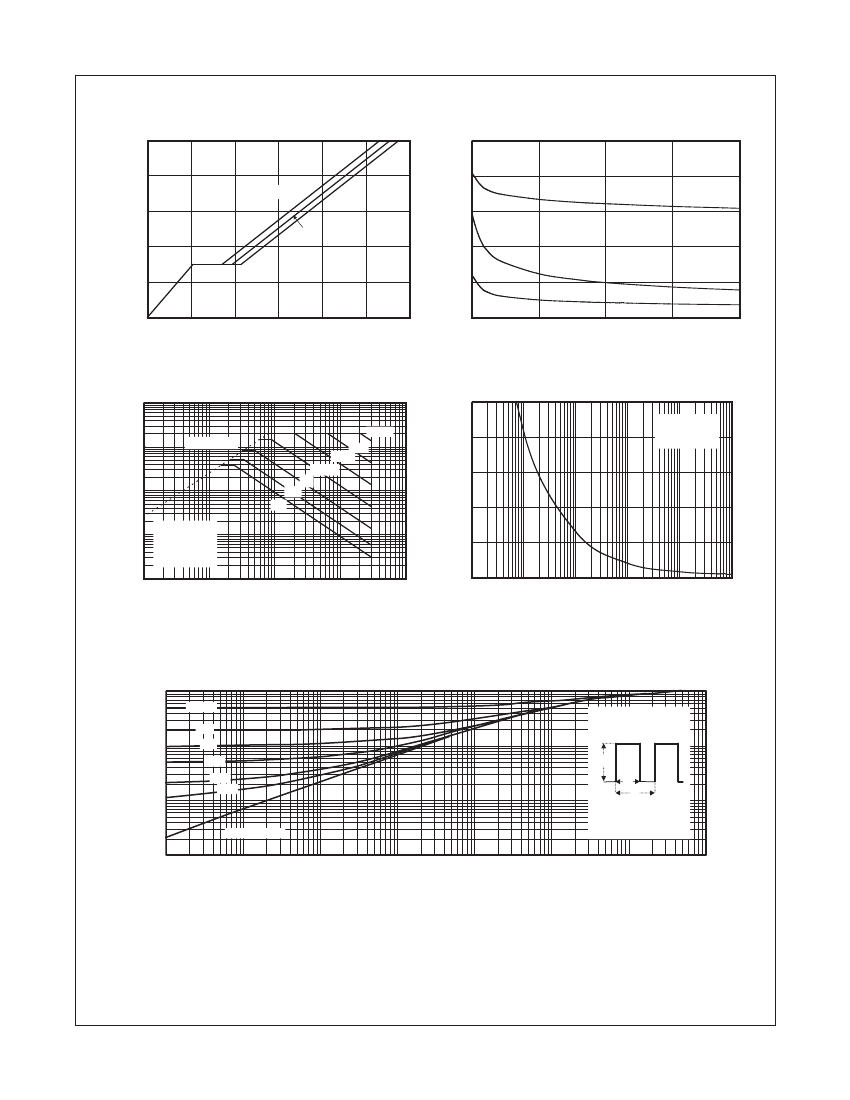

Figure 9. Maximum Safe Operating Area.
Figure 10. Single Pulse Maximum
Power Dissipation.
r(t), NORMALIZED EFFECTIVE TRANSIENT
THERMAL RESISTANCE
1
D = 0.5
0.2
R
θ
JA
(t) = r(t) * R
θ
JA
R
θ
JA
= 135°C/W
P(pk)
t
1
t
2
T
J
- T
A
= P * R
θ
JA
(t)
Duty Cycle, D = t
1
/ t
2
0.1
0.1
0.05
0.02
0.01
0.01
SINGLE PULSE
0.001
0.0001
0.001
0.01
0.1
t
1
, TIME (sec)
1
10
100
1000
Figure 11. Transient Thermal Response Curve.
Thermal characterization performed using the conditions described in Note 1c.
Transient thermal response will change depending on the circuit board design.
4
FDS6930B Rev. A1
www.fairchildsemi.com
TRADEMARKS
The following includes registered and unregistered trademarks and service marks, owned by Fairchild Semiconductor and/or its global subsidiaries, and is not
intended to be an exhaustive list of all such trademarks.
AccuPower
Auto-SPM
Build it Now
CorePLUS
CorePOWER
CROSSVOLT
CTL
Current Transfer Logic
DEUXPEED
®
Dual Cool™
EcoSPARK
®
EfficientMax
ESBC
®
Fairchild
Fairchild Semiconductor
®
FACT Quiet Series
FACT
®
FAST
®
FastvCore
FETBench
FlashWriter
®
*
FPS
®
F-PFS
®
FRFET
SM
Global Power Resource
Green FPS
Green FPS e-Series
Gmax
GTO
IntelliMAX
ISOPLANAR
MegaBuck
MICROCOUPLER
MicroFET
MicroPak
MicroPak2
MillerDrive
MotionMax
Motion-SPM
OptoHiT™
OPTOLOGIC
®
OPTOPLANAR
®
®
Power-SPM
®
PowerTrench
PowerXS™
Programmable Active Droop
QFET
®
QS
Quiet Series
RapidConfigure
Saving our world, 1mW/W/kW at a time™
SignalWise
SmartMax
SMART START
SPM
®
STEALTH
SuperFET
SuperSOT -3
SuperSOT -6
SuperSOT -8
SupreMOS
SyncFET
Sync-Lock™
®
*
®
The Power Franchise
TinyBoost
TinyBuck
TinyCalc
TinyLogic
®
TINYOPTO
TinyPower
TinyPWM
TinyWire
TriFault Detect
TRUECURRENT *
SerDes
PDP SPM™
UHC
Ultra FRFET
UniFET
VCX
VisualMax
XS™
®
* Trademarks of System General Corporation, used under license by Fairchild Semiconductor.
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE
RELIABILITY, FUNCTION, OR DESIGN. FAIRCHILD DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR
CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS. THESE
SPECIFICATIONS DO NOT EXPAND THE TERMS OF FAIRCHILD’S WORLDWIDE TERMS AND CONDITIONS, SPECIFICALLY THE WARRANTY THEREIN,
WHICH COVERS THESE PRODUCTS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE
EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR CORPORATION.
As used herein:
1. Life support devices or systems are devices or systems which, (a) are
intended for surgical implant into the body or (b) support or sustain life,
and (c) whose failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be reasonably
expected to result in a significant injury of the user.
2. A critical component in any component of a life support, device, or
system whose failure to perform can be reasonably expected to
cause the failure of the life support device or system, or to affect its
safety or effectiveness.
ANTI-COUNTERFEITING POLICY
Fairchild Semiconductor Corporation's Anti-Counterfeiting Policy. Fairchild's Anti-Counterfeiting Policy is also stated on our external website, www.fairchildsemi.com,
under Sales Support.
Counterfeiting of semiconductor parts is a growing problem in the industry. All manufacturers of semiconductor products are experiencing counterfeiting of their parts.
Customers who inadvertently purchase counterfeit parts experience many problems such as loss of brand reputation, substandard performance, failed applications,
and increased cost of production and manufacturing delays. Fairchild is taking strong measures to protect ourselves and our customers from the proliferation of
counterfeit parts. Fairchild strongly encourages customers to purchase Fairchild parts either directly from Fairchild or from Authorized Fairchild Distributors who are
listed by country on our web page cited above. Products customers buy either from Fairchild directly or from Authorized Fairchild Distributors are genuine parts, have
full traceability, meet Fairchild's quality standards for handling and storage and provide access to Fairchild's full range of up-to-date technical and product information.
Fairchild and our Authorized Distributors will stand behind all warranties and will appropriately address any warranty issues that may arise. Fairchild will not provide
any warranty coverage or other assistance for parts bought from Unauthorized Sources. Fairchild is committed to combat this global problem and encourage our
customers to do their part in stopping this practice by buying direct or from authorized distributors.
PRODUCT STATUS DEFINITIONS
Definition of Terms
Datasheet Identification
Advance Information
Preliminary
No Identification Needed
Obsolete
Product Status
Formative / In Design
First Production
Full Production
Not In Production
Definition
Datasheet contains the design specifications for product development. Specifications may change in
any manner without notice.
Datasheet contains preliminary data; supplementary data will be published at a later date. Fairchild
Semiconductor reserves the right to make changes at any time without notice to improve design.
Datasheet contains final specifications. Fairchild Semiconductor reserves the right to make changes
at any time without notice to improve the design.
Datasheet contains specifications on a product that is discontinued by Fairchild Semiconductor.
