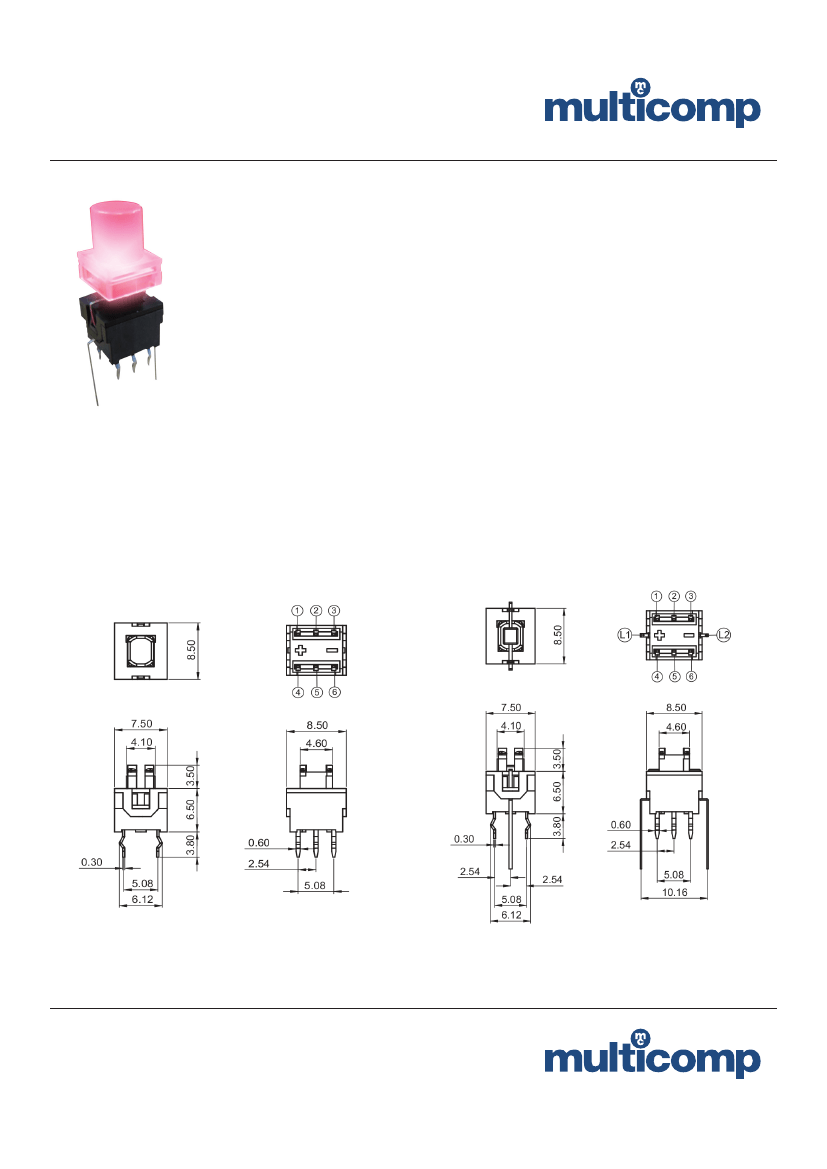

MCPSD Series
Specifications:
Rating
Contact Resistance
Insulation Resistance
Electrical Life
Actuation Force
: 0.1A, DC 30V Max/100mA, DC 1.5V Min.
: 50mΩ Max.
: 100MΩ Min.
: 50,000 cycles
: 250 ± 100g
Travel:
Full Travel
Contact Travel
Operating Temperature Range
: 1.5mm ± 0.4mm
: 1mm ± 0.4mm
: -20°C to 70°C
Materials:
Case
Housing
Actuator
Contact
Terminals
: LCP, Black
: Glass filled Nylon 6/6, Black
: Glass filled Nylon 6/6, Gray
: Copper Alloy, Silver Plated
: LCP, Black & Copper Alloy, Silver Plated
MCPSD70
MCPSD7X
www.element14.com
www.farnell.com
www.newark.com
Page <1>
06/08/12
V1.0
MCPSD Series
Lens
Appearance
Electro-optical Data(AT 20mA)
Colour (X)
Red
Vf (V)
Typ.
1.95
2
3.3
3.3
Yellow
Green
Blue
Max.
2.5
2.5
4.1
4
Iv (mcd)
Min.
80
300
400
80
Typ.
200
400
500
190
Peak
wavelength
630
590
525
470
Viewing Angle
2θ 1/2 (deg)
140°
140°
140°
140°
Water Clear
Part Number Table
Description
Switch, P/Button, On-Mom
Switch, P/Button, On-Mom
Switch, P/Button, On-Mom
Switch, P/Button, On-Mom
Switch, P/Button, On-Mom
Cap, Transparent For MCPSD Series
Colour (LED)
Without LED
Red
Yellow
Green
Blue
-
Part Number
MCPSD70
MCPSD73
MCPSD75
MCPSD76
MCPSD77
MCYCA046A
Important Notice :
This data sheet and its contents (the “Information”) belong to the members of the Premier Farnell group of companies (the “Group”) or are licensed to it. No licence is granted
for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change
without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any
error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any
assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the
Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence.
Multicomp is the registered trademark of the Group. © Premier Farnell plc 2012.
www.element14.com
www.farnell.com
www.newark.com
Page <2>
06/08/12
V1.0
