50YXF33MTA6.3X11 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 50YXF33MTA6.3X11

50YXF33MTA6.3X11: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 33uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size542KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric Compare View All

50YXF33MTA6.3X11 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 33uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

50YXF33MTA6.3X11 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	33 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	6.3 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.0165 mA
length	11 mm
Manufacturer's serial number	YXF
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	TAPE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	137.5 mA
series	YXF
surface mount	NO
Delta tangent	0.1
Terminal surface	Tin (Sn)
Terminal pitch	5 mm
Terminal shape	WIRE

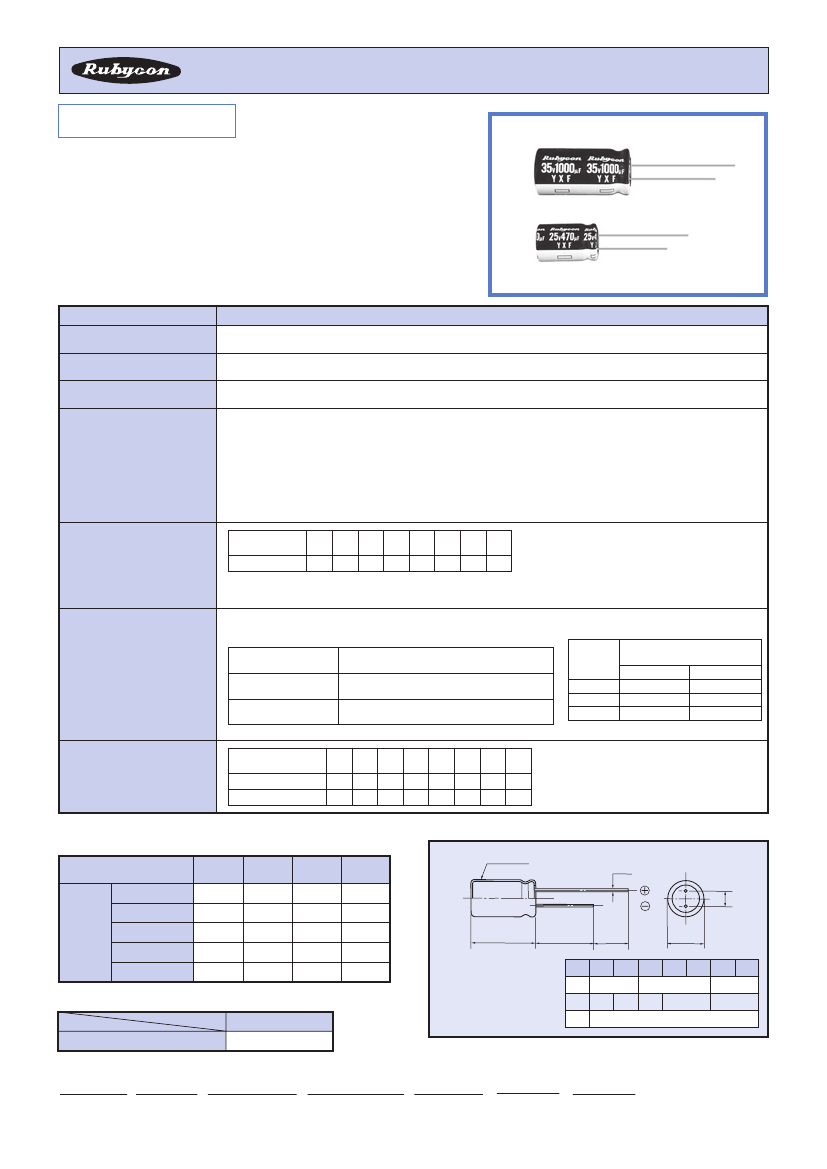

Preview

Download Datasheet

View All

小型铝电解电容器

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

YXF

系列

SERIES

105℃长寿½½阻抗品

105℃ Long Life. Low impedance.

◆特　长／

FEATURES

• 105℃、4000½10000小时品。

Load Life : 105℃ 4000½10000 hours.

• RoHS指令对应品

RoHS compliance.

•

高频率阻抗规格设定。

Low impedance at 100kHz with selected materials.

◆规格表／

SPECIFICATIONS

项　目

Items

工 ½ 温度范围

Category Temperature Range

特　　　性

Characteristics

－40½＋105℃

6.3½100V.DC

±20%

(20℃，120Hz)

小于I＝0.01CV和3µA中的较大值

(½加额定电压2分钟后)

额定电压范围

Rated Voltage Range

静电容量允许差

Capacitance Tolerance

漏

电

流

＝0.01CV

or 3µA whichever is greater. (After 2 minutes)

Leakage Current(MAX)

I=漏电流 (µA)

Leakage Current

C=额定静电容量 (µF)

Rated Capacitance

V=额定电压 (V)

Rated Voltage

损失角正切值

(tan

)

Dissipation Factor(MAX)

额定电压

(V)

6.3 10 16 25 35 50 63 100

Rated Voltage

tanδ

0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08

(20℃，120Hz)

对于额定静电容量超过1000µF的产品，其静电容量每增加1000µF，则损失角正切值在上表值的基础上加上0.02。

When rated capacitance is over 1000µF, tan

shall be added 0.02 to the listed value with increase of every 1000µF.

在105℃环境中，不超过额定电压的范围内叠加额定纹波电流，连续加½½右表时间后，满足以下各项要求。

After life test with rated ripple current at conditions stated in the table below, the capacitors shall meet the following requirements.

静电容量变化率

Capacitance Change

损失角正切值

Dissipation Factor

漏

电

流

Leakage Current

初期值的±25%以内

Within

±25%

of the initial value.

规格值的200%以下

Not more than 200% of the specified value.

规格值以下

Not more than the specified value.

铝壳尺寸

Case Size

时间(hrs)

Life Time

6.3½10WV 16½100WV

5000

4000

7000

6000

10000

8000

耐

Endurance

久

性

D≤6.3

D＝8,10

D＝12.5

温

特

性

Low Temperature Stability

(阻

抗比)

Impedance Ratio(MAX)

额定电压

(V)

Rated Voltage

Z(－25℃)/ Z(20℃)

Z(－40℃)/ Z(20℃)

6.3

100

(120Hz)

◆纹波电流补正系数／

MULTIPLIER FOR RIPPLE CURRENT

频率系数

Frequency Coefficient

频率

(Hz)

Frequency

◆尺寸图／

DIMENSIONS

套管

SLEEVE(PET)

(mm)

± 0. 5

120

0.42

0.55

0.70

0.75

0.80

0.60

0.75

0.85

0.90

0.95

10k

0.80

0.90

0.95

0.98

1.00

100k

≤

1.00

L＋αMAX

15MIN

系　数

Coefficient

22½33µF

47½330µF

470½1000µF

2200½15000µF

4MIN

D＋0.5MAX

6.3

0.5

0.6

12.5

0.8

7.5

0.47½10µF

◆副记号／

OPTION

记号

Code

PET套管　

PET Sleeve

EFC

2.0

2.5

3.5

5.0

L≤16 :

α=1.5

L≥20 :

α=2.0

◆产品型号½系／

PART NUMBER

□□□

额定电压

Rated Voltage

YXF

系列名称

Series

□□□□□

额定静电容量

Rated Capacitance

静电容量允许差

Capacitance Tolerance

□□□

副记号

Option

□□

引线加工记号

Lead Forming

D×L

铝壳尺寸

Case Size

50YXF33MTA6.3X11 Related Products

	50YXF33MTA6.3X11	63YXF22M6.3X11	50YXF47MT16.3X11	10YXF100MTA5X11	100YXF47MT810X16	100YXF330MGC16X25	50YXF10MTA5X11	25YXF33MTA5X11
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 33uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 330uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 10uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 33uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	33 µF	22 µF	47 µF	100 µF	47 µF	330 µF	10 µF	33 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	6.3 mm	6.3 mm	6.3 mm	5 mm	10 mm	16 mm	5 mm	5 mm
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
leakage current	0.0165 mA	0.01386 mA	0.0235 mA	0.01 mA	0.047 mA	0.33 mA	0.005 mA	0.00825 mA
length	11 mm	11 mm	11 mm	11 mm	16 mm	25 mm	11 mm	11 mm
Manufacturer's serial number	YXF	YXF	YXF	YXF	YXF	YXF	YXF	YXF
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
Package form	Radial	Radial	Radial	Radial	Radial	Radial	Radial	Radial
method of packing	TAPE	Bulk	TAPE	TAPE	TAPE	TAPE	TAPE	TAPE
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	50 V	63 V	50 V	10 V	100 V	100 V	50 V	25 V
ripple current	137.5 mA	77 mA	175 mA	105 mA	203 mA	630 mA	42 mA	82.5 mA
series	YXF	YXF	YXF	YXF	YXF	YXF	YXF	YXF
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Delta tangent	0.1	0.09	0.1	0.19	0.08	0.08	0.1	0.14
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal pitch	5 mm	2.5 mm	2.5 mm	5 mm	5 mm	7.5 mm	5 mm	5 mm
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Maker	rubycon	rubycon	rubycon	rubycon	rubycon	rubycon	rubycon	-
