50ZL100MEFCCC8X11.5 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 50ZL100MEFCCC8X11.5

50ZL100MEFCCC8X11.5: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 100uF; CategoryPassive components capacitor; File Size119KB，3 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric Compare View All

50ZL100MEFCCC8X11.5 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 100uF

50ZL100MEFCCC8X11.5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	100 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	8 mm
dielectric materials	ALUMINUM (WET)
length	11.5 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	724 mA
Terminal pitch	3.5 mm

Preview

Download Datasheet

View All

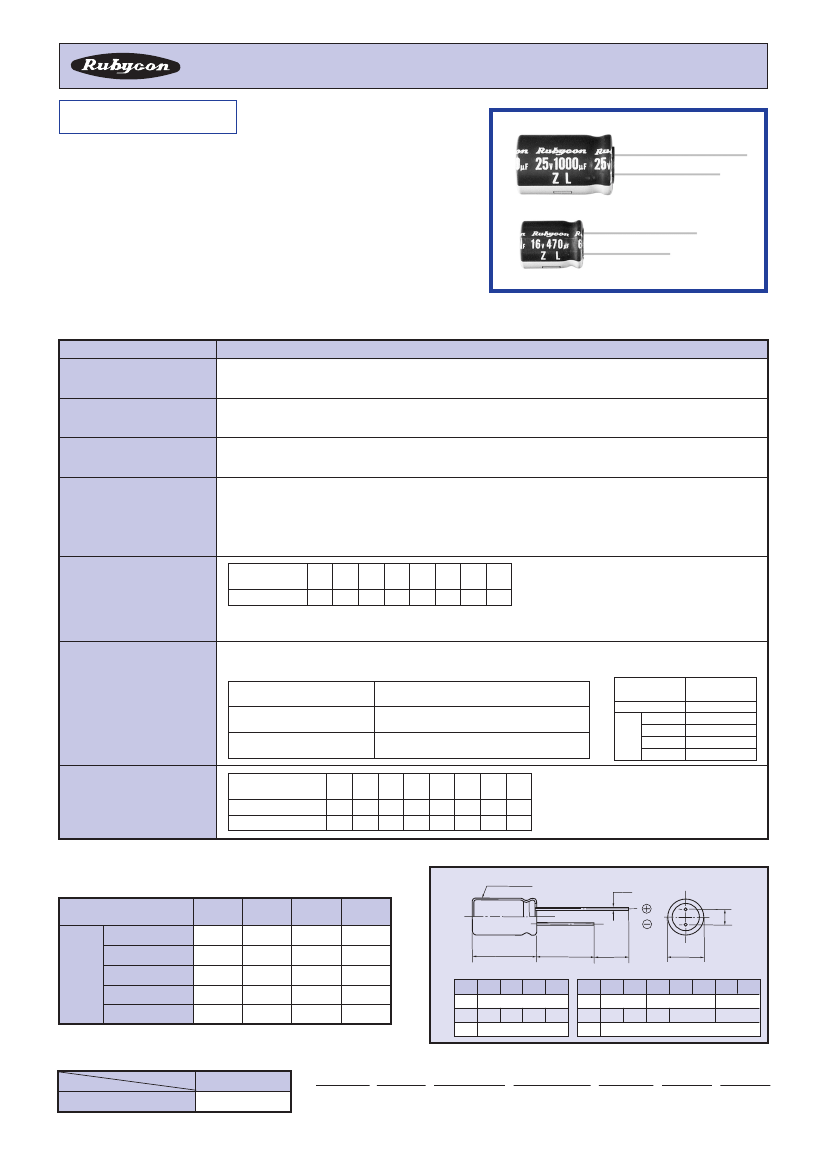

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

SERIES

105℃ High ripple current, Low impedance.

◆FEATURES

・

Enabled high ripple current by a reduction of impedance at high frequency range.

・

Load Life : 105℃ 1000∼5000 hours.

・

RoHS compliance.

◆SPECIFICATIONS

Items

Category Temperature Range

Characteristics

−40∼＋105℃

6.3∼100V.DC

±20％

（20℃，

120Hz）

I＝0.01CV

or 3μA whichever is greater. (After 2 minutes)

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

I＝(μA)

Leakage Current

C＝(μF)

Rated Capacitance

V＝(V)

Rated Voltage

Rated Voltage 6.3

63 100

（20℃，

120Hz）

(tanδ)

Dissipation Factor(MAX)

tanδ

0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08

When rated capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with increase of every 1000μF.

After life test with rated ripple current at conditions stated in the table below,

the capacitors shall meet the following requirements.

Capacitance Change

Endurance

Dissipation Factor

Leakage Current

Not more than 200％ of the speciﬁed value.

Not more than the speciﬁed value.

Within ±25％ of the initial value.

Case Size

Ｌ

＝7

φD≦6.3

φD＝ 8

L≧11

φD＝ 10

φD≧12.5

(hrs)

Life Time

1000

2000

3000

4000

5000

Low Temperature Stability

Impedance Ratio(MAX)

Rated Voltage

6.3

63 100

（120Hz）

（−25℃）（20℃） 2

（−40℃）（20℃） 3

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency Coeﬃcient

（Hz）

120

0.42

0.50

0.55

0.60

0.70

0.73

0.77

0.80

0.85

10k

0.90

0.92

0.94

0.96

0.98

100k≦

1.00

◆DIMENSIONS

SLEEVE(PET)

（mm）

F ±0.5

φD＋0.5MAX

φd

Frequency

5.6∼33μF

39∼270μF

Coeﬃcient

L＋ MAX

15MIN

4MIN

330∼680μF

820∼1800μF

2200∼6800μF

〈Ｌ

＝7〉

φD

φd

1.5

2.0

6.3

2.5

3.5

0.45

1.0

〈Ｌ

≧11〉

φD

φd

2.0

6.3

0.5

2.5

3.5

0.6

5.0

12.5

0.8

7.5

L≦16 : α

＝1.5 L≧20 : α

＝2.0

◆OPTION

Code

PET Sleeve

◆PART NUMBER

□□□

Rated Voltage

Series

□□□□□

Rated Capacitance

Capacitance Tolerance

□□□

Option

□□

Lead Forming

D×L

Case Size

Ｅ

ＦC

50ZL100MEFCCC8X11.5 Related Products

	50ZL100MEFCCC8X11.5	27440207	25ZL330MEFCKC10X12.5
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 100uF	Female insert - VS-MSTBVA 2,5/ 5-GB-5,08-BK-A	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 330uF
Is it Rohs certified?	conform to	-	conform to
Maker	rubycon	-	rubycon
Reach Compliance Code	compliant	-	compliant
ECCN code	EAR99	-	EAR99
capacitance	100 µF	-	330 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	-	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	8 mm	-	10 mm
dielectric materials	ALUMINUM (WET)	-	ALUMINUM (WET)
length	11.5 mm	-	12.5 mm
negative tolerance	20%	-	20%
Number of terminals	2	-	2
Maximum operating temperature	105 °C	-	105 °C
Minimum operating temperature	-40 °C	-	-40 °C
Package form	Radial	-	Radial
method of packing	Bulk	-	Bulk
polarity	POLARIZED	-	POLARIZED
positive tolerance	20%	-	20%
Rated (DC) voltage (URdc)	50 V	-	25 V
ripple current	724 mA	-	1030 mA
Terminal pitch	3.5 mm	-	5 mm
