UBCV47TA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> UBCV47TA

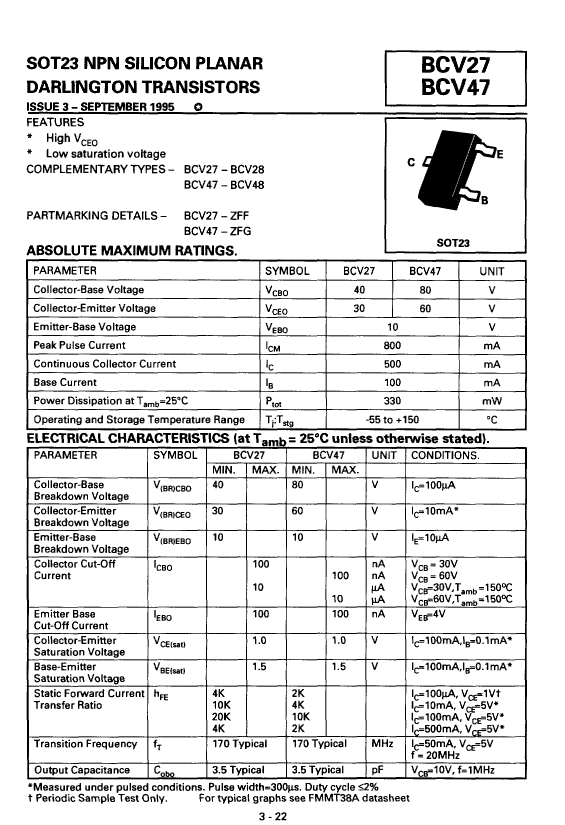

UBCV47TA: DescriptionSmall Signal Bipolar Transistor, 0.5A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size47KB，1 Pages; ManufacturerZetex Semiconductors; Websitehttp://www.zetex.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

UBCV47TA Overview

Small Signal Bipolar Transistor, 0.5A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN

UBCV47TA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Zetex Semiconductors
package instruction	SOT-23, 3 PIN
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum collector current (IC)	0.5 A
Collector-emitter maximum voltage	60 V
Configuration	DARLINGTON
Minimum DC current gain (hFE)	2000
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	170 MHz
VCEsat-Max	1 V

Preview

Download Datasheet

View All

UBCV47TA Related Products

	UBCV47TA	UBCV27TA	BCV47TC	UBCV47TC	UBCV27TC
Description	Small Signal Bipolar Transistor, 0.5A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN	Small Signal Bipolar Transistor, 0.5A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN	Small Signal Bipolar Transistor, 0.5A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN	Small Signal Bipolar Transistor, 0.5A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN	Small Signal Bipolar Transistor, 0.5A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors
package instruction	SOT-23, 3 PIN	SOT-23, 3 PIN	SMALL OUTLINE, R-PDSO-G3	SOT-23, 3 PIN	SOT-23, 3 PIN
Reach Compliance Code	not_compliant	not_compliant	compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Collector-emitter maximum voltage	60 V	30 V	60 V	60 V	30 V
Configuration	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON
Minimum DC current gain (hFE)	2000	4000	2000	2000	4000
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e3	e3	e3	e3	e3
Humidity sensitivity level	1	1	1	1	1
Number of components	1	1	1	1	1
Number of terminals	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260
Polarity/channel type	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES
Terminal surface	MATTE TIN	MATTE TIN	Matte Tin (Sn)	MATTE TIN	MATTE TIN
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	40	10	40	40
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	170 MHz	170 MHz	170 MHz	170 MHz	170 MHz
VCEsat-Max	1 V	1 V	1 V	1 V	1 V
