SAA1027N datasheet, PDF - EEWORLD Datasheet

SAA1027N: DescriptionStepper Motor Controller, 0.5A, BIPolar, PDIP16; CategoryOther integrated circuit (IC) The signal circuit; File Size143KB，4 Pages; ManufacturerSignetics

Download Datasheet Parametric View All

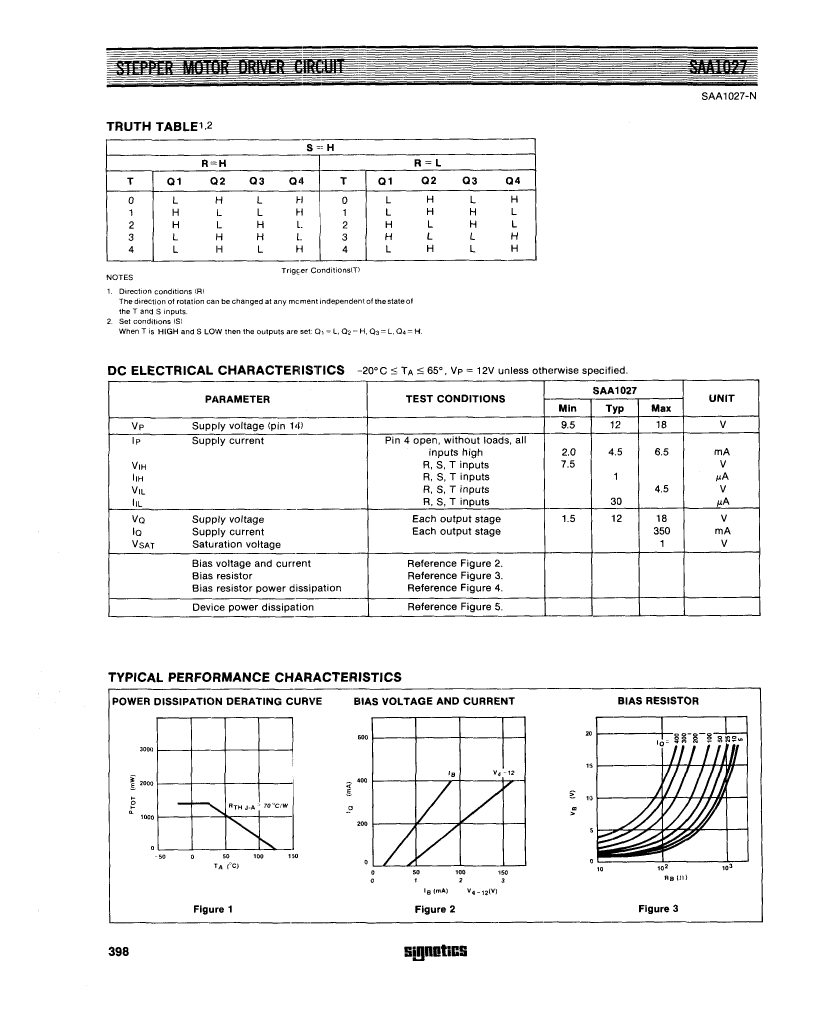

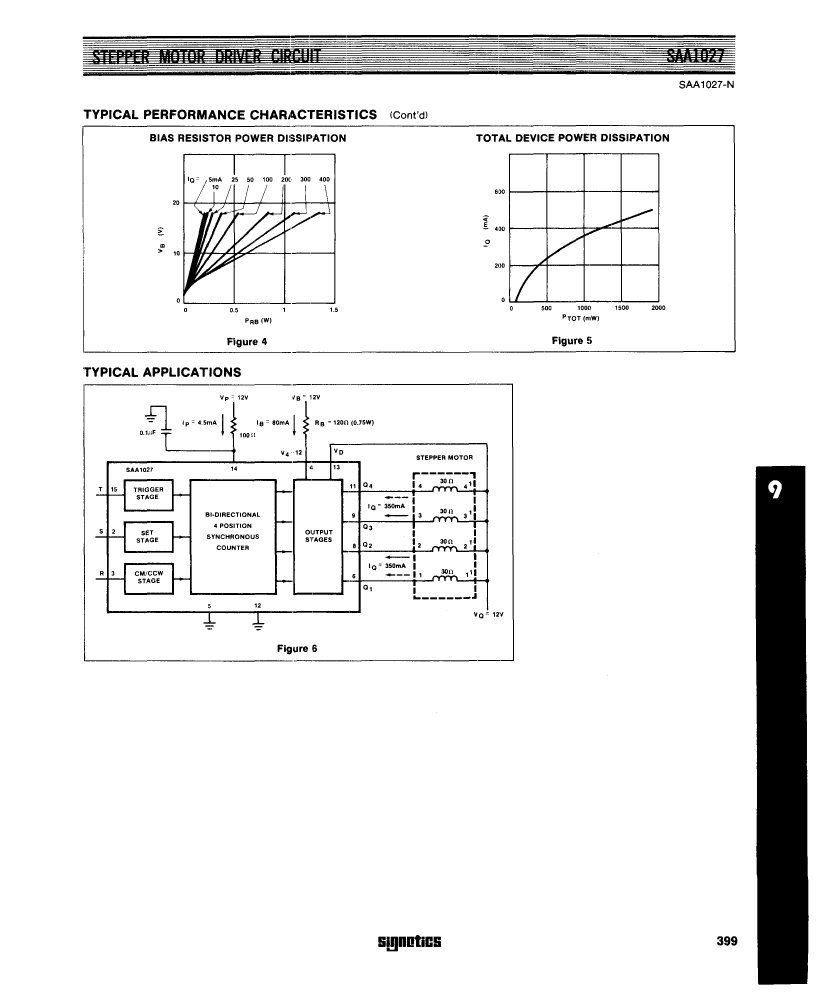

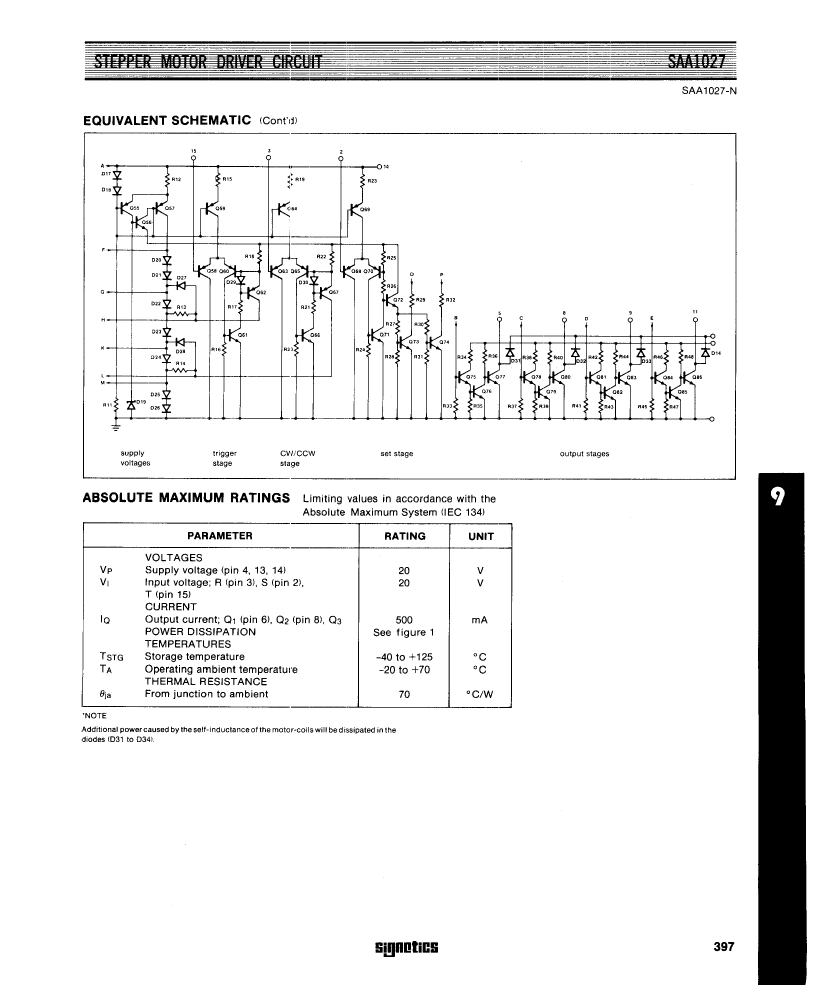

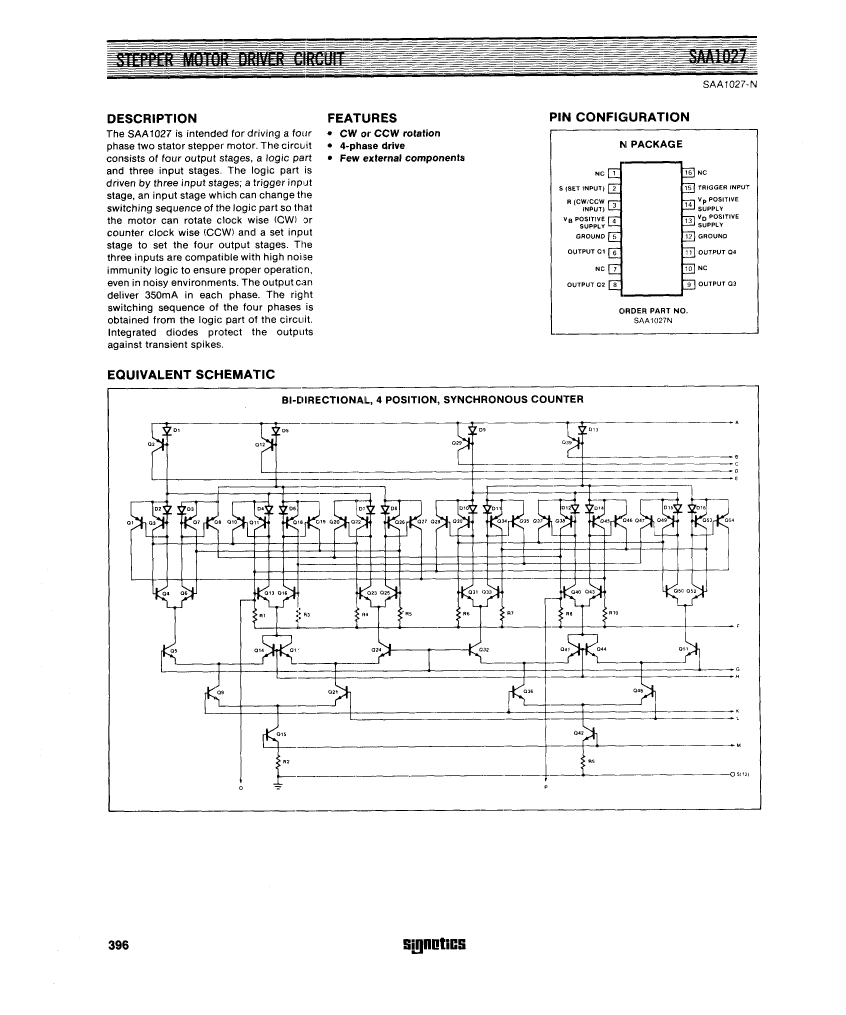

SAA1027N Overview

Stepper Motor Controller, 0.5A, BIPolar, PDIP16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Signetics
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	STEPPER MOTOR CONTROLLER
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Number of functions	1
Number of terminals	16
Maximum operating temperature	65 °C
Minimum operating temperature	-20 °C
Maximum output current	0.5 A
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	9.5 V
Nominal supply voltage (Vsup)	12 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
