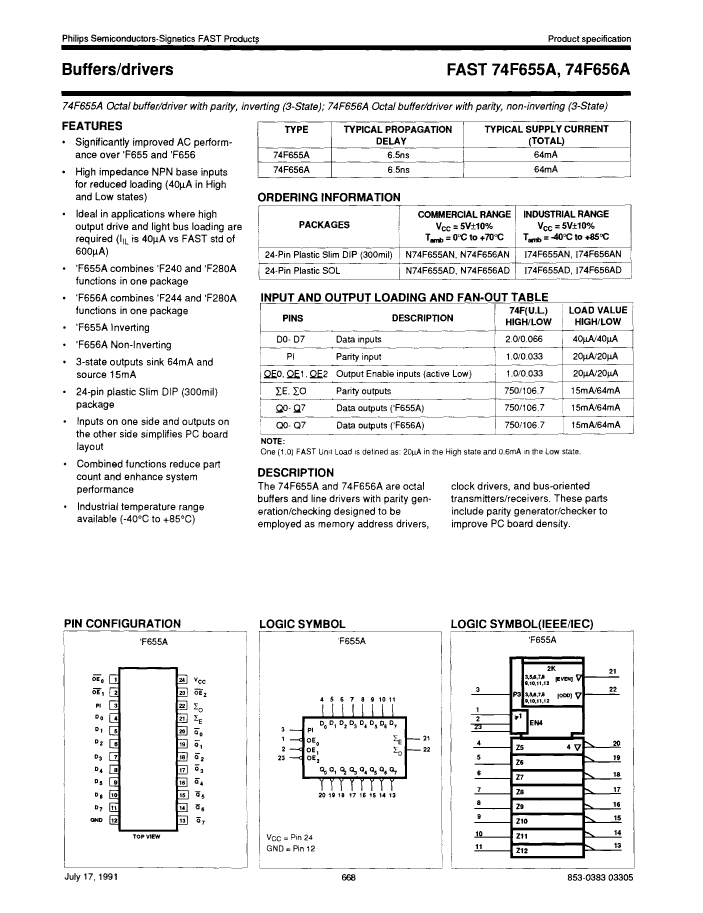

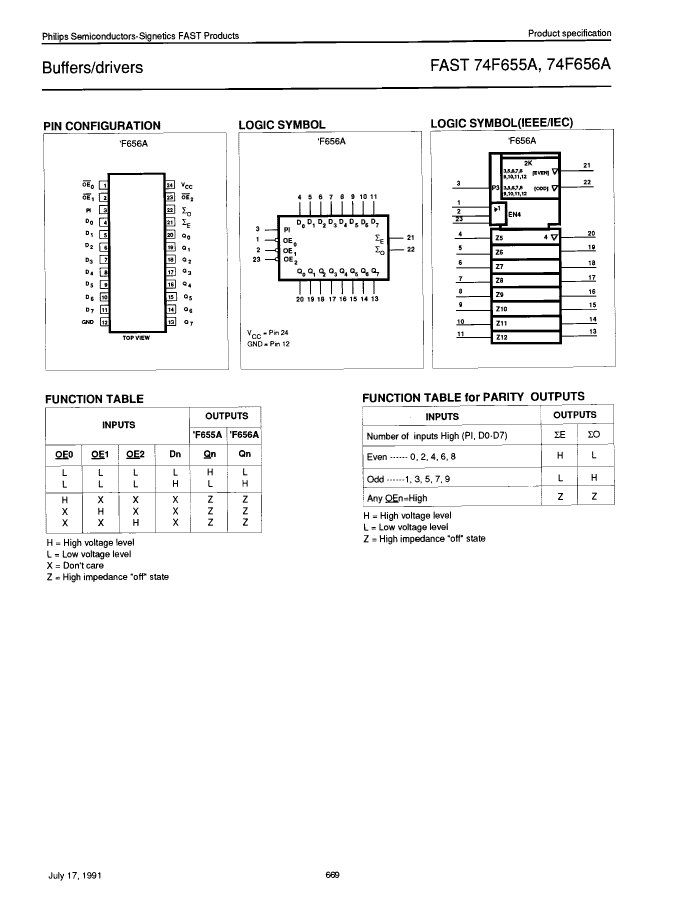

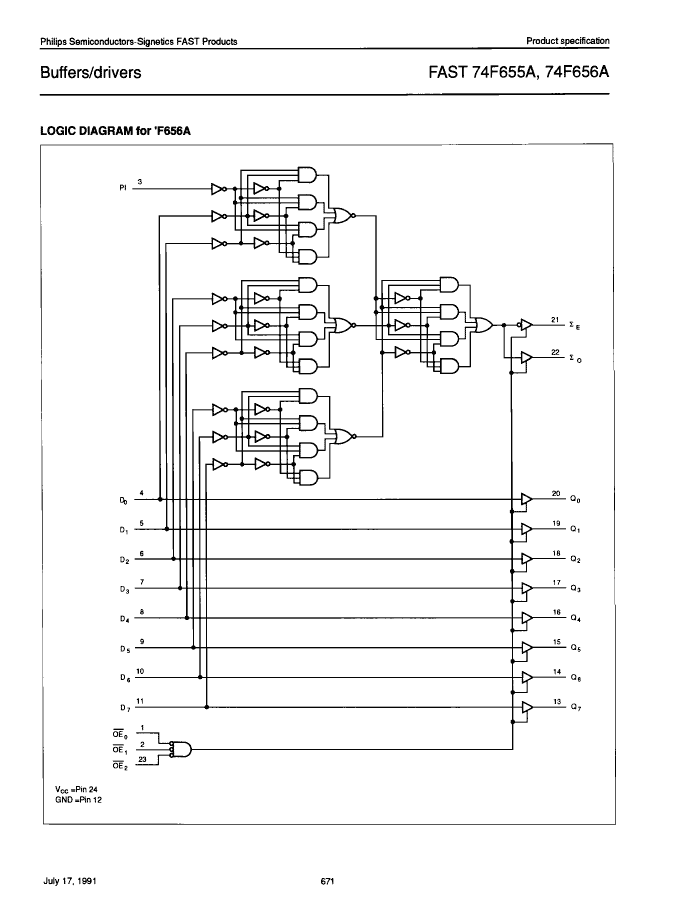

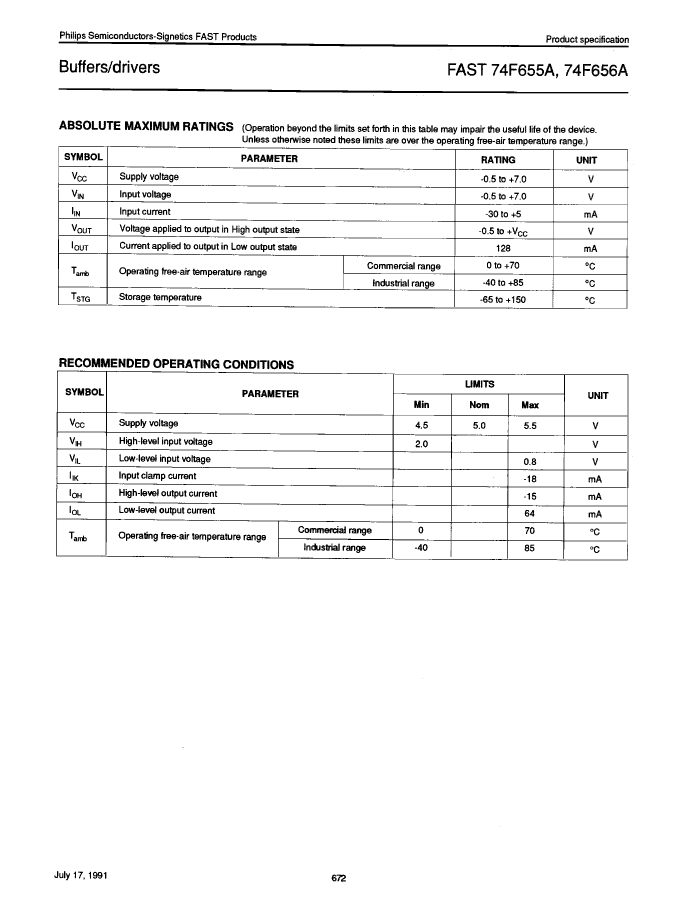

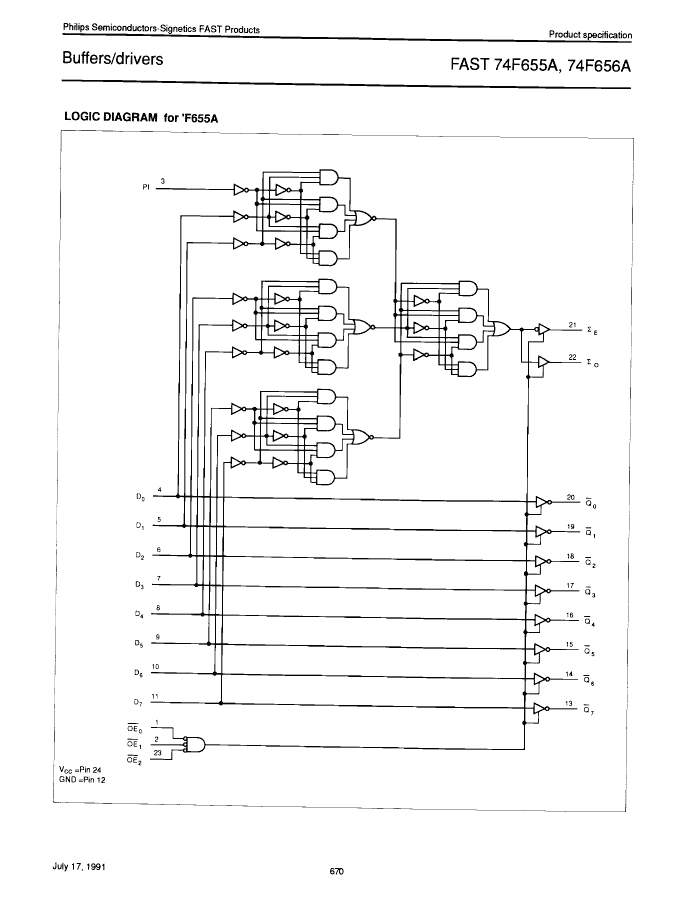

IC F/FAST SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDSO24, PLASTIC, SO-24, Bus Driver/Transceiver
| Parameter Name | Attribute value |
| Maker | NXP |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 24 |
| Reach Compliance Code | unknown |
| Other features | WITH TRIPLE OUTPUT ENABLE; ODD/EVEN PARITY GENERATION WITH TRISTATE OUTPUTS |
| series | F/FAST |
| JESD-30 code | R-PDSO-G24 |
| length | 15.4 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 24 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output characteristics | 3-STATE |
| Output polarity | INVERTED |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Maximum supply current (ICC) | 110 mA |
| propagation delay (tpd) | 5.5 ns |
| Certification status | Not Qualified |
| Maximum seat height | 2.65 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | INDUSTRIAL |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| width | 7.5 mm |
| I74F655AD | N74F655AD | N74F655AD-T | N74F655AN | I74F655AN | |
|---|---|---|---|---|---|
| Description | IC F/FAST SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDSO24, PLASTIC, SO-24, Bus Driver/Transceiver | IC F/FAST SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDSO24, PLASTIC, SO-24, Bus Driver/Transceiver | IC F/FAST SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDSO24, PLASTIC, SO-24, Bus Driver/Transceiver | IC F/FAST SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDIP24, 0.300 INCH, PLASTIC, DIP-24, Bus Driver/Transceiver | IC F/FAST SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDIP24, 0.300 INCH, PLASTIC, DIP-24, Bus Driver/Transceiver |
| Maker | NXP | NXP | NXP | NXP | NXP |
| Parts packaging code | SOIC | SOIC | SOIC | DIP | DIP |
| package instruction | SOP, | SOP, SOP24,.4 | SOP, | DIP, DIP24,.3 | DIP, |
| Contacts | 24 | 24 | 24 | 24 | 24 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| Other features | WITH TRIPLE OUTPUT ENABLE; ODD/EVEN PARITY GENERATION WITH TRISTATE OUTPUTS | WITH TRIPLE OUTPUT ENABLE | WITH TRIPLE OUTPUT ENABLE; ODD/EVEN PARITY GENERATION WITH TRISTATE OUTPUTS | WITH TRIPLE OUTPUT ENABLE | WITH TRIPLE OUTPUT ENABLE; ODD/EVEN PARITY GENERATION WITH TRISTATE OUTPUTS |
| series | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST |
| JESD-30 code | R-PDSO-G24 | R-PDIP-T24 | R-PDSO-G24 | R-PDIP-T24 | R-PDIP-T24 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 24 | 24 | 24 | 24 | 24 |
| Maximum operating temperature | 85 °C | 70 °C | 70 °C | 70 °C | 85 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | INVERTED | INVERTED | INVERTED | INVERTED | INVERTED |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | SOP | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE | SMALL OUTLINE | IN-LINE | IN-LINE |
| Maximum supply current (ICC) | 110 mA | 110 mA | 110 mA | 110 mA | 110 mA |
| propagation delay (tpd) | 5.5 ns | 4.5 ns | 4.5 ns | 4.5 ns | 5.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | YES | NO | NO |
| technology | TTL | TTL | TTL | TTL | TTL |
| Temperature level | INDUSTRIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | INDUSTRIAL |
| Terminal form | GULL WING | THROUGH-HOLE | GULL WING | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| length | 15.4 mm | - | 15.4 mm | - | 31.7 mm |
| Maximum seat height | 2.65 mm | - | 2.65 mm | - | 4.7 mm |
| width | 7.5 mm | - | 7.5 mm | - | 7.62 mm |
