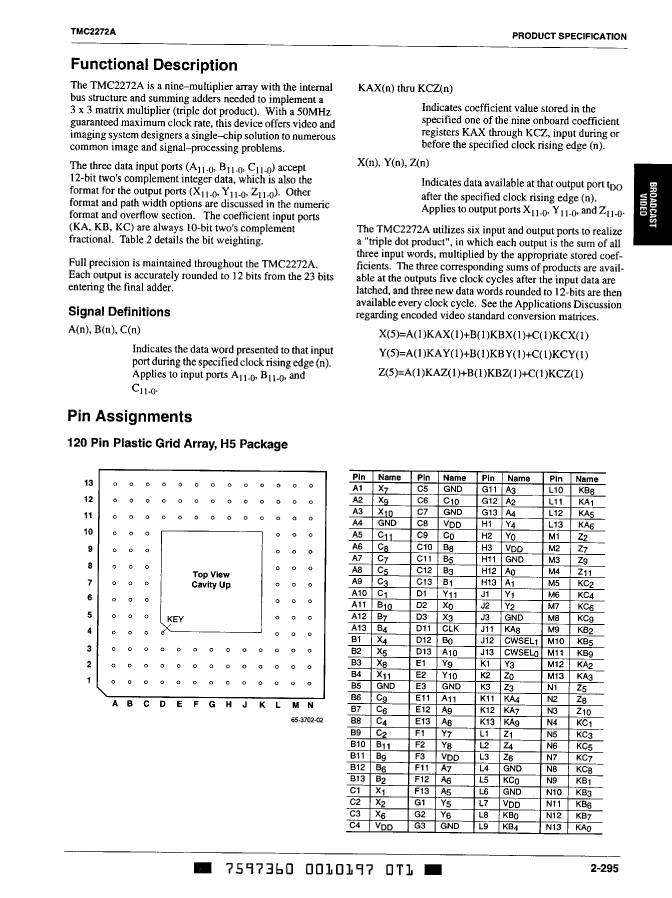

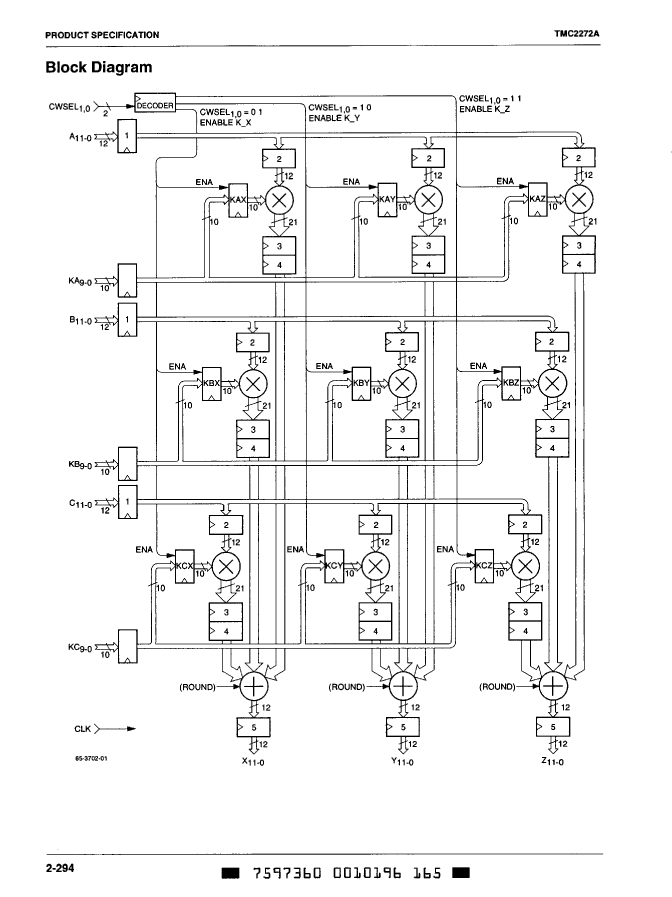

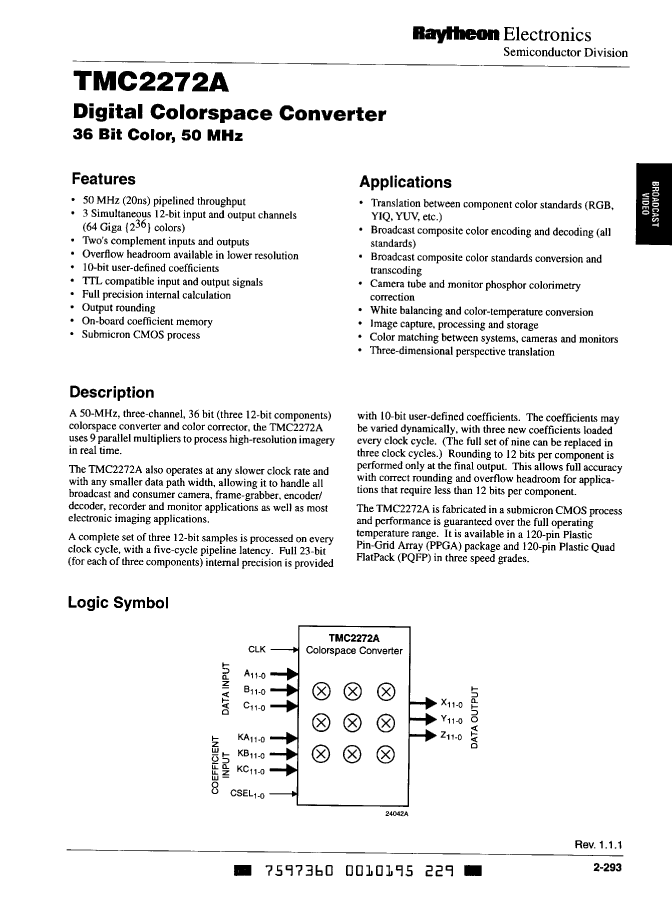

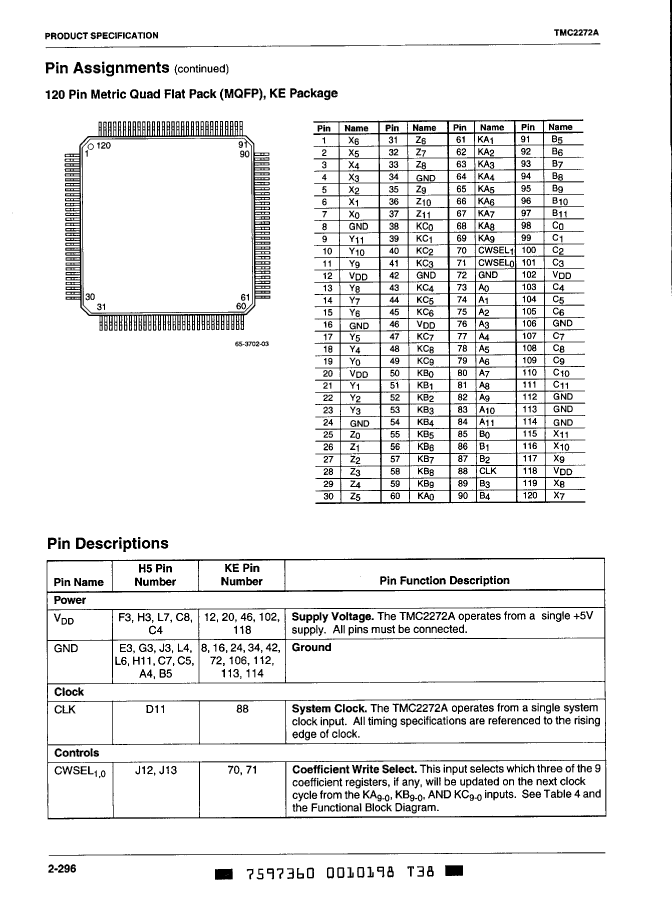

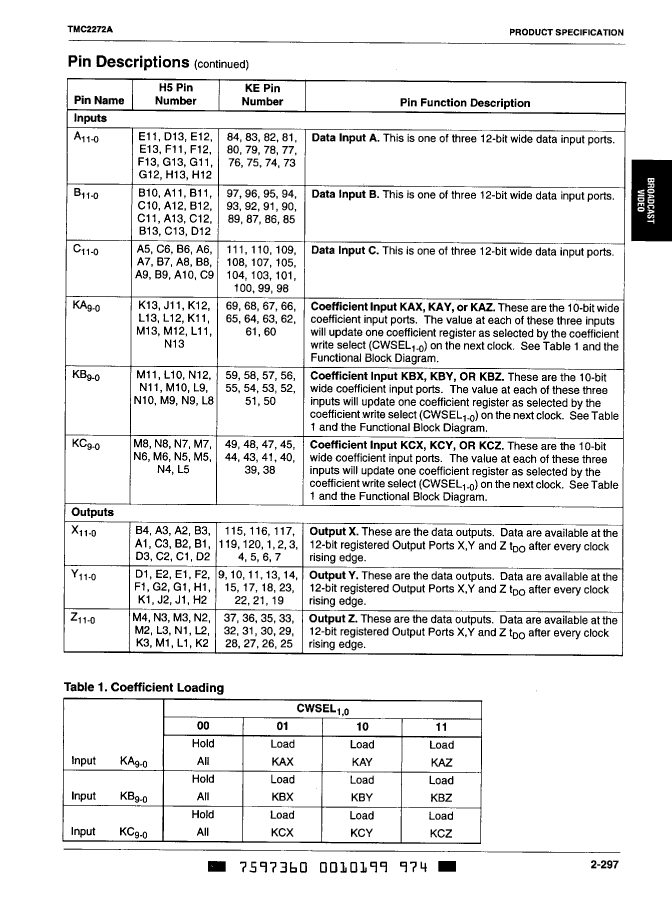

Video Imager, 12-Bit, CMOS, PPGA121,
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Raytheon Company |
| Reach Compliance Code | unknown |
| boundary scan | NO |
| maximum clock frequency | 40 MHz |
| External data bus width | 12 |
| JESD-30 code | S-PPGA-P121 |
| JESD-609 code | e0 |
| low power mode | NO |
| Number of terminals | 121 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output data bus width | 12 |
| Package body material | PLASTIC/EPOXY |
| Package shape | SQUARE |
| Package form | GRID ARRAY |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum slew rate | 140 mA |
| Maximum supply voltage | 5.25 V |
| Minimum supply voltage | 4.75 V |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | PIN/PEG |
| Terminal location | PERPENDICULAR |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| uPs/uCs/peripheral integrated circuit type | DSP PERIPHERAL, VIDEO IMAGING |
| TMC2272AH5C2 | TMC2272AH5C | TMC2272AH5C3 | TMC2272AKEC2 | TMC2272AKEC | TMC2272AKEC3 | |
|---|---|---|---|---|---|---|
| Description | Video Imager, 12-Bit, CMOS, PPGA121, | Video Imager, 12-Bit, CMOS, PPGA121, | Video Imager, 12-Bit, CMOS, PPGA121, | Video Imager, 12-Bit, CMOS, PQFP120, | Video Imager, 12-Bit, CMOS, PQFP120, | Video Imager, 12-Bit, CMOS, PQFP120, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Raytheon Company | Raytheon Company | Raytheon Company | Raytheon Company | Raytheon Company | Raytheon Company |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| boundary scan | NO | NO | NO | NO | NO | NO |
| maximum clock frequency | 40 MHz | 30 MHz | 50 MHz | 40 MHz | 30 MHz | 50 MHz |
| External data bus width | 12 | 12 | 12 | 12 | 12 | 12 |
| JESD-30 code | S-PPGA-P121 | S-PPGA-P121 | S-PPGA-P121 | S-PQFP-G120 | S-PQFP-G120 | S-PQFP-G120 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| low power mode | NO | NO | NO | NO | NO | NO |
| Number of terminals | 121 | 121 | 121 | 120 | 120 | 120 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Output data bus width | 12 | 12 | 12 | 12 | 12 | 12 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE |
| Package form | GRID ARRAY | GRID ARRAY | GRID ARRAY | FLATPACK | FLATPACK | FLATPACK |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum slew rate | 140 mA | 125 mA | 155 mA | 140 mA | 125 mA | 155 mA |
| Maximum supply voltage | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | PIN/PEG | PIN/PEG | PIN/PEG | GULL WING | GULL WING | GULL WING |
| Terminal location | PERPENDICULAR | PERPENDICULAR | PERPENDICULAR | QUAD | QUAD | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| uPs/uCs/peripheral integrated circuit type | DSP PERIPHERAL, VIDEO IMAGING | DSP PERIPHERAL, VIDEO IMAGING | DSP PERIPHERAL, VIDEO IMAGING | DSP PERIPHERAL, VIDEO IMAGING | DSP PERIPHERAL, VIDEO IMAGING | DSP PERIPHERAL, VIDEO IMAGING |
