CMR1S-02BKLEADFREE datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> CMR1S-02BKLEADFREE

CMR1S-02BKLEADFREE: DescriptionRectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size35KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

CMR1S-02BKLEADFREE Overview

Rectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon,

CMR1S-02BKLEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Maximum non-repetitive peak forward current	30 A
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.035 µs
surface mount	YES
Terminal surface	MATTE TIN
Terminal form	C BEND
Terminal location	DUAL

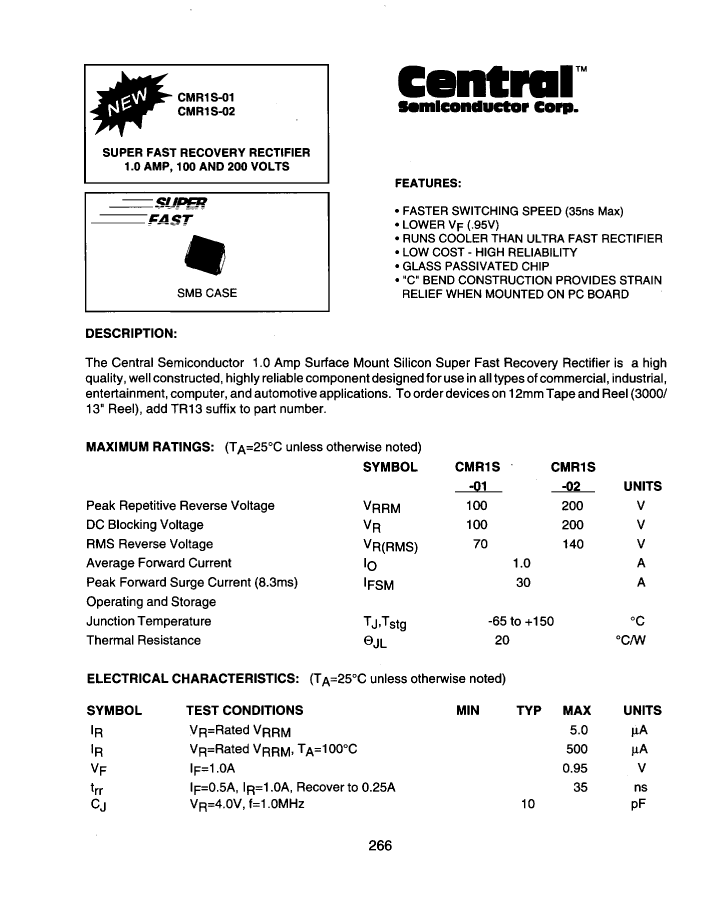

Preview

Download Datasheet

View All

CMR1S-02BKLEADFREE Related Products

	CMR1S-02BKLEADFREE	CMR1S-01BKLEADFREE	CMR1S-01BK	CMR1S-02BK
Description	Rectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon,	Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon,	Rectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon,
Is it Rohs certified?	conform to	conform to	incompatible	incompatible
Maker	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor
Reach Compliance Code	compliant	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V	0.95 V	0.95 V	0.95 V
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
JESD-609 code	e3	e3	e0	e0
Maximum non-repetitive peak forward current	30 A	30 A	30 A	30 A
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	100 V	100 V	200 V
Maximum reverse recovery time	0.035 µs	0.035 µs	0.035 µs	0.035 µs
surface mount	YES	YES	YES	YES
Terminal surface	MATTE TIN	MATTE TIN	TIN LEAD	TIN LEAD
Terminal form	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL
