SET050304 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SET050304

SET050304: DescriptionRectifier Diode, 1 Phase, 2 Element, 60A, 400V V(RRM), Silicon, G79, 2 PIN; CategoryDiscrete semiconductor diode; File Size150KB，5 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet Parametric Compare View All

SET050304 Overview

Rectifier Diode, 1 Phase, 2 Element, 60A, 400V V(RRM), Silicon, G79, 2 PIN

SET050304 Parametric

Parameter Name	Attribute value
Maker	SEMTECH
package instruction	G79, 2 PIN
Contacts	2
Manufacturer packaging code	G79
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ANODE
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V
JESD-30 code	O-XRPM-D2
Maximum non-repetitive peak forward current	500 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	60 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse current	4 µA
Maximum reverse recovery time	0.15 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	RADIAL

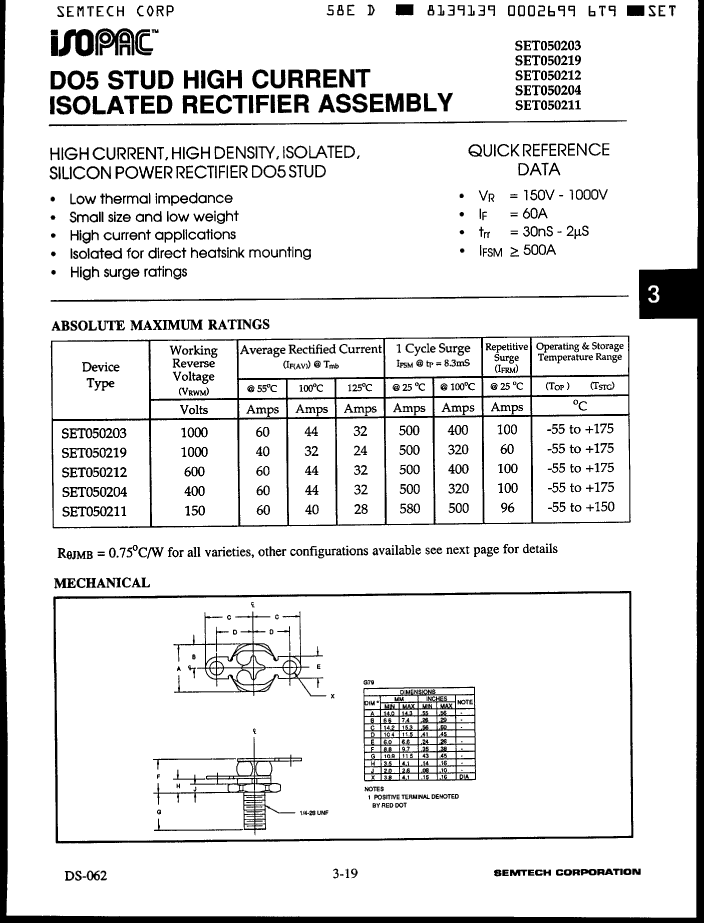

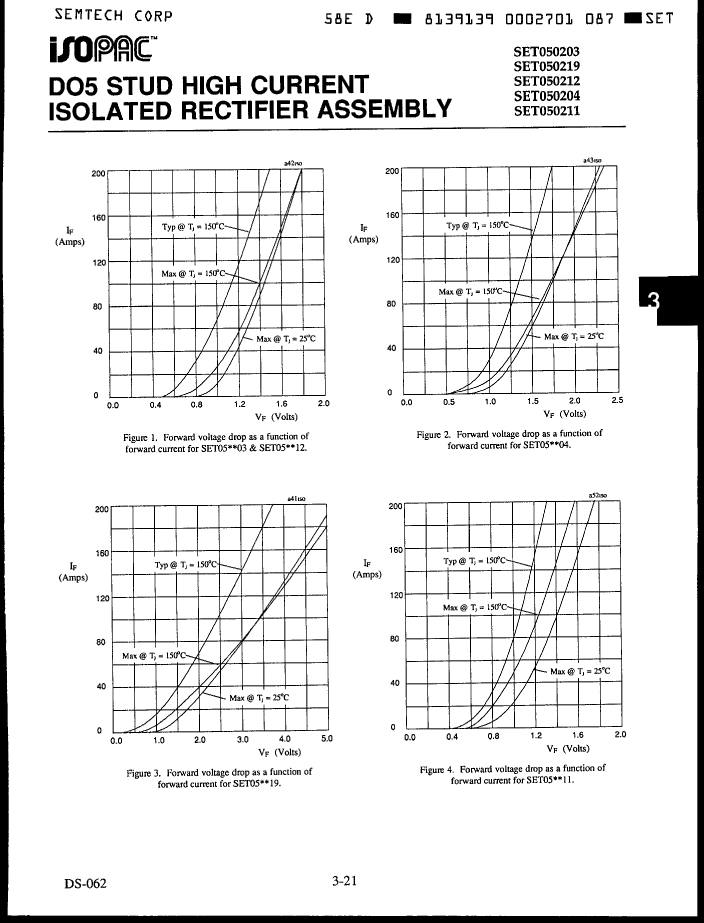

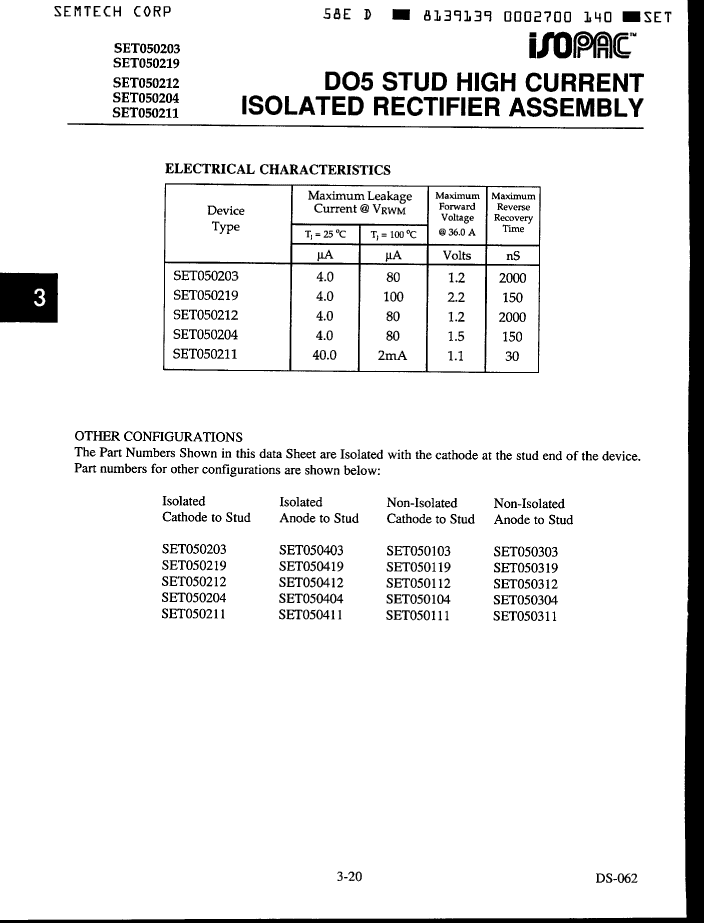

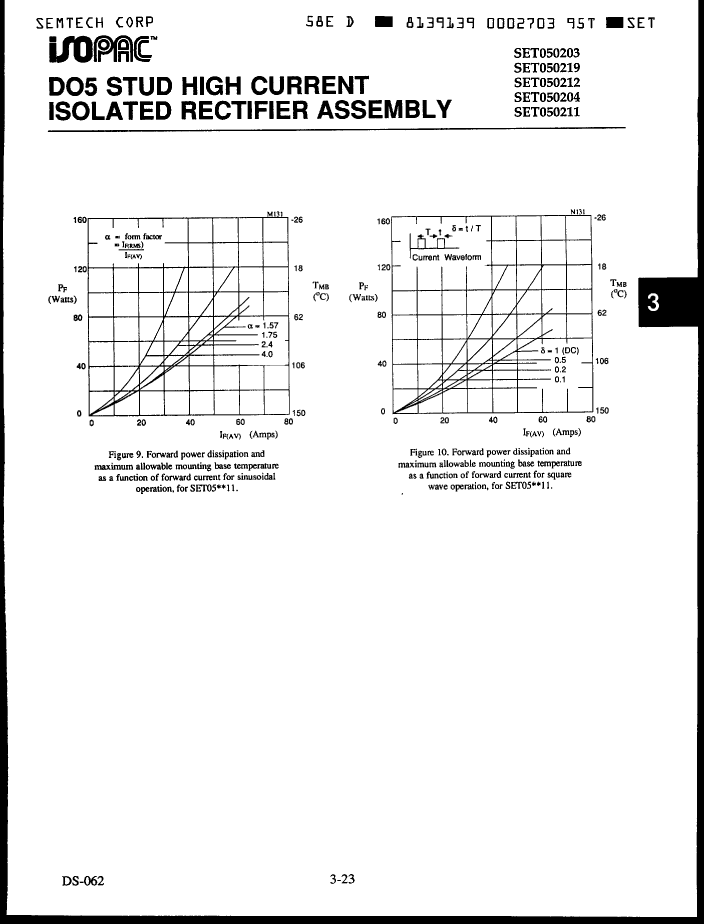

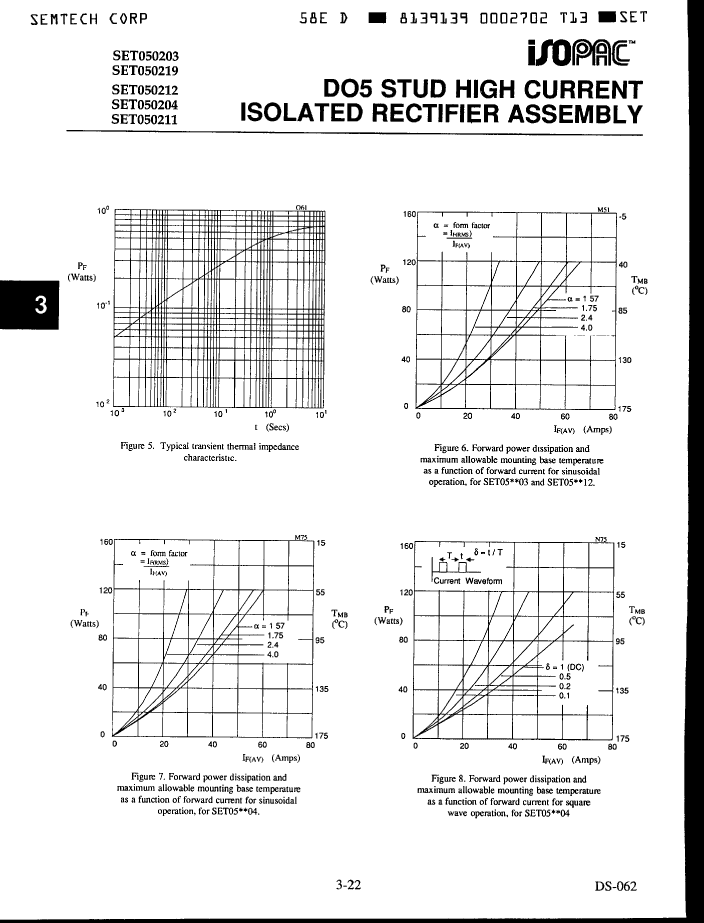

Preview

Download Datasheet

View All

SET050304 Related Products

	SET050304	SET050103	SET050112	SET050412	SET050312	SET050303	SET050404	SET050403	SET050419
Description	Rectifier Diode, 1 Phase, 2 Element, 60A, 400V V(RRM), Silicon, G79, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 60A, 1000V V(RRM), Silicon, G79, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 60A, 600V V(RRM), Silicon, G79, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 60A, 600V V(RRM), Silicon, G79, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 60A, 600V V(RRM), Silicon, G79, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 60A, 1000V V(RRM), Silicon, G79, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 60A, 400V V(RRM), Silicon, G79, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 60A, 1000V V(RRM), Silicon, G79, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 40A, 1000V V(RRM), Silicon, G79, 2 PIN
Maker	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH
package instruction	G79, 2 PIN	G79, 2 PIN	O-XRPM-D2	G79, 2 PIN	G79, 2 PIN	G79, 2 PIN	O-XRPM-D2	G79, 2 PIN	G79, 2 PIN
Contacts	2	2	2	2	2	2	2	2	2
Manufacturer packaging code	G79	G79	G79	G79	G79	G79	G79	G79	G79
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.5 V	1.2 V	2.2 V
JESD-30 code	O-XRPM-D2	O-XRPM-D2	O-XRPM-D2	O-XRPM-D2	O-XRPM-D2	O-XRPM-D2	O-XRPM-D2	O-XRPM-D2	O-XRPM-D2
Maximum non-repetitive peak forward current	500 A	500 A	500 A	500 A	500 A	500 A	500 A	500 A	500 A
Number of components	2	2	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	60 A	60 A	60 A	60 A	60 A	60 A	60 A	60 A	40 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	1000 V	600 V	600 V	600 V	1000 V	400 V	1000 V	1000 V
Maximum reverse current	4 µA	4 µA	4 µA	4 µA	4 µA	4 µA	4 µA	4 µA	4 µA
Maximum reverse recovery time	0.15 µs	2 µs	2 µs	2 µs	2 µs	2 µs	0.15 µs	2 µs	0.15 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL
Shell connection	ANODE	CATHODE	CATHODE	-	ANODE	ANODE	-	-	-
