VISHAY
SL02 / 03 / 04
Vishay Semiconductors
Small Surface Mount Schottky Diodes
Features
•
•
•
•
For surface mounted applications
Low-profile package
Ideal for automated placement
Low power loss, high efficiency
17249
• High temperature soldering:
260 °C/10 seconds at terminals
Packaging codes-options:
G18 / 10 k per 13" reel (8 mm tape), 50 k/box
G08 / 3 k per 7" reel (8 mm tape), 30 k/box
Mechanical Data
Case:
JEDEC DO-219-AB (SMF) Plastic case
Polarity:
Color band denotes cathode end
Weight:
approx. 0.01g
Parts Table
Part
SL02
SL03
SL04
S2
S3
S4
Marking
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Maximum repetitive peak
reverse voltage
Test condition
Part
SL02
SL03
SL04
Maximum RMS voltage
SL02
SL03
SL04
Maximum DC blocking voltage
SL02
SL03
SL04
Maximum average forward
rectified current
Peak forward surge current 8.3
ms single half sine-wave
T
tp
= 109 °C
Symbol
V
RRM
V
RRM
V
RRM
V
RMS
V
RMS
V
RMS
V
DC
V
DC
V
DC
I
F(AV)
I
FSM
Value
20
30
40
14
21
28
20
30
40
1.1
40
Unit
V
V
V
V
V
V
V
V
V
A
A
Thermal Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Thermal resistance junction to
ambient air
2)
Test condition
Symbol
R
θJA
T
J
T
STG
Value
180
125
- 55 to 150
Unit
K/W
°C
°C
Maximum operating junction
temperature
Storage temperature range
2)
Mounted on epoxy substrate with 3 x 3mm Cu pads (≥ 40
µm
thick)
Document Number 85687
Rev. 1.6, 21-Nov-03
www.vishay.com
1
SL02 / 03 / 04
Vishay Semiconductors
Electrical Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Instaneous forward voltage at
0.5
1)
VISHAY
Test condition
Part
SL02
SL03
SL04
Symbol
V
F
V
F
V
F
V
F
V
F
V
F
I
R
I
R
I
R
I
R
I
R
I
R
Min
Typ.
0.360
0.395
0.450
0.420
0.450
0.530
Max
0.385
0.43
0.51
Unit
V
V
V
V
V
V
Typical instantaneous forward
voltage
1.1 A
SL02
SL03
SL04
Maximum DC reverse current at T
A
= 25 °C
rated DC blocking voltage
T
A
= 100 °C
T
A
= 25 °C
T
A
= 100 °C
T
A
= 25 °C
T
A
= 100 °C
1)
SL02
SL02
SL03
SL03
SL04
SL04
250
8.0
130
6.0
20
6.0
µA
mA
µA
mA
µA
mA
Pulse test: 300
µs
pulse width, 1 % duty cycle
Typical Characteristics
(T
amb
= 25
°C
unless otherwise specified)
1.5
250
Junction Capacitance (pF)
Average Forward Current (A)
200
1.0
150
100
0.5
SL02
50
SL04
0
10
0
10
30
50
70
90
110
130
150
17380
0
2
4
6
8
10
12
17379
Lead temperature (°C)
Reverse Voltage (V)
Fig. 1 Forward Current Derating Curve
Fig. 2 Typical Junction Capacitance
www.vishay.com
2
Document Number 85687
Rev. 1.6, 21-Nov-03
VISHAY
SL02 / 03 / 04
Vishay Semiconductors
Instantaneous Forward Current (A)
10
10000
T
J
= 100°C
1
Instantaneous Reverse Current (µ A)
T
J
= 100°C
T
J
= 75°C
100
1000
T
J
= 75°C
0.1
T
J
= 50°C
T
J
= 50°C
0.01
10
T
J
= 25°C
T
J
= 25°C
0.001
Pulse Width = 300µs
1% Duty Cycle
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1
0.0001
17381
0.1
0
17384
5
10
15
20
25
30
35
Instantaneous Forward Voltage (V)
Reverse Voltage (V)
Fig. 3 Typical Instantaneous Forward Characterisics - SL02
Fig. 6 Typical Reverse Current Characteristics - SL03
10000
Instantaneous Reverse Current (µA)
T
J
= 100°C
1000
T
J
= 75°C
T
J
= 50°C
100
T
J
= 25°C
10
1
0
5
10
15
20
25
17382
Reverse Voltage (V)
Fig. 4 Typical Reverse Current Characteristics - SL02
Instantaneous Forward Current (A)
10
1
T
J
= 100°C
T
J
= 75°C
0.1
T
J
= 50°C
0.01
T
J
= 25°C
0.001
Pulse Width = 300µs
1% Duty Cycle
0
0.1
0.2
0.3
0.4 0.5
0.6
0.7
0.8
0.9 1.0
0.0001
17383
Instantaneous Forward Voltage (V)
Fig. 5 Typical Instantaneous Forward Characteristics - SL03
Document Number 85687
Rev. 1.6, 21-Nov-03
www.vishay.com
3
SL02 / 03 / 04
Vishay Semiconductors
Package Dimensions in mm
Cathode Band
T op View
VISHAY
1.8
±
0.1
1.0
±
0.2
5
0.98
±
0.1
2.8
±
0.1
0.05 - 0.30
5
Detail
Z
enlarged
Z
0.60
±
0.25
0.00 - 0.10
3.7
±
0.2
1.6
1.3
1.4
17247
www.vishay.com
4
Document Number 85687
Rev. 1.6, 21-Nov-03
VISHAY

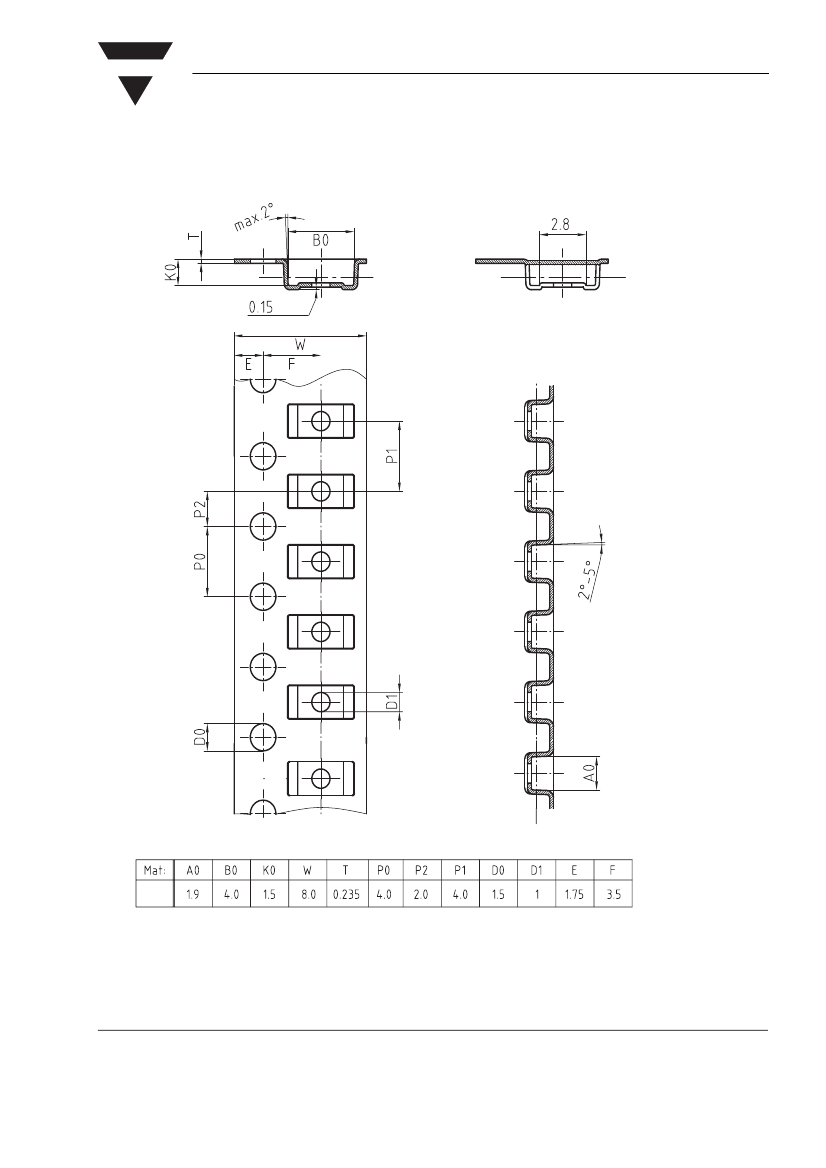

Blistertape for SMF
SL02 / 03 / 04
Vishay Semiconductors
PS
18513
Document Number 85687
Rev. 1.6, 21-Nov-03
www.vishay.com
5
