ABM12-FREQ-10-R150-2-G-T datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ABM12-FREQ-10-R150-2-G-T

ABM12-FREQ-10-R150-2-G-T: DescriptionParallel - Fundamental Quartz Crystal, 26MHz Min, 30MHz Max, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size162KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABM12-FREQ-10-R150-2-G-T Overview

Parallel - Fundamental Quartz Crystal, 26MHz Min, 30MHz Max, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN

ABM12-FREQ-10-R150-2-G-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.0015%
frequency tolerance	20 ppm
load capacitance	10 pF
Manufacturer's serial number	ABM12
Installation features	SURFACE MOUNT
Maximum operating frequency	30 MHz
Minimum operating frequency	26 MHz
Maximum operating temperature	50 °C
Minimum operating temperature	-10 °C
physical size	L1.6XB1.2XH0.4 (mm)/L0.063XB0.047XH0.016 (inch)
Series resistance	150 Ω
surface mount	YES

Preview

Download Datasheet

View All

ULTRA MINIATURE CERAMIC SMD CRYSTAL

ABM12

Preliminary (sample available Q4.2007)

RoHS

Compliant

1.6 x 1.2 x 0.45 mm

| | | | | | | | | | | | | | |

FEATURES:

• RoHS compliant

• Suitable for reflow

• Tight stability available

• Ceramic package seam welded sealing assures

high precision and reliability

• Smallest package size in industry

APPLICATIONS:

• Blue-tooth, Wireless applications

• Computers, Modems, Microprocessors

• Communication, Test equipment

• High density applications

• PCMCIA

• Portable radios and MP3 players

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Operation Mode

Operating Temperature

Storage Temperature

Frequency Tolerance at +25°C

Frequency Stability over the

Operating Temp. (Ref to +25°C)

Equivalent Series Resistance

Shunt Capacitance C

Load Capacitance C

Drive Level

Aging at 25°C ± 3°C First Year

Insulation Resistance

ABM12 Series

26.00 MHz - 80.00 MHz

Fundamental

- 10°C to + 50°C (see options)

- 40°C to + 85°C

± 50 ppm max. (see options)

See Table 1

5pF max.

8pF (see options)

100µ max.

± 5ppm max.

500M min

TABLE 1 - Standard ESR

FREQ (MHz)

ESR ( )max.

26.0 - 30.0

150

30.0 - 80.0

100

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ABM12 - Frequency -

-R

Frequency

XX.XXXMHz

Load Capacitance

Blank

8pF

10pF

ESR

See Table 1

Operating Temp.

-10° ~ + 50°C

Blank

-10° ~ +60°C

-20° ~ +70°C

-40° ~ +85°C

Freq. Tolerance

Blank

± 50ppm

± 15 ppm

± 20 ppm

± 30 ppm

Freq. Stability

Blank

± 50 ppm

± 10 ppm (*)

± 15 ppm (**)

± 20 ppm(***)

± 30 ppm

± 100 ppm

(*) 0° ~ +50°C only

(**) -10º ~ +60ºC and -0º ~ +50ºC

(***) -20º ~ +70ºC, -10º ~ +60ºC,

and -0º ~ +50ºC

Packaging

Tape and

Reel

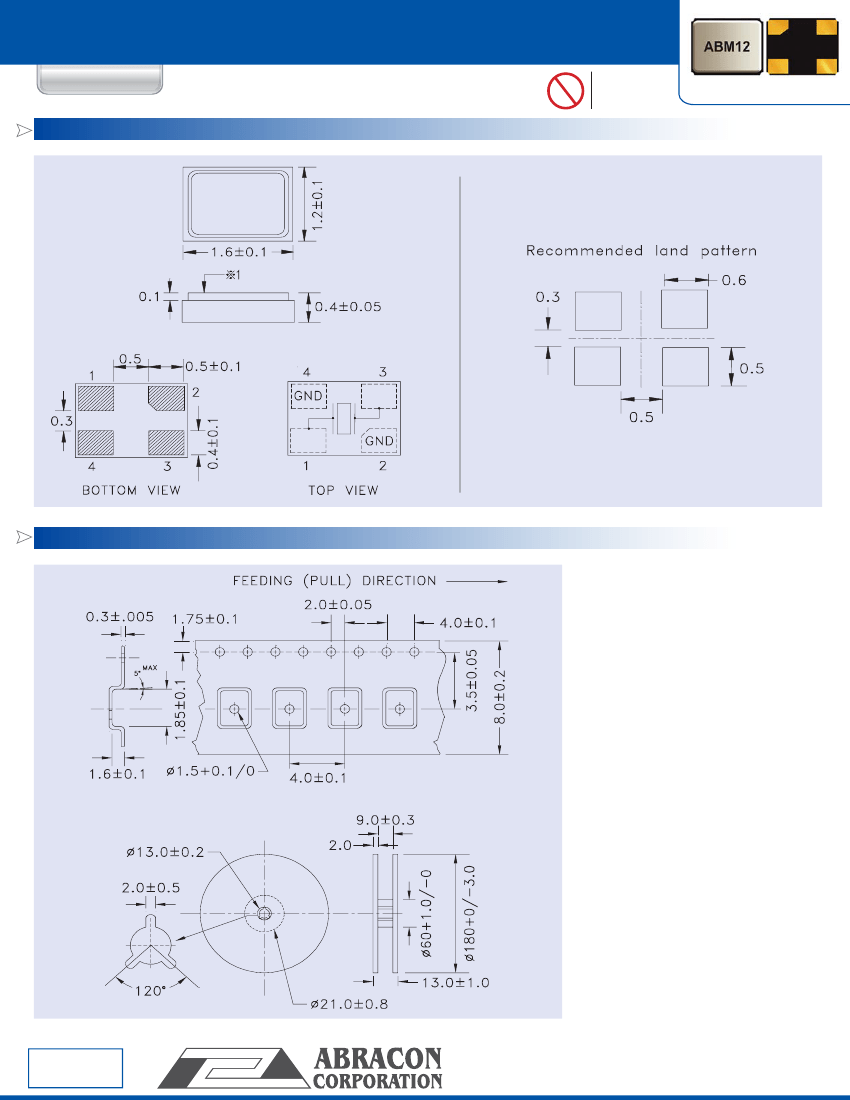

Revised: 04.10.07

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com
