KS74AHCT682N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> KS74AHCT682N

KS74AHCT682N: DescriptionMagnitude Comparator, CMOS, PDIP20; Categorylogic logic; File Size496KB，8 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KS74AHCT682N Overview

Magnitude Comparator, CMOS, PDIP20

KS74AHCT682N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SAMSUNG
package instruction	DIP, DIP20,.3
Reach Compliance Code	compliant
JESD-30 code	R-PDIP-T20
JESD-609 code	e0
Logic integrated circuit type	MAGNITUDE COMPARATOR
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

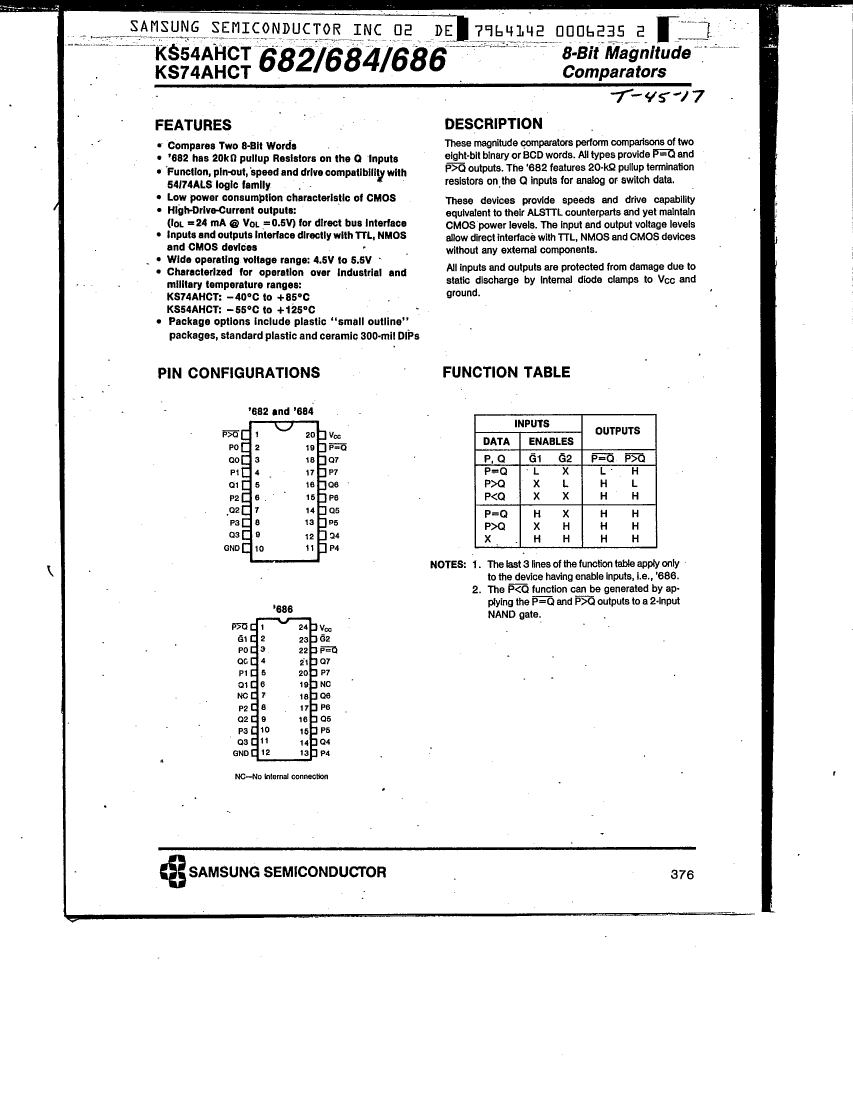

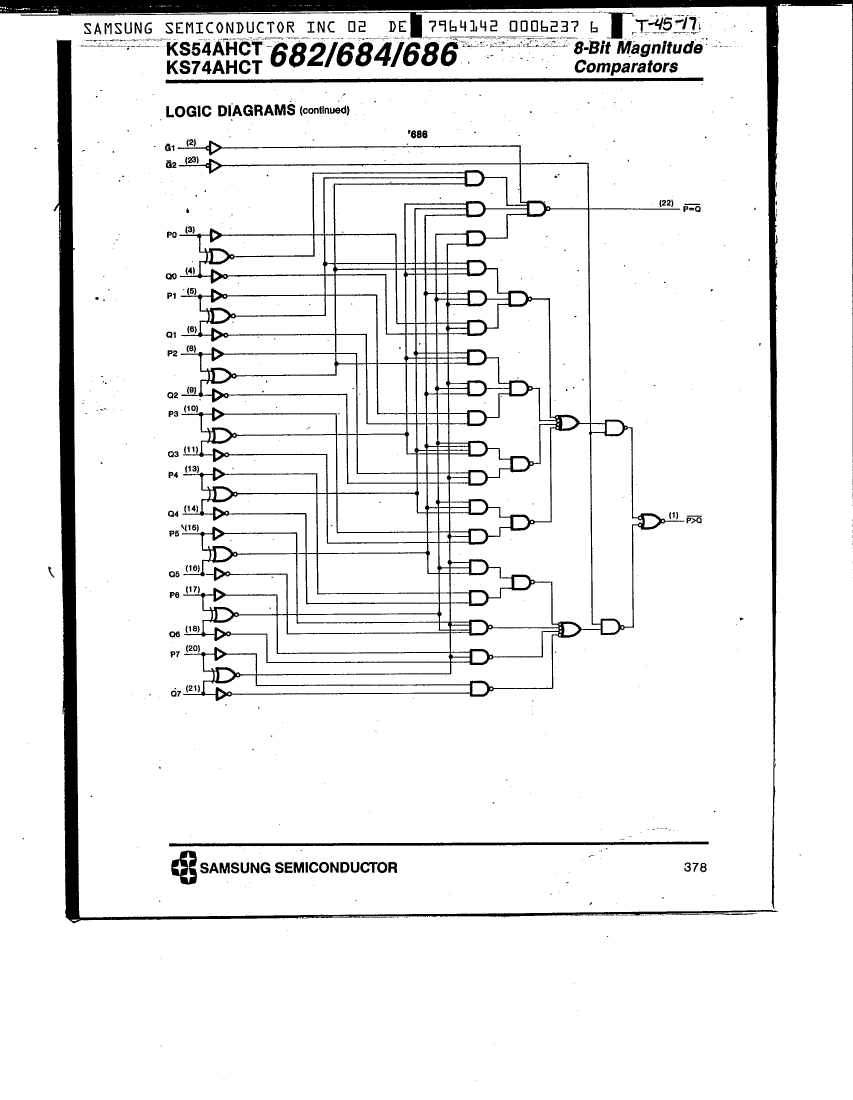

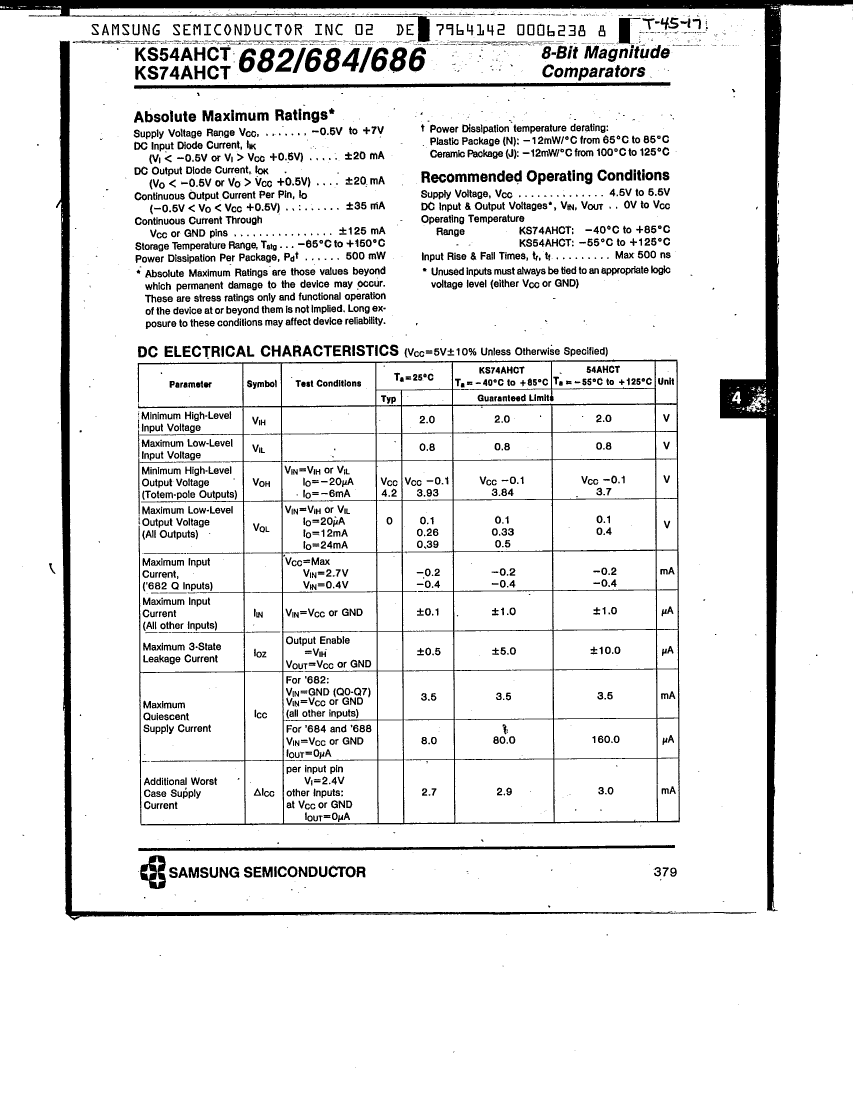

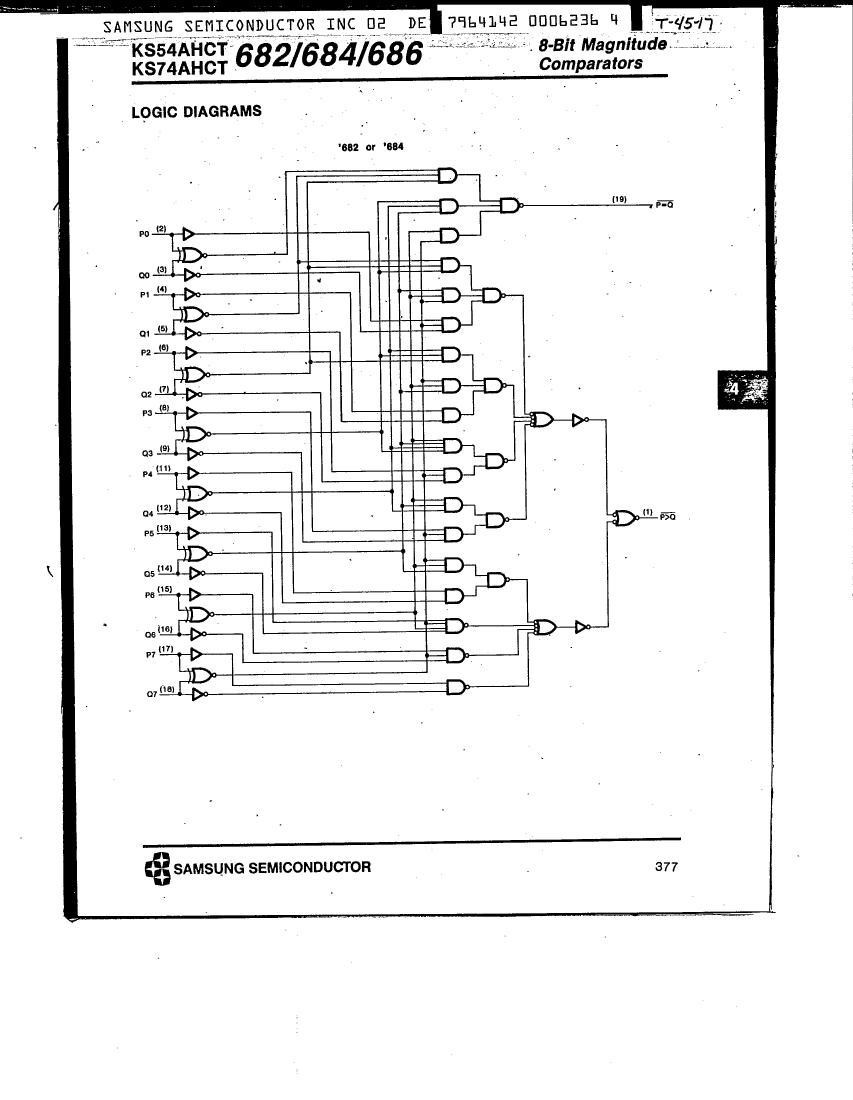

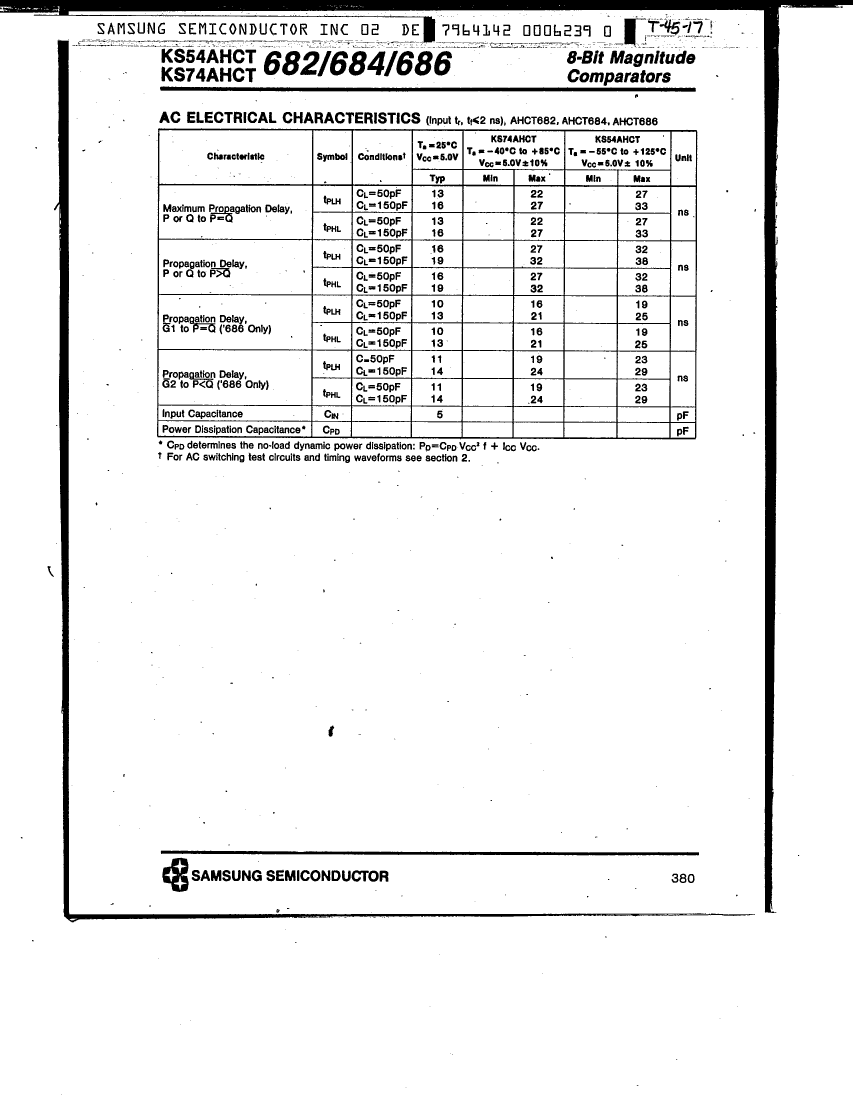

KS74AHCT682N Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

KS74AHCT682N Related Products

	KS74AHCT682N	KS74AHCT682J	KS54AHCT684J	KS74AHCT684N	KS74AHCT684J
Description	Magnitude Comparator, CMOS, PDIP20	Magnitude Comparator, CMOS, CDIP20	Magnitude Comparator, CMOS, CDIP20	Magnitude Comparator, CMOS, PDIP20	Magnitude Comparator, CMOS, CDIP20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
package instruction	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
JESD-30 code	R-PDIP-T20	R-XDIP-T20	R-XDIP-T20	R-PDIP-T20	R-XDIP-T20
JESD-609 code	e0	e0	e0	e0	e0
Logic integrated circuit type	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR
Number of terminals	20	20	20	20	20
Maximum operating temperature	85 °C	85 °C	125 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-55 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
