HM514101JP-12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HM514101JP-12

HM514101JP-12: DescriptionNibble Mode DRAM, 4MX1, 120ns, CMOS, PDSO20, 0.350 INCH, PLASTIC, SOJ-20; Categorystorage storage; File Size361KB，14 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HM514101JP-12 Overview

Nibble Mode DRAM, 4MX1, 120ns, CMOS, PDSO20, 0.350 INCH, PLASTIC, SOJ-20

HM514101JP-12 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Hitachi （Renesas ）
Parts packaging code	SOJ
package instruction	SOJ, SOJ20/26,.4
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	NIBBLE
Maximum access time	120 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	SEPARATE
JESD-30 code	R-PDSO-J20
JESD-609 code	e0
length	17 mm
memory density	4194304 bit
Memory IC Type	NIBBLE MODE DRAM
memory width	1
Number of functions	1
Number of ports	1
Number of terminals	20
word count	4194304 words
character code	4000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX1
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ20/26,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
refresh cycle	1024
Maximum seat height	3.76 mm
Maximum standby current	0.001 A
Maximum slew rate	0.07 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.89 mm

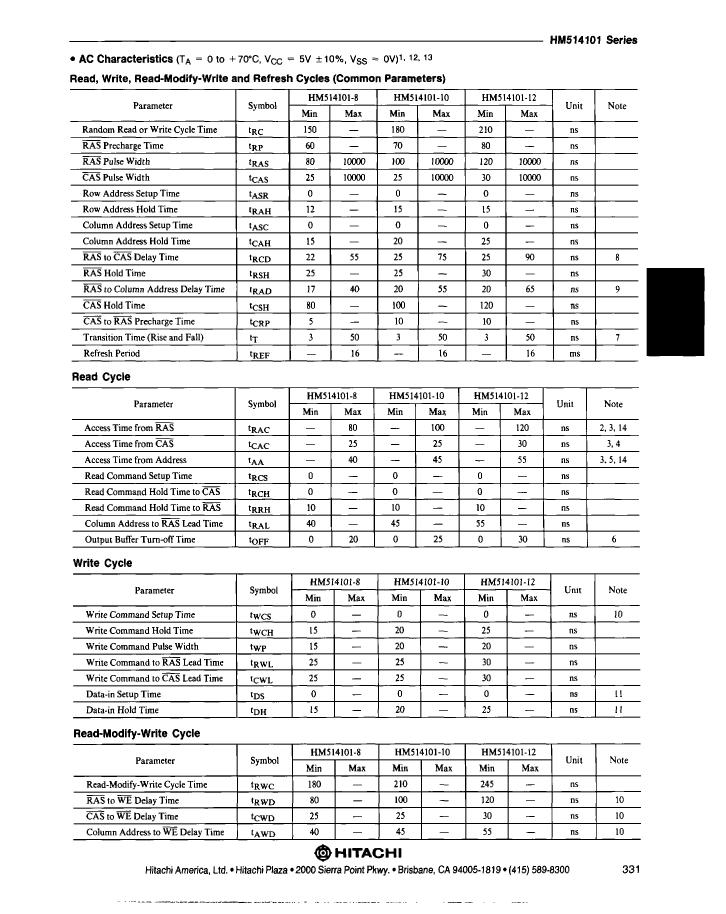

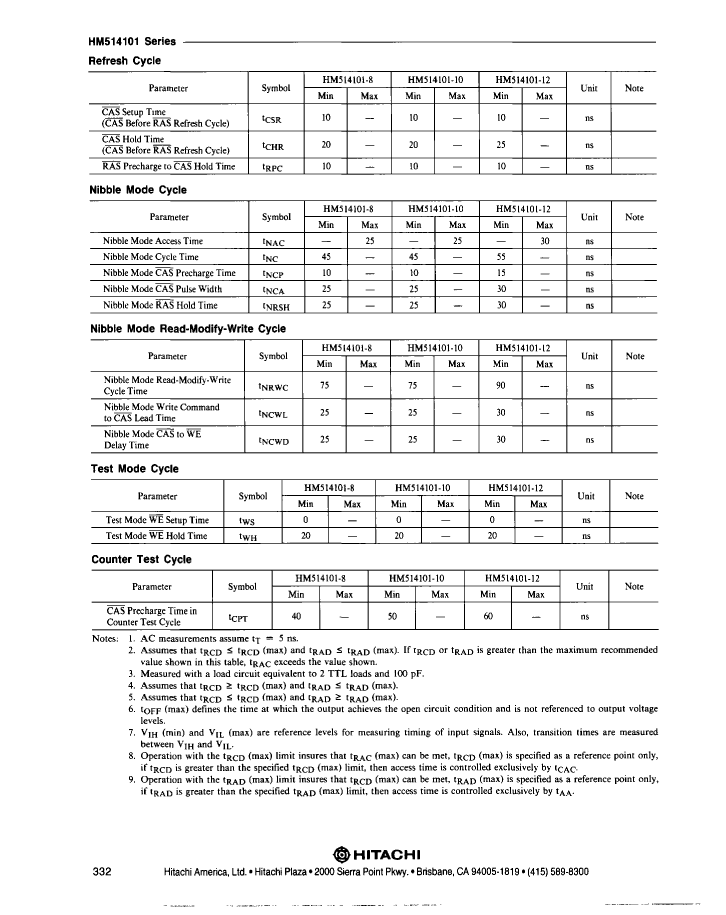

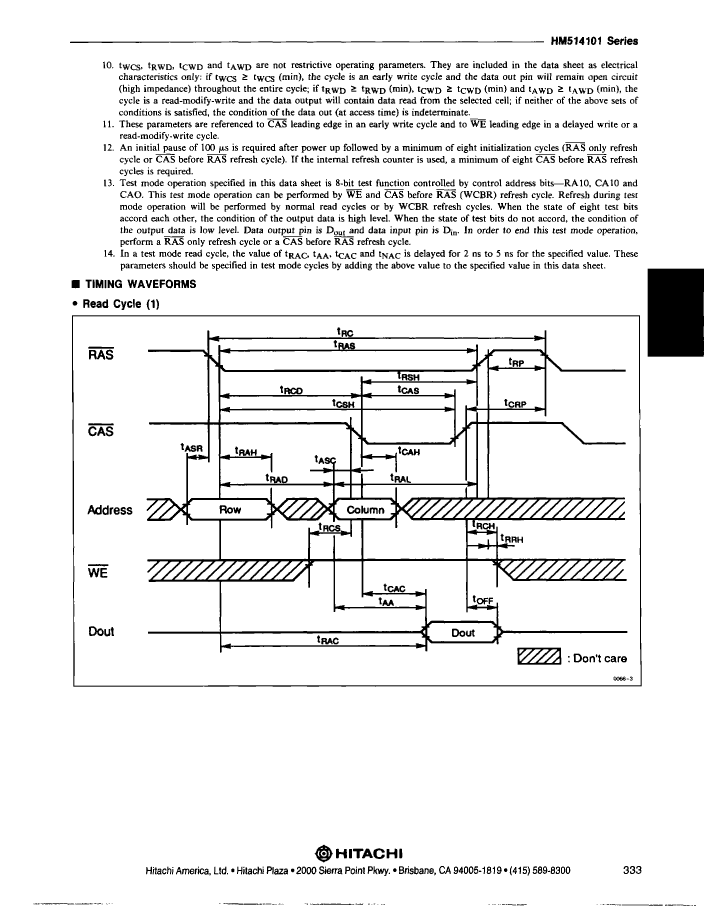

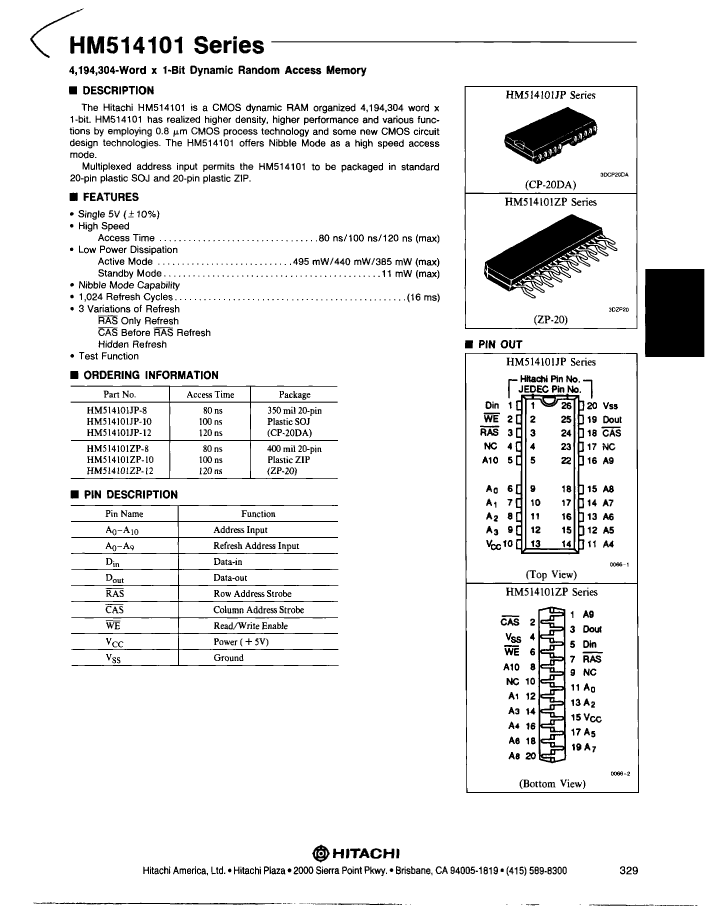

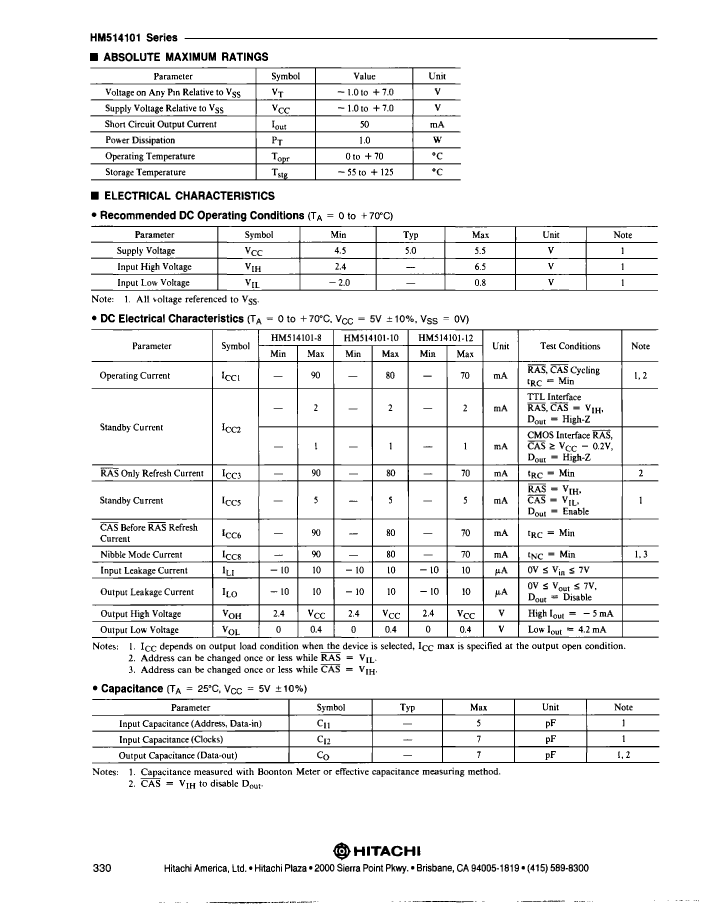

Preview

Download Datasheet

View All

HM514101JP-12 Related Products

	HM514101JP-12	HM514101ZP-8	HM514101ZP-12	HM514101JP-8	HM514101JP-10	HM514101ZP-10
Description	Nibble Mode DRAM, 4MX1, 120ns, CMOS, PDSO20, 0.350 INCH, PLASTIC, SOJ-20	Nibble Mode DRAM, 4MX1, 80ns, CMOS, PZIP20, 0.400 INCH, PLASTIC, ZIP-20	Nibble Mode DRAM, 4MX1, 120ns, CMOS, PZIP20, 0.400 INCH, PLASTIC, ZIP-20	Nibble Mode DRAM, 4MX1, 80ns, CMOS, PDSO20, 0.350 INCH, PLASTIC, SOJ-20	Nibble Mode DRAM, 4MX1, 100ns, CMOS, PDSO20, 0.350 INCH, PLASTIC, SOJ-20	Nibble Mode DRAM, 4MX1, 100ns, CMOS, PZIP20, 0.400 INCH, PLASTIC, ZIP-20
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）
Parts packaging code	SOJ	ZIP	ZIP	SOJ	SOJ	ZIP
package instruction	SOJ, SOJ20/26,.4	ZIP, ZIP20,.1	ZIP, ZIP20,.1	SOJ, SOJ20/26,.4	SOJ, SOJ20/26,.4	ZIP, ZIP20,.1
Contacts	20	20	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	NIBBLE	NIBBLE	NIBBLE	NIBBLE	NIBBLE	NIBBLE
Maximum access time	120 ns	80 ns	120 ns	80 ns	100 ns	100 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	SEPARATE	SEPARATE	SEPARATE	SEPARATE	SEPARATE	SEPARATE
JESD-30 code	R-PDSO-J20	R-PZIP-T20	R-PZIP-T20	R-PDSO-J20	R-PDSO-J20	R-PZIP-T20
JESD-609 code	e0	e0	e0	e0	e0	e0
length	17 mm	25.61 mm	25.61 mm	17 mm	17 mm	25.61 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	NIBBLE MODE DRAM	NIBBLE MODE DRAM	NIBBLE MODE DRAM	NIBBLE MODE DRAM	NIBBLE MODE DRAM	NIBBLE MODE DRAM
memory width	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20
word count	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words
character code	4000000	4000000	4000000	4000000	4000000	4000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4MX1	4MX1	4MX1	4MX1	4MX1	4MX1
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	ZIP	ZIP	SOJ	SOJ	ZIP
Encapsulate equivalent code	SOJ20/26,.4	ZIP20,.1	ZIP20,.1	SOJ20/26,.4	SOJ20/26,.4	ZIP20,.1
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024
Maximum seat height	3.76 mm	10.16 mm	10.16 mm	3.76 mm	3.76 mm	10.16 mm
Maximum standby current	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A
Maximum slew rate	0.07 mA	0.09 mA	0.07 mA	0.09 mA	0.08 mA	0.08 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	ZIG-ZAG	ZIG-ZAG	DUAL	DUAL	ZIG-ZAG
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	8.89 mm	2.85 mm	2.85 mm	8.89 mm	8.89 mm	2.85 mm
