H.DI-0740-3R0: DescriptionGeneral Purpose Inductor, 3uH, 30%, 1 Element, Ferrite-Core, SMD, 2828, ROHS COMPLIANT; CategoryPassive components inductor; File Size173KB，2 Pages; ManufacturerNEC TOKIN ( KEMET Corporation ); Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

H.DI-0740-3R0 Overview

General Purpose Inductor, 3uH, 30%, 1 Element, Ferrite-Core, SMD, 2828, ROHS COMPLIANT

H.DI-0740-3R0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	NEC TOKIN ( KEMET Corporation )
package instruction	2828
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	2828
structure	Leadless
core material	Ferrite
DC Resistance	0.022 Ω
Nominal inductance(L)	3 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	H.DI-0740
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Package height	3.8 mm
Package length	7.1 mm
Package form	SMT
Package width	7.1 mm
method of packing	TR
Maximum rated current	3 A
series	HDI0740
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	INDUCTANCE IS MEASURED AT 1MA DC CURRENT
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%

Preview

Download Datasheet

View All

SMD Type

Leadless Power Inductors

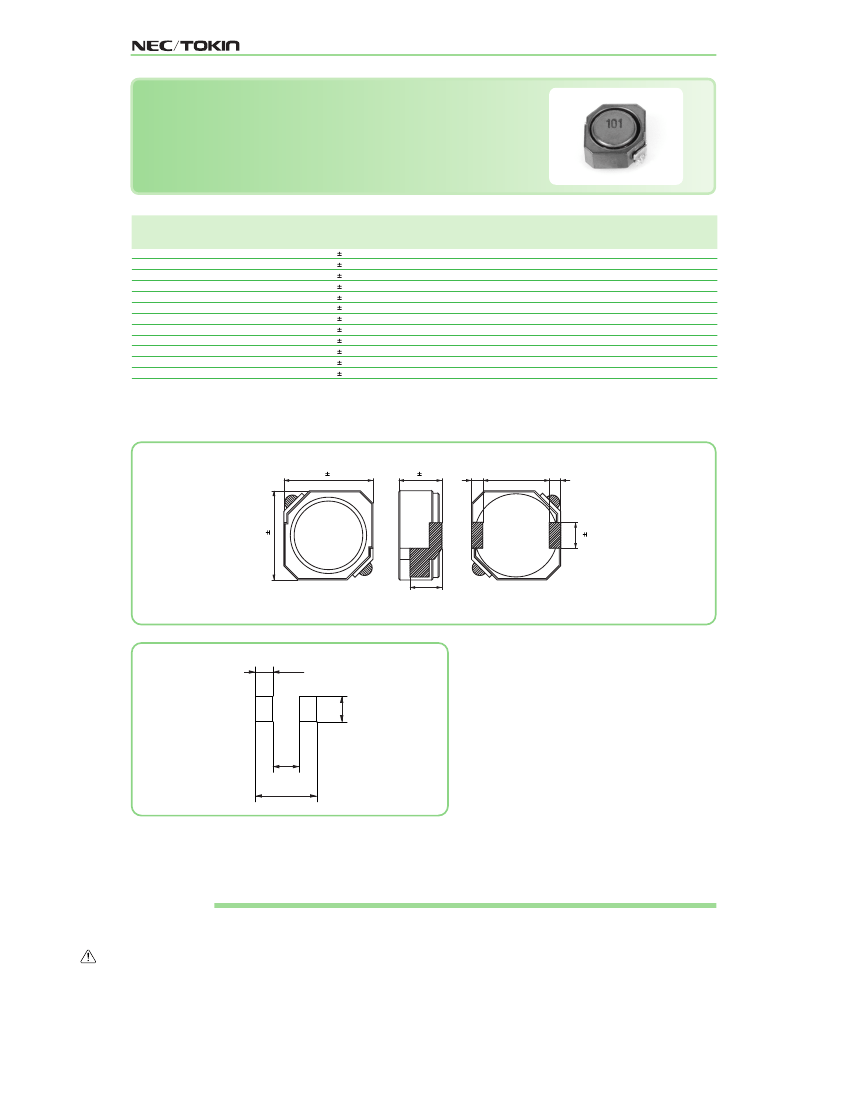

H½DI-0740 Series

[RoHS Compliant]

●H DI-0740 Series

・

Model

Inductance

at 100kHz,1mA

（μH）

1.2

±

30%

2.2

±

30%

3.0

±

30%

4.7

±

30%

6.8

±

30%

10

±

25%

15

±

25%

22

±

25%

33

±

25%

47

±

25%

68

±

25%

100

±

25%

DC resistance

（mΩ）max.

Rated current

（A）

H DI-0740-1R2

・

H DI-0740-2R2

・

H DI-0740-3R0

・

H DI-0740-4R7

・

H DI-0740-6R8

・

H DI-0740-100

・

H DI-0740-150

・

H DI-0740-220

・

H DI-0740-330

・

H DI-0740-470

・

H DI-0740-680

・

H DI-0740-101

・

14

20

22

29

37

47

60

83

140

160

230

350

4.50

4.00

3.00

2.50

1.70

1.40

1.20

0.90

0.80

0.70

0.65

0.50

●Operating temperature range: −20 to +105℃ (Including self-temperature rise)

Shape and Dimensions

7.1

±

0.3

3.8

±

0.2

(0.9)

(5.3)

(0.9)

7.1

±

0.3

(2.8)

[mm]

Recommended Land Pattern

2.5

3.7

8.7

3.6

[mm]

Choke Coils VOL.08

●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC TOKIN for updated product data.

●Please request for a specification sheet for detailed product data prior to the purchase.

●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.

2.0

±

0.2

2008.08.29 P0936MCCC10VOL08E
