PX-570
High Temperature
Crystal Oscillator
PX-570

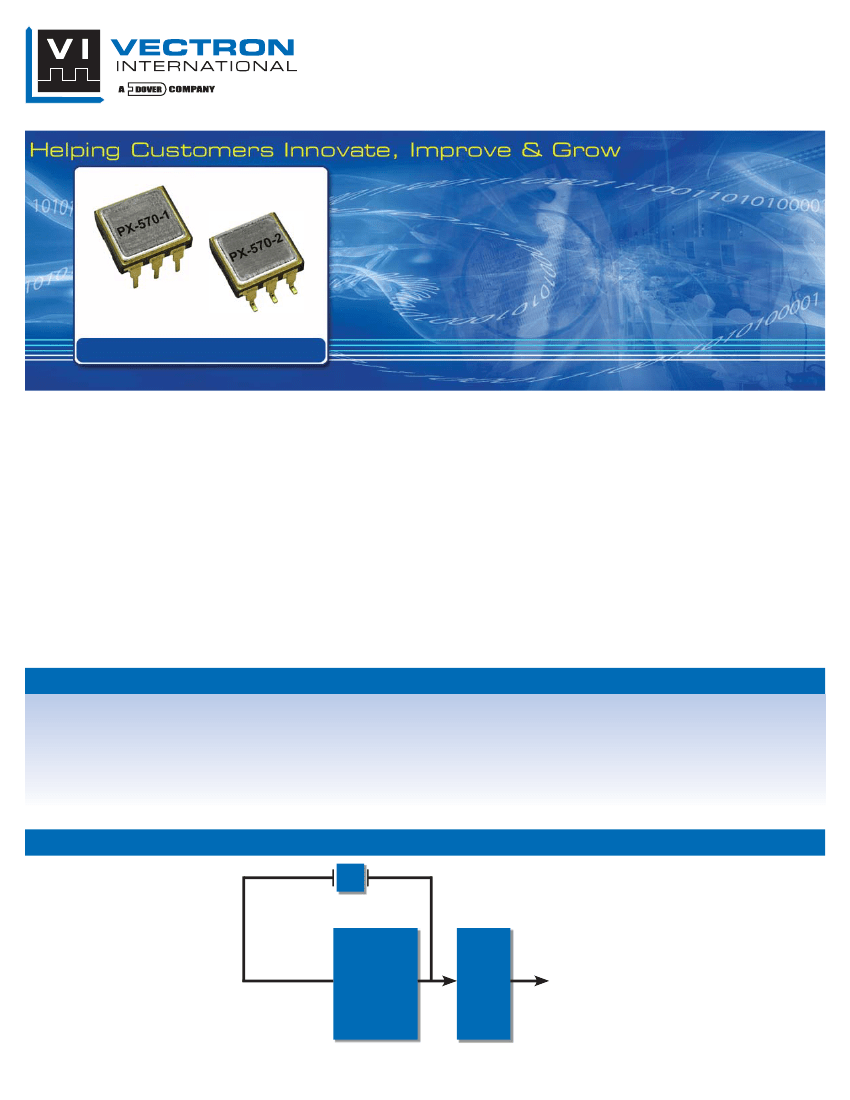

Vectron offers a High Temperature Crystal Oscillator (PX-570) product platform for extreme environment applications. In addition to its wide
operating temperature range, PX-570 HTXO is also ideal for high shock & vibration applications. PX-570’s unique package design offers small
ceramic package footprint, as well as providing both though-hole mounting and surface mount options.
Vectron’s vertical integration in the following technical areas ensures the ability to design and manufacture state of the art high temperature
frequency control products:
•
•
•
•
•
BAW & SAW Design & Fabrication to produce high quality resonators.
RF Oscillator Circuit Design.
Established 250°C High Temperature Electronics Packaging Expertise.
Established 250°C High Temperature Electronics Assembly & Test Expertise.
Environmental Screening.
Vectron’s manufacturing processes, from quartz resonator fabrication to oscillator electronics assembly and test, are painstakingly controlled
via ISO and SPC procedures. Vectron fabricates high temperature quartz resonators using proprietary manufacturing processes designed
specifically for high temperature and harsh environment applications. In order to ensure high reliability in the field, critical electrode
metallization and testing processes are conducted inside state-of-the-art Class 1K cleanrooms, while oscillator assembly is conducted in Class
10K cleanrooms. All high temperature oscillators are 100% tested before delivery.
Features
•
•
•
•
•
•
•
Continuous operating temperature range -55°C to 230°C
Low jitter and phase noise
1.8Vdc, 2.5Vdc, 3.3Vdc or 5Vdc operation
Compliant crystal mount for high shock & vibration
Output frequency 32kHz to 40MHz standard
8.0mm x 8.5mm x 2.9mm ceramic leaded package
RoHS Compliant
•
•
•
•
•
•
Applications
Oil / Gas downhole tool
Geophysical services
High temperature industrial process control
Extended temperature Military/Aerospace
Avionics
Engine control
Block Diagram
Crystal
Resonator
Oscillator
Circuit
Output
Buffer
RF
Output
Page 1 of 4
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Performance Specifications
Specification Parameters
Frequency Range
Supply (Vdd)
Current
Level “0” & “1”
Output
Rise & Fall Time
Symmetry
Operating Temperature
0°C to +150°C (1)
-20°C to +180°C (Z)
-55°C to +180°C (Y)
32kHz to 40MHz
+5.0Vdc ±5% (D)
+3.3Vdc ±5% (E)
<0.4V / >Vdd - 0.5V
HCMOS compatibility (A)
1ns typical / 3ns Max
40/60%
0°C to +200°C (2)
0°C to +230°C (3)
(other custom temperature ranges are
available, consult factory)
Values
+2.5Vdc ±5% (H)
+1.8Vdc ±5% (J)
5mA typical @ 20MHz, 3.3V
(low current option is available, consult factory)
Jitter (12kHz - 20MHz)
Phase Noise (Typical @40MHz, HCMOS, 3.3V)
10Hz -70 dBc/Hz
100Hz -100 dBc/Hz
1kHz -128 dBc/Hz
±40ppm (J)
±100ppm (S)
±150ppm (U)
<0.5ps
10kHz -143 dBc/Hz
100kHz -150 dBc/Hz
1MHz -150 dBc/Hz
±250ppm (W)
±350ppm (Y)
Temperature Stability
Package Size (mm)
Storage Temperature
8.0 x 8.5 x 2.9 (Thru-Hole and Gull-Wing options)
-55°C to +125°C
Environmental Compliance
Vibration-Sine
Vibration-Random
Shock
Seal Test
Seal Test
Temperature Cycling
Acceleration
20g, 10Hz to 2kHz Sine
20grms, 10Hz to 2kHz Random
1000g, 0.5ms
Fine
Gross
10 Cycles minimum
5000g Y1 axis
MIL-STD-202 Method 204 Condition D
MIL-STD-202 Method 214 Condition I-F
MIL-STD-202 Method 213 Condition E
MIL-STD-883 Method 1014 Condition A2
MIL-STD-202 Method 112 Condition D
MIL-STD-883 Method 1010 Condition B
MIL-STD-883 Method 2001 Condition A
Physical Specifications and Marking
Dimensions in (mm)
.335±.008 8.51±0.20
.315±.010 8.01±0.25
.115±.010 2.91±0.25
.030±.010 0.76±0.25
.134 3.40
.047±.005 1.19±0.13
.018±.002 0.46±0.05
.100±.005 2.54±0.13
.200±.005 5.08±0.13
.010
+.002
+0.05
0.25
+.001
+0.03
.315±.010 8.01±0.25
Gull-Wing Option
.185 4.69
.070±.010 1.78±0.25
R.010 0.25
.395±.005 10.02±0.13
.050±.005 1.26±0.13
Page 2 of 4
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Pin
1
2
3
4
5
6
Function
Enable/Disable option
No Connection
Case & Electrical Ground
RF Output
No Connection
Vdd Power Supply Voltage
6
5
4
PX5701 YWW
CCC-CCCC
VI XXMXXX
1
2
3

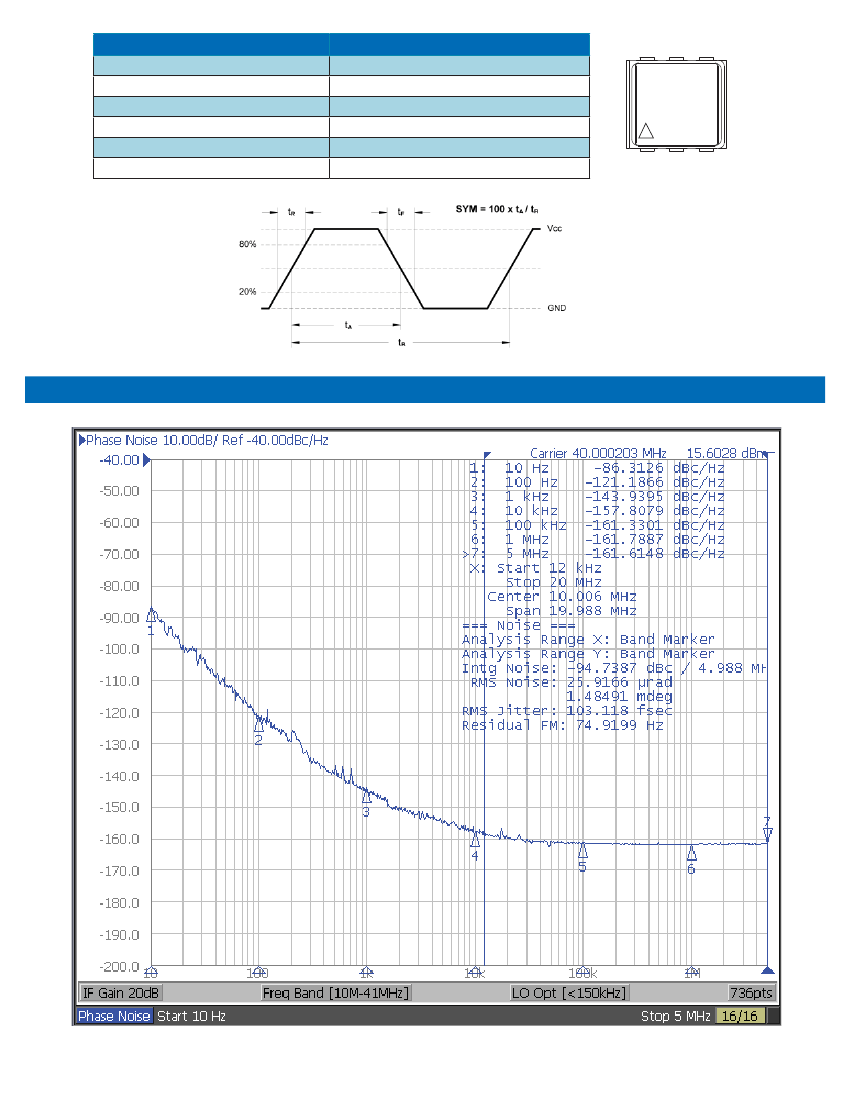

Typical Phase Noise Performance
Page 3 of 4
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Standard Frequency List
32.768kHz
4.096MHz
16.384MHz
512.000kHz
5.000MHz
20.000MHz
1.000MHz
7.3728MHz
24.000MHz
1.024MHz
8.000MHz
32.000MHz
2.000MHz
8.192MHz
32.768MHz
2.048MHz
10.000MHz
40.000MHz
3.686MHz
12.000MHz
4.000MHz
16.000MHz

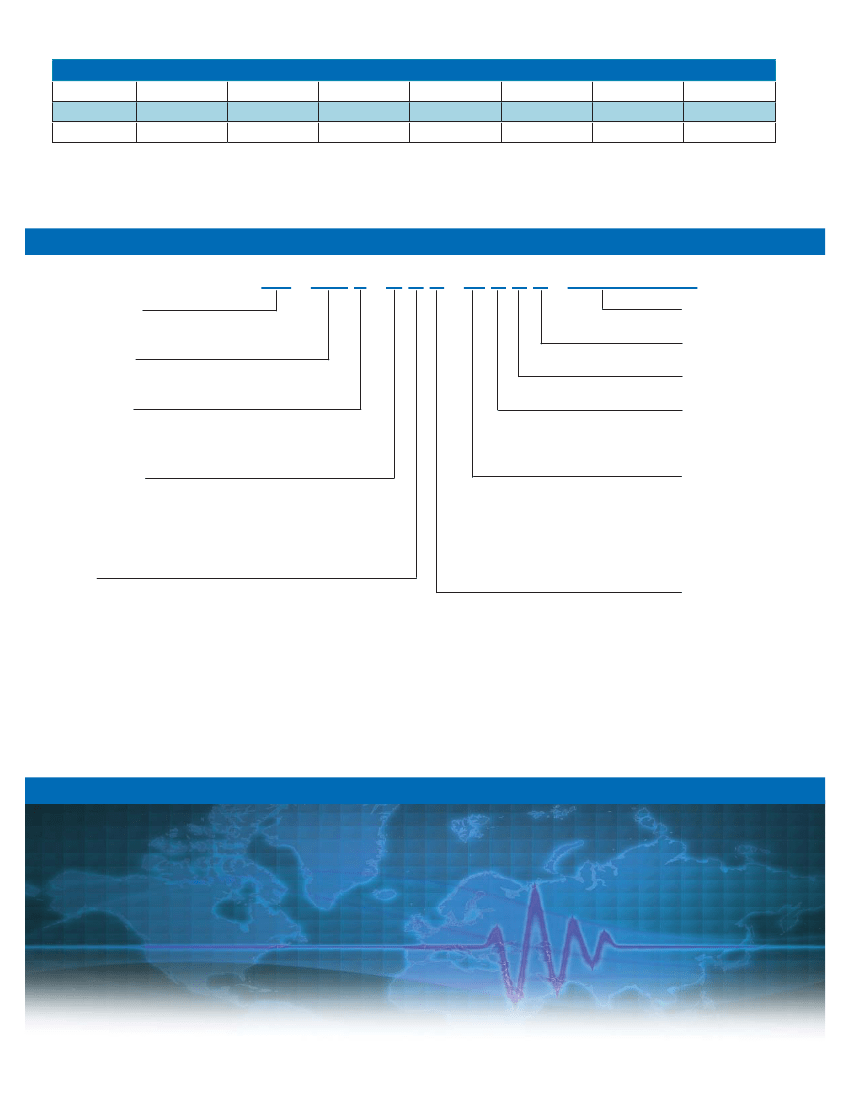

Ordering Information
PX - 570 1 - D A Y - W X X X - 10M0000000
Product Family
High Temp Products
Package Type
570: 8 x 9 mm
Lead Options
1: Thru Hole
2: Gull Wing
Supply Voltage
D: 5.0V ±5%
E: 3.3V ±5%
H: 2.5V ±5%
J: 1.8V ±5%
Output
A: HCMOS/ACMOS
*Note: not all combination of options are available.
Other specifications may be available upon request.
Frequency
Factory Use
Factory Use
Enable
A: Enable Hi, Tristate
X: No Enable
Temp Stability (PX)
J: ± 40ppm
S: ± 100ppm
U: ± 150ppm
W: ± 250ppm
Y: ± 350ppm
Temperature Range
1: 0°C to 150°C
Z: -20°C to 180°C
Y: -55°C to 180°C
2: 0°C to 200°C
3: 0°C to 230°C
For Additional Information, Please Contact
USA:
Vectron International
267 Lowell Road
Hudson, NH 03051
Tel: 1.888.328.7661
Fax: 1.888.329.8328
Europe:
Vectron International
Landstrasse, D-74924
Neckarbischofsheim, Germany
Tel: +49 (0) 3328.4784.17
Fax: +49 (0) 3328.4784.30
Asia:
Vectron International
1589 Century Avenue, the 19th Floor
Chamtime International Financial Center
Shanghai, China
Tel: 86.21.60812888
Fax: 86.21.61633598
Disclaimer
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.
Rev: 11/2008
Page 4 of 4
