PDM44066S10TQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> PDM44066S10TQ

PDM44066S10TQ: DescriptionStandard SRAM, 32KX36, 5ns, CMOS, PQFP100; Categorystorage storage; File Size538KB，11 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

PDM44066S10TQ Overview

Standard SRAM, 32KX36, 5ns, CMOS, PQFP100

PDM44066S10TQ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IXYS
Reach Compliance Code	unknown
Maximum access time	5 ns
I/O type	COMMON
JESD-30 code	R-PQFP-G100
JESD-609 code	e0
memory density	1179648 bit
Memory IC Type	STANDARD SRAM
memory width	36
Number of terminals	100
word count	32768 words
character code	32000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32KX36
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP100,.63X.87
Package shape	RECTANGULAR
Package form	FLATPACK
Parallel/Serial	PARALLEL
power supply	3.3/5,5 V
Certification status	Not Qualified
Maximum standby current	0.1 A
Minimum standby current	4.75 V
Maximum slew rate	0.44 mA
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	QUAD

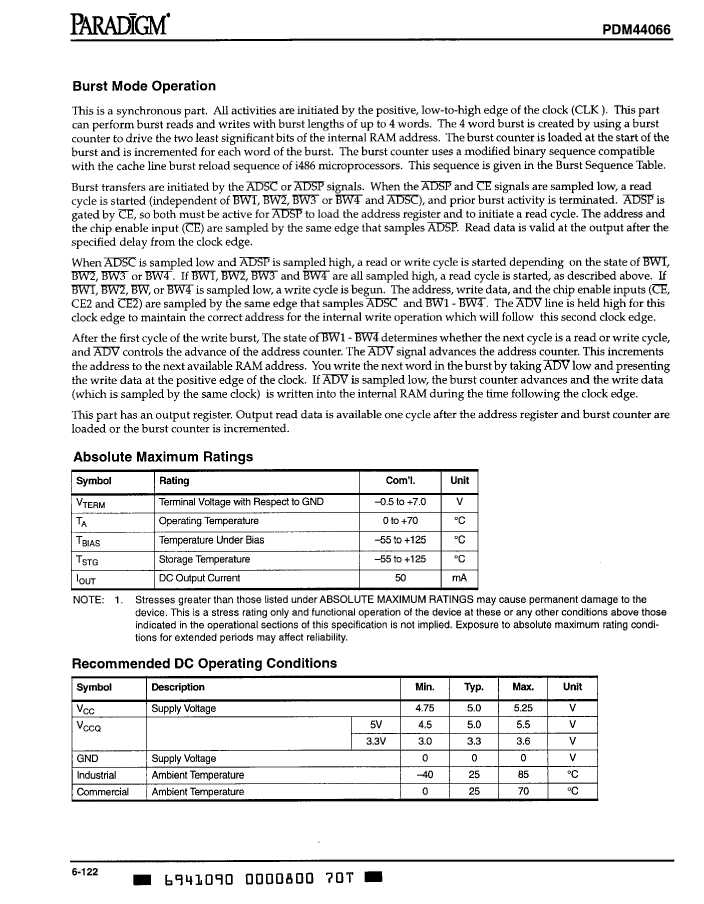

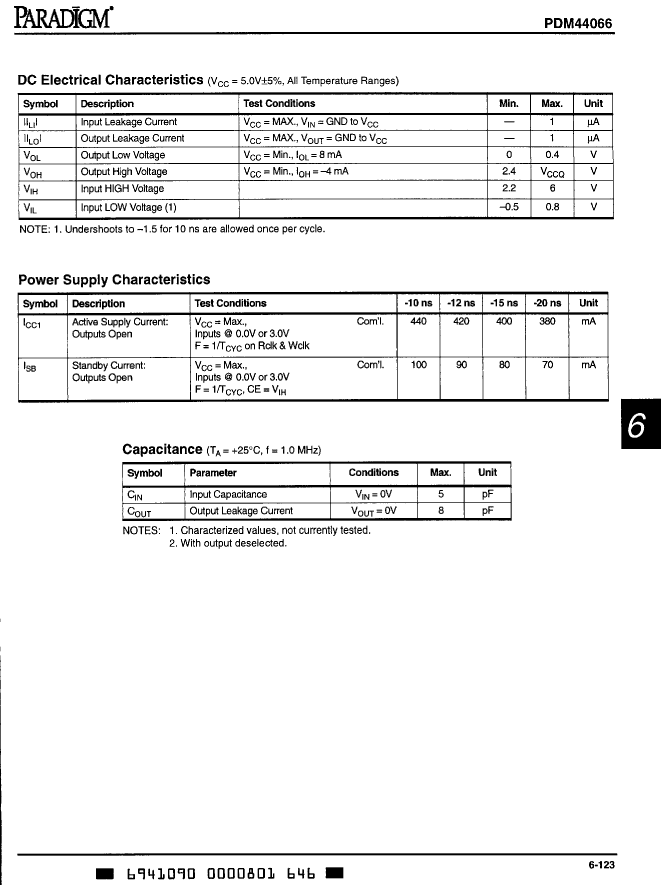

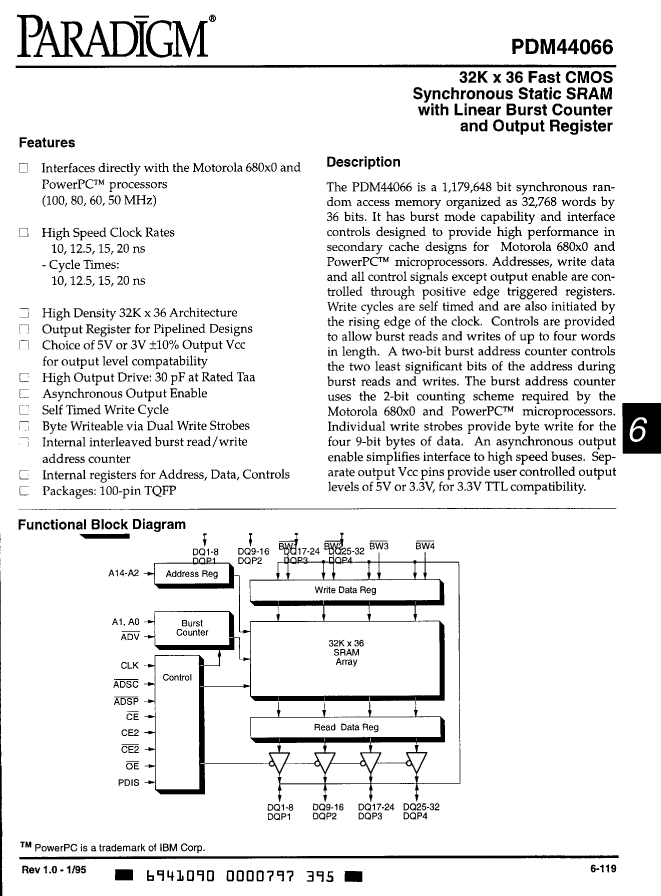

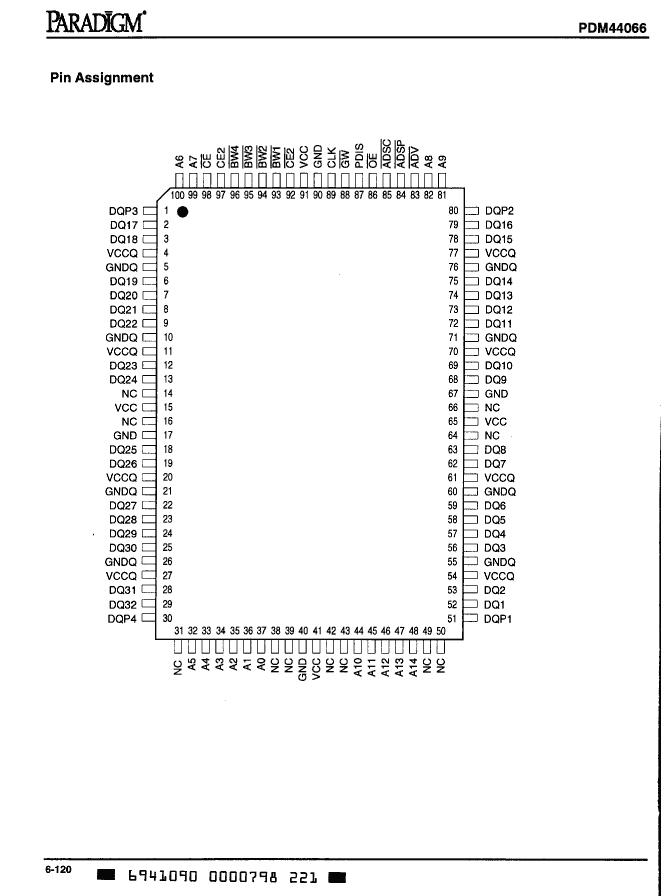

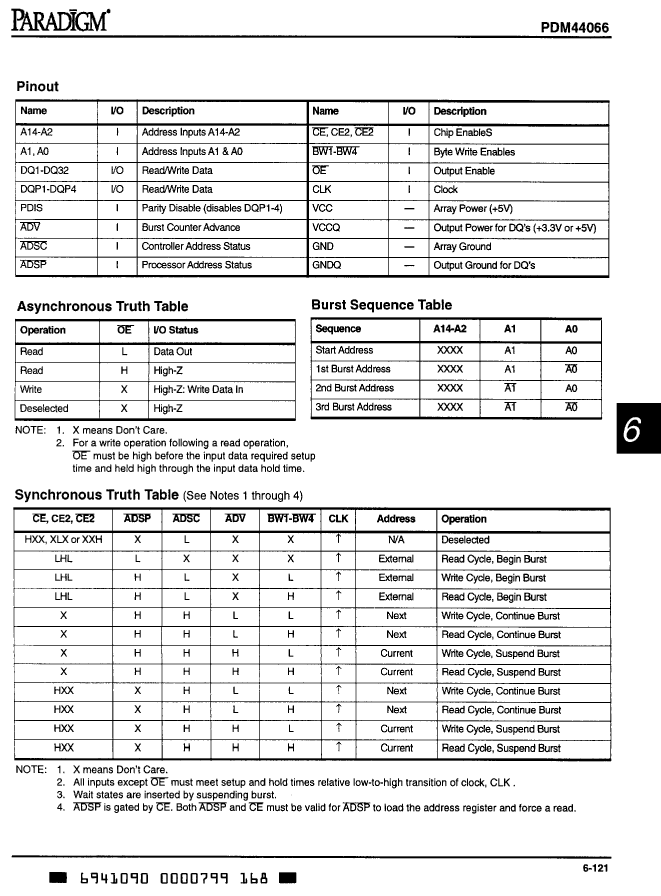

Preview

Download Datasheet

View All

PDM44066S10TQ Related Products

	PDM44066S10TQ	PDM44066S20TQ	PDM44066S15TQ	PDM44066S15TQI	PDM44066S12TQI
Description	Standard SRAM, 32KX36, 5ns, CMOS, PQFP100	Standard SRAM, 32KX36, 9ns, CMOS, PQFP100	Standard SRAM, 32KX36, 7ns, CMOS, PQFP100	Standard SRAM, 32KX36, 7ns, CMOS, PQFP100	Standard SRAM, 32KX36, 6ns, CMOS, PQFP100
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	IXYS	IXYS	IXYS	IXYS	IXYS
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Maximum access time	5 ns	9 ns	7 ns	7 ns	6 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100
JESD-609 code	e0	e0	e0	e0	e0
memory density	1179648 bit	1179648 bit	1179648 bit	1179648 bit	1179648 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	36	36	36	36	36
Number of terminals	100	100	100	100	100
word count	32768 words	32768 words	32768 words	32768 words	32768 words
character code	32000	32000	32000	32000	32000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	85 °C	85 °C
organize	32KX36	32KX36	32KX36	32KX36	32KX36
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP	QFP	QFP	QFP
Encapsulate equivalent code	QFP100,.63X.87	QFP100,.63X.87	QFP100,.63X.87	QFP100,.63X.87	QFP100,.63X.87
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	3.3/5,5 V	3.3/5,5 V	3.3/5,5 V	3.3/5,5 V	3.3/5,5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Minimum standby current	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD
Maximum standby current	0.1 A	0.07 A	0.08 A	-	-
Maximum slew rate	0.44 mA	0.38 mA	0.4 mA	-	-
