ICS93735YF-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> ICS93735YF-T

ICS93735YF-T: DescriptionPLL Based Clock Driver, 93735 Series, 10 True Output(s), 0 Inverted Output(s), PDSO48, 0.300 INCH, MO-118, SSOP-48; Categorylogic logic; File Size151KB，8 Pages; ManufacturerIntegrated Circuit Systems（IDT ）

Download Datasheet Parametric Compare View All

ICS93735YF-T Overview

PLL Based Clock Driver, 93735 Series, 10 True Output(s), 0 Inverted Output(s), PDSO48, 0.300 INCH, MO-118, SSOP-48

ICS93735YF-T Parametric

Parameter Name	Attribute value
Maker	Integrated Circuit Systems（IDT ）
Parts packaging code	SSOP
package instruction	SSOP,
Contacts	48
Reach Compliance Code	unknown
series	93735
Input adjustment	STANDARD
JESD-30 code	R-PDSO-G48
length	15.875 mm
Logic integrated circuit type	PLL BASED CLOCK DRIVER
Number of functions	1
Number of inverted outputs
Number of terminals	48
Actual output times	10
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.098 ns
Maximum seat height	2.8 mm
Maximum supply voltage (Vsup)	2.7 V
Minimum supply voltage (Vsup)	2.3 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
width	7.5 mm

Preview

Download Datasheet

View All

Integrated

Circuit

Systems, Inc.

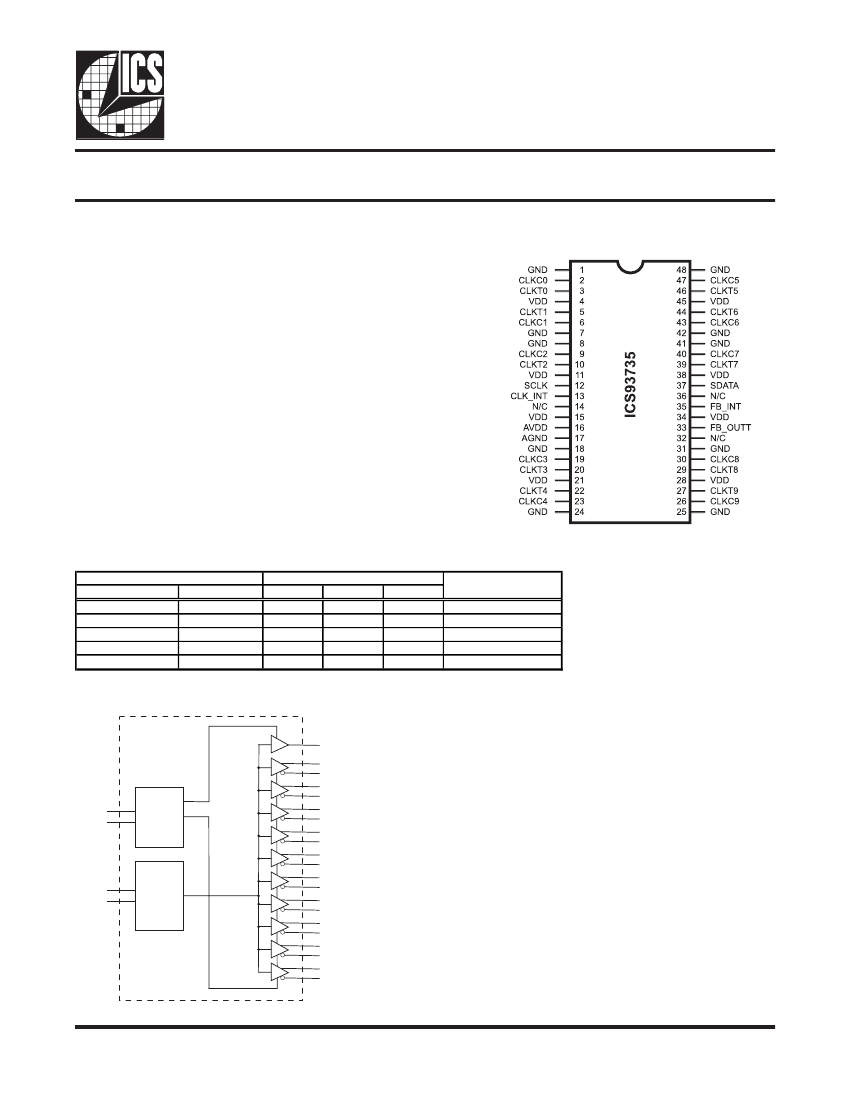

ICS93735

DDR Phase Lock Loop Zero Delay Clock Buffer

Recommended Application:

DDR Zero Delay Clock Buffer

Product Description/Features:

• Low skew, low jitter PLL clock driver

• Max frequency supported = 266MHz (DDR 533)

• I

C for functional and output control

• Feedback pins for input to output synchronization

• Spread Spectrum tolerant inputs

• 3.3V tolerant CLK_INT input

Switching Characteristics:

• CYCLE - CYCLE jitter (66MHz): <120ps

• CYCLE - CYCLE jitter (>100MHz): <65ps

• CYCLE - CYCLE jitter (>200MHz): <75ps

• OUTPUT - OUTPUT skew: <100ps

• Output Rise and Fall Time: 500ps - 700ps

• DUTY CYCLE: 49.5% - 50.5%

Pin Configuration

Functionality

OUTPUTS

AVDD

CLK_INT

CLKT

CLKC

FB_OUTT

2.5V (nom)

< offset freq* offset freq* offset freq* offset freq*

GND

* The offset frequency is ~ 20 MHz, varying somewhat from part to part.

INPUTS

PLL State

off

Bypassed/off

48-Pin SSOP

Block Diagram

FB_OUTT

CLKT0

CLKC0

CLKT1

CLKC1

SCLK

SDATA

Control

Logic

CLKT2

CLKC2

CLKT3

CLKC3

CLKT4

CLKC4

CLKT5

CLKC5

FB_INT

CLK_INT

PLL

CLKT6

CLKC6

CLKT7

CLKC7

CLKT8

CLKC8

CLKT9

CLKC9

0579F—06/14/06

ICS93735YF-T Related Products

	ICS93735YF-T	ICS93735YFLF-T
Description	PLL Based Clock Driver, 93735 Series, 10 True Output(s), 0 Inverted Output(s), PDSO48, 0.300 INCH, MO-118, SSOP-48	PLL Based Clock Driver, 93735 Series, 10 True Output(s), 0 Inverted Output(s), PDSO48, 0.300 INCH, ROHS COMPLIANT, MO-118, SSOP-48
Parts packaging code	SSOP	SSOP
package instruction	SSOP,	SSOP,
Contacts	48	48
Reach Compliance Code	unknown	unknown
series	93735	93735
Input adjustment	STANDARD	STANDARD
JESD-30 code	R-PDSO-G48	R-PDSO-G48
length	15.875 mm	15.875 mm
Logic integrated circuit type	PLL BASED CLOCK DRIVER	PLL BASED CLOCK DRIVER
Number of functions	1	1
Number of terminals	48	48
Actual output times	10	10
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified
Same Edge Skew-Max（tskwd）	0.098 ns	0.098 ns
Maximum seat height	2.8 mm	2.8 mm
Maximum supply voltage (Vsup)	2.7 V	2.7 V
Minimum supply voltage (Vsup)	2.3 V	2.3 V
Nominal supply voltage (Vsup)	2.5 V	2.5 V
surface mount	YES	YES
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL
width	7.5 mm	7.5 mm
