IDT74821BTLG datasheet, PDF - EEWORLD Datasheet

IDT74821BTLG: DescriptionBus Driver, FCT Series, 1-Func, 10-Bit, True Output, CMOS, CQCC28, LCC-28; Categorylogic logic; File Size264KB，9 Pages; ManufacturerIDT (Integrated Device Technology); Environmental Compliance

Download Datasheet Parametric View All

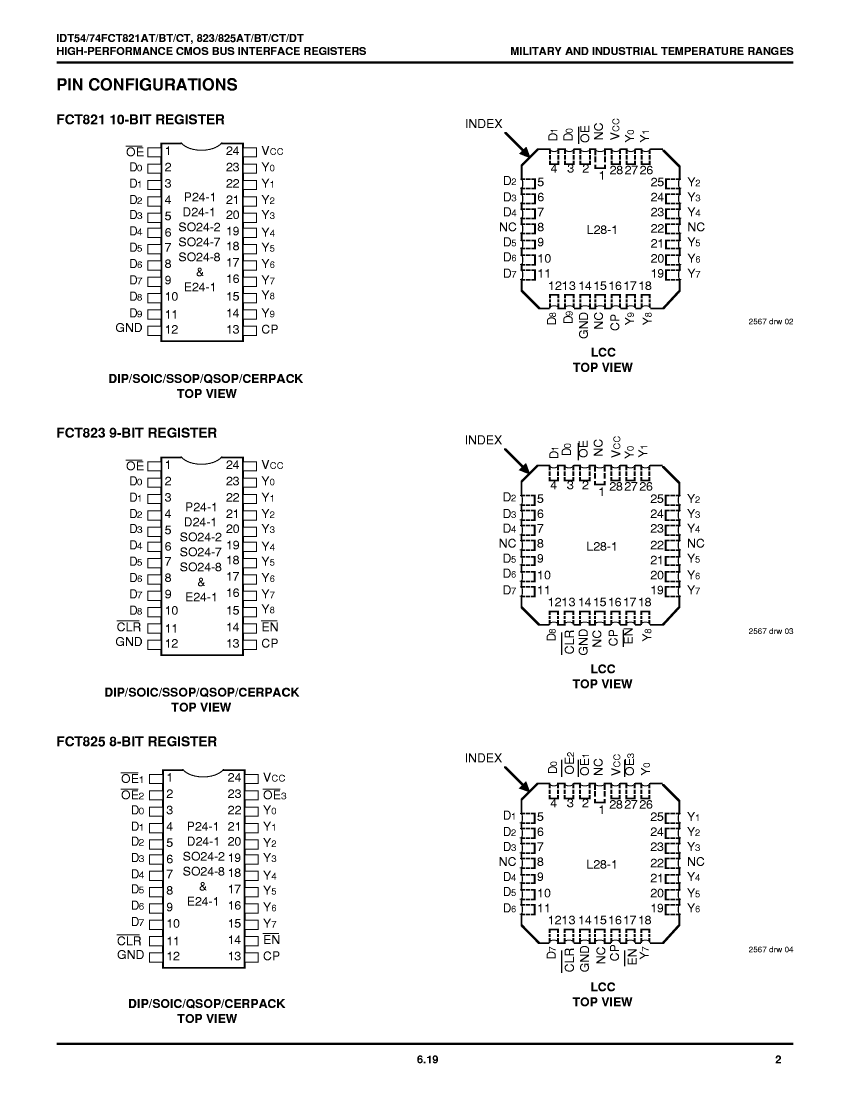

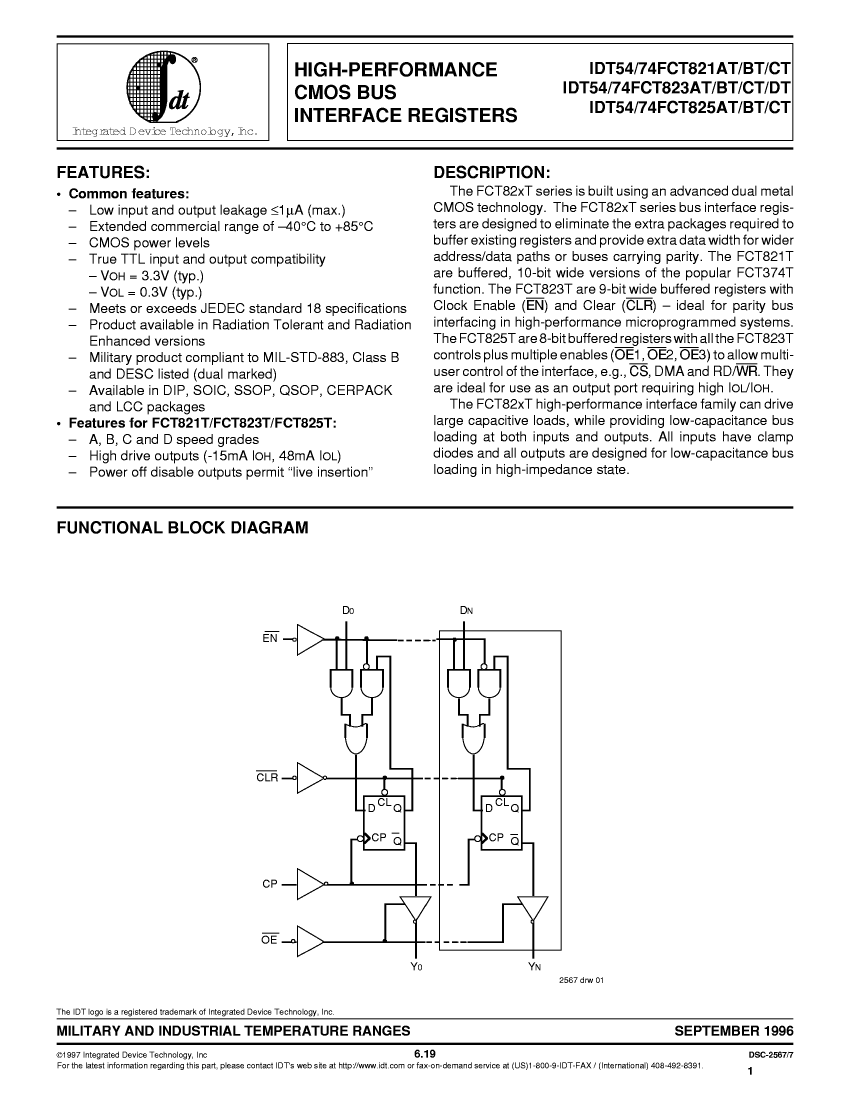

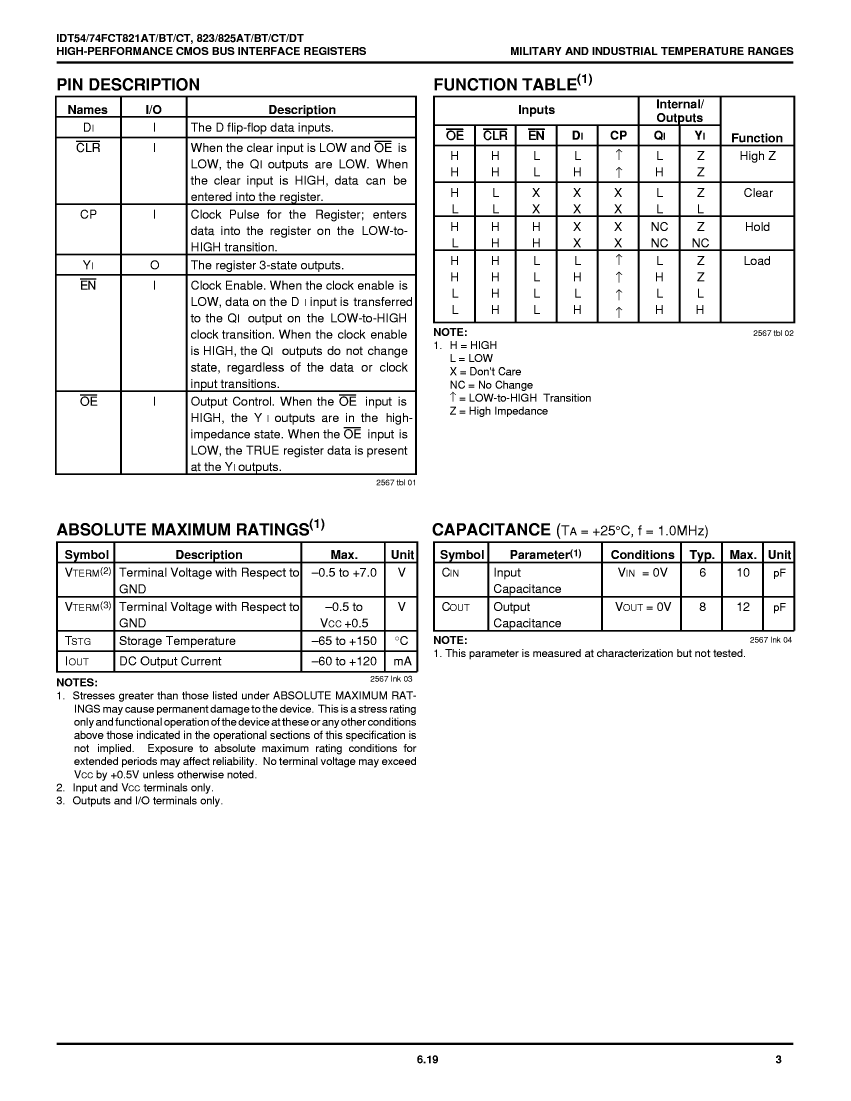

IDT74821BTLG Overview

Bus Driver, FCT Series, 1-Func, 10-Bit, True Output, CMOS, CQCC28, LCC-28

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	IDT (Integrated Device Technology)
Parts packaging code	QLCC
package instruction	LCC-28
Contacts	28
Reach Compliance Code	compliant
series	FCT
JESD-30 code	S-CQCC-N28
JESD-609 code	e3
length	11.4554 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	10
Number of functions	1
Number of ports	2
Number of terminals	28

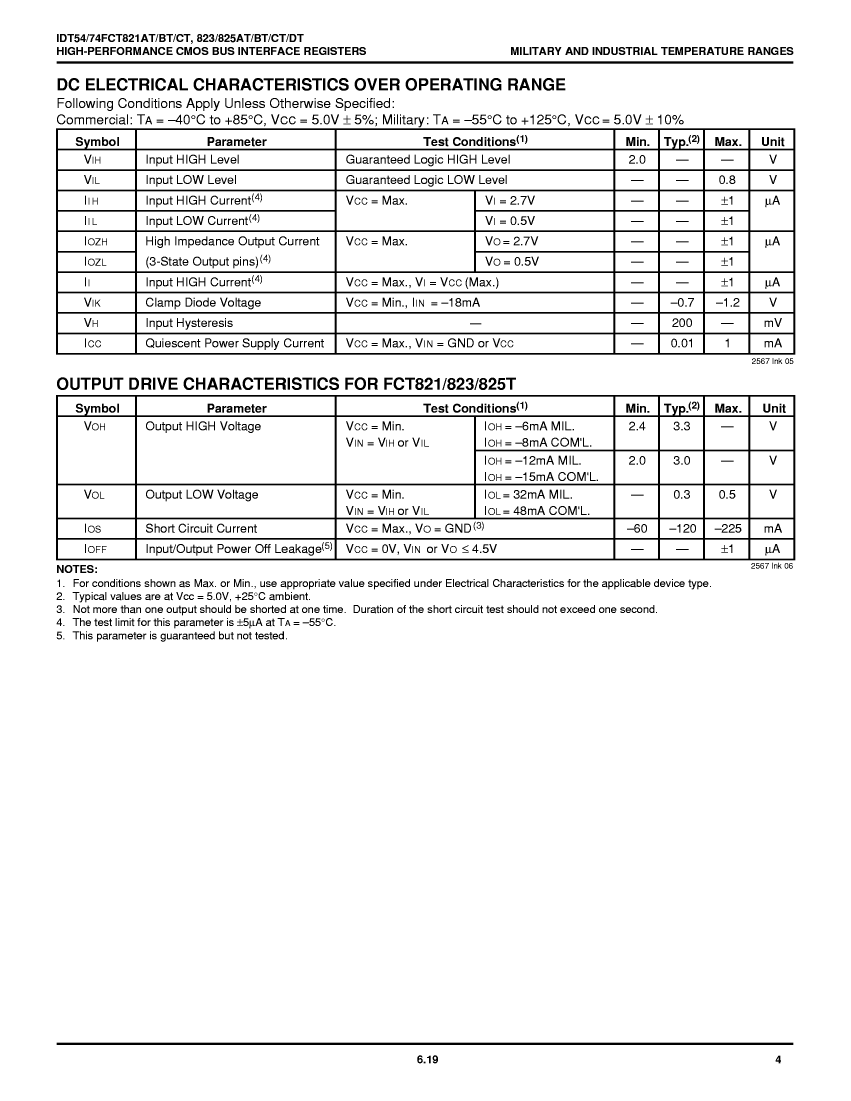

Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	260
propagation delay (tpd)	15 ns
Certification status	Not Qualified
Maximum seat height	2.54 mm

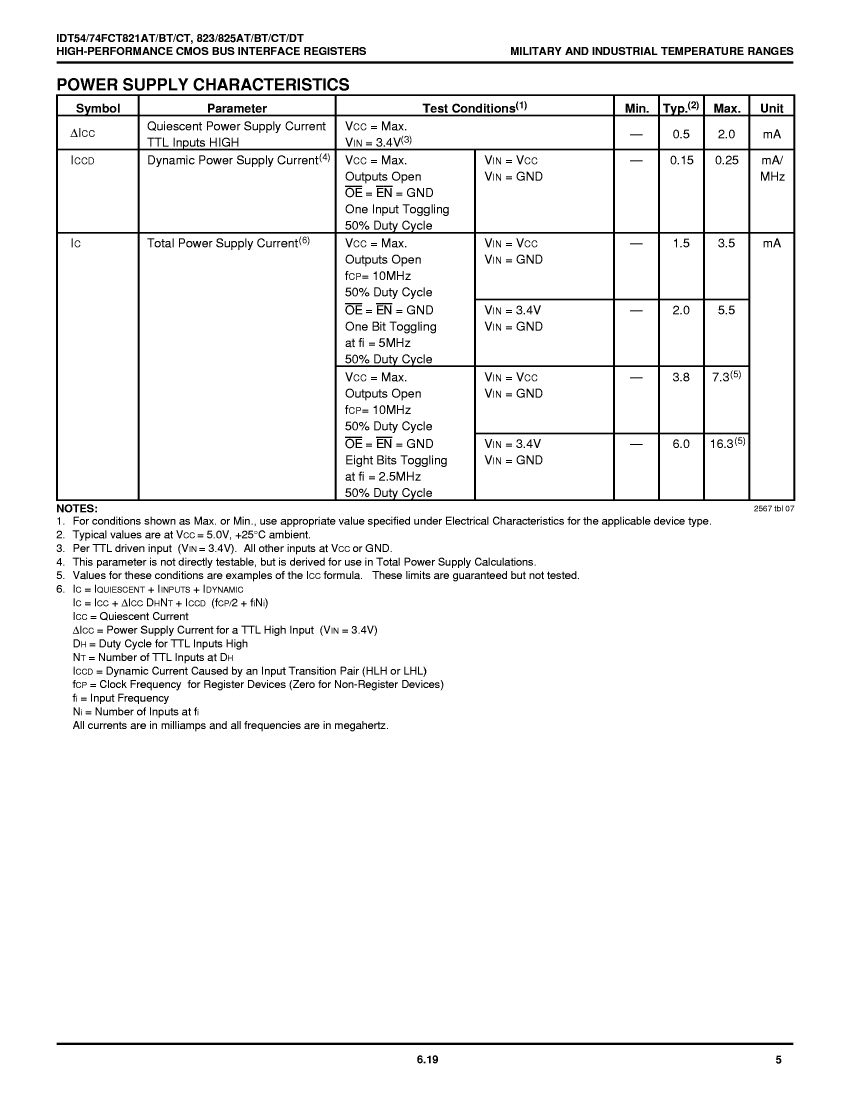

Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	11.4554 mm
