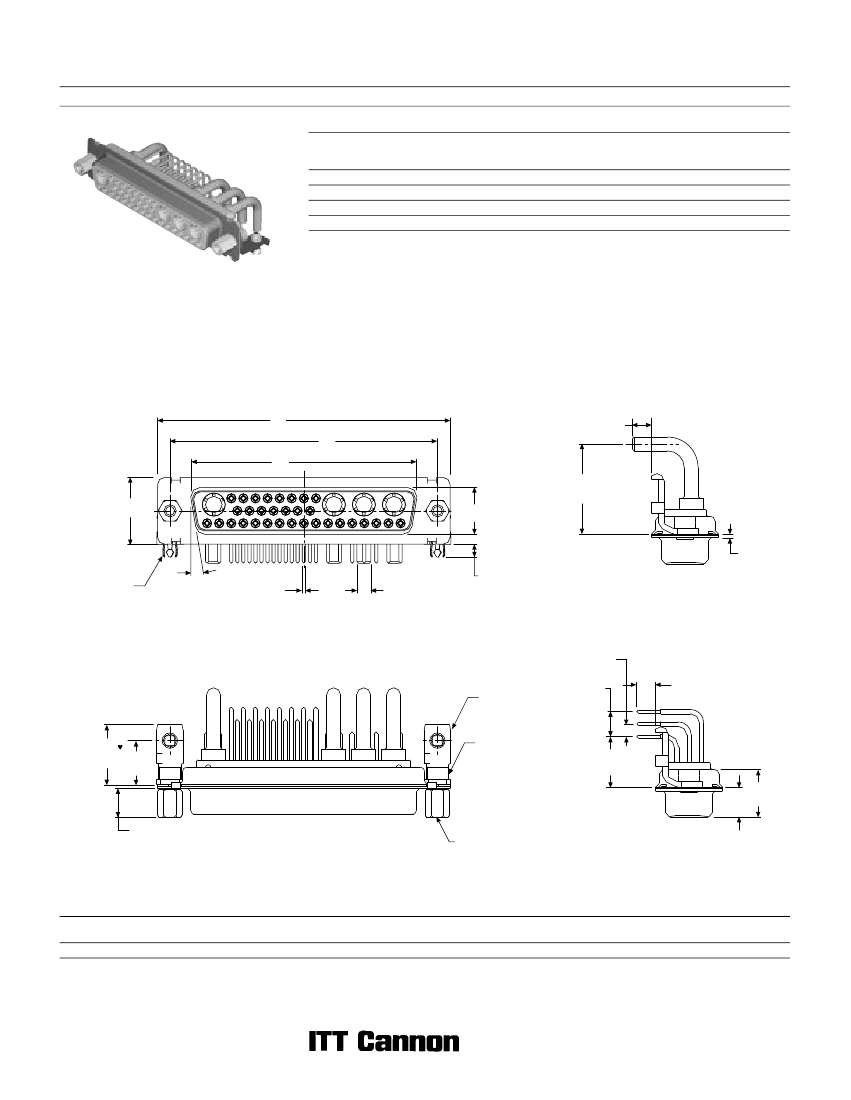

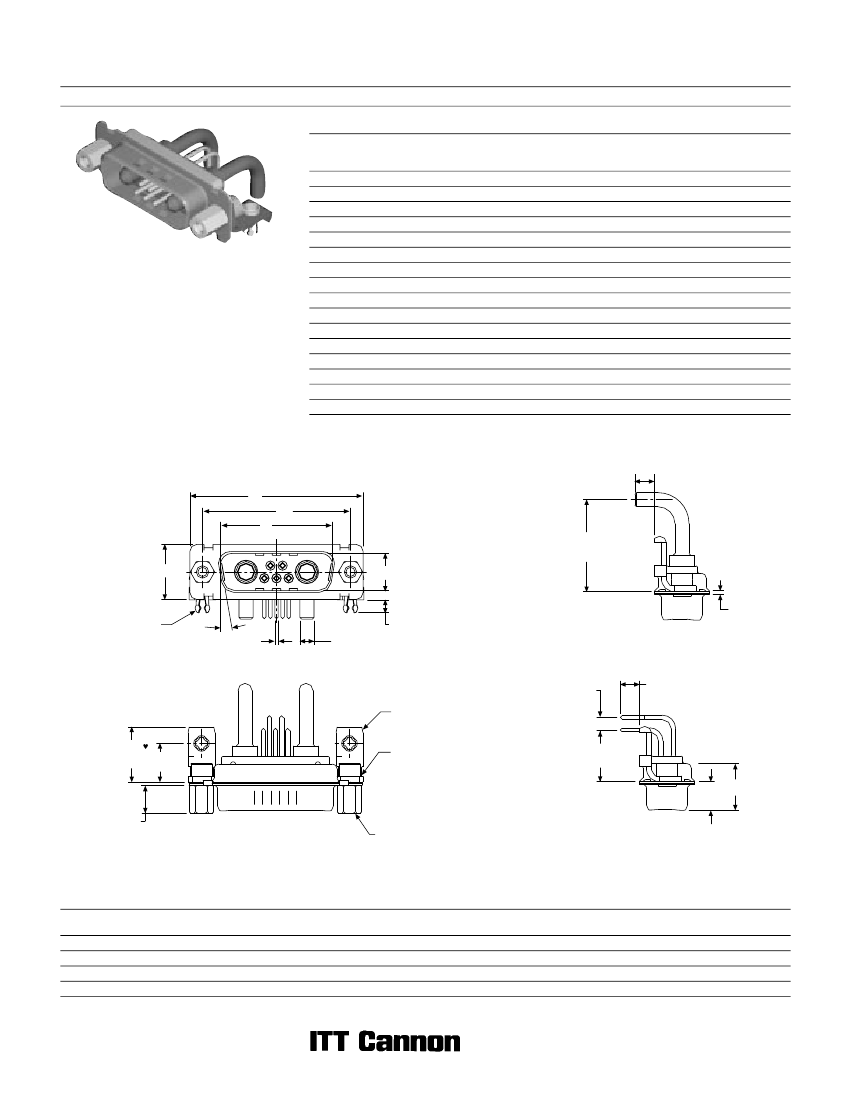

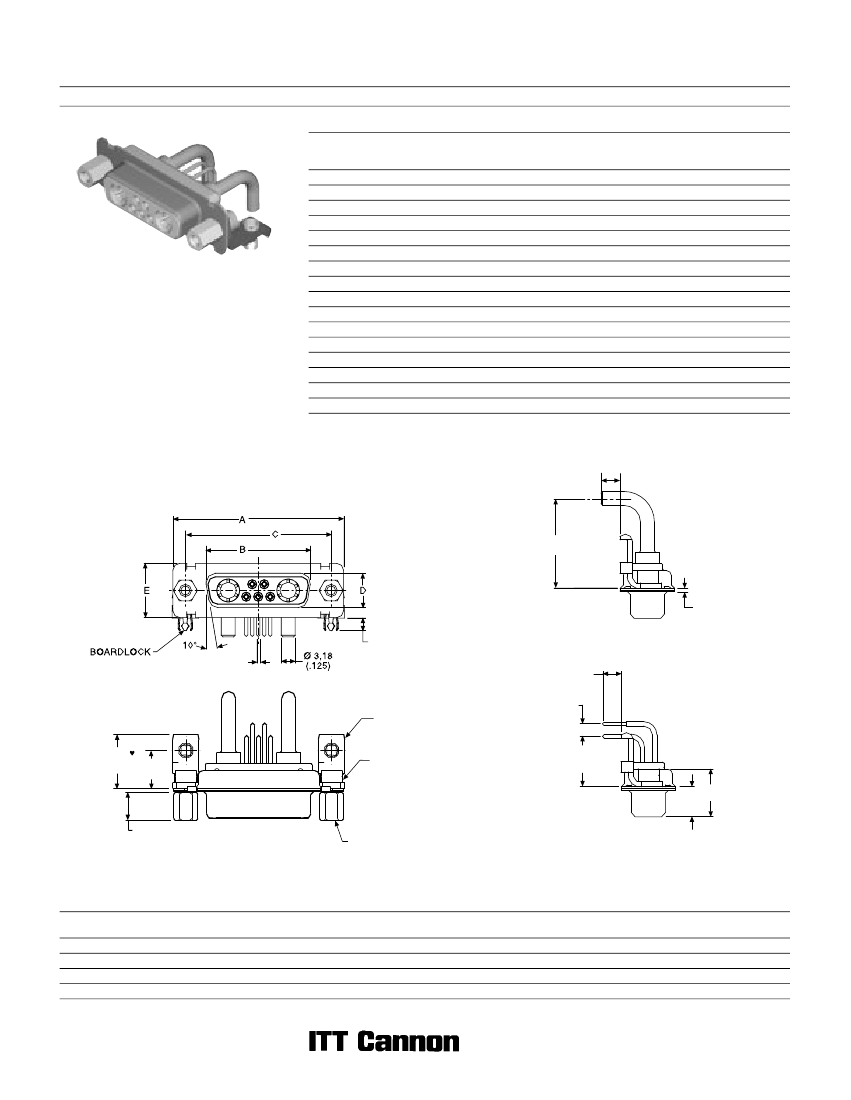

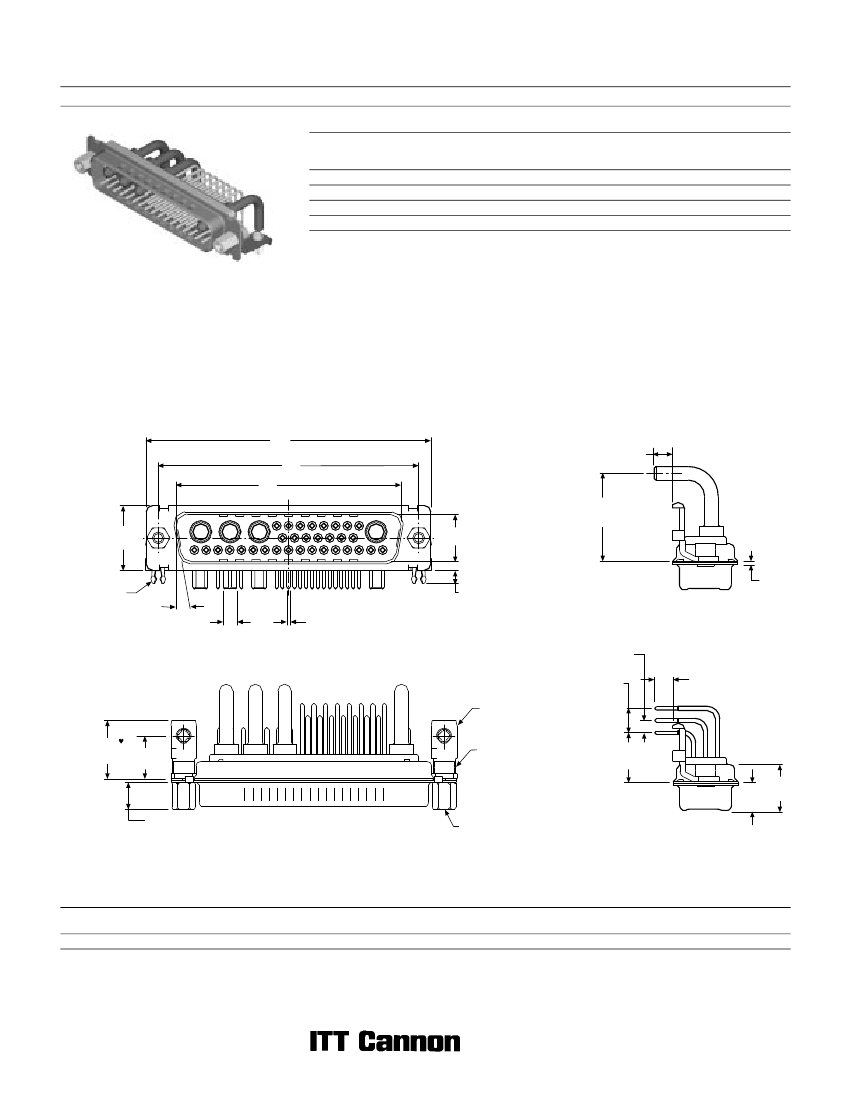

D Subminiature
40 A High Power 90° — Standard Footprint .489 or .454 inch
Plug
Combo D
®
(Sizes DE-DC)
Part Number
Without Screw Locks
With Boardlocks
DEMC5H1PJK87
DAMC7H2PJK87
DAMC11H1PJK87
DAMC3H3PJK87
DAMC3HK3PJK87TM
DBMC5H5PJK87
DBMC9H4PJK87
DBMC13H3PJK87
DBMC17H2PJK87
DBMC21H1PJK87
DCMC8H8PJK87
DCMC13H6PJK87
DCMC17H5PJK87
DCMC21HA4PJK87
DCMC25H3PJK87
DCMC27H2PJK87
Part Number
With Screw Locks
Without Boardlocks
DEMD5H1PJK87
DAMD7H2PJK87
DAMD11H1PJK87
DAMD3H3PJK87
DAMD3HK3PJK87TM
DBMD5H5PJK87
DBMD9H4PJK87
DBMD13H3PJK87
DBMD17H2PJK87
DBMD21H1PJK87
DCMD8H8PJK87
DCMD13H6PJK87
DCMD17H5PJK87
DCMD21HA4PJK87
DCMD25H3PJK87
DCMD27H2PJK87
Part Number
With Screw Locks
With Boardlocks
DEMG5H1PJK87
DAMG7H2PJK87
DAMG11H1PJK87
DAMG3H3PJK87
DAMG3HK3PJK87TM
DBMG5H5PJK87
DBMG9H4PJK87
DBMG13H3PJK87
DBMG17H2PJK87
DBMG21H1PJK87
DCMG8H8PJK87
DCMG13H6PJK87
DCMG17H5PJK87
DCMG21HA4PJK87
DCMG25H3PJK87
DCMG27H2PJK87
Part Numbers with Metal Bracket and Rivnut #4-40 UNC
Shell Size
DE
DA
DA
DA
DA
DB
DB
DB
DB
DB
DC
DC
DC
DC
DC
DC
Layout
5W1
7W2
11W1
3W3
3WK3
5W5
9W4
13W3
17W2
21W1
8W8
13W6
17W5
21WA4
25W3
27W2
Part Number
Without Screw Locks
Without Boardlocks
DEMP5H1PJK87
DAMP7H2PJK87
DAMP11H1PJK87
DAMP3H3PJK87
DAMP3HK3PJK87TM
DBMP5H5PJK87
DBMP9H4PJK87
DBMP13H3PJK87
DBMP17H2PJK87
DBMP21H1PJK87
DCMP8H8PJK87
DCMP13H6PJK87
DCMP17H5PJK87
DCMP21HA4PJK87
DCMP25H3PJK87
DCMP27H2PJK87
Reader’s Resource
For contact cavity arrangements,
see page 222.
For P.C. hole patterns, see pages 244-245.
For panel cutouts, see page 221.
For alternate bracket configuration (when
connectors are supplied without boardlocks),
see page 226.
Note: For contacts with 30 microinches gold substitute K127 for K87. Example: DEMP5H1PJK127
For DD shell sizes, see page 62.
Keyed.
Engaging Face
A
C
B
3,89 (.153)
MIN.
20,57
±
0,38
(.810
±.015)
E
D
L
BOARDLOCK
10°
Ø 0,76
(.030)
Ø 3,18
(.125)
2,92
(.115)
Screw lock, boardlock, and signal contacts
removed for clarity
2,84
(.112)
4,33
±
0,38
(.170
±
.015)
BRACKET,
METAL
12,34
(.486) 8,64
(.340)
RIVNUT
#4-40 UNC
11,53
±
0,25
(.454
±
.010)
F
W
6,50
±
0,25
(.256
±
.010)
SCREW LOCK
#4-40 UNC
Screw lock, boardlock, and high power contact
removed for clarity
Note:
Dimension varies with alternate bracket configuration, see Reader’s Resource page 226.
Dimensions
Shell Size
DE
DA
DB
DC
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
B
±0,13
(.005)
16,92 (.666)
25,25 (.994)
38,96 (1.534)
55,42 (2.182)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
D
±0,13
(.005)
8,36 (.329)
8,36 (.329)
8,36 (.329)
8,36 (.329)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
F
±0,25
(.010)
10,72 (.422)
10,72 (.422)
10,82 (.426)
10,82 (.426)
W
±0,368
(.0145)
6,693 (.2635)
6,693 (.2635)
—
—
W
±0,41
(.016)
—
—
6,84 (.269)
6,84 (.269)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,99 (.039)
0,99 (.039)
Connector footprint measured from the front shell.
Connector footprint measured from the rear shell.
60
Dimensions are shown in mm (inch)
Dimensions subject to change
D Subminiature
40 A High Power 90° — Standard Footprint .489 or .454 inch
Receptacle
Combo D
®
(Sizes DE-DC)
Part Number
Without Screw Locks
With Boardlocks
DEMC5H1SJA197
DAMC7H2SJA197
DAMC11H1SJA197
DAMC3H3SJA197
DAMC3HK3SJA197TM
DBMC5H5SJA197
DBMC9H4SJA197
DBMC13H3SJA197
DBMC17H2SJA197
DBMC21H1SJA197
DCMC8H8SJA197
DCMC13H6SJA197
DCMC17H5SJA197
DCMC21HA4SJA197
DCMC25H3SJA197
DCMC27H2SJA197
Part Number
With Screw Locks
Without Boardlocks
DEMD5H1SJA197
DAMD7H2SJA197
DAMD11H1SJA197
DAMD3H3SJA197
DAMD3HK3SJA197TM
DBMD5H5SJA197
DBMD9H4SJA197
DBMD13H3SJA197
DBMD17H2SJA197
DBMD21H1SJA197
DCMD8H8SJA197
DCMD13H6SJA197
DCMD17H5SJA197
DCMD21HA4SJA197
DCMD25H3SJA197
DCMD27H2SJA197
Part Number
With Screw Locks
With Boardlocks
DEMG5H1SJA197
DAMG7H2SJA197
DAMG11H1SJA197
DAMG3H3SJA197
DAMG3HK3SJA197TM
DBMG5H5SJA197
DBMG9H4SJA197
DBMG13H3SJA197
DBMG17H2SJA197
DBMG21H1SJA197
DCMG8H8SJA197
DCMG13H6SJA197
DCMG17H5SJA197
DCMG21HA4SJA197
DCMG25H3SJA197
DCMG27H2SJA197
Part Numbers with Metal Bracket and Rivnut #4-40 UNC
Shell Size
DE
DA
DA
DA
DA
DB
DB
DB
DB
DB
DC
DC
DC
DC
DC
DC
Layout
5W1
7W2
11W1
3W3
3WK3
5W5
9W4
13W3
17W2
21W1
8W8
13W6
17W5
21WA4
25W3
27W2
Part Number
Without Screw Locks
Without Boardlocks
DEMP5H1SJA197
DAMP7H2SJA197
DAMP11H1SJA197
DAMP3H3SJA197
DAMP3HK3SJA197TM
DBMP5H5SJA197
DBMP9H4SJA197
DBMP13H3SJA197
DBMP17H2SJA197
DBMP21H1SJA197
DCMP8H8SJA197
DCMP13H6SJA197
DCMP17H5SJA197
DCMP21HA4SJA197
DCMP25H3SJA197
DCMP27H2SJA197
Reader’s Resource
For contact cavity arrangements,
see page 223.
For P.C. hole patterns, see pages 247-248.
For panel cutouts, see page 221.
For alternate bracket configuration (when
connectors are supplied without boardlocks),
see page 226.
Note: For contacts with 30 microinches of gold substitute K126 for A197. Example: DEMP5H1SJK126
For DD shell sizes, see page 63.
Keyed.
Engaging Face
3,89 (.153)
MIN.
20,57
±
0,38
(.810
±
.015)
L
2,92
(.115)
Ø 0,76
(.030)
Screw lock, boardlock, and signal contacts
removed for clarity
4,33
±
0,38
(.170
±
.015)
2,84
(.112)
BRACKET,
METAL
12,34
(.486)
RIVNUT
#4-40 UNC
8,64
(.340)
11,53
±
0,25
(.454
±
.010)
F
W
6,50
±
0,25
(.256
±
.010)
SCREW LOCK
#4-40 UNC
Screw lock, boardlock, and high power contact
removed for clarity
Note:
Dimension varies with alternate bracket configuration, see Reader’s Resource page 226.
Dimensions
Shell Size
DE
DA
DB
DC
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
B
±0,13
(.005)
16,33 (.643)
24,66 (.971)
38,38 (1.511)
54,84 (2.159)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
D
±0,13
(.005)
7,90 (.311)
7,90 (.311)
7,90 (.311)
7,90 (.311)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
F
±0,25
(.010)
10,90 (.429)
10,90 (.429)
10,90 (.429)
10,90 (.429)
W
±0,38
(.015)
6,94 (.273)
6,94 (.273)
6,94 (.273)
6,94 (.273)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,76 (.030)
0,76 (.030)
Connector footprint measured from the front shell.
Connector footprint measured from the rear shell.
Dimensions are shown in mm (inch)
Dimensions subject to change
61
D Subminiature
40 A High Power 90° — Standard Footprint .489 or .454 inch
Plug
Combo D
®
(Size DD)
Part Number
Without Screw Locks
With Boardlocks
DDMC24H7PJK87
DDMC36H4PJK87
DDMC43H2PJK87
DDMC47H1PJK87
Part Number
With Screw Locks
Without Boardlocks
DDMD24H7PJK87
DDMD36H4PJK87
DDMD43H2PJK87
DDMD47H1PJK87
Part Number
With Screw Locks
With Boardlocks
DDMG24H7PJK87
DDMG36H4PJK87
DDMG43H2PJK87
DDMG47H1PJK87
Part Numbers with Metal Bracket and Rivnut #4-40 UNC
Shell Size
DD
DD
DD
DD
Layout
24W7
36W4
43W2
47W1
Part Number
Without Screw Locks
Without Boardlocks
DDMP24H7PJK87
DDMP36H4PJK87
DDMP43H2PJK87
DDMP47H1PJK87
Note: For contacts with 30 microinches gold substitute K127 for K87. Example: DDMP24H7PJK127
Reader’s Resource
For contact cavity arrangements,
see page 222.
For P.C. hole patterns, see page 246.
For panel cutouts, see page 221.
For alternate bracket configuration (when
connectors are supplied without boardlocks),
see page 226.
Engaging Face
A
C
B
20,57
±
0,38
(.810
±
.015)
E
D
3,89 (.153)
MIN
L
BOARDLOCK
10°
Ø 3.18
(.125)
Ø 0,76
(.030)
2,92
(.115)
Screw lock, boardlock, and signal contacts
removed for clarity
2,84
(.112)
5,68
(.224)
BRACKET,
METAL
4,33
±
0,38
(.170
±
.015)
13,74
(.541)
10,06
(.396)
RIVNUT
#4-40 UNC
11,53
±
0,25
(.454
±
.010)
F
W
6,50
±
0,25
(.256
±
.010)
SCREW LOCK
#4-40 UNC
Screw lock, boardlock, and high power contact
removed for clarity
Note:
Dimension varies with alternate bracket configuration, see Reader’s Resource page 226.
Dimensions
Shell Size
DD
A
±0,38
(.015)
66,93 (2.635)
B
±0,13
(.005)
52,81 (2.079)
C
±0,13
(.005)
61,11 (2.406)
D
±0,13
(.005)
11,07 (.436)
E
±0,38
(.015)
15,37 (.605)
F
±0,25
(.010)
10,82 (.426)
W
±0,41
(.016)
6,84 (.269)
L
±0,25
(.010)
0,99 (.039)
Connector footprint measured from the front shell.
Connector footprint measured from the rear shell.
62
Dimensions are shown in mm (inch)
Dimensions subject to change
D Subminiature
40 A High Power 90° — Standard Footprint .489 or .454 inch
Receptacle
Combo D
®
(Size DD)
Part Number
Without Screw Locks
With Boardlocks
DDMC24H7SJA197
DDMC36H4SJA197
DDMC43H2SJA197
DDMC47H1SJA197
Part Number
With Screw Locks
Without Boardlocks
DDMD24H7SJA197
DDMD36H4SJA197
DDMD43H2SJA197
DDMD47H1SJA197
Part Number
With Screw Locks
With Boardlocks
DDMG24H7SJA197
DDMG36H4SJA197
DDMG43H2SJA197
DDMG47H1SJA197
Part Numbers with Metal Bracket and Rivnut #4-40 UNC
Shell Size
DD
DD
DD
DD
Layout
24W7
36W4
43W2
47W1
Part Number
Without Screw Locks
Without Boardlocks
DDMP24H7SJA197
DDMP36H4SJA197
DDMP43H2SJA197
DDMP47H1SJA197
Note: For contacts with 30 microinches gold substitute K126 for A197. Example: DDMP24H7SJK126
Reader’s Resource
For contact cavity arrangements,
see page 223.
For P.C. hole patterns, see page 249.
For panel cutouts, see page 221.
For alternate bracket configuration (when
connectors are supplied without boardlocks),
see page 226.
Engaging Face
A
C
B
20,57
±
0,38
(.810
±
.015)
E
D
3,89 (.153)
MIN
L
10°
BOARDLOCK
Ø 0,76
(.030)
Ø 3,18
(.125)
2,92
(.115)
Screw lock, boardlock, and signal contacts
removed for clarity
2,84
(.112)
BRACKET,
METAL
5,68
(.224)
4,33
±
0,38
(.170
±
.015)
13,74
(.541) 10,06
(.396)
RIVNUT
#4-40 UNC
11,53
±
0,25
(.454
±
.010)
F
W
6,50
±
0,25
(.256
±
.010)
SCREW LOCK
#4-40 UNC
Screw lock, boardlock, and high power contact
removed for clarity
Note:
Dimension varies with alternate bracket configuration, see page 226.
Dimensions
Shell Size
DD
A
±0,38
(.015)
66,93 (2.635)
B
±0,13
(.005)
52,42 (2.064)
C
±0,13
(.005)
61,11 (2.406)
D
±0,13
(.005)
10,74 (.423)
E
±0,38
(.015)
15,37 (.605)
F
±0,25
(.010)
10,90 (.429)
W
±0,38
(.015)
6,94 (.273)
L
±0,25
(.010)
0,76 (.030)
Connector footprint measured from the front shell.
Connector footprint measured from the rear shell.
Dimensions are shown in mm (inch)
Dimensions subject to change
63
京公网安备 11010802033920号
EEWORLD
