BD244

Description
Power Bipolar Transistor, 6A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size80KB,2 Pages
ManufacturerSAMSUNG
Websitehttp://www.samsung.com/Products/Semiconductor/

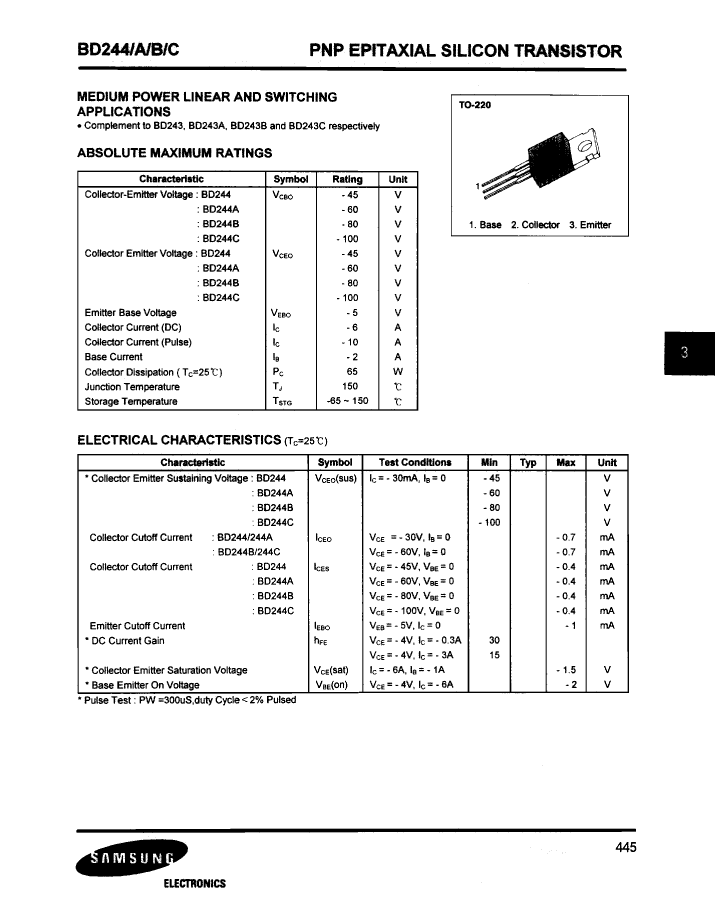

Download Datasheet Parametric Compare View All

BD244 Online Shopping

Suppliers Part Number Price MOQ In stock
BD244 - - View Buy Now

BD244 Overview

Power Bipolar Transistor, 6A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN

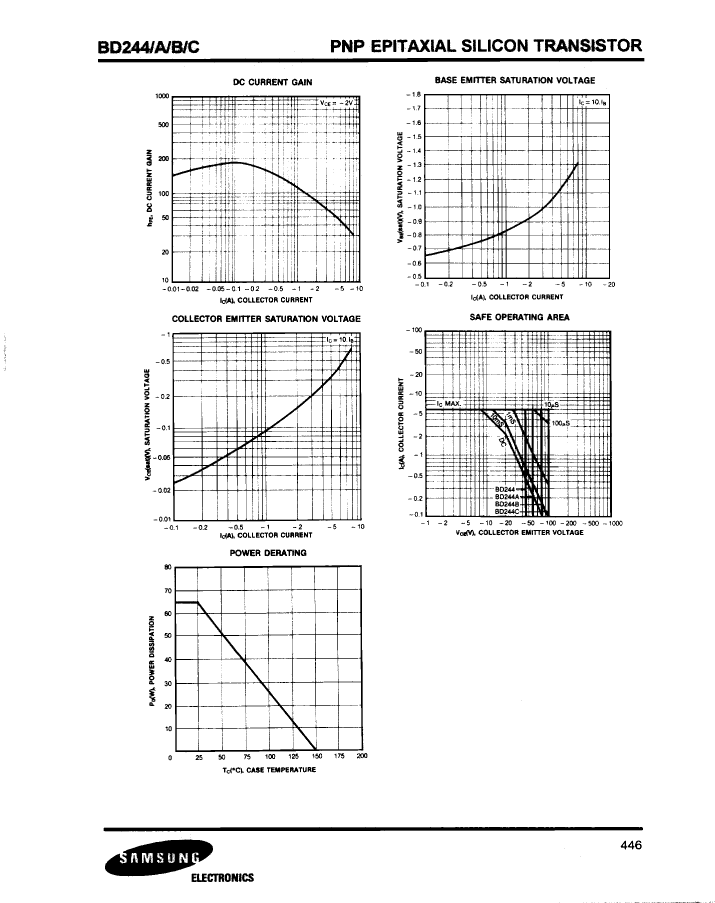

BD244 Parametric

Parameter NameAttribute value
MakerSAMSUNG
Parts packaging codeSFM
package instructionFLANGE MOUNT, R-PSFM-T3
Contacts3
Reach Compliance Codeunknown
ECCN codeEAR99
Maximum collector current (IC)6 A
Collector-emitter maximum voltage45 V
ConfigurationSINGLE
Minimum DC current gain (hFE)15
JESD-30 codeR-PSFM-T3
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Polarity/channel typePNP
Maximum power dissipation(Abs)65 W
Certification statusNot Qualified
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)3 MHz

BD244 Related Products

BD244 BD244C
Description Power Bipolar Transistor, 6A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN Power Bipolar Transistor, 6A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN
Maker SAMSUNG SAMSUNG
Parts packaging code SFM SFM
package instruction FLANGE MOUNT, R-PSFM-T3 FLANGE MOUNT, R-PSFM-T3
Contacts 3 3
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Maximum collector current (IC) 6 A 6 A
Collector-emitter maximum voltage 45 V 100 V
Configuration SINGLE SINGLE
Minimum DC current gain (hFE) 15 15
JESD-30 code R-PSFM-T3 R-PSFM-T3
Number of components 1 1
Number of terminals 3 3
Maximum operating temperature 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT
Polarity/channel type PNP PNP
Maximum power dissipation(Abs) 65 W 65 W
Certification status Not Qualified Not Qualified
surface mount NO NO
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE
transistor applications SWITCHING SWITCHING
Transistor component materials SILICON SILICON
Nominal transition frequency (fT) 3 MHz 3 MHz
