LCP-2488D4RXXR
Series

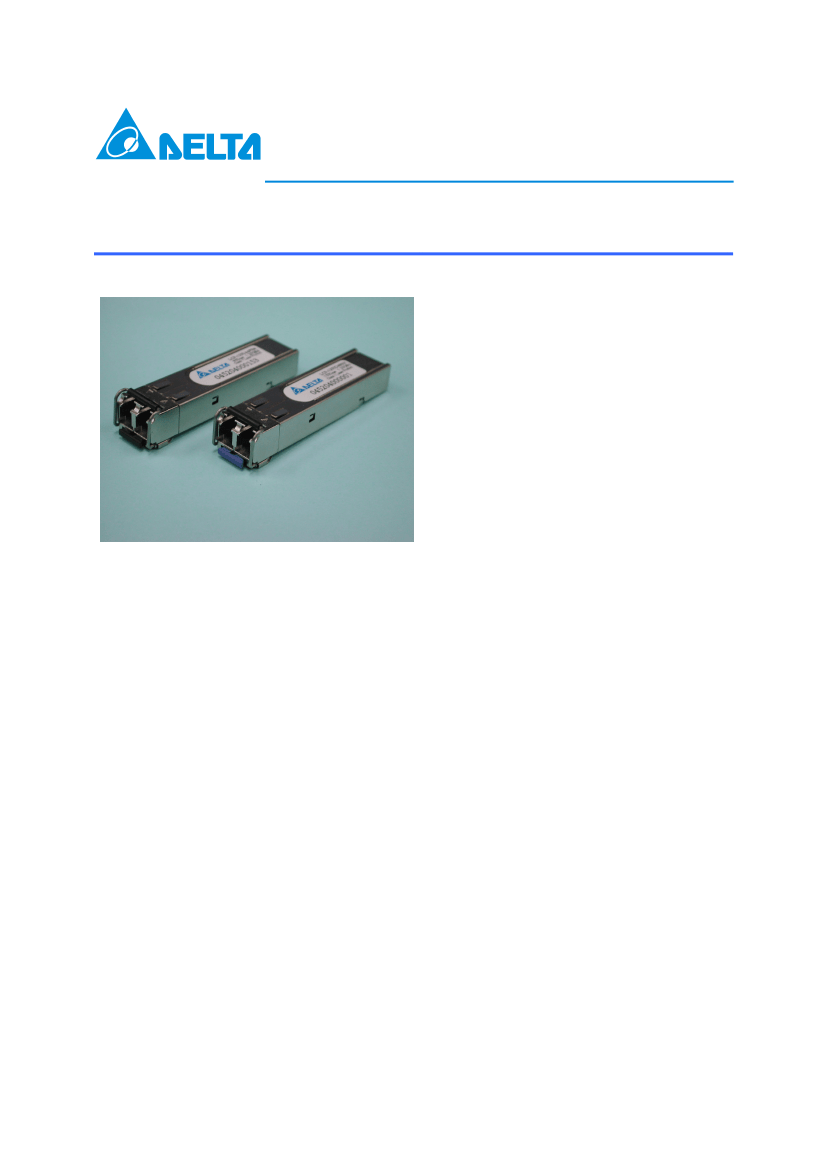

RoHS Compliant Multi-Rate CWDM SFP Transceiver for SONET
OC-48/SDH STM-16 with DDM Function
FEATURES
Compliant with SFP Transceiver SFF-8472
MSA specification with internal calibration
Multi-rate operation from 125 to 2670Mpbs
Single + 3.3V Power Supply and TTL Logic
Interface
Uncooled DFB laser transmitter and APD
receiver
Eight CWDM wavelength available
EEPROM with Serial ID Functionality
Laser Class 1 Product which comply with the
requirements of IEC 60825-1 and IEC 60825-2
Duplex LC Connector interface
Description
The LCP-2488 CWDM series are designed
for
coarse
wavelength
division
multiplexing
applications (CWDM) and hot pluggable SFP
transceiver modules that data rates up to 2.67Gb/s.
The LCP-2488 CWDM series are support OC-48/
STM-16 as well as 2x Fiber channel (2.125Gb/s),
GbE (1.25Gb/s) and 1x Fiber channel (1.062Gb/s).
The selectiveness of center wavelength has 1470,
1490, 1510, 1530, 1550, 1570, 1590, and 1610nm.
The LCP-2488 CWDM series are designed to
be compliant with SFF-8472 SFP Multi-source
Agreement (MSA) with digital diagnostic
monitoring functions: Temperature, V
CC
, TX
optical power, TX laser bias current, and RX
received optical power.
The post-amplifier of the LCP-2488 CWDM
series also includes a Loss of Signal (LOS) circuit
that provides a TTL logic-high output when the
received optical level is below a preset LOS
Assert threshold.
1
DELTA ELECTRONICS, INC.
Applications
ATM switches and routers
SONET/SDH switch infrastructure
xDSL applications
Gigabit Ethernet
Switch to Switch interface
Switched backplane applications
File server interface
Performance
LCP-2488D4RxxR: 1470nm to 1610nm CWDM
DFB laser transmitter and APD receiver, 28dB
link budget
Revision: S3
05/18/2010
www.deltaww.com
LCP-2488D4RXXR
Series
Absolute Maximum Ratings
Parameter
Storage Temperature
Supply Voltage
Symbol
Ts
V
CC
Min.
-40
0
Typ.
Max.
85
5
Unit
ºC
V
Note
Recommended Operating Conditions
Parameter
Case Operating Temperature
Supply Voltage
Data Rate
Note 1: See order information
Symbol
T
C
V
CC
Min.
-5
3.135
155
Typ.
Max.
70
3.465
2666
Unit
ºC
V
Mbps
Note
1
Electrical Characteristics
(V
CC
=3.3V
±
5%)
Parameter
Total Supply Current
Transmitter
Transmitter Differential Input Voltage
Transmitter Disable Input-High
Transmitter Disable Input-Low
Transmitter Fault Pull up Resistor
Transmitter Fault Output-High
Transmitter Fault Output-Low
Receiver
Receiver Differential Output Voltage
Receiver LOS Load
LOS Output Voltage-High
LOS Output Voltage-Low
Notes:
2. Pull up to V
CC
on host Board
3. Internally AC coupled, but requires a 100Ohm differential termination at or internal to Serializer/
Deserializer.
Symbol
I
CCT
V
DT
V
DISH
V
DISL
R
TX_FAULT
V
TXFH
V
TXFL
V
DR
R
RXLOS
V
LOSH
V
LOSL
Min.
Typ.
220
Max.
380
2.4
V
CC
+0.3
0.8
10
V
CC
+0.3
0.8
2
10
V
CC
+0.3
0.8
Unit
mA
V
V
V
k
V
V
V
k
V
V
Note
0.5
2
Vee
4.7
2
Vee
0.35
4.7
2
Vee
1
2
3
2
1. Internally AC coupled and terminated to 100Ohm differential load.
2
DELTA ELECTRONICS, INC.
Revision: S3
05/18/2010
www.deltaww.com
LCP-2488D4RXXR
Series
Optical Characteristics
Transmitter
Parameter
Output Optical Power (Avg.)
Optical Extinction Ratio
Center Wavelength
LCP-2488D4R47R
LCP-2488D4R49R
LCP-2488D4R51R
LCP-2488D4R53R
LCP-2488D4R55R
LCP-2488D4R57R
LCP-2488D4R59R
LCP-2488D4R61R
Spectral Width (-20dB)
Side-mode Suppression Ratio
Optical Rise/ Fall Time
Relative Intensity Noise
Jitter (peak to peak)
Return Loss
Dispersion Penalty @ 80 km
Output Eye
Receiver
Parameter
Sensitivity (Avg.)
Input Optical Wavelength
LOS-Deasserted (Avg.)
LOS-Asserted (Avg.)
LOS-Hysteresis
Overload
Reflectance
Notes:
Symbol
P
ER
Min.
0
8.2
1464.5
1484.5
1504.5
1524.5
1544.5
1564.5
1584.5
1604.5
30
150
-120
0.1
24
2.5
1471
1491
1511
1531
1551
1571
1591
1611
Typ.
Max.
+5
Unit
dBm
dB
Note
1
λ
C
σ
SMSR
t
r
/t
f
RIN
J
PP
RL
1477.5
1497.5
1517.5
1537.5
1557.5
1577.5
1597.5
1617.5
1
nm
nm
dB
psec
dB/Hz
UI
dB
dB
2
3
Compliant with GR-253-CORE and ITU recommendation G.957
Symbol
P
S
λ
P
A
P
D
P
A
-P
D
P
0
r
Min.
1450
-45
0.5
-10
-27
Typ.
Max.
-28
1620
-28
Unit
dBm
nm
dBm
dBm
dB
dBm
dB
23
Note
4,5
1. Measured at 155Mbps, 166.7Mbps, 622Mbps, 2488Mbps, 2.67Gbps PRBS2 -1, 50% duty cycle,
and measured at 1250Mbps, PRBS2 -1, 50% duty cycle.
2. These are unfiltered 20%~80% values.
3. SMF-28 fiber used. 80 km represents 1600ps/nm at 1610nm. Measured at 2.488 Gb/s with a PRBS
2 -1 pattern at a BER<10 .
4. The range of input powers where BER<10
-12
23
-10
7
and valid from 155Mbps to 2.67Gbps..
5. Not including dispersion penalty (fiber dispersion value: -500~+1600ps/nm)
3
DELTA ELECTRONICS, INC.
Revision: S3
05/18/2010
www.deltaww.com
