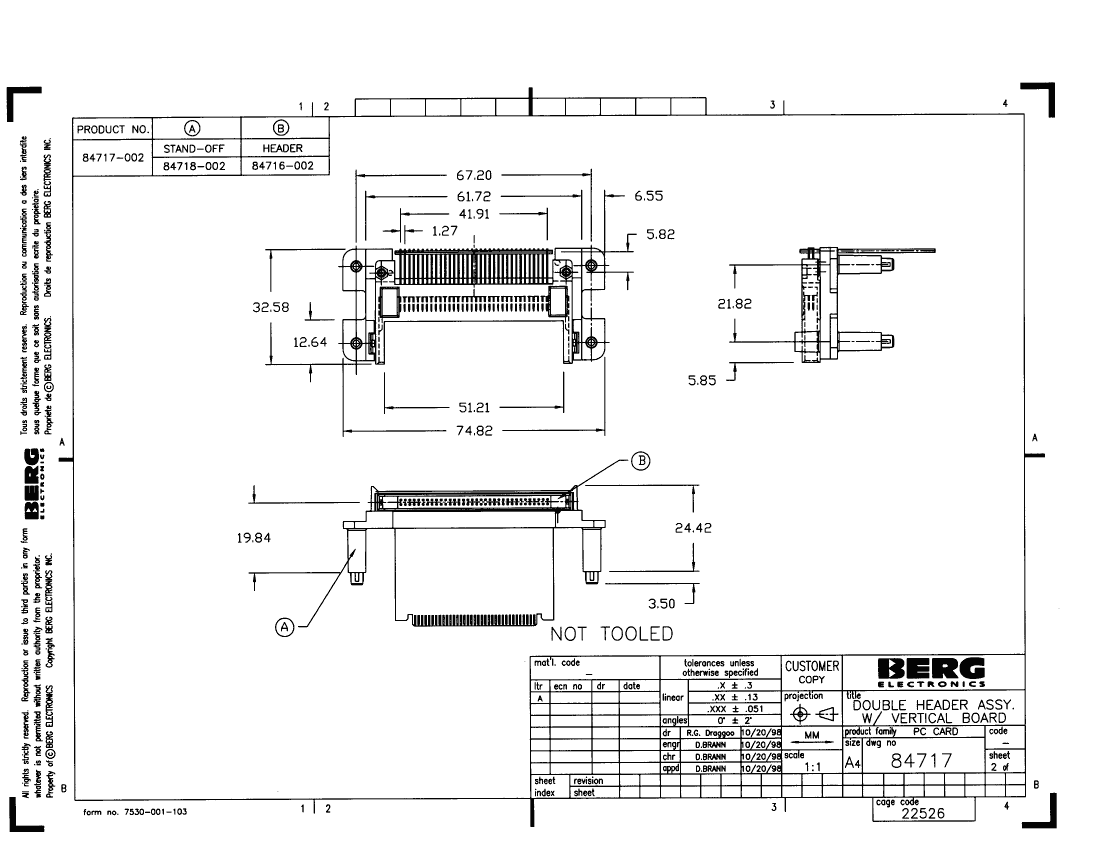

84717-002 datasheet, PDF - EEWORLD Datasheet

84717-002: DescriptionBoard Connector, 68 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size297KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

84717-002 Overview

Board Connector, 68 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN LEAD (98) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	84717
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	68
UL Flammability Code	94V-0

PDM: Rev:A

STATUS:

Released

Printed: Oct 12, 2010

.

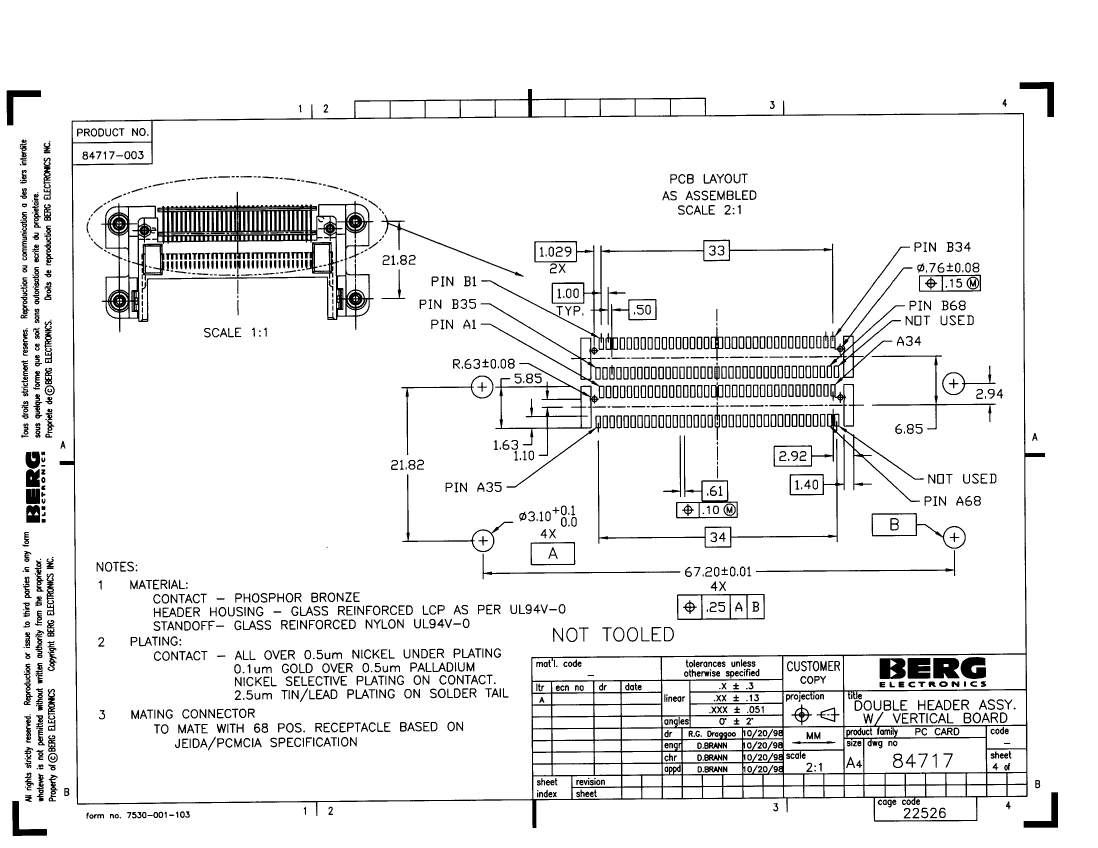

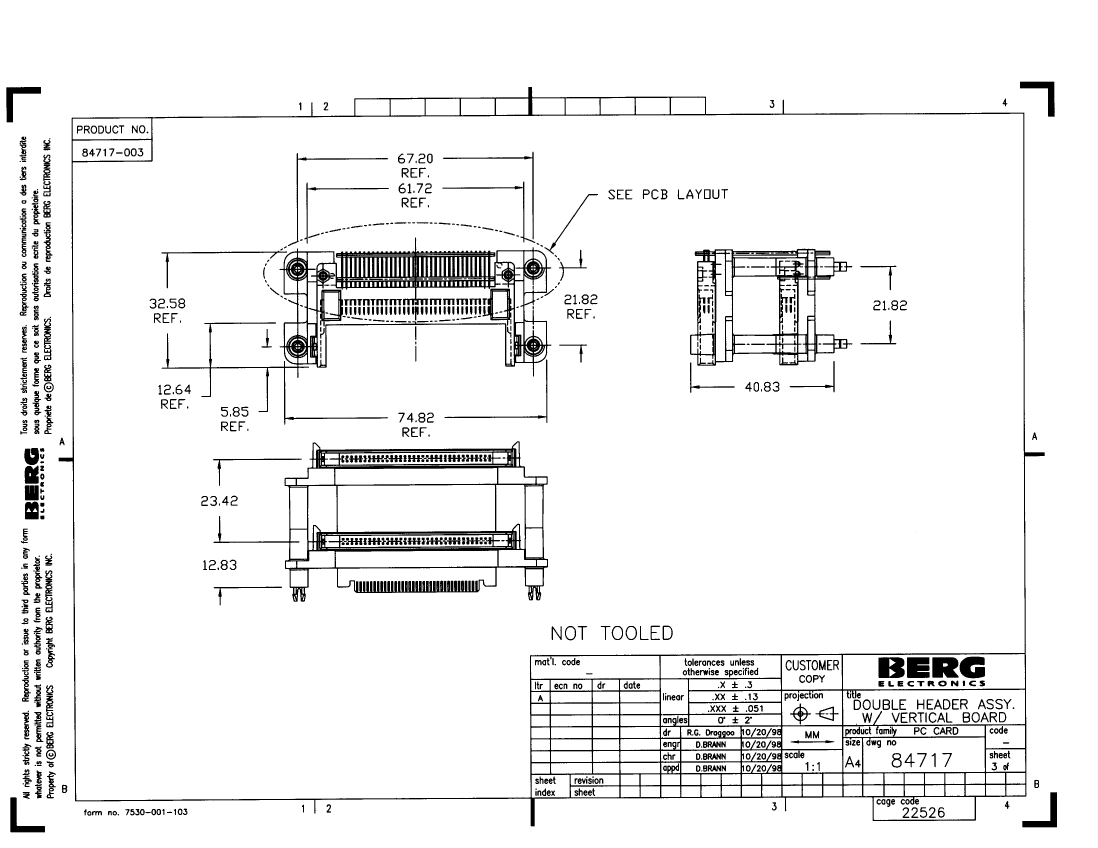

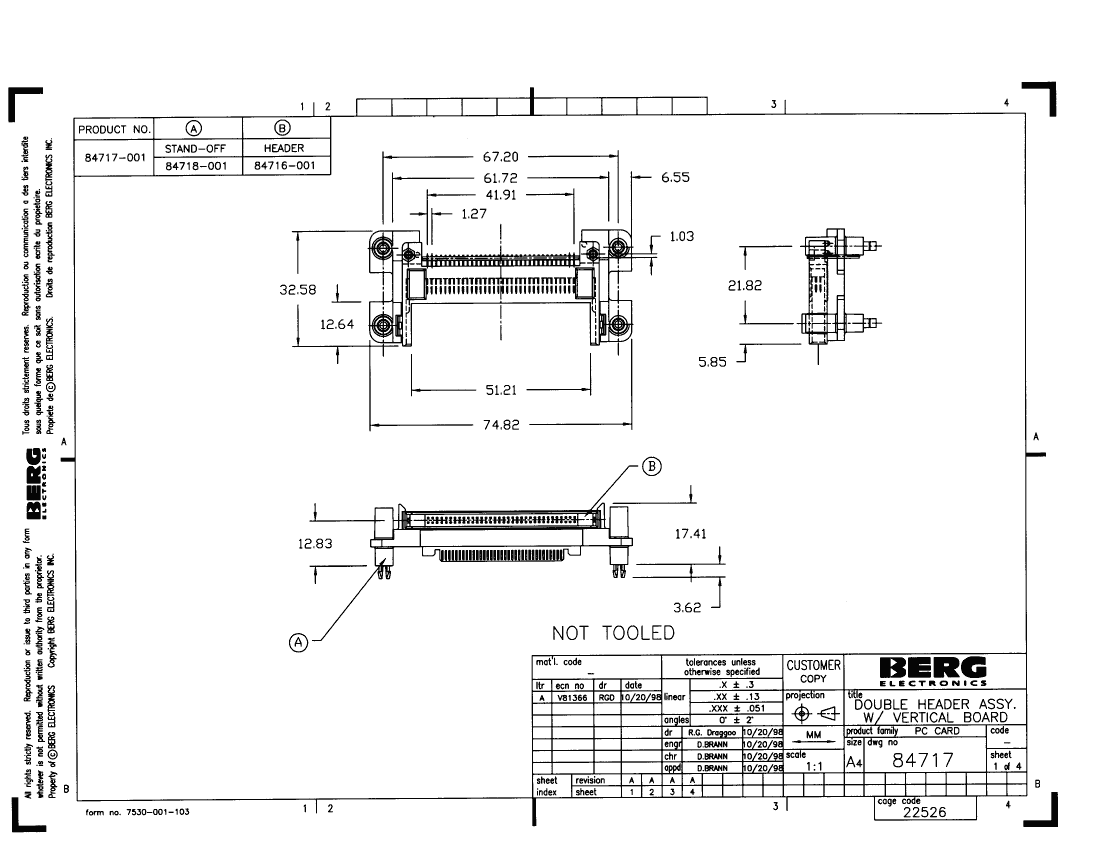

	84717-002	84717-001	84717-003
Description	Board Connector, 68 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 68 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 68 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	TIN LEAD (98) OVER NICKEL	TIN LEAD (98) OVER NICKEL	TIN LEAD (98) OVER NICKEL
Contact point gender	MALE	MALE	MALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
JESD-609 code	e0	e0	e0
MIL compliance	NO	NO	NO
Manufacturer's serial number	84717	84717	84717
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	68	68	68
UL Flammability Code	94V-0	94V-0	94V-0
