473-10-244-00-001: DescriptionIC Socket, 44 Contact(s); CategoryThe connector socket; File Size156KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

473-10-244-00-001 Overview

IC Socket, 44 Contact(s)

473-10-244-00-001 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	SIP HEADER
Contact completed and terminated	GOLD (10) OVER NICKEL
Device slot type	IC SOCKET
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e4
Manufacturer's serial number	473
Number of contacts	44
Base Number Matches	1

Preview

Download Datasheet

View All

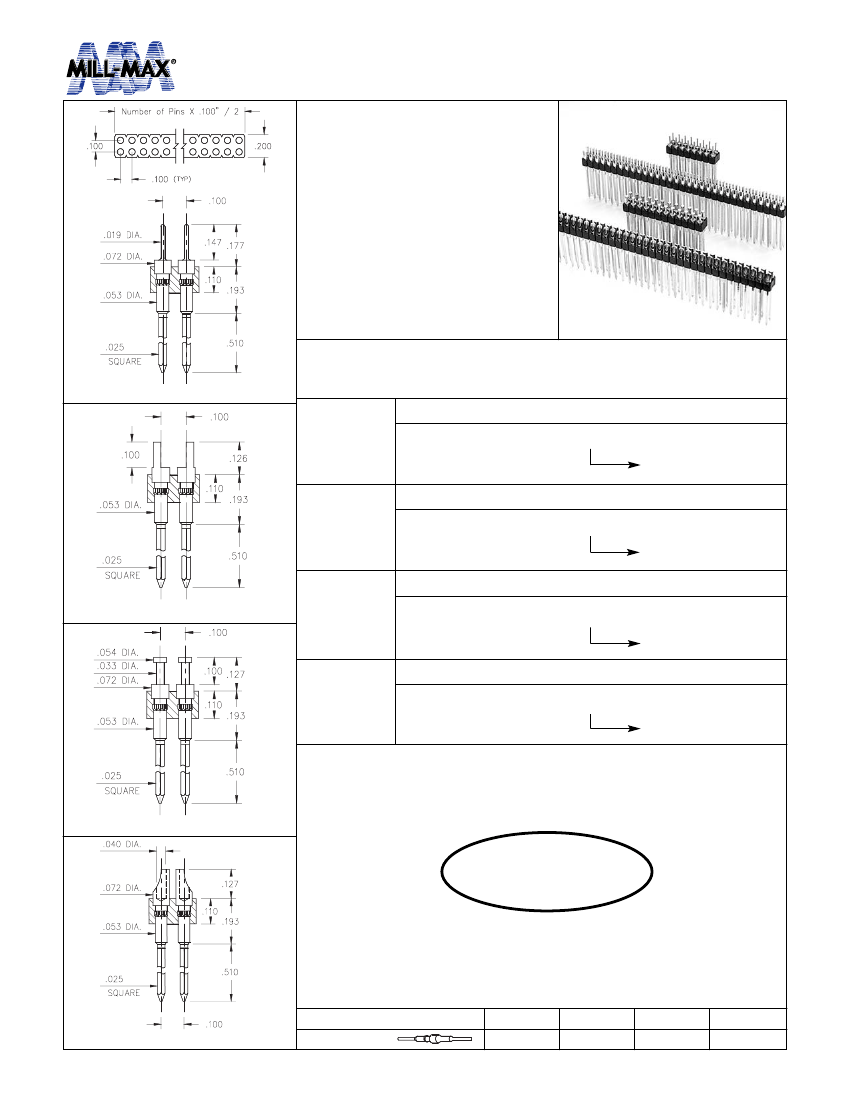

HEADER STRIPS

Wrapost

Double Row

•

Series 453, 463, 473, 483 single

row Header Strips come with

various contacts (pin, slotted

head, turret and solder cup) with

wrapost tails. (M-M# 5301,

1106-3, 0730-3 & 8301-3 see

pages 184 & 185 for details).

Series 453, 463

473, 483

Ordering Information

Fig. 1

Series 453...001

Pin / 3 Level Wrapost

453-XX-2_ _-00-001

Specify # of pins

02-64

Fig. 2

Series 463...001 Slotted Head / 3 Level Wrapost

463-XX-2_ _-00-001

Specify # of pins

02-64

Fig. 2

Fig. 3

Series 473...001

Turret / 3 Level Wrapost

473-XX-2_ _-00-001

Specify # of pins

02-64

Fig. 4

Series 483...001 Solder Cup / 3 Level Wrapost

483-XX-2_ _-00-001

Specify # of pins

02-64

Fig. 3

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

10

10µ” Au

90

200µ”Sn/Pb

Fig. 4

Pin Plating

w w w. m i l l - m a x . c o m

65

516-922-6000
