SSM-133-S-SV-BE datasheet, PDF

Datasheet> All Categories > The connector> The connector> SSM-133-S-SV-BE

SSM-133-S-SV-BE: DescriptionBoard Connector, 33 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size959KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SSM-133-S-SV-BE Overview

Board Connector, 33 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT

SSM-133-S-SV-BE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Other features	E.L.P., TIGER CLAW
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	33

Preview

Download Datasheet

View All

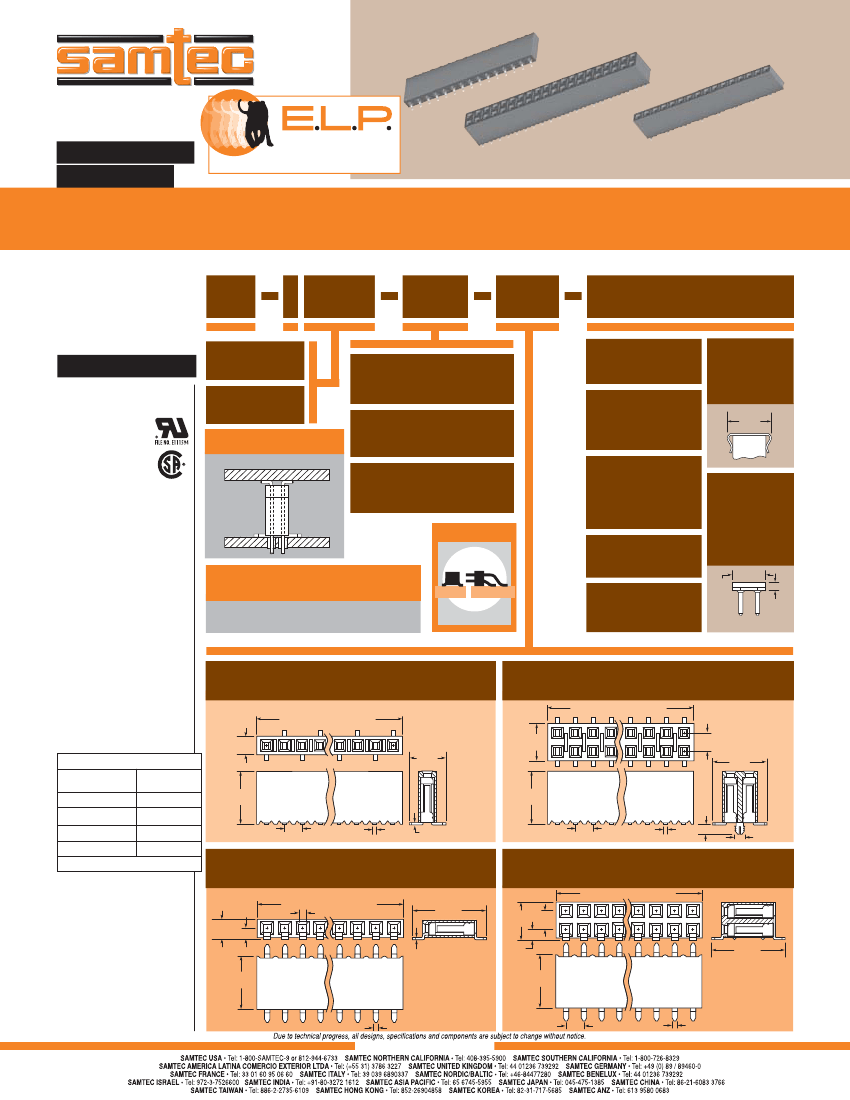

F-212

SSM–115–L–SH

EXTENDED LIFE PRODUCT

SSM–116–S–SV

SSM–120–S–DV

(2,54mm) .100"

SSM SERIES

10 year Mixed Flowing Gas with 30µ" Gold

2,500 cycles when mated with TSM

SMT .025" SQ BOX SOCKET

Mates with:

TSW, MTSW, TST,

TSS, ZST, ZSS, DW,

EW, ZW, TSM, HMTSW,

HTSW, TSSH, BST,

HTSS, TLW, MTLW

SSM

NO. PINS

PER ROW

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

SPECIFICATIONS

For complete speciﬁcations

and recommended PCB layouts

see www.samtec.com?SSM

Insulator Material:

Black Liquid

Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27µm) Ni

Voltage Rating:

475 VAC (-SV/-DV mated

with TSW)

450 VAC (-SH/-DH mated

with TSM)

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

Contact Resistance:

10 mΩ max

Insertion Depth:

SV/DV is (4,34mm) .171" to

(7,24mm) .285" or pass-through

from top; (5,56mm) .219" plus

board thickness minimum from

bottom; SH/DH is (4,34mm)

.171" to (6,35mm) .250"

Insertion Force:

(Single contact only)

5oz (1,39N) average

Normal Force:

125 grams (1,21N) average

Withdrawal Force:

(Single contact only)

2oz (0,56N) average

RoHS Compliant:

Yes

CURRENT RATING

SSM mated

AMBIENT

with TSW

TEMP

20°C

40°C

60°C

6.9A

5.3A

02 thru 36

(–SV, – SH, –DH)

–F

= Gold ﬂash on contact,

Matte Tin on tail

= Bottom Entry

(–DV & –SV only)

–BE

–LC

02 thru 40

(–DV)

= Metal Pick &

Place Pad

(5 positions min.)

–DV only

(5,94) .234

(5,72) .225

–M

–L

= 10µ" (0,25µm) Gold on contact,

Matte Tin on tail

APPLICATION

Pass-Through

= Locking Clip

(–DV & –SV only)

Contact Samtec for

–DH & –SH

–S

TSM

= 30µ" (0,76µm) Gold on contact,

Matte Tin on tail

SSM

= (6,50mm) .256" DIA

Polyimide ﬁlm

Pick & Place Pad

(2 positions min.)

–DV & –SV only

–K

APPLICATIONS

TSM

SSM TSSH

APPLICATION

SPECIFIC OPTION

Alignment Pin available.

Call Samtec.

HORIZONTAL

= Polarized Position

(–BE not available)

–“XXX”

–TR

= Plastic Pick

& Place Pad

(–DV & –SV only)

(6 pos. minimum,

contact Samtec

for availability on

smaller positions)

(4,95)

.195

(10,03)

.395

–P

= Tape & Reel Packaging

(29 positions max.)

(1,27)

.050

–SV

= Single Row Vertical Pin

(2,54) .100 x No. of Positions

(2,54)

.100

(5,08)

.200

(4,42)

.174

–DV

= Double Row Vertical Pin

(2,54) .100 x No. of Positions

(2,54)

.100

(7,04)

.277

(7,37)

.290

(7,37)

.290

(2,54) .100

(0,51) .020

(0,13) .005

(2,54) .100

(0,51) .020

(1,27) .050

(1,42) .056

95°C

3.5A

6 POSITIONS (2x3) POWERED

–SH

= Single Row Horizontal Pin

(1,78)

.070

(3,18)

.125

(0,25)

.010

(8,13)

.320

(2,54) .100 x No. of Positions

(0,89) .035 SQ TYP

(11,00)

.433

(5,72) (2,54)

.225 .100

(1,78)

.070

(8,13)

.320

–DH

= Double Row Horizontal Pin

(2,54) .100 x No. of Positions

Processing:

Lead–Free Solderable:

Yes

–DH Coplanarity:

Less than 28 positions

(0,15mm) .006" max

More than 27 positions

(0,20mm) .008" max

–SH, –SV, –DV Coplanarity:

(0,15mm) .006" max

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

(11,18)

.440

(0,51) .020

(2,54).100

(0,51) .020
