DEJKE9S2-1U0N-A190 datasheet, PDF

Datasheet> All Categories > The connector> The connector> DEJKE9S2-1U0N-A190

DEJKE9S2-1U0N-A190: DescriptionD Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size89KB，2 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DEJKE9S2-1U0N-A190 Overview

D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Receptacle,

DEJKE9S2-1U0N-A190 Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	STANDARD: DIN 41652, EMI/RFI SHIELDED
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	YES
empty shell	NO
Filter function	YES
IEC compliance	NO
insulator material	PLASTIC
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

D Subminiature

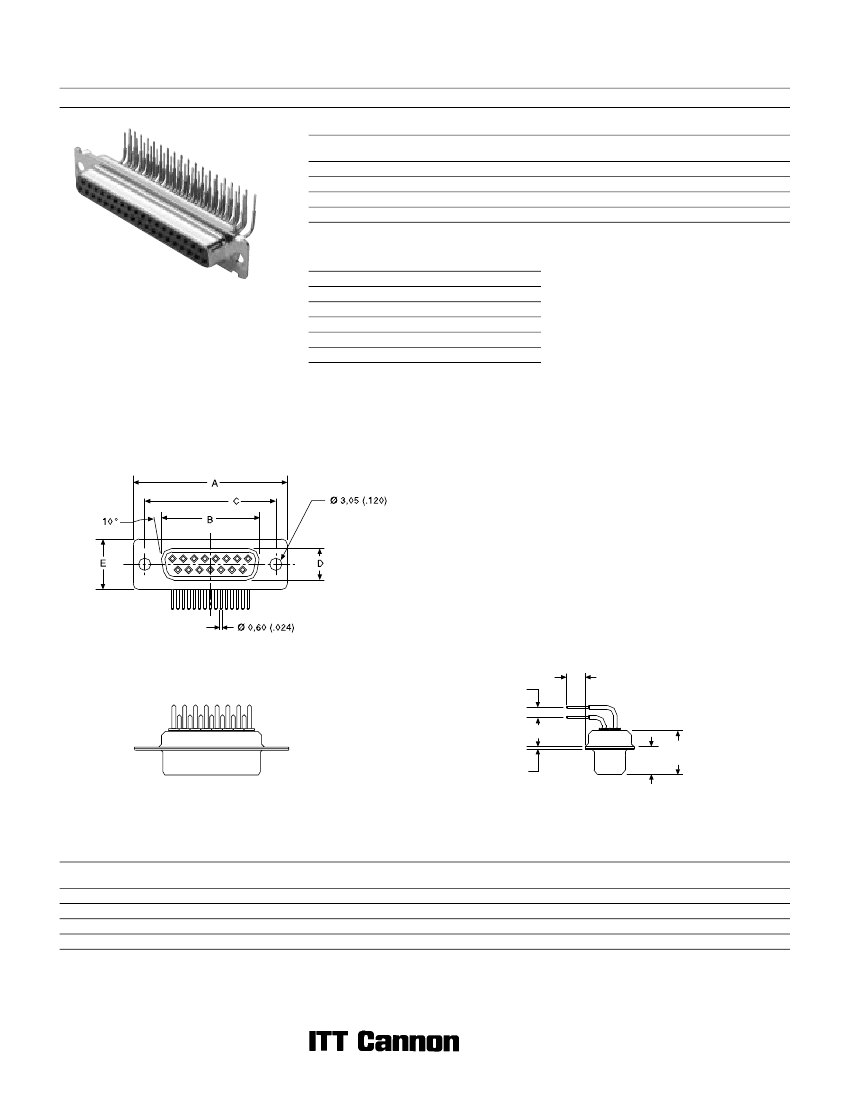

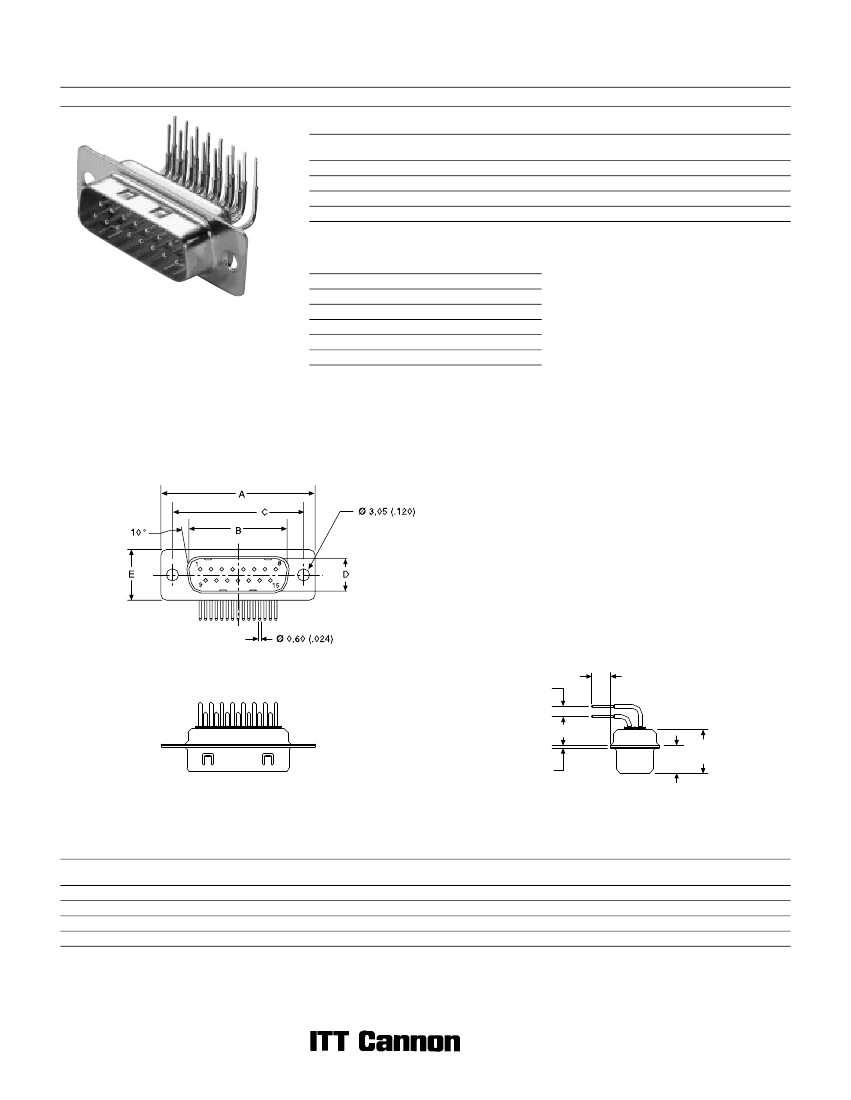

D*JK — 90° PC Tails — Standard Footprint .318 or .283 inch

Plug

Part Numbers

Shell Size

Layout

Through Hole

DEJK9P*-1U0N

DAJK15P*-1U0N

DBJK25P*-1U0N

DCJK37P*-1U0N

Filter D

Clinch Nut

#4-40 UNC

DEJKE9P*-1U0N

DAJKE15P*-1U0N

DBJKE25P*-1U0N

DCJKE37P*-1U0N

* Insert filter designator. Example: DEJK9P4-1U0N (For 1000 pF Filter Capacitance)

Note: For performance class 1 add -A190. Example: DEJK9P1-1U0N-A190

Reader’s Resource

For contact cavity arrangements,

see page 224.

For P.C. hole patterns, see page 272.

For panel cutouts, see page 221.

For hardware views (European),

see page 227.

Filter Designator*

For electrical data, see page 106.

Filter Capacitance

330 pF

470 pF

680 pF

1000 pF

1500 pF

Engaging Face

3,50 (.138)

2,84 (.112)

7,19 (.283)

Dimensions

Shell Size

±0,38

(.015)

30,81 (1.213)

39,14 (1.541)

53,04 (2.088)

69,32 (2.729)

±0,13

(.005)

16,92 (.666)

25,25 (.994)

38,96 (1.534)

55,42 (2.182)

±0,13

(.005)

24,99 (.984)

33,32 (1.312)

47,04 (1.852)

63,50 (2.500)

±0,13

(.005)

8,36 (.329)

±0,38

(.015)

12,55 (.494)

±0,25

(.010)

10,72 (.422)

±0,37

(.015)

6,69 (.264)

—

±0,41

(.016)

—

6,84 (.269)

±0,25

(.010)

0,76 (.030)

0,99 (.039)

Connector footprint measured from the front shell.

Connector footprint measured from the rear shell.

108

Dimensions are shown in mm (inch)

Dimensions subject to change
