DEJKE9S4-1U0N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DEJKE9S4-1U0N

DEJKE9S4-1U0N: DescriptionD Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size34KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DEJKE9S4-1U0N Overview

D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Receptacle,

DEJKE9S4-1U0N Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	EMI/RFI SHIELDED, PANEL MOUNT
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

D Subminiature

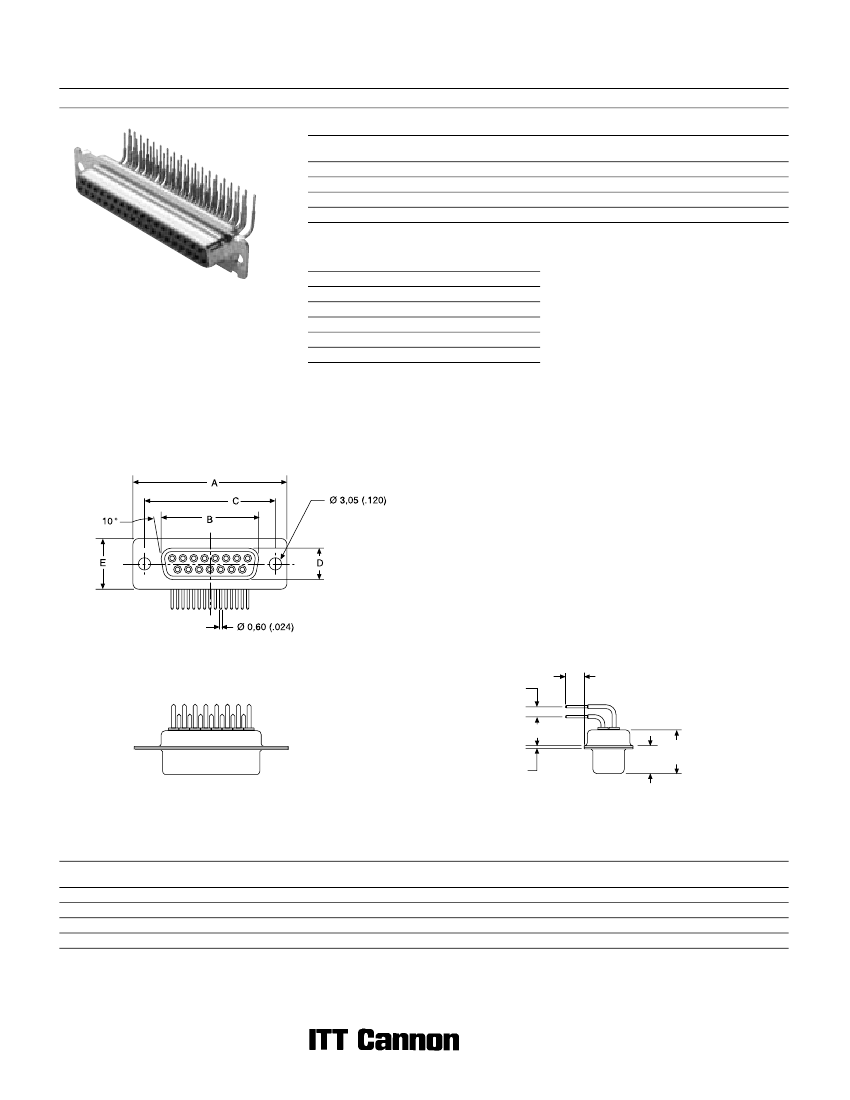

D*JK — 90° PC Tails — Standard Footprint .318 or .283 inch

Receptacle

Part Numbers

Shell Size

Layout

Through Hole

DEJK9S*-1U0N

DAJK15S*-1U0N

DBJK25S*-1U0N

DCJK37S*-1U0N

Filter D

Clinch Nut

#4-40 UNC

DEJKE9S*-1U0N

DAJKE15S*-1U0N

DBJKE25S*-1U0N

DCJKE37S*-1U0N

* Insert filter designator. Example: DEJK9S4-1U0N (for 1000 pF Filter Capacitance)

Note: For performance class 1, add -A190. Example: DEJK9S1-1U0N-A190

Reader’s Resource

For contact cavity arrangements,

see page 224.

For P.C. hole patterns, see page 272.

For panel cutouts, see page 221.

For hardware views (European),

see page 227.

Filter Designator*

For electrical data, see page 106.

Filter Capacitance

330 pF

470 pF

680 pF

1000 pF

1500 pF

Engaging Face

3,50 (.138)

2,84 (.112)

7,19 (.283)

Dimensions

Shell Size

±0,38

(.015)

30,81 (1.213)

39,14 (1.541)

53,04 (2.088)

69,32 (2.729)

±0,13

(.005)

16,33 (.643)

24,66 (.971)

38,38 (1.511)

54,84 (2.159)

±0,13

(.005)

24,99 (.984)

33,32 (1.312)

47,04 (1.852)

63,50 (2.500)

±0,13

(.005)

7,90 (.311)

±0,38

(.015)

12,55 (.494)

±0,25

(.010)

10,90 (.429)

±0,38

(.015)

6,94 (.273)

±0,25

(.010)

0,76 (.030)

Connector footprint measured from the front shell.

Connector footprint measured from the rear shell.

Dimensions are shown in mm (inch)

Dimensions subject to change
