MLSS10020C datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MLSS10020C

Preview

MLSS10020C: Description20 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size20KB，1 Pages; ManufacturerPANCON CONNECTORS; Environmental Compliance

Download Datasheet Parametric View All

MLSS10020C Overview

20 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

MLSS10020C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	PANCON CONNECTORS
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL
Contact completed and terminated	GOLD (15) OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	M
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20

Preview

Download Datasheet

View All

Mas-Con

Headers

®

Mass Terminated Connector

System Male Headers Mate

With Female Connectors

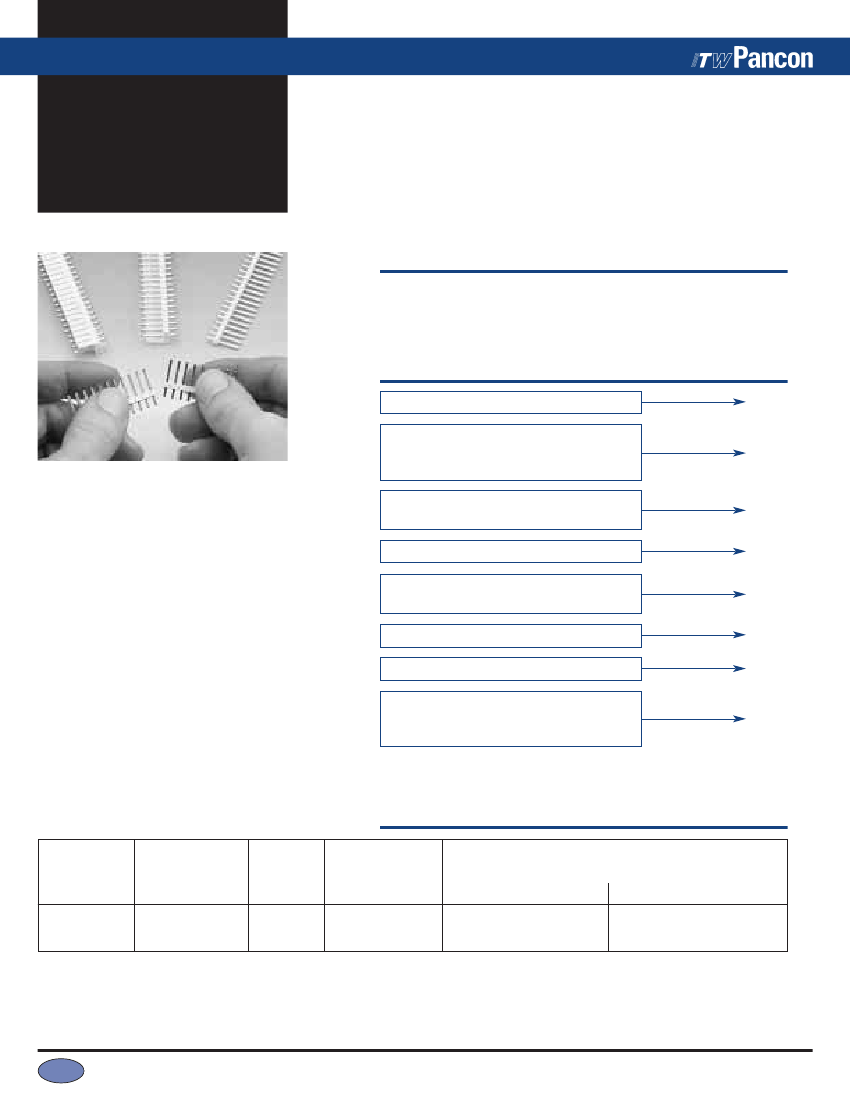

Headers/Part Numbers System:

*MAS-CON

headers are breakable molded wafers, dimensionally

more accurate than extruded, proven to be very cost effective for

prototyping or small production runs.

Part Numbers System:

M

F

L*

P

S

A

S

100

156

= Male

= Standard

= Locking

= Polarizing

= Straight Post

= Angled Post

= Square Pin

= 0.100" spacing (2.54 mm)

= 0.156" spacing (3.96 mm)

M

F

S

100

10

D

.

No. of circuits

(See table below)

Packaging quantity

(See table below)

Contact Plating

Blank

= Tin Plating

B

= 15µmin Gold over Nickel

Packaging Quantity

Standard Packs

Spacing

0.100"

(2.54 mm)

No. of Circuits

2–5

6 – 36

Spacing

0.156"

(3.96 mm)

No. of Circuits

Code

2–5

6 – 24

D

C

Qty Pcs.

500

100

*For MLSS100 and MLAS100 - Circuits 2-12 and 14 positions are solid black wall and are not breakable.
