DAC725SH datasheet, PDF - EEWORLD Datasheet

DAC725SH: DescriptionD/A Converter, 16-Bit, 2 Func, Bipolar, CDIP28,; CategoryAnalog mixed-signal IC converter; File Size933KB，8 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

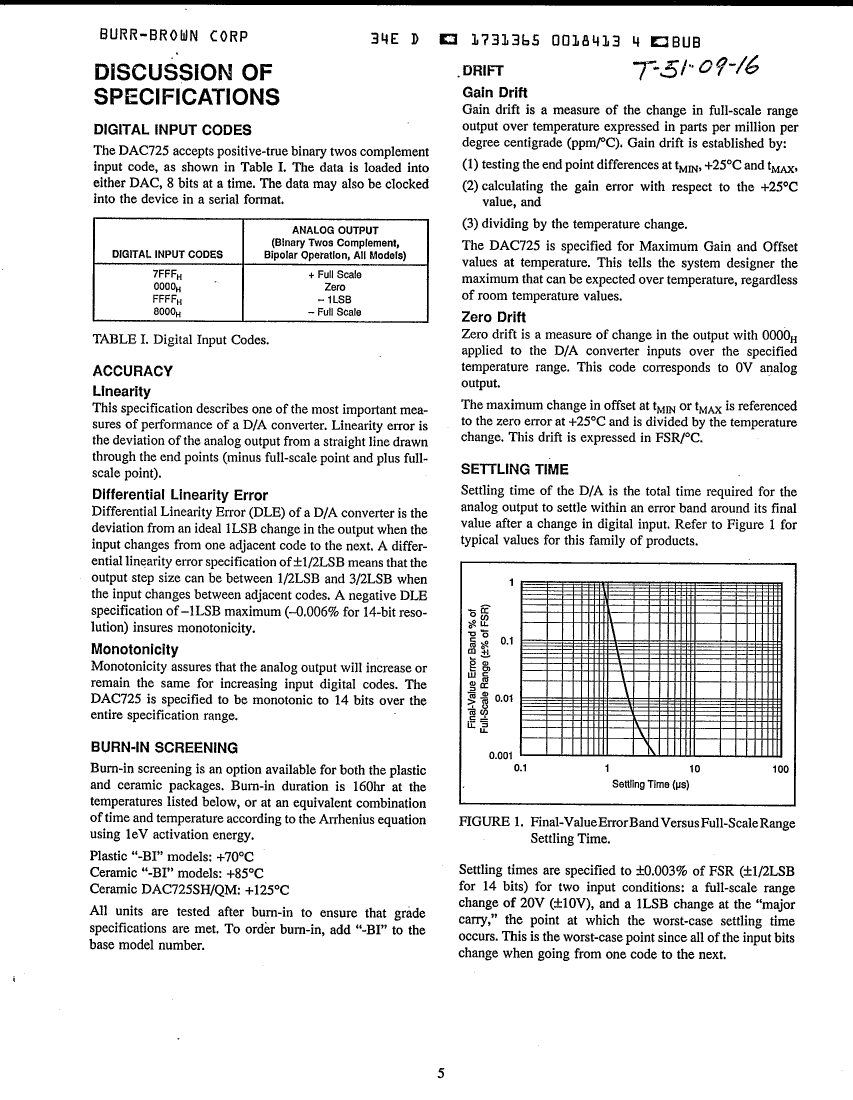

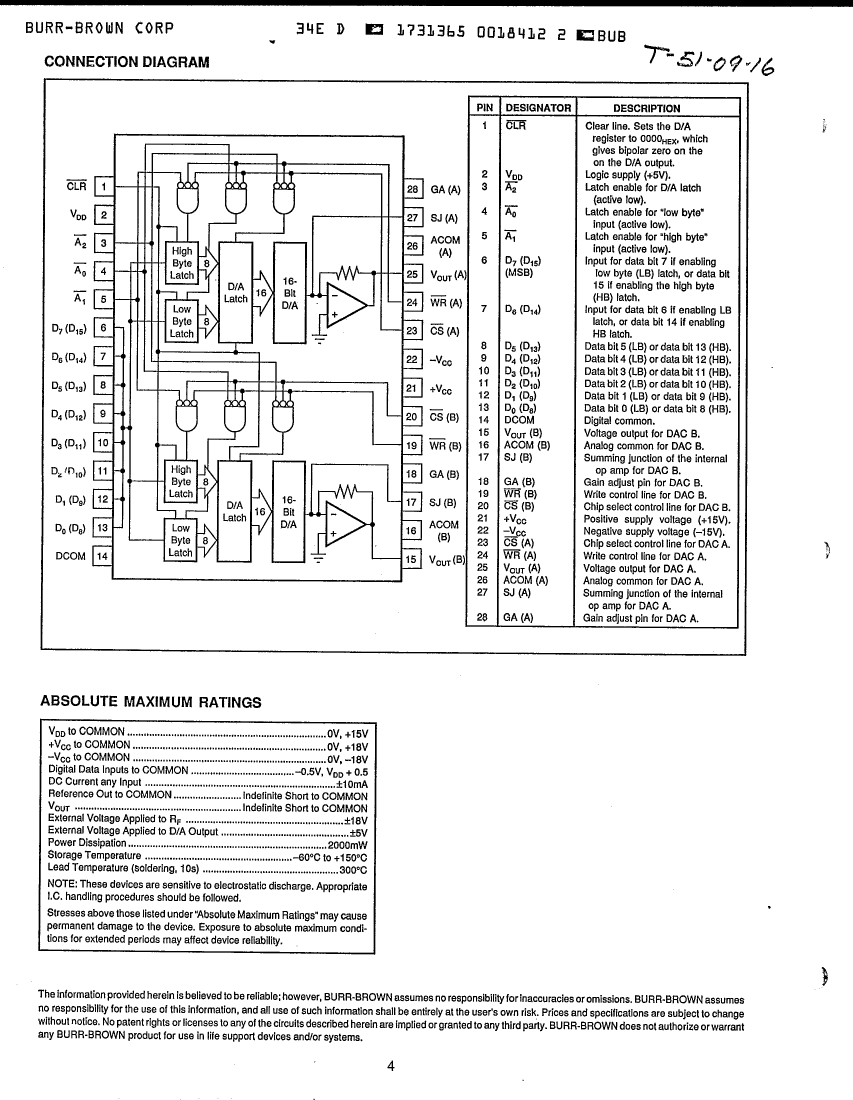

DAC725SH Overview

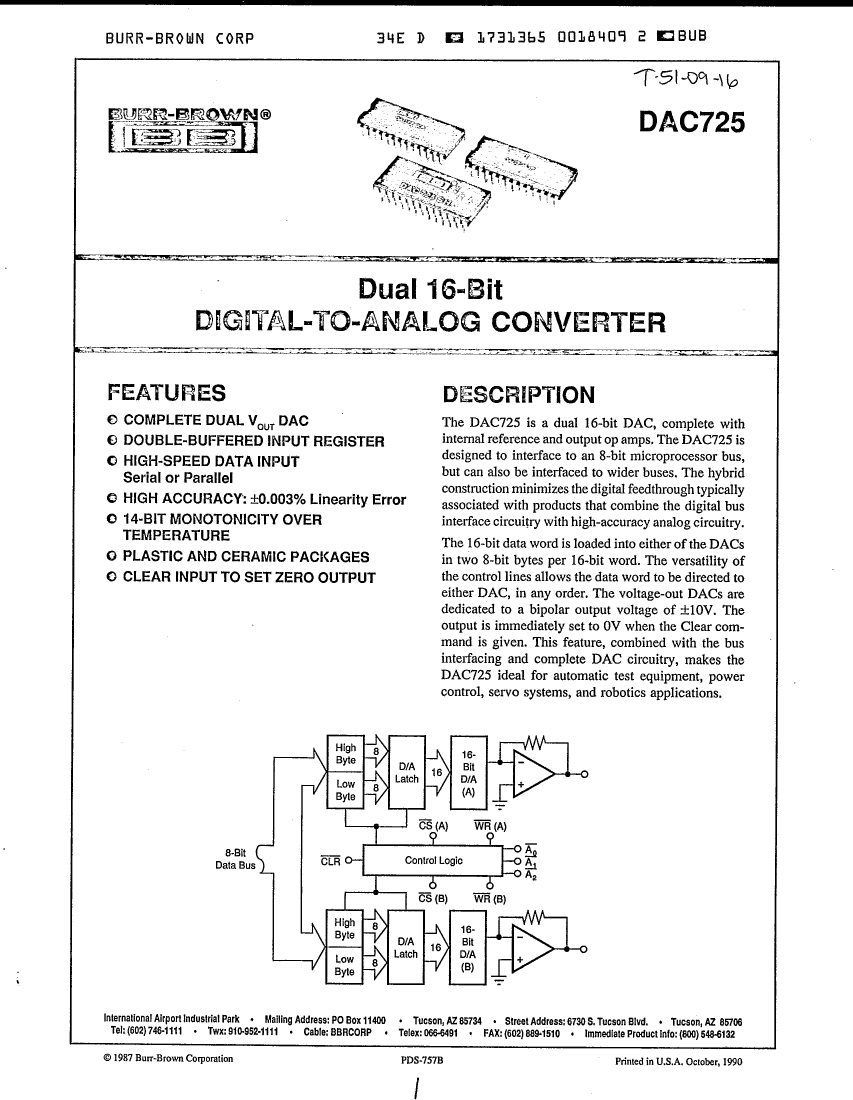

D/A Converter, 16-Bit, 2 Func, Bipolar, CDIP28,

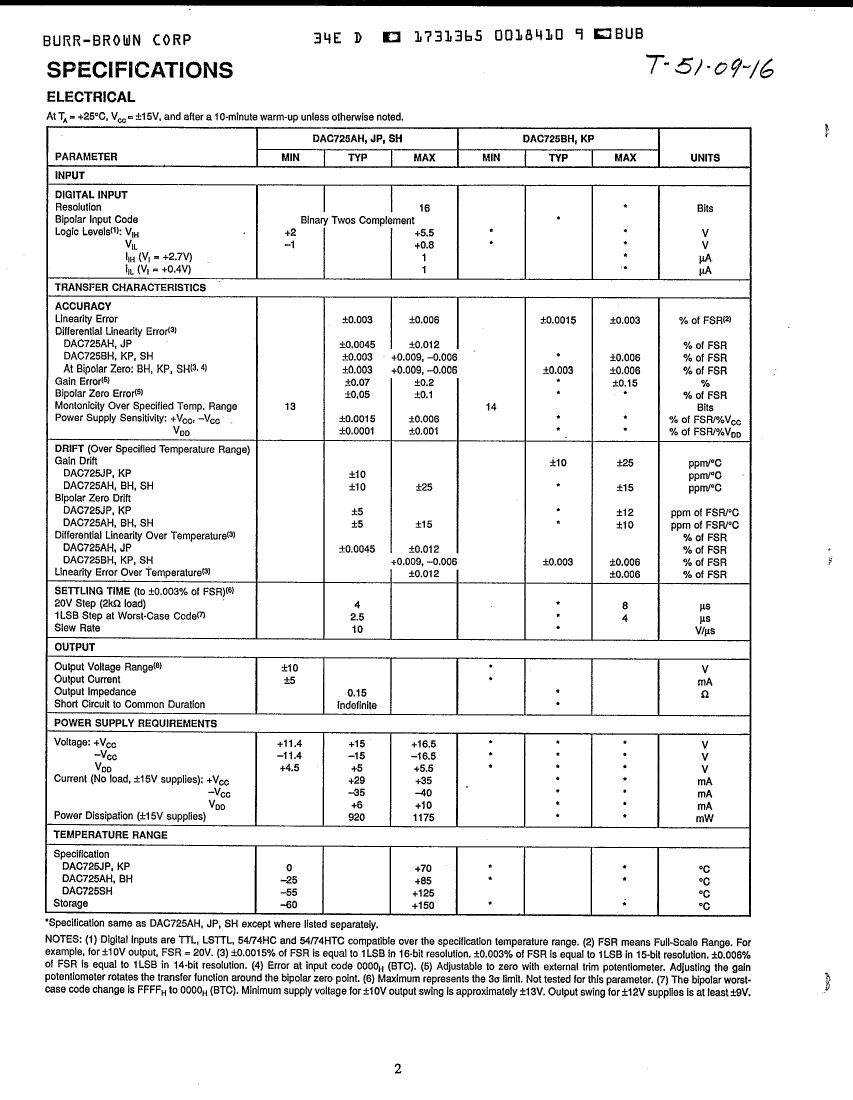

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
Reach Compliance Code	unknown
Converter type	D/A CONVERTER
Enter bit code	2\'S COMPLEMENT
JESD-30 code	R-XDIP-T28
JESD-609 code	e0
Maximum linear error (EL)	0.006%
Number of digits	16
Number of functions	2
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C

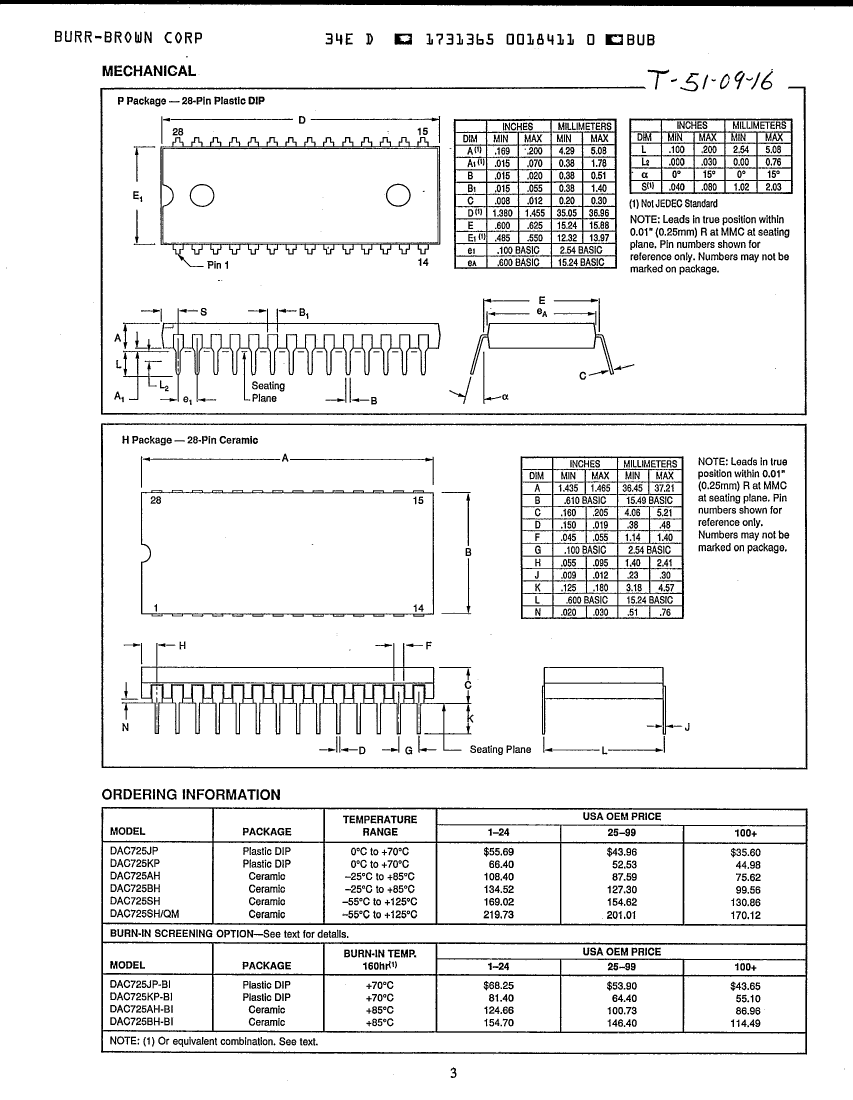

Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,+-15 V
Certification status	Not Qualified
Maximum slew rate	85 mA
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	DAC725SH	DAC725SH/QM
Description	D/A Converter, 16-Bit, 2 Func, Bipolar, CDIP28,	D/A Converter, 16-Bit, 2 Func, Bipolar, CDIP28,
Is it Rohs certified?	incompatible	incompatible
Maker	Burr-Brown	Burr-Brown
Reach Compliance Code	unknown	unknown
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	2\'S COMPLEMENT	2\'S COMPLEMENT
JESD-30 code	R-XDIP-T28	R-XDIP-T28
JESD-609 code	e0	e0
Maximum linear error (EL)	0.006%	0.006%
Number of digits	16	16
Number of functions	2	2
Number of terminals	28	28
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	5,+-15 V	5,+-15 V
Certification status	Not Qualified	Not Qualified
Maximum slew rate	85 mA	85 mA
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
