CD74AC153E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> CD74AC153E

CD74AC153E: DescriptionMultiplexer, 2-Func, 4 Line Input, CMOS, PDIP16,; Categorylogic logic; File Size89KB，2 Pages; ManufacturerRCA

Download Datasheet Parametric Compare View All

CD74AC153E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD74AC153E	-	-	View	Buy Now

CD74AC153E Overview

Multiplexer, 2-Func, 4 Line Input, CMOS, PDIP16,

CD74AC153E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	RCA
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.012 A
Number of functions	2
Number of entries	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3.3/5 V
Prop。Delay @ Nom-Sup	18.6 ns
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

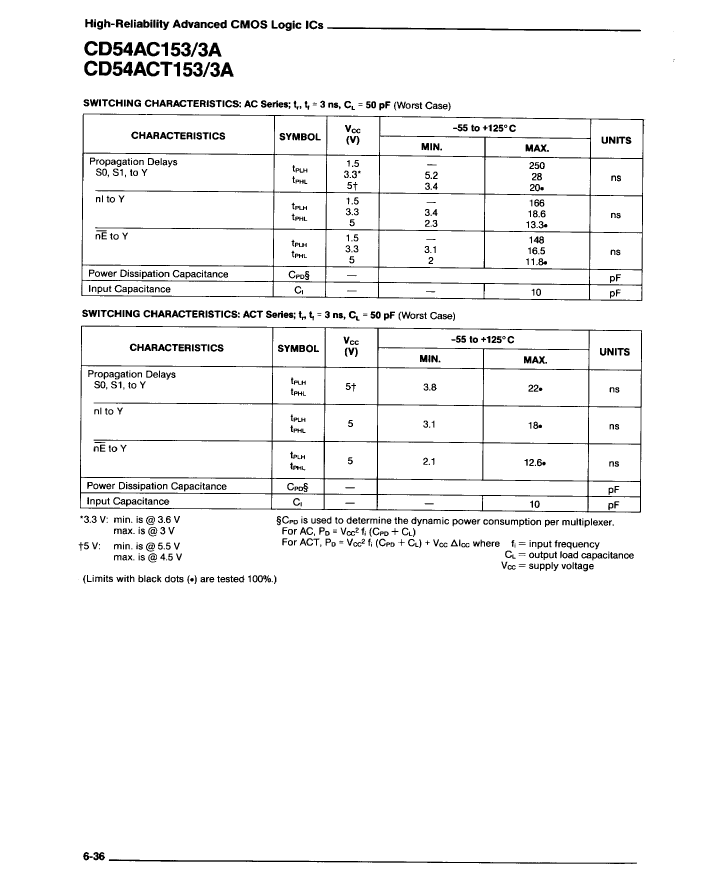

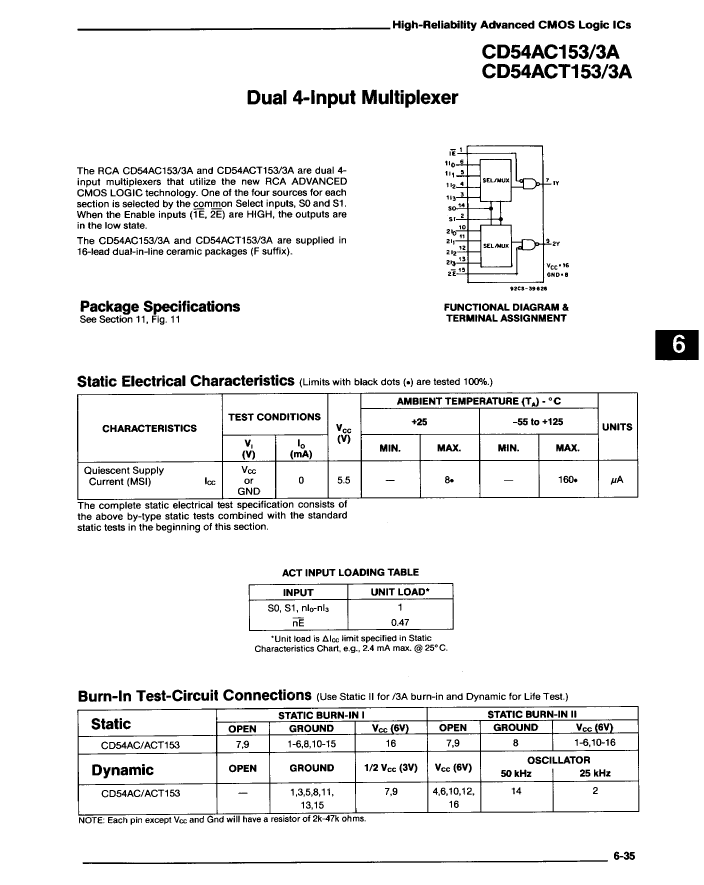

Preview

Download Datasheet

View All

CD74AC153E Related Products

	CD74AC153E	CD54ACT153F3A	CD54ACT153F	CD74ACT153M	CD74ACT153M96	CD74ACT153MX	CD74AC153MX	CD74ACT153EX	CD74ACT153E	CD74AC153M96
Description	Multiplexer, 2-Func, 4 Line Input, CMOS, PDIP16,	Multiplexer, 2-Func, 4 Line Input, CMOS, CDIP16,	Multiplexer, 2-Func, 4 Line Input, CMOS, CDIP16	Multiplexer, 2-Func, 4 Line Input, CMOS, PDSO16,	Multiplexer, 2-Func, 4 Line Input, CMOS, PDSO16,	Multiplexer, 2-Func, 4 Line Input, CMOS, PDSO16	Multiplexer, 2-Func, 4 Line Input, CMOS, PDSO16	Multiplexer, 2-Func, 4 Line Input, CMOS, PDIP16,	Multiplexer, 2-Func, 4 Line Input, CMOS, PDIP16,	Multiplexer, 2-Func, 4 Line Input, CMOS, PDSO16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PDIP-T16	R-XDIP-T16	R-XDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-PDIP-T16	R-PDSO-G16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
MaximumI(ol)	0.012 A	0.024 A	0.024 A	0.024 A	0.024 A	0.024 A	0.012 A	0.024 A	0.024 A	0.012 A
Number of functions	2	2	2	2	2	2	2	2	2	2
Number of entries	4	4	4	4	4	4	4	4	4	4
Number of terminals	16	16	16	16	16	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-40 °C	-40 °C	-55 °C	-55 °C	-40 °C
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	SOP	SOP	SOP	SOP	DIP	DIP	SOP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	SOP16,.25	SOP16,.25	SOP16,.25	SOP16,.25	DIP16,.3	DIP16,.3	SOP16,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE
power supply	3.3/5 V	5 V	5 V	5 V	5 V	5 V	3.3/5 V	5 V	5 V	3.3/5 V
Prop。Delay @ Nom-Sup	18.6 ns	18 ns	18 ns	18 ns	18 ns	18 ns	18.6 ns	18 ns	18 ns	18.6 ns
surface mount	NO	NO	NO	YES	YES	YES	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	AUTOMOTIVE	AUTOMOTIVE	MILITARY	MILITARY	AUTOMOTIVE
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	SOP, SOP16,.25	SOP, SOP16,.25	-	SOP, SOP16,.25	DIP, DIP16,.3	DIP, DIP16,.3	SOP, SOP16,.25
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	-	-	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	-	5 V	5 V	5 V	5 V	5 V	-	5 V	5 V	-
Base Number Matches	-	1	1	1	1	1	1	1	1	-
