M80-4D1-3842FC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M80-4D1-3842FC

M80-4D1-3842FC: DescriptionBoard Connector, 38 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size3MB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

M80-4D1-3842FC Overview

Board Connector, 38 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator

M80-4D1-3842FC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	compliant
body width	0.219 inch
subject depth	0.297 inch
body length	1.89 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (12)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	M80-4D1
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	11u inch
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	38
UL Flammability Code	94V-0
Maximum wire diameter	22 AWG
Minimum wire diameter	22 AWG
Evacuation force-minimum value	.199882 N

Preview

Download Datasheet

View All

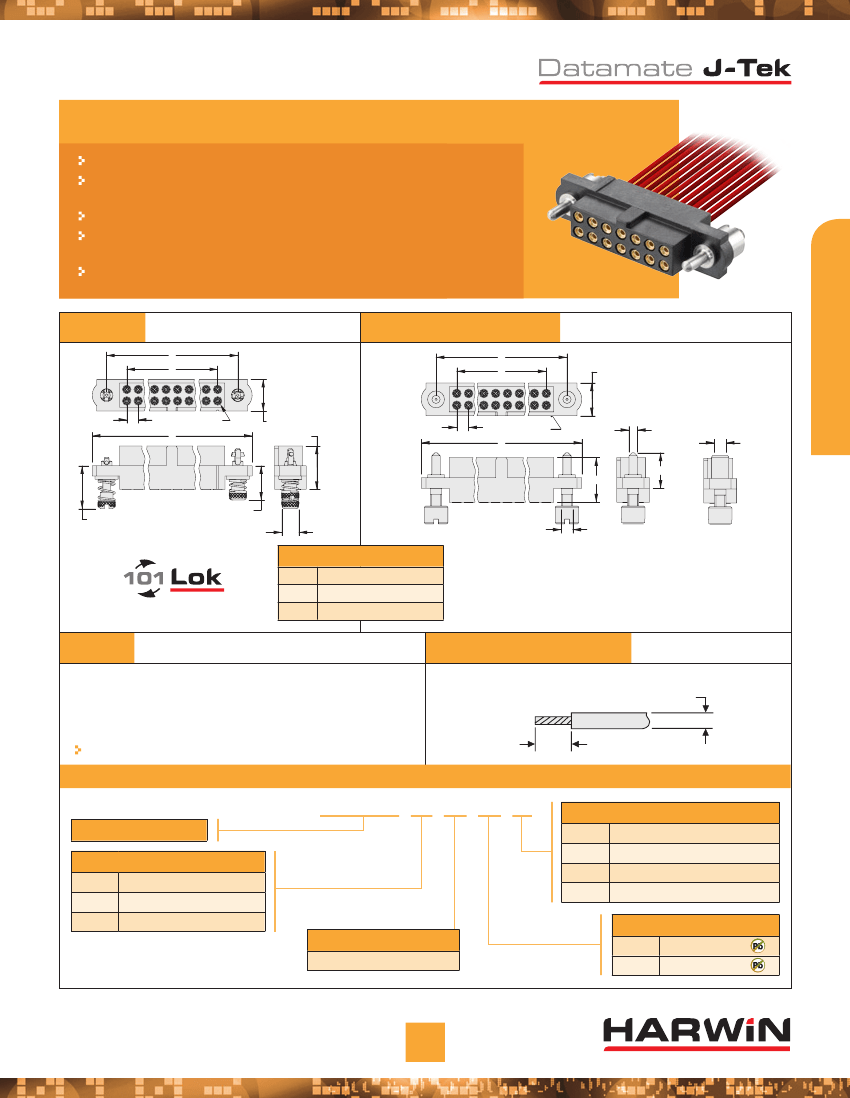

Datamate Connectors

Female Crimp 101Lok, guide Pin, reverse Fix

Extra Small Bore for 28 – 32 AWG.

101Lok fixing gives secure, fast and simple mating; no special tooling required.

Just a simple 101-degree turn to fix the connectors together.

101Lok style mates with male connectors shown on pages 53, 55, 57, 59 and 61.

Reverse fix includes board mount fixing, and mates with male connectors

shown on page 62.

Guide pin style includes Board Mount fixing, and mates with male connectors

with Jackscrews, shown on pages 52, 54, 56, 58, 60, 63 and 64.

101LOK

guIDE PIN, rEVErSE FIx

5.55

2.00

No. 1 contact

5.55

7.55

2.00

No. 1 contact

Ø1.40

6.00

7.55

5.95

Locked

Ø3.00

7.46

Relaxed

CALCULAtion

B + 12

Total no. of contacts - 2

B+7

Jackscrew

F8, F9

Jackscrews

TOOLS

Recommended Crimp tool

– M22520/2-01

Positioner

– T5747

Contact insertion/Removal tool

– Z80-280

See pages 87 to 89

Instruction sheets available at www.harwin.com/downloads/instructions

wIrE STrIPPINg DETAILS

Large/Small Bore = Ø1.10 max

Extra Small Bore = Ø0.75 max

2.00 nominal

HOw TO OrDEr

M80 - 4 X1 XX XX FX

seRies CoDe

tyPe

Small Bore 24-28AWG

Large Bore 22AWG

Extra Small Bore 28-32AWG

JACksCReW

Guide Pin

Reverse Fix (3.5mm Board Mount)

Reverse Fix (5mm Board Mount)

101Lok

totAL no. oF ContACts

04 to 50

Even numbers only

All dimensions in mm.

Finish

Gold

Gold + Tin

www.harwin.com
