CCM04 MK III Miniature Connectors
Introducing a new range of CCM04
connectors designed to interface with
either full or SIM/SAM smart cards and
designed to minimize space usage on
the PCB .
Features
Construction
Insulator
Contacts
Contact finish
PC Tail plating
Mechanical Data
Mechanical life
Contact force
Contact travel
Electrical Contacts Data
Insulation resistance
Contact resistance max
Switching current
Dielectric strength
Environmental Data
Operating temperature
Soldering temperature
Salt mist
Damp heat
Packaging
8 reels per box. See part number table for other packaging details.
-40° C to 85° C
Temperature/time profile acc. to CECC00802
para. 6.1, Fig. 3 with peak temperature
IEC 512 test number 11f (96 days)
IEC 512 test number 11c (10 days)
1000 MΩ min
100 mΩ max
10 µA min / 1 A max
500 Vrms min
50,000 cycles minimum
0.25 N min / 0.5 N max
0,75mm
High temperature thermoplastic UL 94V-0
Copper Alloy
Gold over nickel
Tin lead (2 µm min)

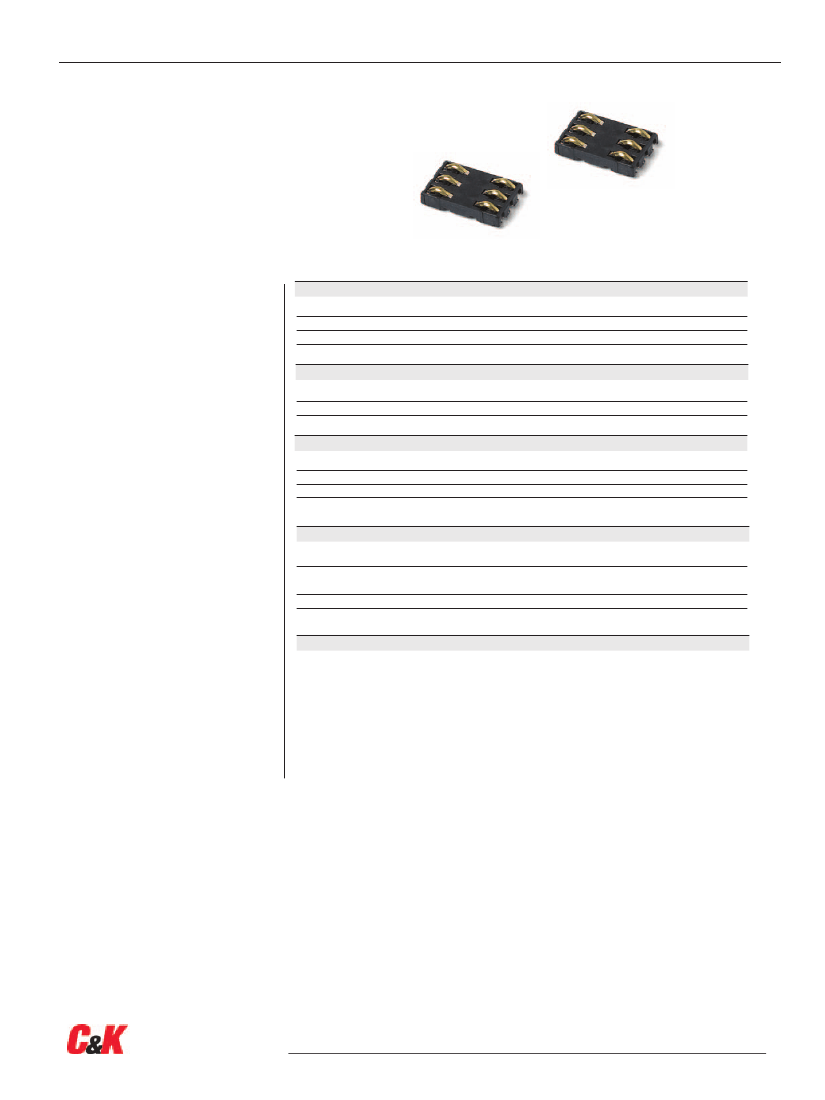

• Available with 6 or 8 contacts.
• The contact area is spooned to reduce
the risk of accidental (or deliberate)
damage and to optimize the electrical
connection with the card.
• The insulators, molded from high
temperature thermoplastic, are suited
for infrared and convection soldering
processes.
• With tape and reel packaging as
standard, the connectors are designed
to be automatically pick and placed.
Dimensions are shown in mm
Specifications and dimensions subject to change
www.ck-components.com
28
CCM04 MK III
6 Contacts Versions
Part Number
CCM04-5137
CCM04-5111
CCM04-5116
CCM04-5112
CCM04-5120
CCM04-5106
CCM04-5121
CCM04-5115
CCM04-5122
CCM04-5107
Total
Height
1,90
1,90
2,10
2,10
2,40
2,50
2,65
2,80
2,90
3,15
Total
Length
11,8
14,3
11,8
14,3
14,3
11,8
14,3
11,8
14,3
11,8
Terminal
Design
SMT IN
SMT OUT
SMT IN
SMT OUT
SMT OUT
SMT IN
SMT OUT
SMT IN
SMT OUT
SMT IN
Quantity per
Reel
2400
2400
1900
1900
1900
1900
1900
1900
1600
1900
Packaging
Code
R242
R242
R192
R192
R192
R192
R192
R192
R162
R192
Dimension
A
8,15
12,85
8,35
11,95
11,95
8,85
11,95
8,65
11,95
8,85
PCB Layout
1,9 +0,05
0
Dimension
B
10,45
15,15
10,65
14,25
14,25
11,15
14,25
10,95
14,25
11,15

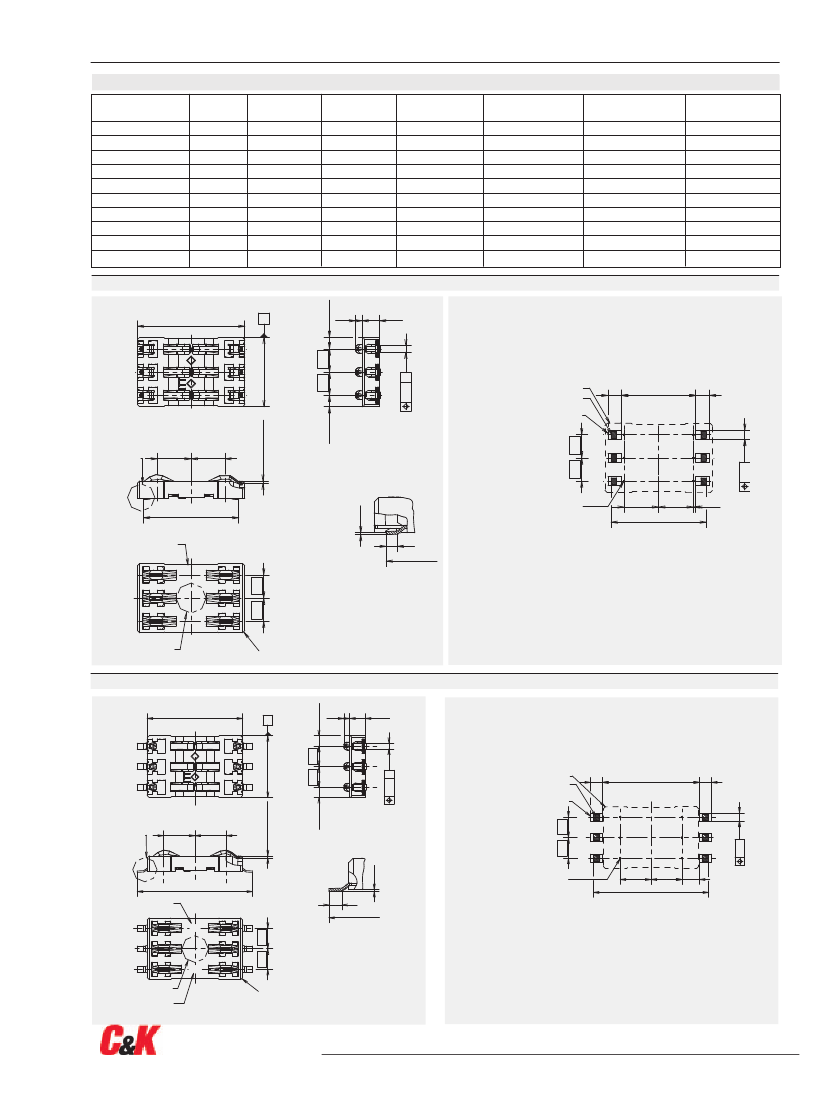

2 x 3 contacts SMT IN - Dimensional Drawings
1,27 (REF.)
2,54
0,75
A
11,8
0,3 A 0,7
7,62
2,54
(Component side)
Plastic outline
Contact foot area
0,6 x 0,7
Pad
2,54
C5
C6
2,54
C7
1,5
A
1,5
0,25
±0,05
x 45˚
1,27 (REF.)
6x
C1
C2
C3
3,81
B
3,81
0,265
0,2
1
SEE DETAIL A
Mated condition
3,81
3,81
DETAIL A
10,45
±0,2
0,1 0
-0,1
Contact location according to
ISO 7816-2 & ENV 1375-1 & GSM11-11
0,6
10,45(REF.)
Date Code area
XX-XXX
2,54
Pick and place area
ø3,3
2 x 3 contacts SMT OUT - Dimensional Drawings
1,27(REF.)
11,8
0,75
1,9 +0,05
0
2,54
PCB Layout
A
2,54 2,54
0,3 A 0,7
7,62
(Component side)
Plastic outline
Contact foot area
0,8 x 0,7
Pad
2,54 2,54
C5
C6
C7
3,81
B
3,81
2,165
1,5
A
1,5
0,25
±0,05
x 45˚
1,27(REF.)
6x
SEE DETAIL A
Mated condition
3,81
3,81
C1
C2
6x
C3
0,2
1
DETAIL A
0
0,1 -0,1
14,25
±0,2
Date Code area
(Year number)
2,54 2,54
XX
0,8
Contact location according to
ISO 7816-2 & ENV 1375-1 & GSM11-11
14,25(REF.)
XXX
Pick and place area
ø3,3
Date Code area
(Day range in the year)
R
0,2
5
Unless otherwise stated, tolerances are ± 0,10 mm
Dimensions are shown in mm
Specifications and dimensions subject to change
www.ck-components.com
29
6x
R0
,25
CCM04 MK III
8 Contacts Versions
Part Number
CCM04-5123
CCM04-5129
CCM04-5113
CCM04-5130
CCM04-5131
CCM04-5125
CCM04-5132
CCM04-5127
Total
Height
1,90
1,90
2,10
2,10
2,40
2,50
2,65
2,80
Total
Length
11,8
14,3
11,8
14,3
14,3
11,8
14,3
11,8
Terminal
Design
SMT IN
SMT OUT
SMT IN
SMT OUT
SMT OUT
SMT IN
SMT OUT
SMT IN
Quantity per
Reel
2400
2400
1900
1900
1900
1900
1900
1900
Packaging
Code
R242
R242
R192
R192
R192
R192
R192
R192
Dimension
A
8,15
11,95
8,35
11,95
11,95
8,85
11,95
8,65
PCB Layout
Dimension
B
10,45
14,25
10,65
14,25
14,25
11,15
14,25
10,95

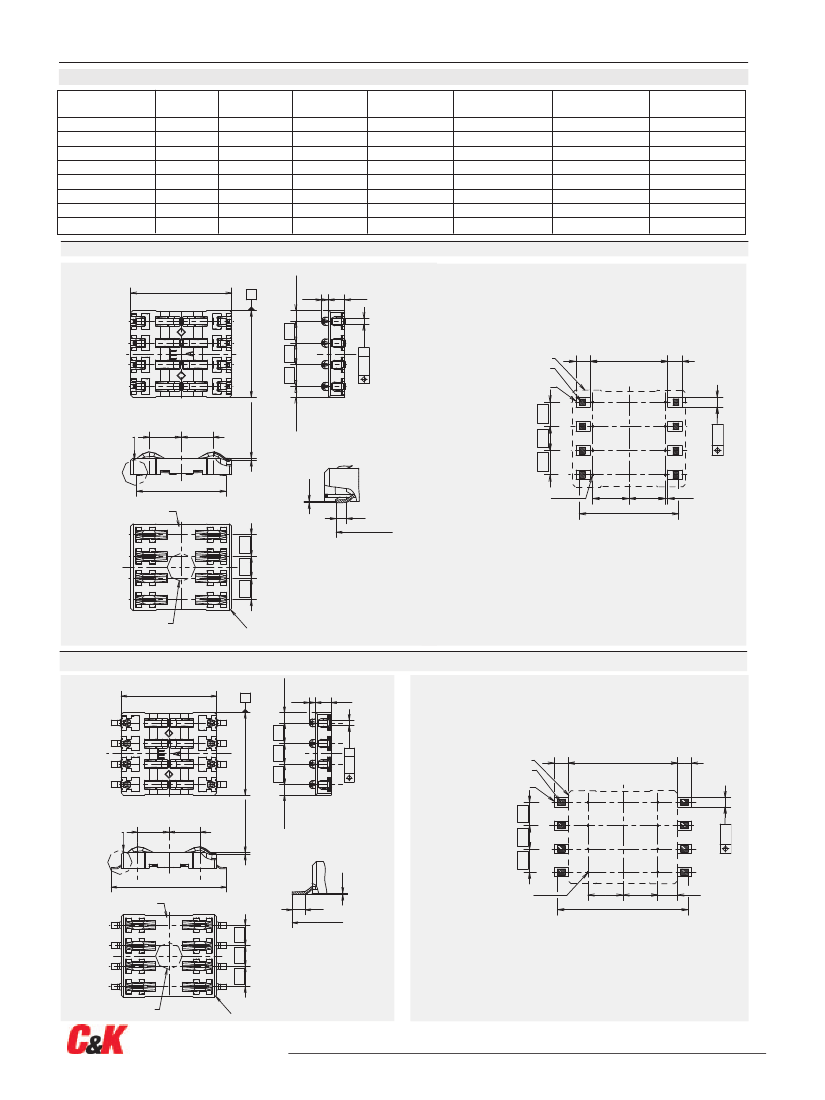

2 x 4 contacts SMT IN - Dimensional Drawings
1,27 (REF.)
A
11,8
0,75
1,9
+0,05
0
2,54 2,54 2,54
0,3 A 0,7
(Component side)
Plastic outline
Contact foot area
0,6 x 0,7
Pad
C5
2,54
C6
2,54
1,5
A
1,5
10,16
0,25
±0,05
x 45˚
8x
1,27 (REF.)
C1
C2
8x
C1
C2
8x
C3
C4
3,81
B
3,81
2,165
1
0,2
C3
C4
3,81
B
3,81
0,265
1
2,54
DETAIL A
0
0,1 -0,1
C7
C8
Contact location according to
ISO 7816-2 & ENV 1375-1 & GSM11-11
(REF.)
10,45
Date Code area
±0,2
0,6
XX-XXX
2,54 2,54
10,45
Pick and place area
ø3,3
2 x 4 contacts SMT OUT - Dimensional Drawings
11,8
1,27 (REF.)
1,9 +0,05
0
2,54
PCB Layout
A
0,75
2,54 2,54 2,54
0,3 A 0,7
10,16
(Component side)
Plastic outline
Contact foot area
0,8 x 0,7
Pad
C5
2,54
C6
1,5
A
1,5
0,25
±0,05
x 45˚
DETAIL A
0
0,1 -0,1
2,54
SEE DETAIL A
Mated condition
3,81
3,81
1,27 (REF.)
8x
C7
2,54
C8
Contact location according to
ISO 7816-2 & ENV 1375-1 & GSM11-11
14,25
±0,2
Date Code area
XX-XXX
2,54 2,54 2,54
0,8
14,25 (REF.)
Pick and place area
ø3,3
Unless otherwise stated, tolerances are ± 0,10 mm
Dimensions are shown in mm
Specifications and dimensions subject to change
www.ck-components.com
30
0,2
SEE DETAIL A
Mated condition
3,81
3,81
R
0,2
5
,2
R0
5
