DATASHEET
HS-2510RH
Radiation Hardened High Slew Rate Operational Amplifier
The HS-2510RH is a radiation hardened high performance
operational amplifier which set the standard for maximum
slew rate and wide bandwidth operation in moderately
powered, internally compensated, monolithic devices. In
addition to excellent dynamic characteristics, this
dielectrically isolated amplifier also offers low offset current
and high input impedance.
The
50V/ms
minimum slew rate and fast settling time of the
HS-2510RH are ideally suited for high speed D/A, A/D, and
pulse amplification designs. The HS-2510RH superior
bandwidth and 750kHz minimum full power bandwidth are
extremely useful in RF and video applications. To insure
compliance with slew rate and transient response
specifications, all devices are 100% tested for AC
performance characteristics over full temperature limits. To
improve signal conditioning accuracy, the HS-2510RH
provides a maximum offset current of 25nA and a minimum
input impedance of 50M, both at 25
o
C, as well as offset
voltage trim capability.
Specifications for Rad Hard QML devices are controlled
by the Defense Supply Center in Columbus (DSCC). The
SMD numbers listed here must be used when ordering.
Detailed Electrical Specifications for these devices are
contained in SMD 5962-95686. A “hot-link” is provided
on our homepage for downloading.
FN3592
Rev.2.00
August 1999
Features
• Electrically Screened to SMD # 5962-95686
• QML Qualified per MIL-PRF-38535 Requirements
• High Slew Rate . . . . . . . . . . . 50V/s (Min), 65V/s (Typ)
• Wide Power Bandwidth . . . . . . . . . . . . . . . . 750kHz (Min)
• Low Offset Current . . . . . . . . . . . . 25nA (Min), 10nA (Typ)
• High Input Impedance . . . . . . . 50M (Min), 100M (Typ)
• Wide Small Signal Bandwidth . . . . . . . . . . . 12MHz (Typ)
• Fast Settling Time (0.1% of 10V Step) . . . . . . 250ns (Typ)
• Low Quiescent Supply Current . . . . . . . . . . . . 6mA (Max)
• Internally Compensated For Unity Gain Stability
• Total Gamma Dose . . . . . . . . . . . . . . . . . . . . 10kRAD(Si)
Applications
• Data Acquisition Systems
• RF Amplifiers
• Video Amplifiers
• Signal Generators
• Pulse Amplification
Ordering Information
ORDERING NUMBER
5962D9568601VPA
5962D9568601VPC
5962D9568601VXC
INTERNAL
MKT. NUMBER
HS7-2510RH-Q
HS7B-2510RH-Q
HS9-2510RH-Q
TEMP. RANGE
(
o
C)
-55 to 125
-55 to 125
-55 to 125
Pinouts
HS-2510RH GDIP1-T8 (CERDIP)
OR
HS-2510RH CDIP2-T8 (SBDIP)
TOP VIEW
HS-2510RH
CDFP3-F14 (FLATPACK)
TOP VIEW
NC 1
BAL
IN-
IN+
V-
1
2
3
4
8
COMP
V+
OUT
BAL
COMP 2
BAL 3
IN- 4
IN+ 5
NC 6
NC 7
14 NC
13 V+
12 OUT
+
-
7
6
5
+
-
11 BAL
10 V-
9 NC
8 NC
FN3592 Rev.2.00
August 1999
Page 1 of 7
HS-2510RH
Test Circuit
ACOUT
V1
+VCC
0.1
100K
1 OPEN
2 S3A
S1
OPEN 2
S2
OPEN 2
100K
100
2
S3B
1
1
1
2
S5A
1
S7
3
BAL
ADJ
OPEN
1
2
2
S5B 1
S8
OPEN
2
1
2K
-VEE
2
OPEN
3
1
S9
2
V2
10K
500K
2K
50pF
(NOTE 1)
-1/10
50K
FOR LOOP STABILITY,
USE MIN VALUE CAPACITOR
TO PREVENT OSCILLATION
-1
+
BUFFER
-
DUT
+
1 S6
+
-
-
100
1
OPEN
VAC
0.1
1K
1
x2
5K
2
S4
50K
1
ALL RESISTORS =
1%
()
ALL CAPACITORS =
10%
(F)
EOUT
NOTE:
1. Includes stray capacitances.

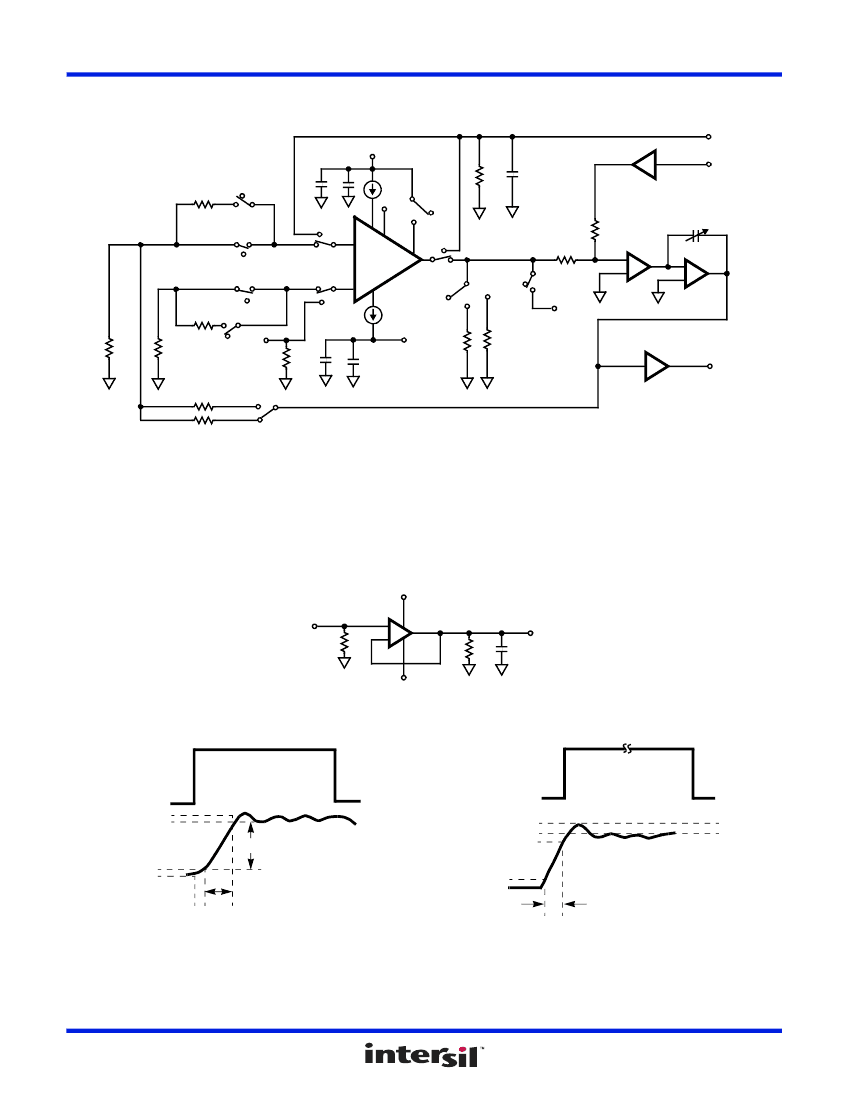

FIGURE 1. SIMPLIFIED TEST CIRCUIT
Test Circuit and Waveforms
+15V
INPUT
+
1K
OUTPUT
2K
50pF
-
-15V
FIGURE 2. SIMPLIFIED TEST CIRCUIT
+5V
INPUT
-5V
+5V
90%
OUTPUT
10%
-5V
T
SLEW
RATE
=V/T
V
INPUT
0V
OVERSHOOT
90%
OUTPUT
10%
RISE TIME
-200mV
+200mV
0V
NOTE: Measured on both positive and negative transitions.
Capacitance at Compensation pin should be minimized.
FIGURE 3. SLEW RATE WAVEFORM
NOTE: Measured on both positive and negative transitions.
Capacitance at Compensation pin should be minimized.
FIGURE 4. TRANSIENT RESPONSE WAVEFORM
FN3592 Rev.2.00
August 1999
Page 2 of 7
HS-2510RH

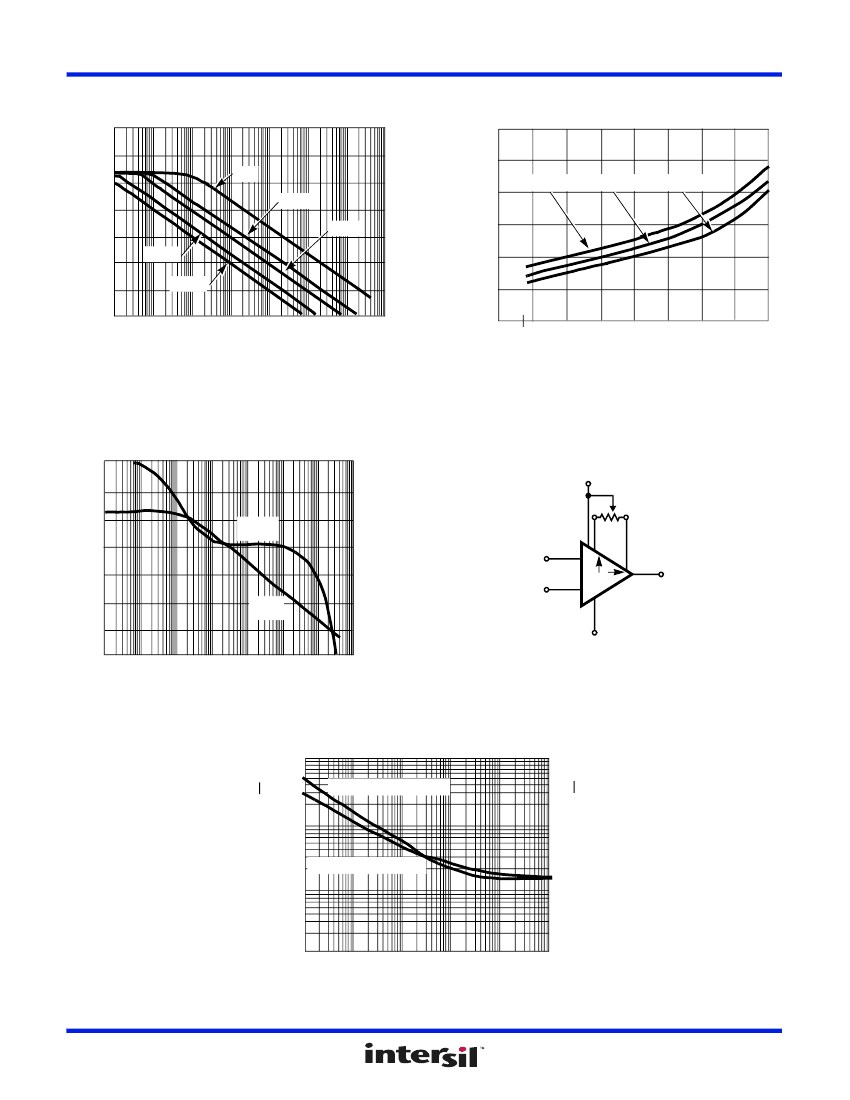

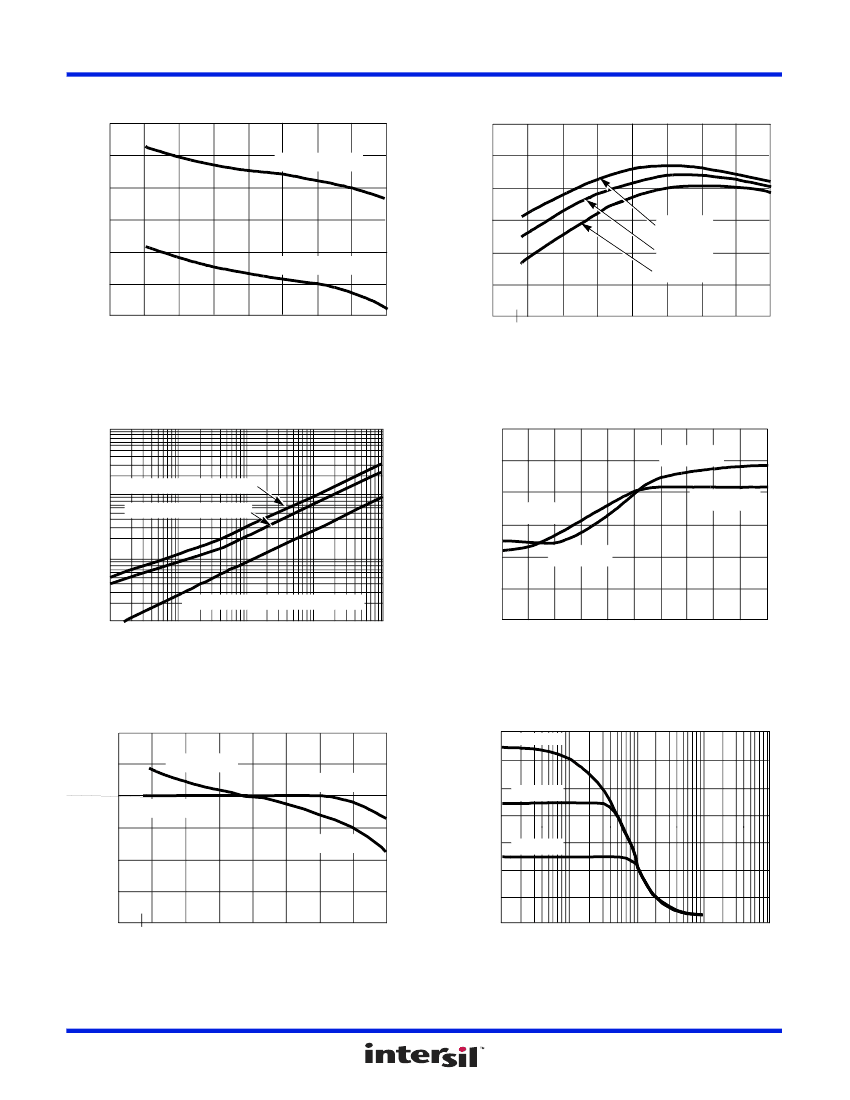

Typical Performance Curves
100
80
60
40
20
Unless Otherwise Specified: T
A
= 25
o
C, VSUPPLY =
15V
90
BIAS CURRENT
85
GAIN (dB)
VS =
20V
80
OFFSET CURRENT
VS =
15
VS =
10
CURRENT (nA)
0
-20
-50
-25
0
25
50
75
100
125
TEMPERATURE (
o
C)
75
-50
-55
-25
0
25
50
75
100
125
TEMPERATURE (
o
C)
FIGURE 5. INPUT BIAS AND OFFSET CURRENT vs
TEMPERATURE
FIGURE 6. OPEN LOOP VOLTAGE GAIN vs TEMPERATURE
100
NORMALIZED PARAMETERS
REFERRED TO VALUES AT
15V
EQUIVALENT INPUT NOISE (V)
1.1
SLEW RATE
10
10K SOURCE RESISTANCE
0 SOURCE RESISTANCE
1.0
BANDWIDTH
BANDWIDTH
1.0
0.9
SLEW RATE
THERMAL NOISE OF 10K RESISTOR
0.1
100Hz
1kHz
10kHz
100kHz
1MHz
0.8
10V
15V
SUPPLY VOLTAGE
20V
UPPER 3dB FREQUENCY LOWER 3dB FREQUENCY (10Hz)
FIGURE 7. EQUIVALENT INPUT NOISE vs BANDWIDTH
FIGURE 8. NORMALIZED AC PARAMETERS vs SUPPLY
VOLTAGE AT 25
o
C
1.1
NORMALIZED PARAMETERS
REFERRED TO VALUES AT
25
C
PEAK-TO-PEAK VOLTAGE SWING
BANDWIDTH
SLEW RATE
1.0
SLEW RATE
BANDWIDTH
0.9
35
30
25
20
15
10
5
0
10K
VS =
20
VS =
15
VS =
10
0.8
-50
-55
-25
0
25
50
75
100
125
TEMPERATURE (
o
C)
100K
1MEG
FREQUENCY (Hz)
10MEG
FIGURE 9. NORMALIZED AC PARAMETERS vs
TEMPERATURE
FIGURE 10. OUTPUT VOLTAGE SWING vs FREQUENCY
AT 25
o
C
FN3592 Rev.2.00
August 1999
Page 3 of 7
HS-2510RH
Typical Performance Curves
120
OPEN-LOOP VOLTAGE GAIN (dB)
100
80
60
40
20
0
-20
10
100
1K
10K
100K
300pF
1000pF
0pF
Unless Otherwise Specified: T
A
= 25
o
C, VSUPPLY =
15V
(Continued)
4.4
4.2
CURRENT (mA)
4.0
3.8
3.6
3.4
3.2
-50
-55
-25
0
25
50
75
100
125
TEMPERATURE (
o
C)
VS =
20
VS =
15
VS =
10
30pF
100pF
1M
10M
100M
FREQUENCY (Hz)
NOTE: External compensation components are not required for
stability, but may be added to reduce bandwidth, if desired.
FIGURE 11. OPEN LOOP FREQUENCY RESPONSE FOR
VARIOUS VALUES OF CAPACITORS FROM
COMPENSATION PIN TO GROUND
120
OPEN LOOP VOLTAGE GAIN (dB)
100
80
60
40
20
0
-20
10
100
1K
10K
100K
1M
10M
100M
FREQUENCY (Hz)
GAIN
30
o
60
o
PHASE ANGLE
RT
90
o
120
o
150
o
180
o
V+
FIGURE 12. POWER SUPPLY CURRENT vs TEMPERATURE
20k
PHASE
IN
BAL
OUT
V-
NOTE: Tested offset adjustment is |VOS + 1mV| minimum referred
to output typical range is
8mV
for RT = 20k
FIGURE 14. SUGGESTED VOS ADJUSTMENT
FIGURE 13. OPEN LOOP GAIN AND PHASE RESPONSE vs
FREQUENCY
1000
INPUT NOISE VOLTAGE (nV/Hz)
INPUT NOISE VOLTAGE
100
INPUT NOISE CURRENT (pA/Hz)
100
10
INPUT NOISE CURRENT
10
1
1
1
10
100
1K
10K
FREQUENCY (Hz)
0.1
100K
FIGURE 15. INPUT NOISE DENSITY vs FREQUENCY
FN3592 Rev.2.00
August 1999
Page 4 of 7
HS-2510RH
Burn-In Circuits
HS7-2510RH CERDIP
HS9-2510RH CERAMIC FLATPACK
1
R1
V-
D2
2
3
4
C2
+
8
7
6
5
C3
C1
D1
V+
1
2
3
4
5
R1
6
7
14
13
12
11
10
9
8
C2
D2
V-
C3
C1
D1
V+
NOTES:
2. R1 = 1M,
5%,
1/4W (Min)
3. C1 = C2 = 0.01F/Socket (Min) or 0.1F/Row (Min)
4. C3 = 0.01F/Socket (10%)
5. D1 = D2 = 1N4002 or Equivalent (Per Board)
6. |(V+) - (V-)| = 30V
NOTES:
7. R1 = 1M,
5%,
1/4W (Min)
8. C1 = C2 = 0.01F/Socket (Min) or 0.1F/Row (Min)
9. C3 = 0.01F/Socket (10%)
10. D1 = D2 = 1N4002 or Equivalent (Per Board)
11. |(V+) - (V-)| = 31V
1V
Irradiation Circuit
HS7-2510RH
C
1
R
V2
C
2
3
4
8
7
6
5
C
V1
NOTES:
12. V1 =
15V 10%
13. V2 = -15V
10%
14. R = 1M
5%
15. C = 0.1F
10%
FN3592 Rev.2.00
August 1999
Page 5 of 7
