RN1611(TE85L)

Description
TRANSISTOR 100 mA, 50 V, 2 CHANNEL, NPN, Si, SMALL SIGNAL TRANSISTOR, SM6, 2-3N1A, 6 PIN, BIP General Purpose Small Signal
CategoryDiscrete semiconductor    The transistor
File Size98KB,4 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Download Datasheet Parametric Compare View All

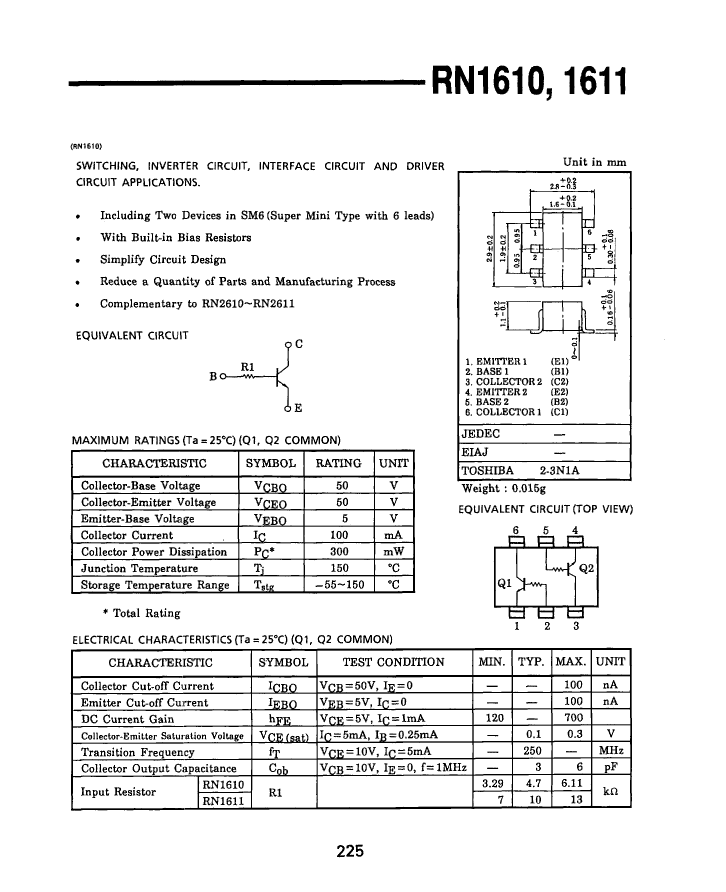

RN1611(TE85L) Overview

TRANSISTOR 100 mA, 50 V, 2 CHANNEL, NPN, Si, SMALL SIGNAL TRANSISTOR, SM6, 2-3N1A, 6 PIN, BIP General Purpose Small Signal

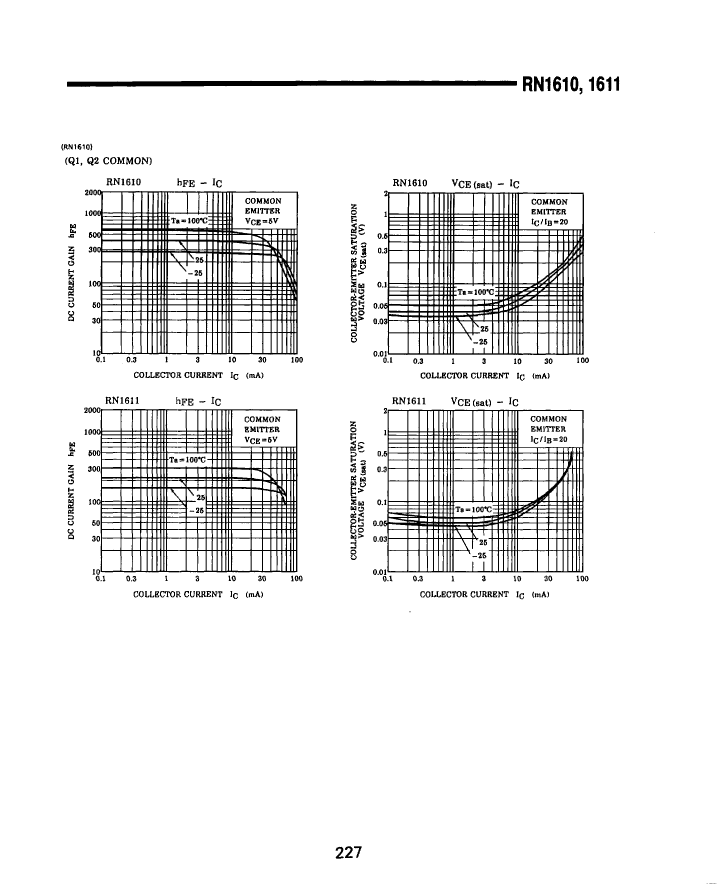

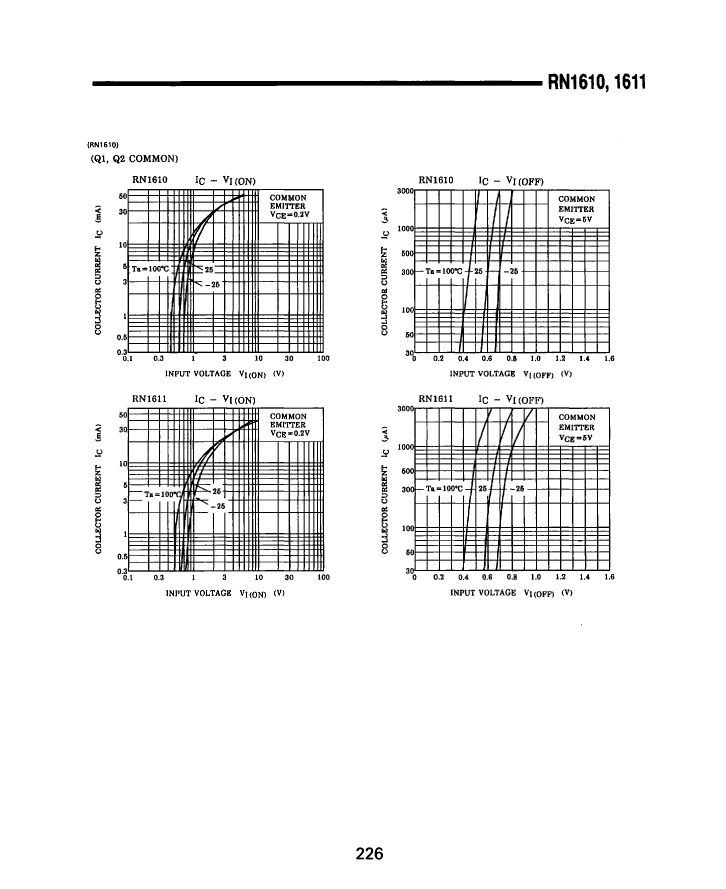

RN1611(TE85L) Parametric

Parameter NameAttribute value
MakerToshiba Semiconductor
package instructionSMALL OUTLINE, R-PDSO-G6
Contacts6
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresBUILT-IN BIAS RESISTOR
Maximum collector current (IC)0.1 A
Collector-emitter maximum voltage50 V
ConfigurationSEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)120
JESD-30 codeR-PDSO-G6
Number of components2
Number of terminals6
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typeNPN
Certification statusNot Qualified
surface mountYES
Terminal formGULL WING
Terminal locationDUAL
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)250 MHz

RN1611(TE85L) Related Products

RN1611(TE85L) RN1611(TE85R)
Description TRANSISTOR 100 mA, 50 V, 2 CHANNEL, NPN, Si, SMALL SIGNAL TRANSISTOR, SM6, 2-3N1A, 6 PIN, BIP General Purpose Small Signal TRANSISTOR 100 mA, 50 V, 2 CHANNEL, NPN, Si, SMALL SIGNAL TRANSISTOR, SM6, 2-3N1A, 6 PIN, BIP General Purpose Small Signal
Maker Toshiba Semiconductor Toshiba Semiconductor
package instruction SMALL OUTLINE, R-PDSO-G6 SMALL OUTLINE, R-PDSO-G6
Contacts 6 6
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Other features BUILT-IN BIAS RESISTOR BUILT-IN BIAS RESISTOR
Maximum collector current (IC) 0.1 A 0.1 A
Collector-emitter maximum voltage 50 V 50 V
Configuration SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE) 120 120
JESD-30 code R-PDSO-G6 R-PDSO-G6
Number of components 2 2
Number of terminals 6 6
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE
Polarity/channel type NPN NPN
Certification status Not Qualified Not Qualified
surface mount YES YES
Terminal form GULL WING GULL WING
Terminal location DUAL DUAL
transistor applications SWITCHING SWITCHING
Transistor component materials SILICON SILICON
Nominal transition frequency (fT) 250 MHz 250 MHz
