863050S015L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 863050S015L

863050S015L: DescriptionD Subminiature Connector, 50 Contact(s), Female, Crimp Terminal,; CategoryThe connector The connector; File Size133KB，2 Pages; ManufacturerSOURIAU

Download Datasheet Parametric Compare View All

863050S015L Overview

D Subminiature Connector, 50 Contact(s), Female, Crimp Terminal,

863050S015L Parametric

Parameter Name	Attribute value
Maker	SOURIAU
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Housing size	5/D
Termination type	CRIMP
Total number of contacts	50

Preview

Download Datasheet

View All

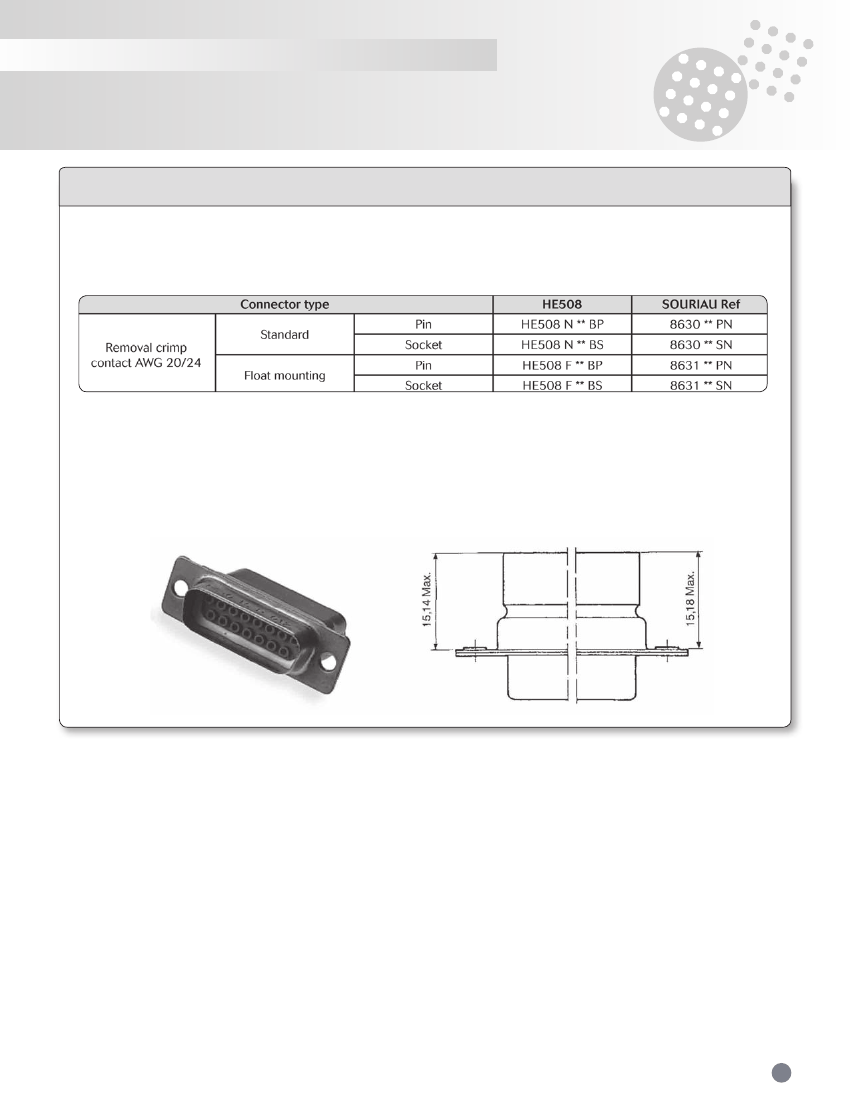

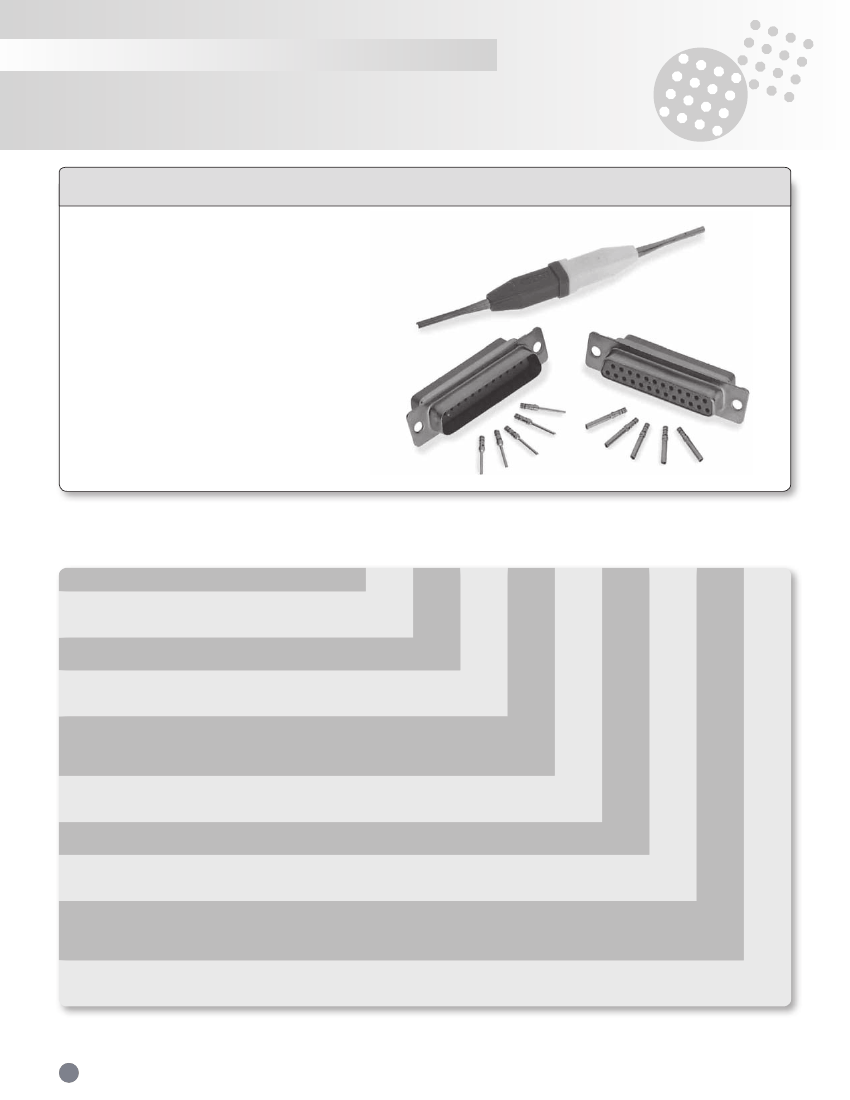

D-Subminiature Series

8630 Series HE508

Connector accomodating

removable machined

crimp contacts for 20/24

AWG wires

For heavy duty applications

Class -55°C to +1

25°C

Standard shell plating: Cadmium

Other platings: Tin & Zinc

Special proof version

Ordering information

Basic Series

Option

Standard mounting holes (Ø=3.10)

Float mounting

Number of contacts

09, 15, 25, 37, 50

Contact type

Socket

Specification

None:

Standard

Splash proof

015:

Dust proof

Contacts

None:

With standard 20/24 AWG contacts

Without contact

HE508 coding

Mandatory for standard version (not for 01 Splash proof version and for 01 Dust proof version)

Rear type

None:

Standard

Shielding termination fingers (only for T plating)

Shell plating

None:

Cadmium

Tin

Zinc

Front type

None:

Standard

With indents (only for front of male connector)

863

863050S015L Related Products

	863050S015L	863009P015	863009S015	863037S015L	863037S015	863050S015
Description	D Subminiature Connector, 50 Contact(s), Female, Crimp Terminal,	D Subminiature Connector, 9 Contact(s), Male, Crimp Terminal,	D Subminiature Connector, 9 Contact(s), Female, Crimp Terminal,	D Subminiature Connector, 37 Contact(s), Female, Crimp Terminal,	D Subminiature Connector, 37 Contact(s), Female, Crimp Terminal,	D Subminiature Connector, 50 Contact(s), Female, Crimp Terminal,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	MALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	YES	NO	NO	YES	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	5/D	1/E	1/E	4/C	4/C	5/D
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	50	9	9	37	37	50
Maker	SOURIAU	-	-	SOURIAU	SOURIAU	SOURIAU
