K9F8G08U0M-IIB00 datasheet, PDF

Datasheet> All Categories > storage> storage> K9F8G08U0M-IIB00

K9F8G08U0M-IIB00: DescriptionFlash, 1GX8, 20ns, PBGA52, 12 X 17 MM, 1 MM PITCH, ULGA-52; Categorystorage storage; File Size1MB，54 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/; Environmental Compliance

Download Datasheet Parametric Compare View All

K9F8G08U0M-IIB00 Overview

Flash, 1GX8, 20ns, PBGA52, 12 X 17 MM, 1 MM PITCH, ULGA-52

K9F8G08U0M-IIB00 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMSUNG
Parts packaging code	LGA
package instruction	VBGA, LGA52(UNSPEC)
Contacts	52
Reach Compliance Code	compliant
ECCN code	3A991.B.1.A
Maximum access time	20 ns
command user interface	YES
Data polling	NO
JESD-30 code	R-PBGA-B52
length	17 mm
memory density	8589934592 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of departments/size	4K
Number of terminals	52
word count	1073741824 words
character code	1000000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1GX8
Package body material	PLASTIC/EPOXY
encapsulated code	VBGA
Encapsulate equivalent code	LGA52(UNSPEC)
Package shape	RECTANGULAR
Package form	GRID ARRAY, VERY THIN PROFILE
page size	4K words
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Programming voltage	2.7 V
Certification status	Not Qualified
ready/busy	YES
Maximum seat height	0.65 mm
Department size	256K
Maximum standby current	0.00005 A
Maximum slew rate	0.03 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	BALL
Terminal pitch	1 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
switch bit	NO
width	12 mm

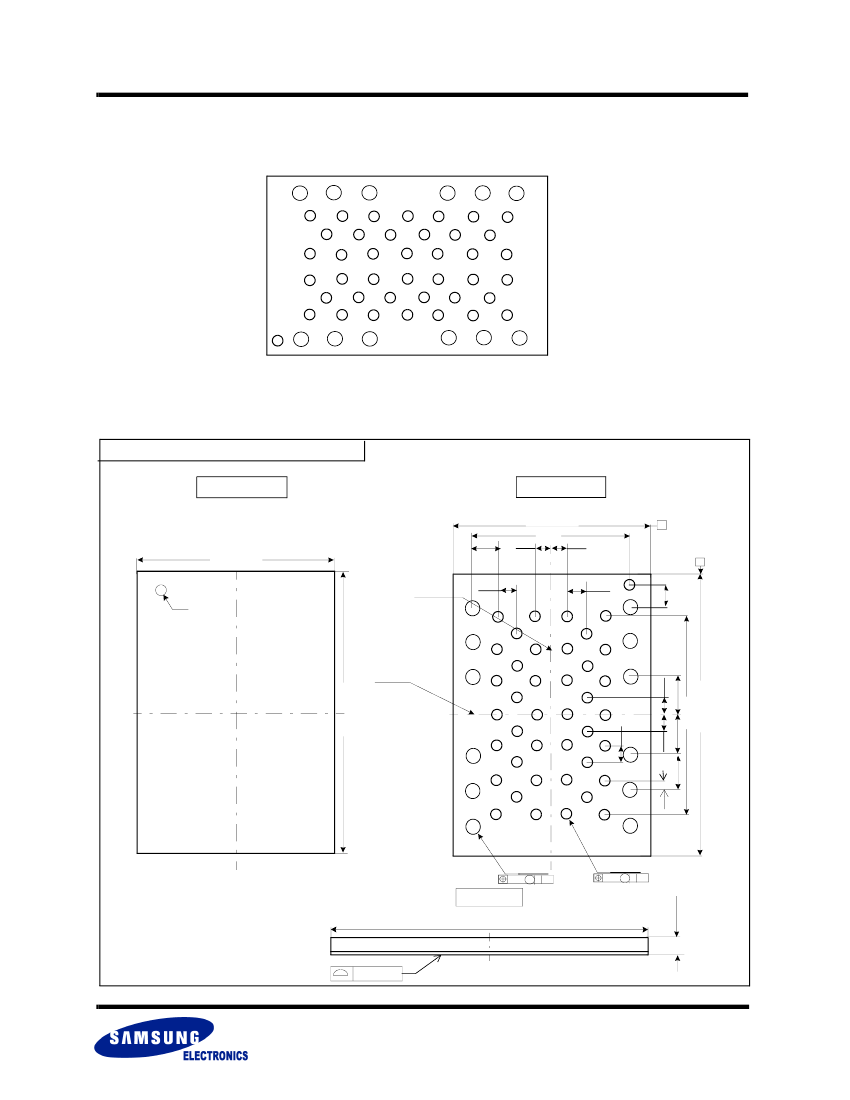

Preview

Download Datasheet

View All

K9KAG08U1M

K9F8G08U0M K9F8G08B0M

FLASH MEMORY

K9F8G08UXM

INFORMATION IN THIS DOCUMENT IS PROVIDED IN RELATION TO SAMSUNG PRODUCTS,

AND IS SUBJECT TO CHANGE WITHOUT NOTICE.

NOTHING IN THIS DOCUMENT SHALL BE CONSTRUED AS GRANTING ANY LICENSE,

EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE,

TO ANY INTELLECTUAL PROPERTY RIGHTS IN SAMSUNG PRODUCTS OR TECHNOLOGY. ALL

INFORMATION IN THIS DOCUMENT IS PROVIDED

ON AS "AS IS" BASIS WITHOUT GUARANTEE OR WARRANTY OF ANY KIND.

1. For updates or additional information about Samsung products, contact your nearest Samsung office.

2. Samsung products are not intended for use in life support, critical care, medical, safety equipment, or similar

applications where Product failure could result in loss of life or personal or physical harm, or any military or

defense application, or any governmental procurement to which special terms or provisions may apply.

* Samsung Electronics reserves the right to change products or specification without notice.

K9F8G08U0M-IIB00 Related Products

	K9F8G08U0M-IIB00	K9F8G08U0M-PCB0T	K9F8G08B0M-PIB00	K9F8G08U0M-PCB00	K9F8G08U0M-PIB00	K9KAG08U1M-ICB00	K9KAG08U1M-IIB00	K9F8G08U0M-ICB00	K9F8G08B0M-PCB00
Description	Flash, 1GX8, 20ns, PBGA52, 12 X 17 MM, 1 MM PITCH, ULGA-52	Flash, 1GX8, 20ns, PDSO48, 12 X 20 MM, 0.50 MM PITCH, TSOP-1	Flash, 1GX8, 20ns, PDSO48, 12 X 20 MM, 0.50 MM PITCH, TSOP-1	Flash, 1GX8, 20ns, PDSO48, 12 X 20 MM, 0.50 MM PITCH, TSOP-1	Flash, 1GX8, 20ns, PDSO48, 12 X 20 MM, 0.50 MM PITCH, TSOP-1	Flash, 2GX8, 20ns, PBGA52, 12 X 17 MM, 1 MM PITCH, ULGA-52	Flash, 2GX8, 20ns, PBGA52, 12 X 17 MM, 1 MM PITCH, ULGA-52	Flash, 1GX8, 20ns, PBGA52, 12 X 17 MM, 1 MM PITCH, ULGA-52	Flash, 1GX8, 20ns, PDSO48, 12 X 20 MM, 0.50 MM PITCH, TSOP-1
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	LGA	TSOP1	TSOP1	TSOP1	TSOP1	LGA	LGA	LGA	TSOP1
package instruction	VBGA, LGA52(UNSPEC)	12 X 20 MM, 0.50 MM PITCH, TSOP-1	TSOP1, TSSOP48,.8,20	TSOP1, TSSOP48,.8,20	TSOP1, TSSOP48,.8,20	VBGA, LGA52(UNSPEC)	VBGA, LGA52(UNSPEC)	VBGA, LGA52(UNSPEC)	TSOP1, TSSOP48,.8,20
Contacts	52	48	48	48	48	52	52	52	48
Reach Compliance Code	compliant	unknown	unknown	unknown	unknown	compliant	compliant	compliant	unknow
ECCN code	3A991.B.1.A	3A991.B.1.A	3A991.B.1.A	3A991.B.1.A	3A991.B.1.A	3A991.B.1.A	3A991.B.1.A	3A991.B.1.A	3A991.B.1.A
Maximum access time	20 ns	20 ns	20 ns	20 ns	20 ns	20 ns	20 ns	20 ns	20 ns
command user interface	YES	YES	YES	YES	YES	YES	YES	YES	YES
JESD-30 code	R-PBGA-B52	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PBGA-B52	R-PBGA-B52	R-PBGA-B52	R-PDSO-G48
length	17 mm	18.4 mm	18.4 mm	18.4 mm	18.4 mm	17 mm	17 mm	17 mm	18.4 mm
memory density	8589934592 bit	8589934592 bit	8589934592 bit	8589934592 bit	8589934592 bit	17179869184 bit	17179869184 bit	8589934592 bit	8589934592 bi
Memory IC Type	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
memory width	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1
Number of departments/size	4K	4K	4K	4K	4K	4K	4K	4K	4K
Number of terminals	52	48	48	48	48	52	52	52	48
word count	1073741824 words	1073741824 words	1073741824 words	1073741824 words	1073741824 words	2147483648 words	2147483648 words	1073741824 words	1073741824 words
character code	1000000000	1000000000	1000000000	1000000000	1000000000	2000000000	2000000000	1000000000	1000000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1GX8	1GX8	1GX8	1GX8	1GX8	2GX8	2GX8	1GX8	1GX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	VBGA	TSOP1	TSOP1	TSOP1	TSOP1	VBGA	VBGA	VBGA	TSOP1
Encapsulate equivalent code	LGA52(UNSPEC)	TSSOP48,.8,20	TSSOP48,.8,20	TSSOP48,.8,20	TSSOP48,.8,20	LGA52(UNSPEC)	LGA52(UNSPEC)	LGA52(UNSPEC)	TSSOP48,.8,20
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	GRID ARRAY, VERY THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	GRID ARRAY, VERY THIN PROFILE	GRID ARRAY, VERY THIN PROFILE	GRID ARRAY, VERY THIN PROFILE	SMALL OUTLINE, THIN PROFILE
page size	4K words	4K words	4K words	4K words	4K words	4K words	4K words	4K words	4K words
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	260	NOT SPECIFIED	260	260	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3 V	3.3 V	2.7 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	2.7 V
Programming voltage	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ready/busy	YES	YES	YES	YES	YES	YES	YES	YES	YES
Maximum seat height	0.65 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	0.65 mm	0.65 mm	0.65 mm	1.2 mm
Department size	256K	256K	256K	256K	256K	256K	256K	256K	256K
Maximum standby current	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.001 A	0.001 A	0.00005 A	0.00005 A
Maximum slew rate	0.03 mA	0.03 mA	0.03 mA	0.03 mA	0.03 mA	0.03 mA	0.03 mA	0.03 mA	0.03 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	2.9 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	2.9 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.5 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.5 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	2.7 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	2.7 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	BALL	GULL WING	GULL WING	GULL WING	GULL WING	BALL	BALL	BALL	GULL WING
Terminal pitch	1 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	1 mm	1 mm	1 mm	0.5 mm
Terminal location	BOTTOM	DUAL	DUAL	DUAL	DUAL	BOTTOM	BOTTOM	BOTTOM	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	40	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	12 mm	12 mm	12 mm	12 mm	12 mm	12 mm	12 mm	12 mm	12 mm
Maker	SAMSUNG	-	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
Data polling	NO	NO	NO	NO	NO	-	-	NO	NO
switch bit	NO	NO	NO	NO	NO	-	-	NO	NO
